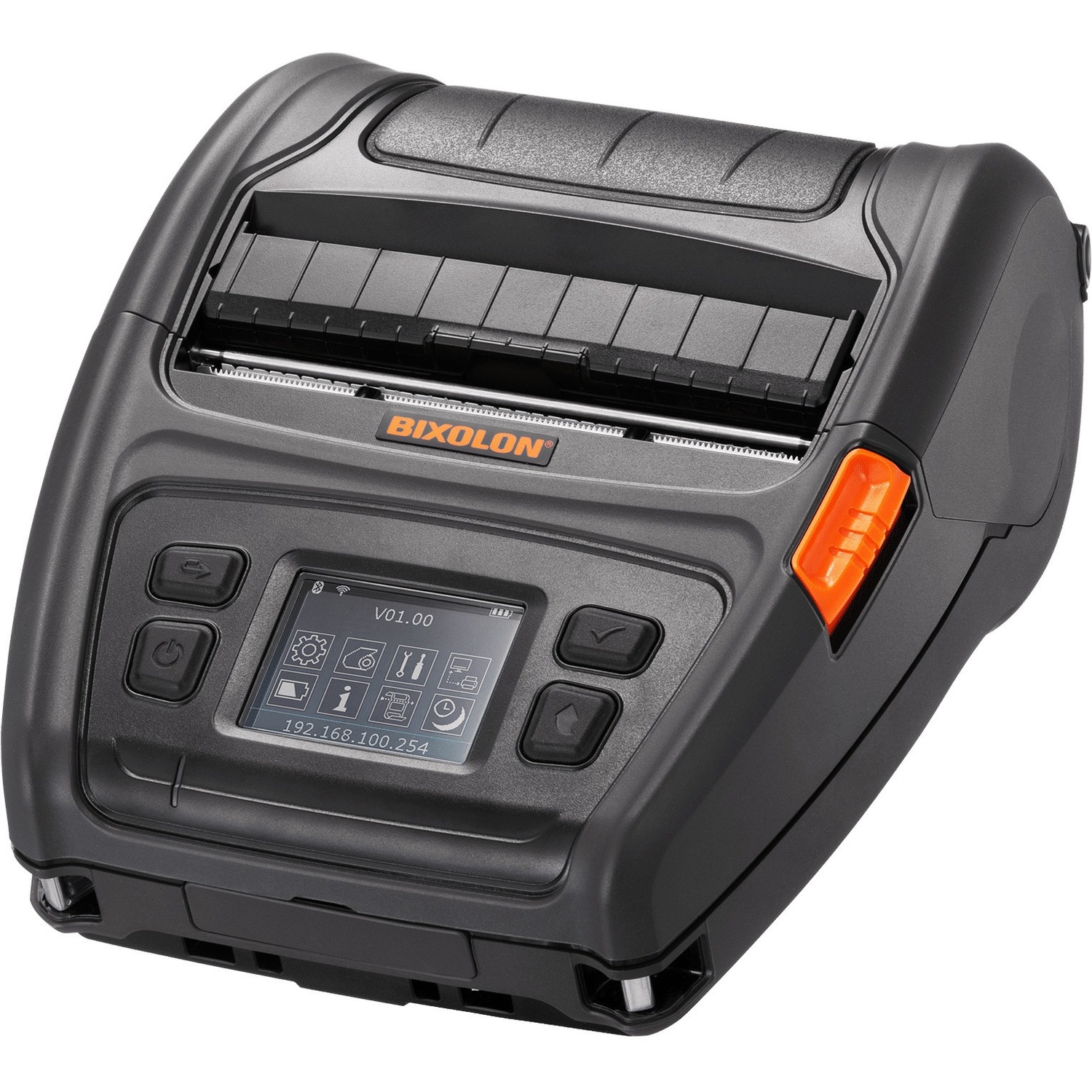

Bixolon XM7-40 Mobile Direct Thermal Printer - Monochrome - Label Print - USB - Serial - Wireless LAN - Battery Included - Black

LCD Display Screen - 4.09" Print Width - 5 in/s (127 mm/s) Mono - 203 dpi - 4.41" (112 mm) Label Width - SLCS, BPL-Z, BXL/POS, BPL-C Emulation - For iOS, Android, PC

Part No. XM7-40WK

by Bixolon America, Inc

$711.99

Specifications

General Information

Manufacturer	Bixolon America, Inc
Manufacturer Part Number	XM7-40WK
Brand Name	Bixolon
Product Series	XM7
Product Model	XM7-40
Product Name	XM7-40 Direct Thermal Printer
Product Type	Direct Thermal Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	127 mm/s
Maximum Print Resolution (dpi)	203
Maximum Print Width	4.09"
Barcode Symbology Supported	1D Codabar Code 11 Code 39 Code 93 Code 128 EAN-13 EAN-8 Industrial 2 of 5 Interleaved 2 of 5 LOGMARS MSI Plessey POSTNET GS1 DataBar Standard 2 of 5 UPC/EAN UPC-E IMB 2D AZTEC Codablock Code 49 Data Matrix Maxi Code Micro PDF-417 PDF-417 QR Code TLC 39
Application/Usage	Mobile
Features	Tear Bar LCD Display Compact Rugged Water Proof Dust Resistant Drop Resistant
Mobile Device Printing	Yes
Wireless Print Technology	Wi-Fi Direct
Ingress Protection (IP) Rating	IP54
Optional Connectivity	Bluetooth
Fonts Included	10 SLCS One SLCS 16 BPL-Z One BPL-Z 7 BPL-C 23 Code Page Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Print Technology	Direct Thermal

Interfaces/Ports

Serial Port	Yes
USB	Yes

Network & Communication

Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n
Wi-Fi Direct	Yes

Display & Graphics

Display Screen	Yes
Display Screen Type	LCD

Media Types & Handling

Media Type	Label Notch Receipt
Media Sensor	Transmissive Media Sensor Paper End Sensor Gap Sensor Black Mark Sensor
Media Thickness	5.9 mil
Maximum Roll Diameter	2.6"
Maximum Label Width	4.41" (112 mm)

Fonts & Emulation

Language Emulation	SLCS BPL-Z BXL/POS BPL-C

Software

Operating System Supported	Windows Driver (Europlus / Seagull), Linux / Mac CUPS Driver, Virtual COM USB Driver, Utility Program, LabelArtist-II™, Bartender UL, OPOS / JPOS Driver, SAP® Device Driver

Power Description

Power Source	Battery

Battery Information

Battery Included	Yes

Environmental Conditions

Operating Temperature	5°F (-15°C) - 122°F (50°C)
Operating Relative Humidity	10% - 80%
Storage Temperature	-22°F (-30°C) - 158°F (70°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Height	3.23" (82 mm)
Width	6.22" (158 mm)
Depth	7.32" (186 mm)
Weight (Approximate)	360 g

Miscellaneous

Platform Supported	iOS Android PC
Energy Star	Yes
COO	KR
Condition	No
