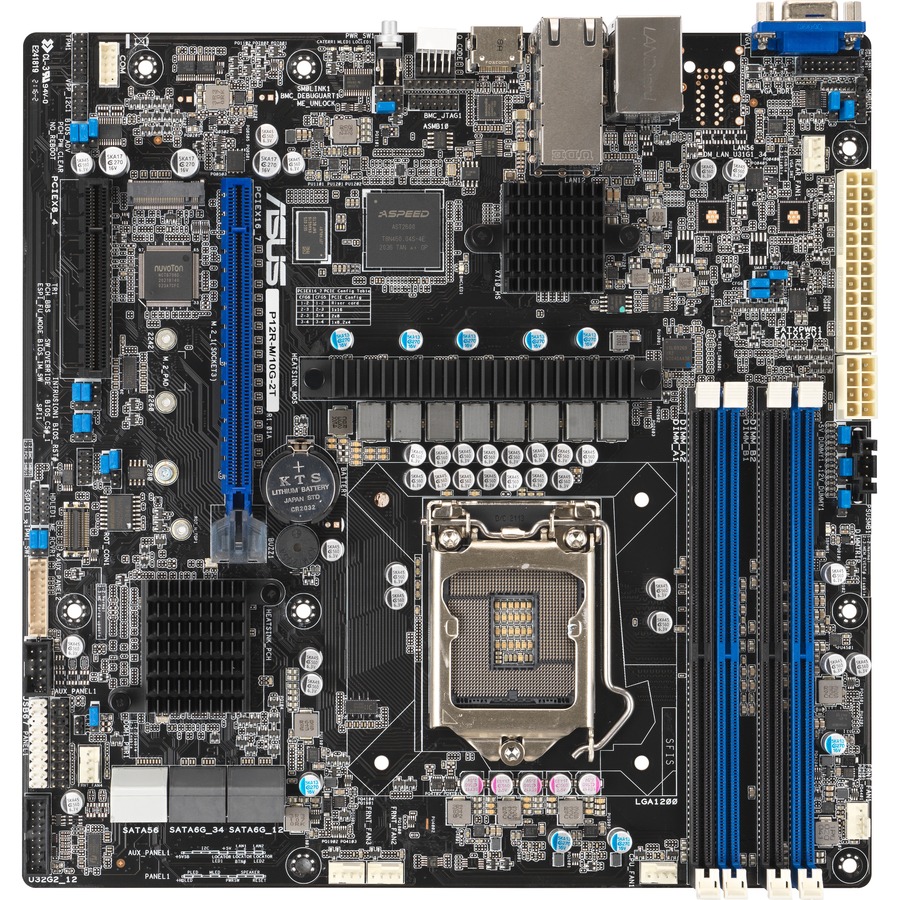

Asus P12R-M Server Motherboard - Intel C252 Chipset - Socket LGA-1200 - Micro ATX
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | P12R-M |
| Brand Name | Asus |
| Product Model | P12R-M |
| Product Name | P12R-M Server Motherboard |
| Marketing Information | Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM PCIe 4.0 Ready PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads. Intel Xeon E-2300 processors Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs. High-resolution HDMI monitoring ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring. Dual Ethernet bandwidth With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications. Server-management Solution | ASUS ASMB10-iKVM ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API. ASUS Control Center ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. |
| Product Type | Server Motherboard |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported |
|
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported |
|
| Controller Type | Serial ATA/600 |
| Gigabit Ethernet | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of USB Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 1.4 |
| Number of Network (RJ-45) Ports | 2 |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
