Panorama Antennas Low Profile 4x4 4G/5G MiMo LTE GPS/GNSS Active Antenna 26dB LNA
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, GPS, GLONASS, Wireless Data Network - White - Panel Mount - SMA Connector
$496.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | LG-IN2444-W-LC |
| Brand Name | Panorama Antennas |
| Product Model | LG-IN2444 |
| Product Name | Low Profile 4x4 4G/5G MiMo LTE GPS/GNSS Active Antenna 26dB LNA |

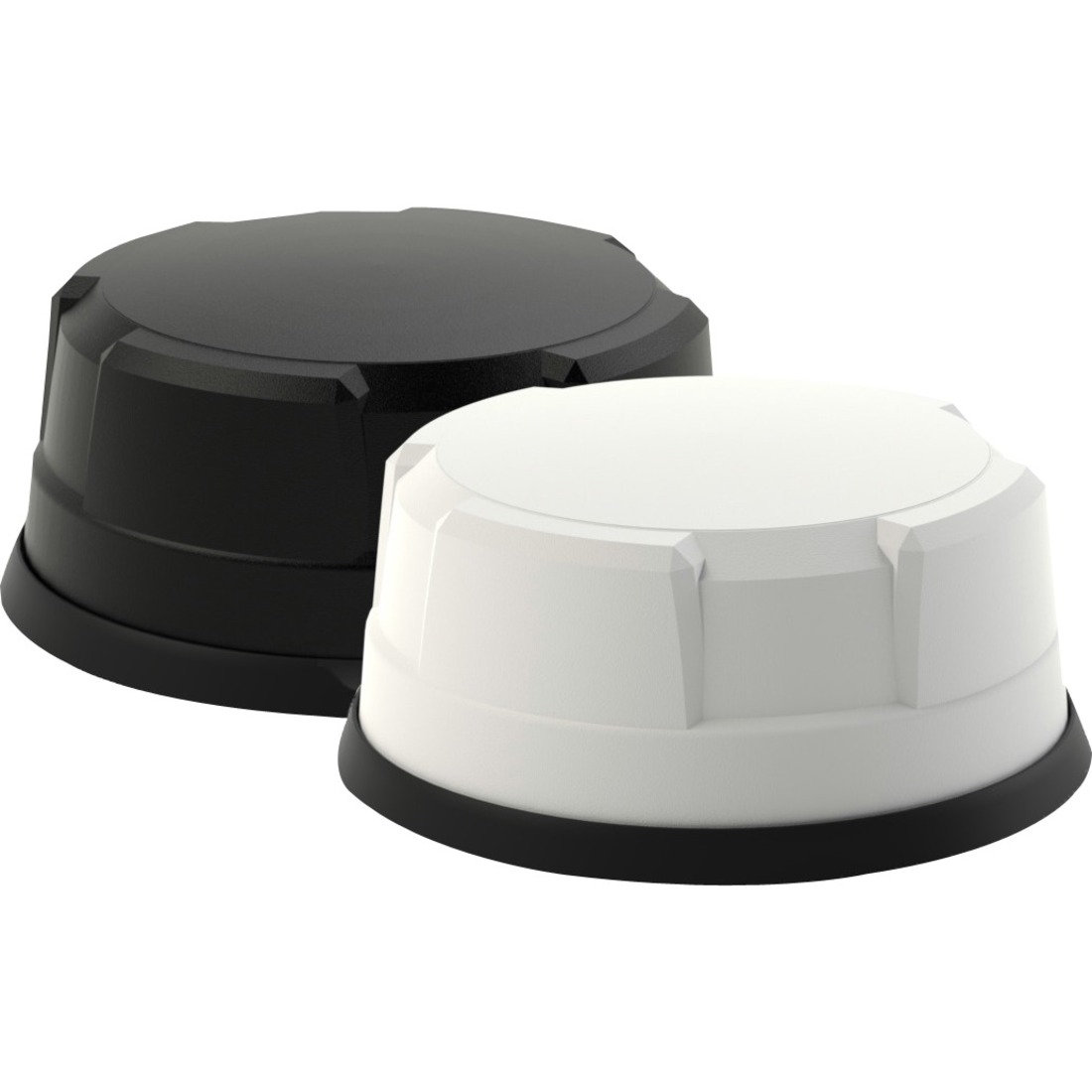

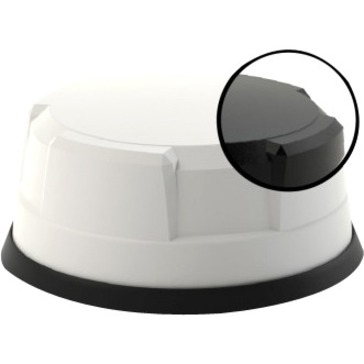

| Marketing Information | The LG-IN2444 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS in a compact low profile housing. The antenna is designed to be panel mounted and can be fitted on a conductive or nonconductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection. The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. LG-IN2444 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS.
|
| Product Type | Antenna |
Technical Information
| Operating Frequency Range |
|
| Antenna Gain | 26 dB |
Interfaces/Ports
| Connector Type | SMA |
Physical Characteristics
| Product Color | White |
| Height | 3.15" (80 mm) |
| Diameter | 7.09" (180 mm) |
| Form Factor | Panel Mount |
Miscellaneous
| Application/Usage |
|
| Condition | No |
| UPC | 5055416055019 |
