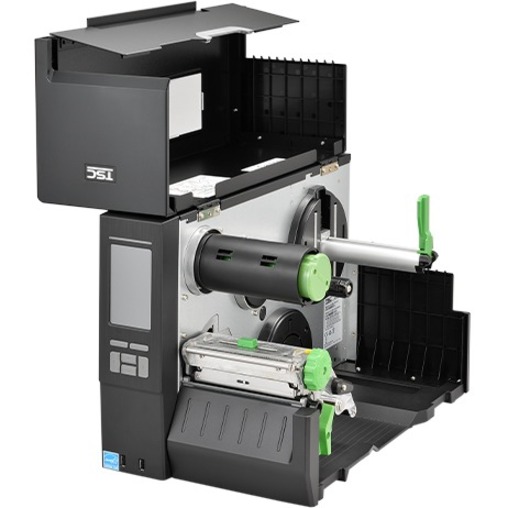

Printronix Auto ID MH341T Direct Thermal/Thermal Transfer Printer - Monochrome - Tabletop - Label Print - USB - USB Host - Serial - Parallel - Bluetooth - Wireless LAN - With Cutter

Part No. MH341T-A001-0301

by TSC Auto ID Technology Co., Ltd

Printronix Auto ID MH341T Direct Thermal/Thermal Transfer Printer - Monochrome - Tabletop - Label Print - USB - USB Host - Serial - Parallel - Bluetooth - Wireless LAN - With Cutter

4.3" LCD Display Screen - 37.50 ft (11430 mm) Print Length x 4.09" (104 mm) Print Width - 12.01 in/s (305 mm/s) Mono - 300 dpi - 4.50" (114.30 mm) Label Width x 37.50 ft (11430 mm) Label Length - TSPL-EZD Emulation - For PC

Part No. MH341T-A001-0301

by TSC Auto ID Technology Co., Ltd

$2652.99
General Information
ManufacturerTSC Auto ID Technology Co., Ltd
Manufacturer Part NumberMH341T-A001-0301
Brand NamePrintronix Auto ID
Product SeriesMH
Product ModelMH341T
Product NameMH Series 4-Inch Performance Industrial Printer
Marketing Information

The MH241 Series is TSC's mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities.

The MH240 Series features premium printhead technology, fast processor, and all the memory customers will need to print high-quality labels delivered at the fastest speeds.

Sophisticated TSC Sense Care
The TSC TPH Care Mechanism offers an advanced level of auto-detection ensuring real-time printhead health status, to monitor and prevent down. In addition, the MH241 series supports various media with a pre-printed black mark on top or bottom sides by user's selection in the panel menu.

Dynamic Remote Printer Management
SOTI Connect and TSC Console provide enterprise remote printer management on multiple tasks to reduce maintenance costs and avoid downtime of business-critical devices.

Multi-Connectivity
The MH241 series offers GPIO to support common applicators and emulations along with an optional 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module.

Highly Adaptable to Various Media
MH241 printers can adapt to various media lengths and widths. With accurate printing positioning, the MH241 and MH241T are capable of peeling off minimum of 0.5-inch labels in length. Additionally, the mechanism for fine adjustment to avoid ribbon wrinkles and ensures label print quality.

Brilliant User Experience
The MH241T and MH241P can easily adjust the media near-end sensor to detect the media and remind users to change the media roll on color GUI display (Media near the end). The MH241 series allows users to easily replace printhead and platen roller without the need for specific tools.

Product TypeDirect Thermal/Thermal Transfer Printer
Technical Information
Recommended UseLabel Print
Print Color CapabilityMonochrome
Maximum Mono Print Speed12.01 in/s (305 mm/s)
Maximum Print Resolution (dpi)300
Maximum Print Length37.50 ft (11430 mm)
Maximum Print Width4.09" (104 mm)
Barcode Symbology Supported
  • Code 39
  • Code 93
  • Code 128 UCC
  • Code 128
  • Codabar
  • Interleaved 2 of 5
  • EAN-8
  • EAN-13
  • EAN-128
  • UPC-A/E
  • EAN and UPC 2(5) Digits Add-On
  • MSI
  • Plessey
  • POSTNET
  • RSS Stacked
  • GS1 DataBar
  • Code 11
  • China Post
  • PDF417
  • Maxi Code
  • Data Matrix
  • QR Code
  • AZTEC
Connectivity TechnologyWired
Print TechnologyDirect Thermal /Thermal Transfer
Memory
Standard Memory512 MB
Interfaces/Ports
Parallel PortYes
Serial PortYes
USB HostYes
USBYes
Network & Communication
Network ReadyYes
EthernetYes
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11a/ac/b/g/n
Display & Graphics
Display ScreenYes
Screen Size4.3"
Display Screen TypeLCD
TouchscreenYes
Cutter
CutterYes
Media Types & Handling
Media Type
  • Continuous Label
  • Die-cut Label
  • Black Mark
  • Fanfold
  • Notch
  • Perforated Label
  • Tag
Media Sensor
  • Gap Sensor
  • Black Mark Sensor
  • Head Open Sensor
  • Ribbon Encode Sensor
  • Paper Near End Sensor
Media Thickness11 mil (0.279400 mm)
Maximum Label Width4.50" (114.30 mm)
Maximum Label Length37.50 ft (11430 mm)
Fonts & Emulation
Language EmulationTSPL-EZD
Power Description
Power Source
  • AC
  • DC
Environmental Conditions
Operating Temperature32°F (0°C) - 104°F (40°C)
Operating Relative Humidity25% - 85%
Storage Temperature-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity10% - 90%
Physical Characteristics
Form FactorTabletop
Height12.83" (326 mm)
Width10.87" (276 mm)
Depth19.76" (502 mm)
Weight (Approximate)34.61 lb (15700 g)
Miscellaneous
Platform SupportedPC
Energy StarYes
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
COOTW
ConditionNo
Warranty
Limited Warranty2 Year
