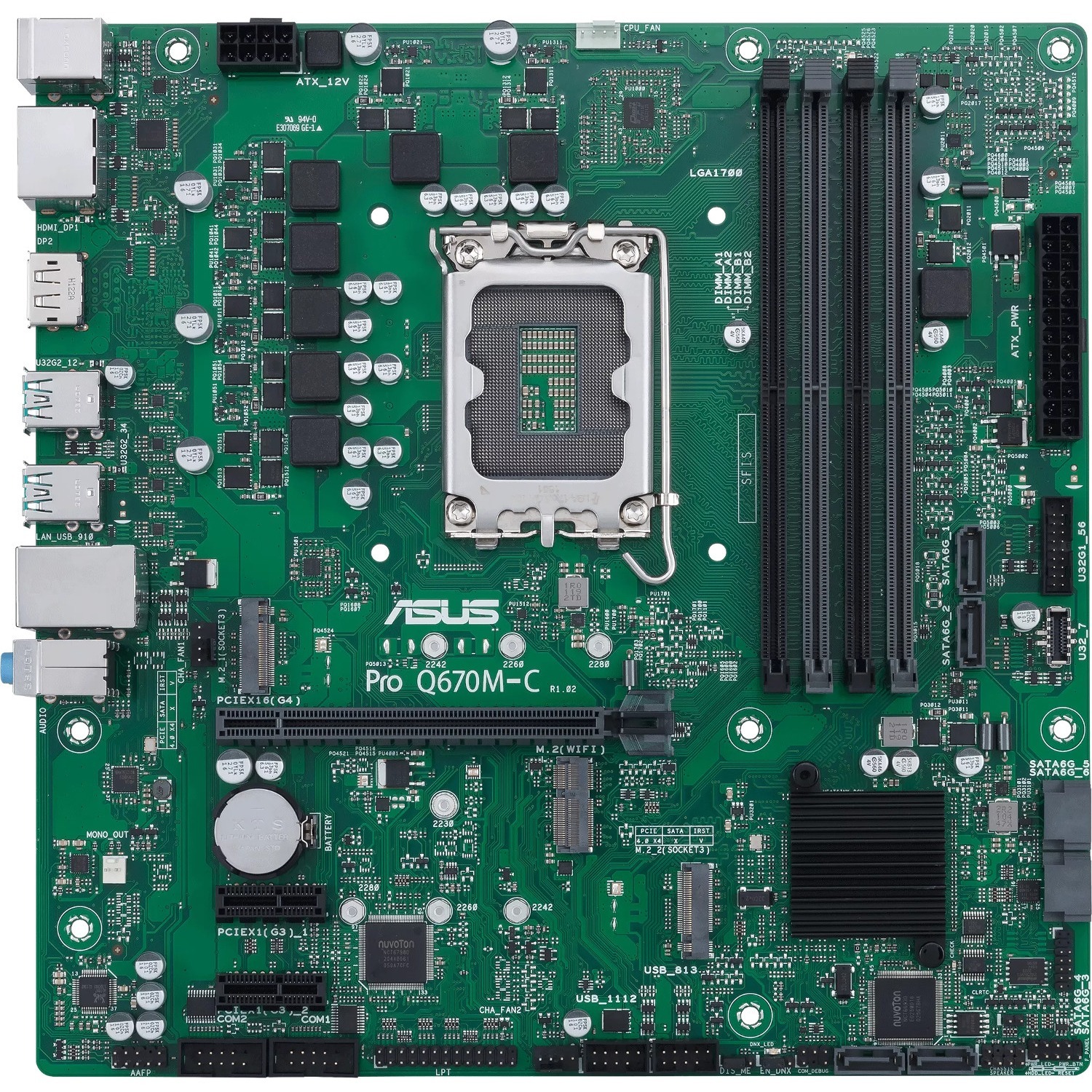

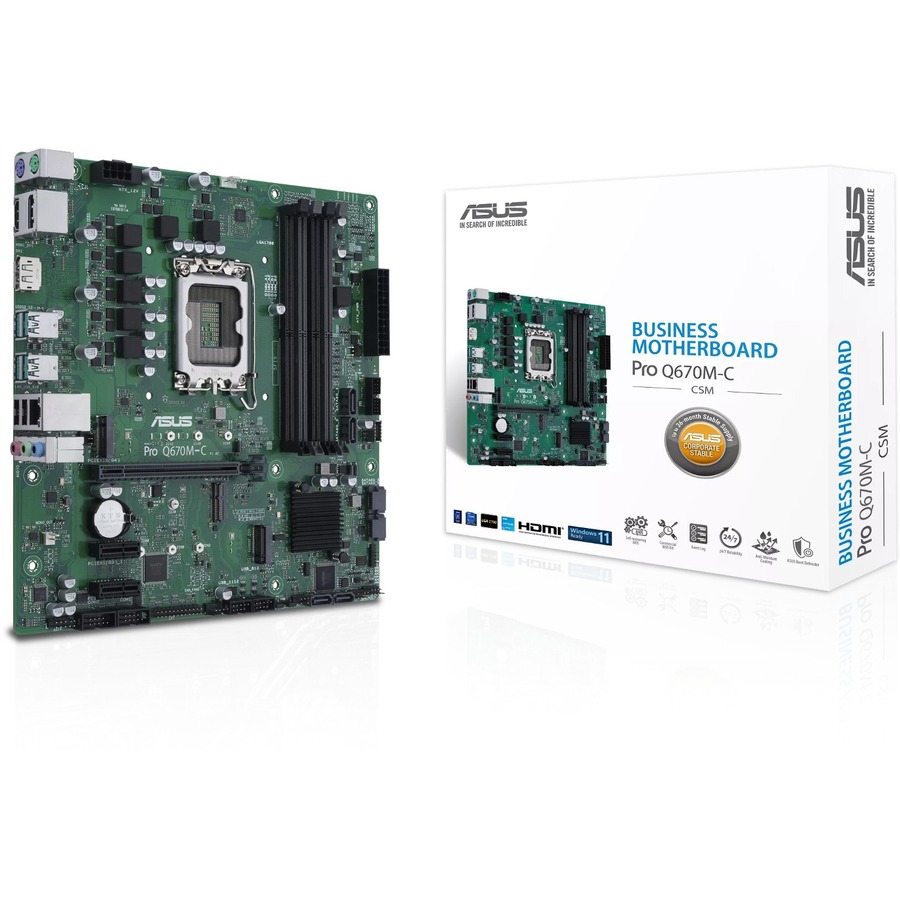

Asus PRO Q670M-C-CSM Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Part No. PRO Q670M-C-CSM

by ASUS Computer International

Asus PRO Q670M-C-CSM Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX

Core i3, Core i5, Pentium, Core i9, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces

Part No. PRO Q670M-C-CSM

by ASUS Computer International

$290.99
General Information
ManufacturerASUS Computer International
Manufacturer Part NumberPRO Q670M-C-CSM
Brand NameAsus
Product SeriesPRO
Product ModelPRO Q670M-C-CSM
Product NamePRO Q670M-C-CSM Desktop Motherboard
Marketing Information

Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
PRO

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Product TypeDesktop Motherboard
Processor & Chipset
Chipset ManufacturerIntel
Chipset ModelQ670
Total Processor Supported1
Processor SocketSocket LGA-1700
Processor Supported
  • Core i3
  • Core i5
  • Pentium
  • Core i9
  • Celeron
Memory
Number of Memory Slots4
Memory Form Factor
  • DIMM
  • UDIMM
Maximum Memory Supported128 GB
Memory TechnologyDDR5 SDRAM
Memory Speed Supported4800 MHz
Intel Optane Memory ReadyYes
I/O Controller
Controller TypeSerial ATA/600
Intel RSTYes
RAID SupportedYes
RAID Levels
  • 0
  • 1
  • 5
  • 10
Video
Onboard VideoCPU Dependent Video
Audio
Audio Channels7.1
Network & Communication
Gigabit EthernetYes
I/O Expansions
Total Number of Expansion Slots3
Total Number of PCI Express Slots3
Number of PCI Express x1 Slots2
Number of PCI Express x16 Slots1
Interfaces/Ports
Total Number of USB Ports6
Number of USB 2.0 Ports2
Number of USB 3.2 Gen 2 Type-A Ports4
HDMIYes
DisplayPortYes
Number of Network (RJ-45) Ports1
Onboard Interfaces
Number of SATA Interfaces6
Number of M.2 Interfaces2
Total Number of Onboard USB Ports7
Number of Onboard USB 2.0 Ports4
Number of Onboard USB 3.2 Ports3
Physical Characteristics
Form FactorMicro ATX
Width9.61" (244 mm)
Depth9.61" (244 mm)
Miscellaneous
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC195553518383
