StarTech.com USB-C Multiport Adapter w/USB-C DP Alt Mode Video/4K HDMI/VGA, USB-C Dual Monitor Docking Station, Type C Mini Dock/MST HubStarTech.com USB-C Multiport Adapter w/USB-C DP Alt Mode Video/4K HDMI/VGA, USB-C Dual Monitor Docking Station, Type C Mini Dock/MST Hub
In Stock Availability
- All Locations: (2399+)
- Other_SY (2394+)
- Toronto, ON (5+)
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DKM31C3HVCPD |
| Brand Name | StarTech.com |
| Product Name | Docking Station |

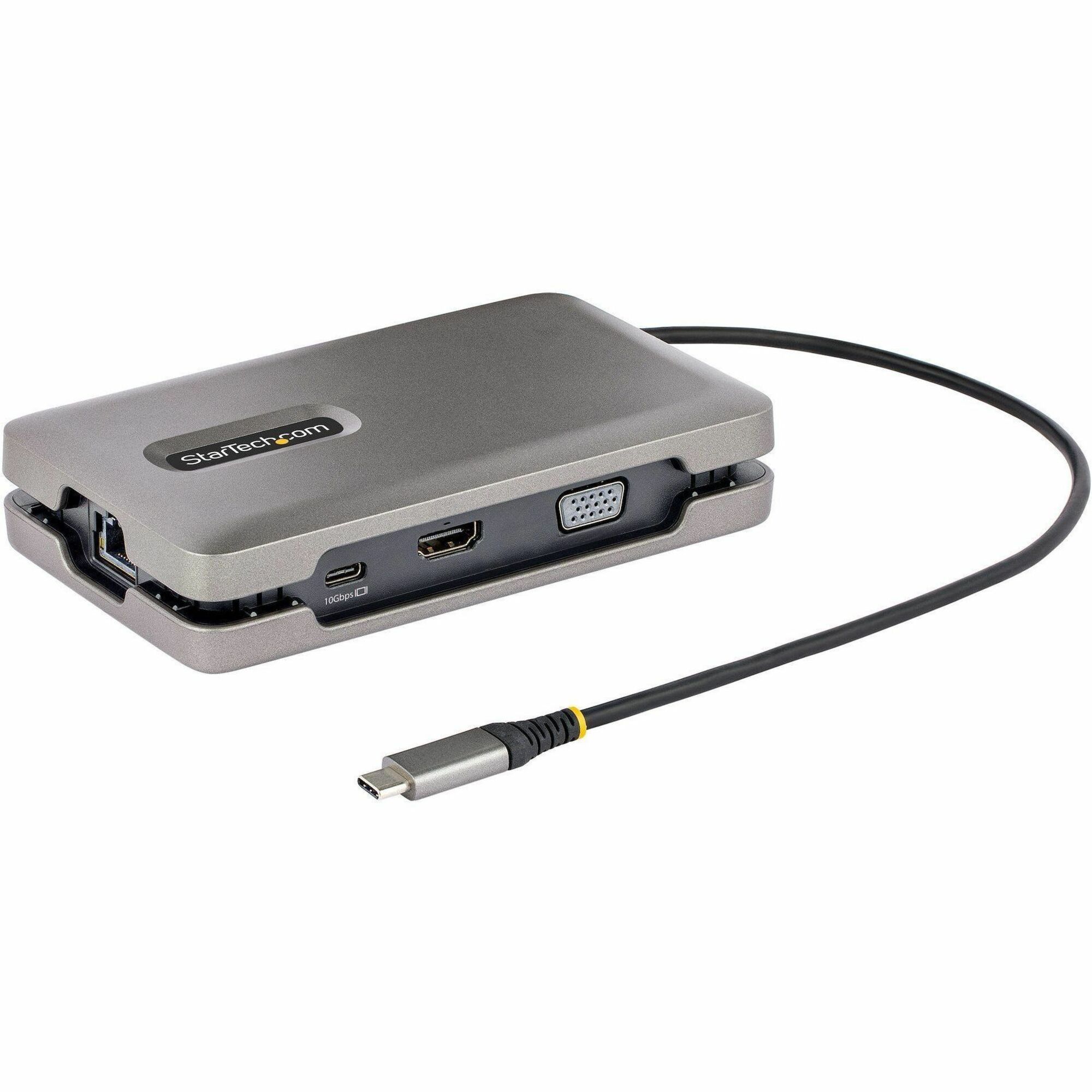

| Marketing Information | This USB-C™ Multiport Adapter/Docking Station with DisplayPort™ 1.4 (Alt Mode) and Multi-Stream Transport (MST), features three video output options (HDMI, VGA and USB-C video) to support a single or multi-monitor workstation. The USB-C video port supports USB 3.2 Gen 2 (10Gbps) with 10W of power, to connect a USB-C monitor or a USB-C peripheral. In addition, the Docking Station also features a 2-Port USB-A 3.2 Gen 2 (10 Gbps) Hub, a Gigabit Ethernet port, and providing advanced charging through a USB Power Delivery (PD) 3.0 pass-through port. The Multiport Adapter connects to a laptop's USB-C or Thunderbolt 3/4™ port, using the integrated 10-inch (25.4cm) USB-C cable. Versatile, High-Performance Video via MST The compact USB Type-C Docking Station features three video output options to turn your laptop into a single or multi-monitor workstation. HDMI Port Provides HDR video with resolutions up to 4K 60Hz. VGA Port Provides analog video with resolutions up to 1080p 60Hz. USB-C Port Provides the industry's first downstream full featured video or data (10Gbps) USB-C port that supports DP Alt Mode video or peripheral connection, on a non-Thunderbolt adapter. The advanced video versatility of this Multiport Adapter, makes it suitable for a wide variety of applications:
This Docking Station utilizes MST to obtain video versatility. Video performance is based upon the number of attached monitors and the host computer's video controller. Consult the manufacturer of the host computer to determine MST video performance. StarTech.com performs rigorous performance benchmarks with all major host computer video controllers. The video performance results of our testing are listed below: HDMI Port - Single Monitor USB-C DP Alt Mode Port - Single Monitor VGA Port - Single Monitor Maximum Resolution Dual Display (MST)DisplayPort 1.2 Alt Mode Intel Ice Lake 11th Gen and Previous Generation Processors 4K 30Hz 4K 30Hz 1080p 1080p + 1080pDisplayPort 1.4 Alt Mode Intel Tiger Lake, Alder Lake, and Later Generation Processors 4K 30Hz 4K 30Hz 1080p 4K 30Hz + 1080pDisplayPort 1.4 Alt Mode Discrete GPU More from the Manufacturer |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Device Supported |
|
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions |
|
| Host Interface | USB 3.2 (Gen 2) Type C |
| USB Type-A | Yes |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | USB Type-C (24 pin) USB Power Delivery Only |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| VGA | Yes |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.0b |
| Operating System Supported |
|
| Maximum Power Supply Wattage | 100 W |
| Color Family | Gray |
| Product Color | Space Gray |
| Height | 1.10" (27.94 mm) |
| Width | 3.30" (83.82 mm) |
| Weight (Approximate) | 6 oz (170.10 g) |
| Package Contents |
|
| Compatibility | Compatibility Products:
|
| Brand Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Condition | No |
| UPC | 0065030887014 |
| Limited Warranty | 3 Year |
