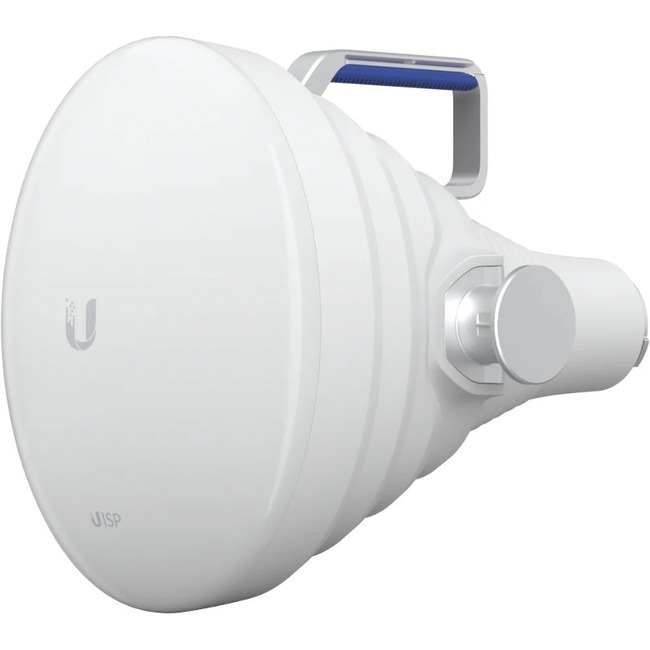

Ubiquiti UISP Antenna
Upto 9.3 Mile - 5.15 GHz to 6.875 GHz - 19.5 dBi - Radio CommunicationPole
$270.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | UISP-Horn |
| Brand Name | Ubiquiti |
| Product Line | UISP |
| Product Name | UISP Antenna |
| Marketing Information | High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz). The UISP® Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD), LTU® Rocket® , or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations. Features:
|
| Product Type | Antenna |
Technical Information
| Maximum Antenna Range | 9.3 Mile |
| Operating Frequency Range | 5.15 GHz to 6.875 GHz |
| Antenna Gain (Isotropic) | 19.5 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
Physical Characteristics
| Height | 11.10" (282 mm) |
| Width | 14.96" (380 mm) |
| Depth | 8.82" (224 mm) |
| Form Factor | Pole |
| Weight (Approximate) | 3.06 kg |
Miscellaneous
| Application/Usage | Radio Communication |
| Package Contents |
|
| Compatibility | UISP Raidos:
|
| Condition | No |
| UPC | 810010076694 |
