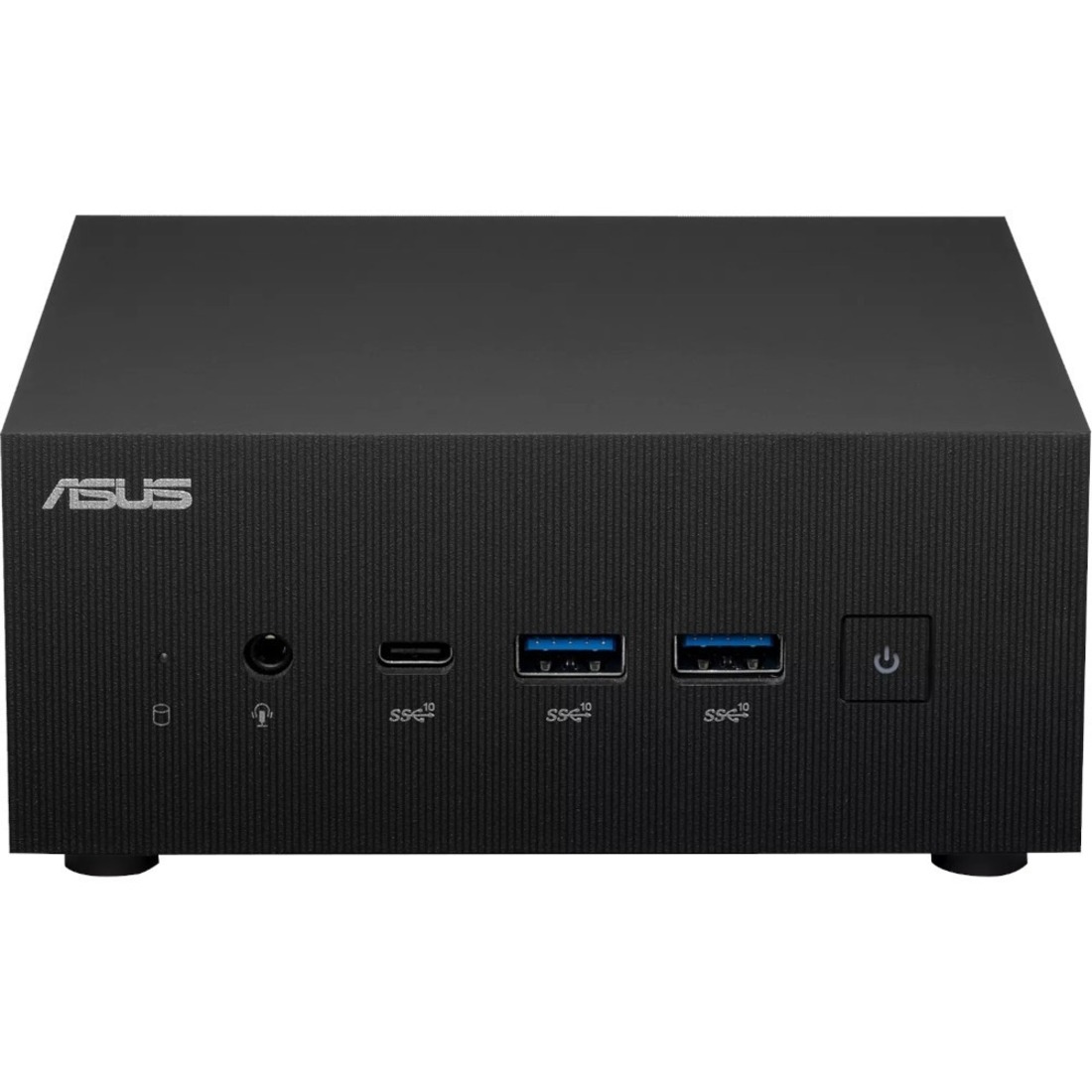

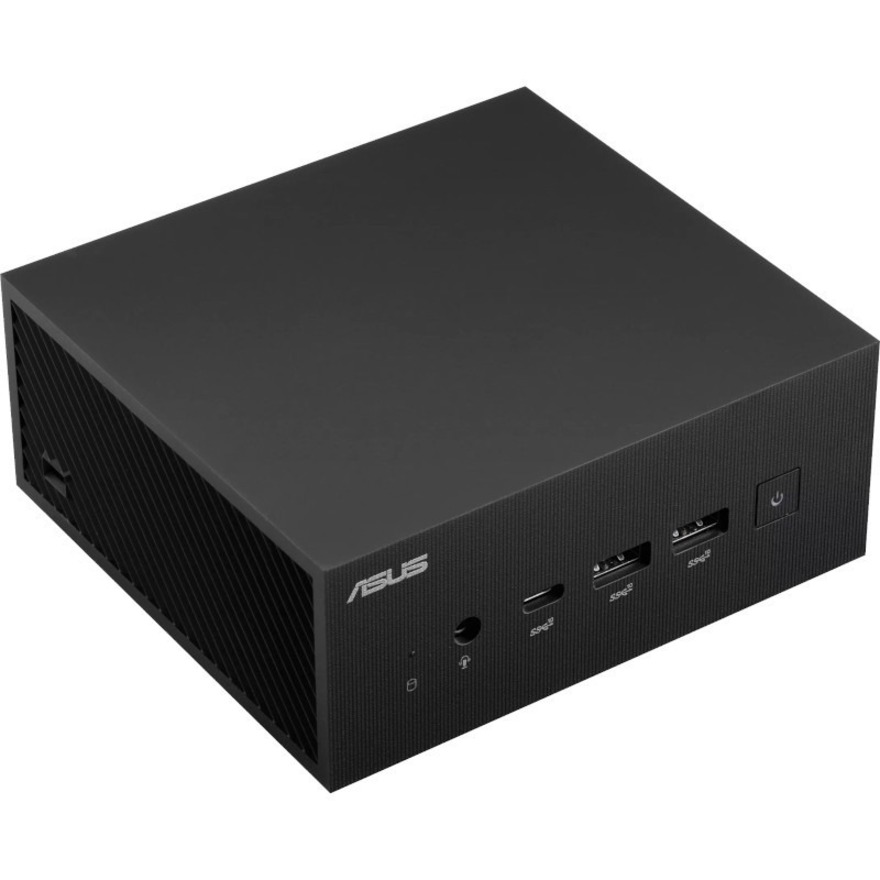

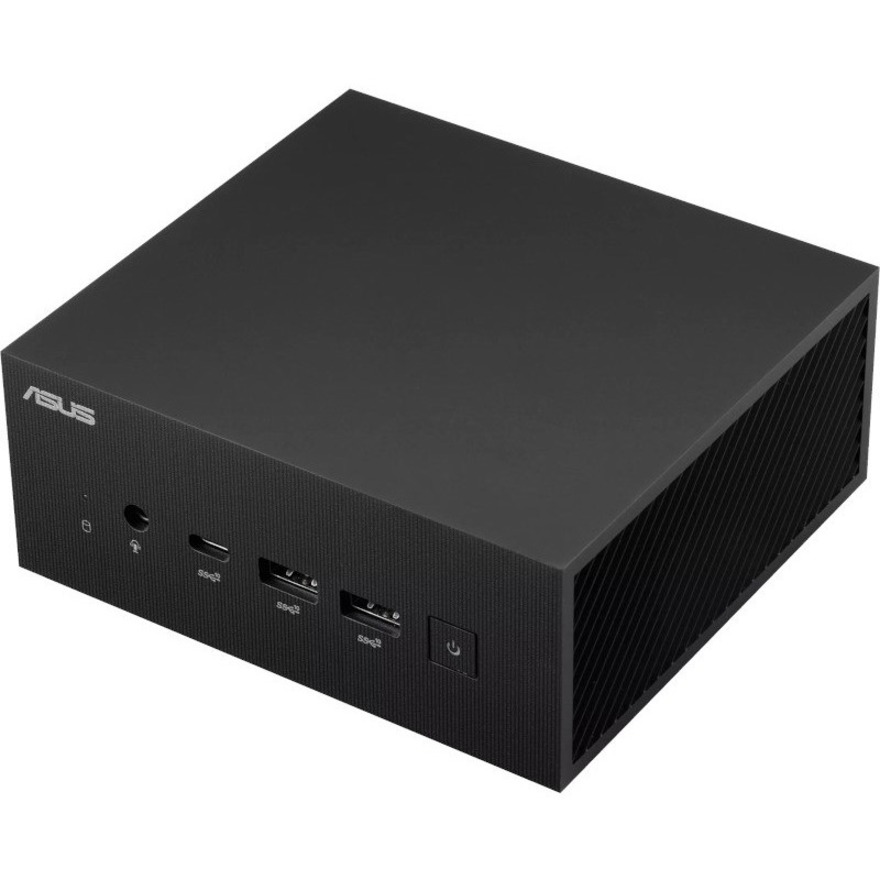

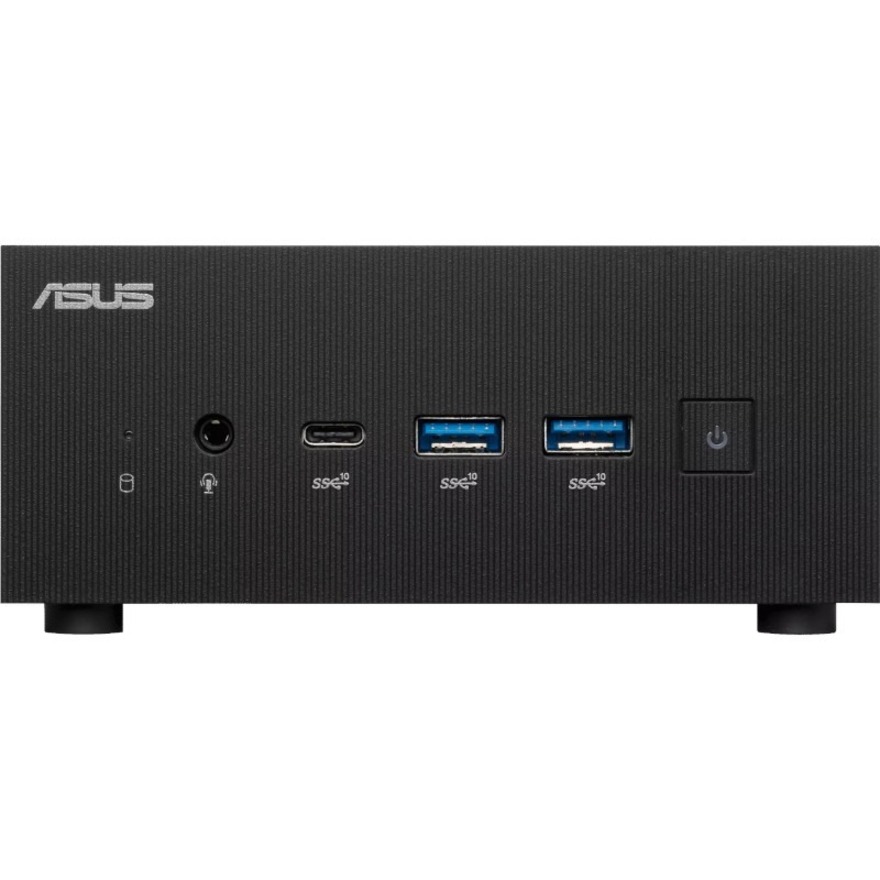

Asus ExpertCenter PN64-SYS582PX1TD Barebone System - Mini PC

Part No. 90MS02G1-M002C0

by ASUS Computer International

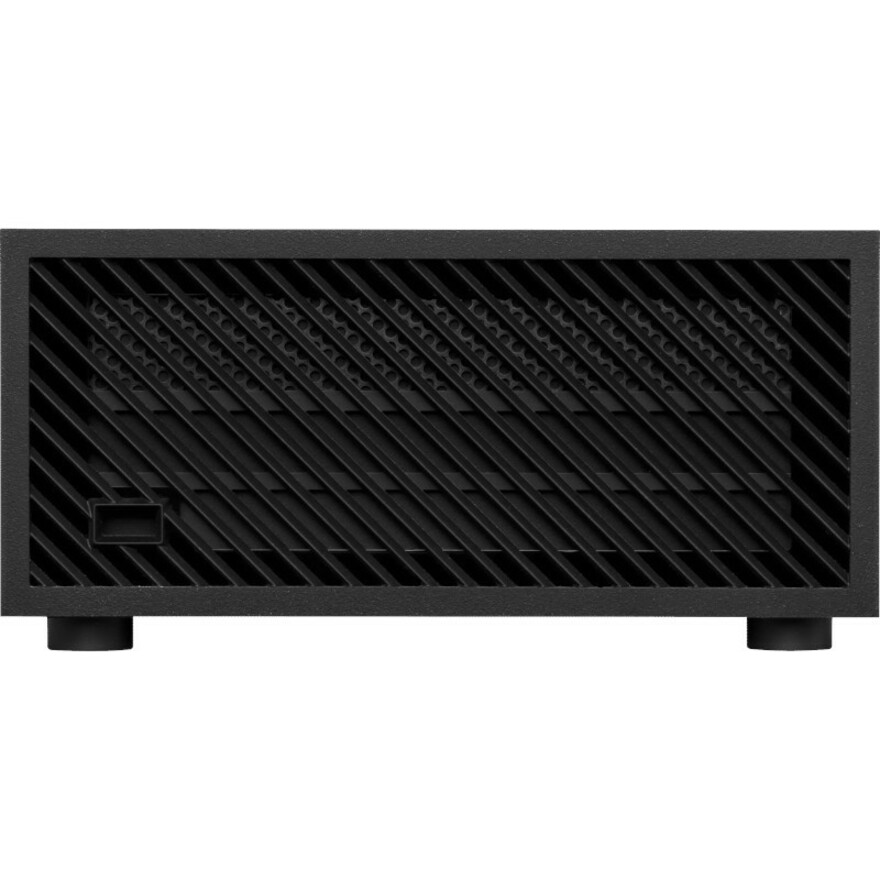

Asus ExpertCenter PN64-SYS582PX1TD Barebone System - Mini PC

Intel Chip - DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - 1 SATA Interface(s) - Processor Support (Core i3, Core i5, Core i7) - 2.5 Gigabit Ethernet - Windows 11 Home, Windows 11 Pro Supported Operating System

Part No. 90MS02G1-M002C0

by ASUS Computer International

$941.99
General Information
ManufacturerASUS Computer International
Manufacturer Part Number90MS02G1-M002C0
Brand NameAsus
Product LineExpertCenter
Product SeriesPN64
Product ModelPN64-SYS582PX1TD
Product NamePN64-SYS582PX1TD Barebone System
Marketing Information

Ultra-compact mini PC with 12th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics, DDR5 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E

  • Powered by the latest Intel® 12th Generation Core™ processors
  • Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
  • DDR5-4800 memory support allows your computer to transfer data faster than DDR4
  • Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency

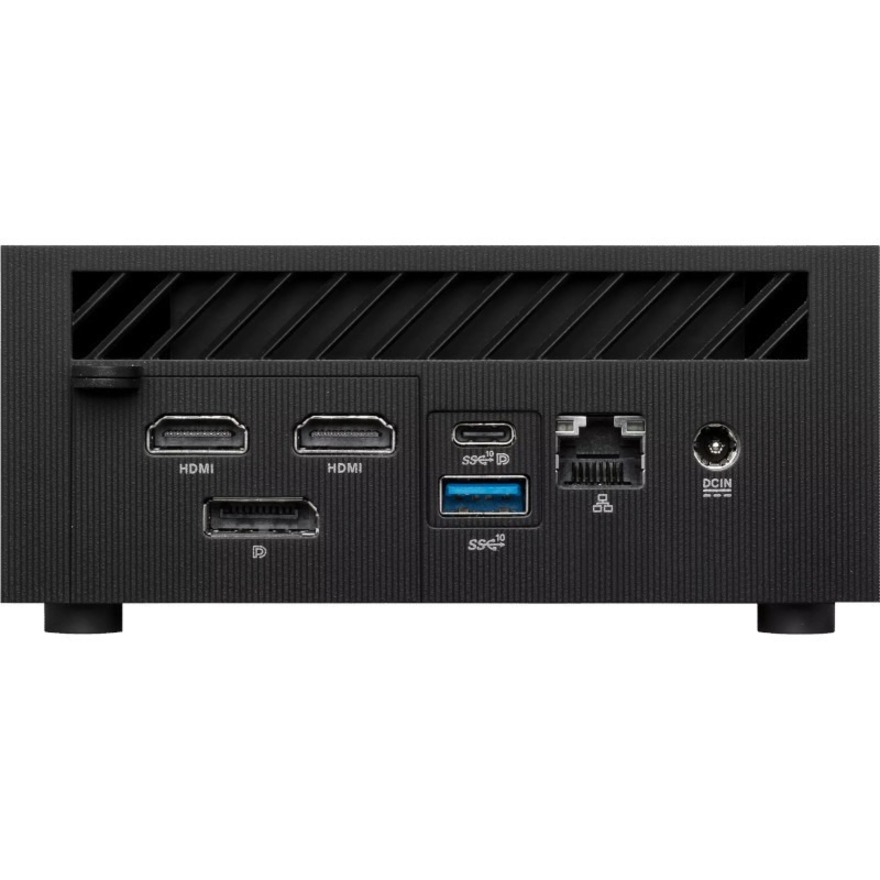

  • 4 display located in the rear I/O panel including dual HDMI2.0
  • Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
  • Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
  • Onboard 2.5GbE LAN delivering faster Ethernet connectivity
  • Advanced fan control to achieve better heat dissipation
  • 24/7 reliability - Extensively tested to ensure long-term dependability

New Processor Architecture Design

ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance

ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking.

Faster and better DDR5 RAM

ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.

Ultrafast PCIe® 4.0 SSD

ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that's twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet

ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

Modern, Space-saving Design

Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office.

Product TypeBarebone System
Processor
Processor Supported
  • Core i3
  • Core i5
  • Core i7
64-bit ProcessingYes
Chipset
Chipset ManufacturerIntel
Memory
Memory TechnologyDDR5 SDRAM
Memory StandardDDR5-4800/PC5-38400
Total Number of Memory Slots2
Storage
Supported Storage Drive InterfacesSerial ATA III
Supported Storage Drive Types
  • SSD
  • HDD
Controllers
Controller TypeSerial ATA/600
Display & Graphics
Graphics Memory TechnologyDDR5 SDRAM
Graphics Memory AccessibilityShared
Network & Communication
Ethernet Technology2.5 Gigabit Ethernet
Wireless LANYes
BluetoothYes
Interfaces/Ports
HDMI (Rear)Yes
Total Number of USB Ports5
Number of USB 3.2 Gen 2 Ports3
USB Type-C (Front)Yes
USB Type-C (Rear)Yes
USB Type-C Detail1 x USB 3.2 Gen2 TypeC (support DP1.4, PD), 1 x USB 3.2 Gen2 Type-C
Number of SATA Interfaces1
Operating System
Operating System Supported
  • Windows 11 Home
  • Windows 11 Pro
Physical Characteristics
Color FamilyBlack
Product ColorEco Black
Form FactorMini PC
Height2.28" (58 mm)
Width4.72" (120 mm)
Depth5.12" (130 mm)
Miscellaneous
Package Contents
  • PN64-SYS582PX1TD Barebone System
  • Power Adapter
Energy StarYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0195553879323
