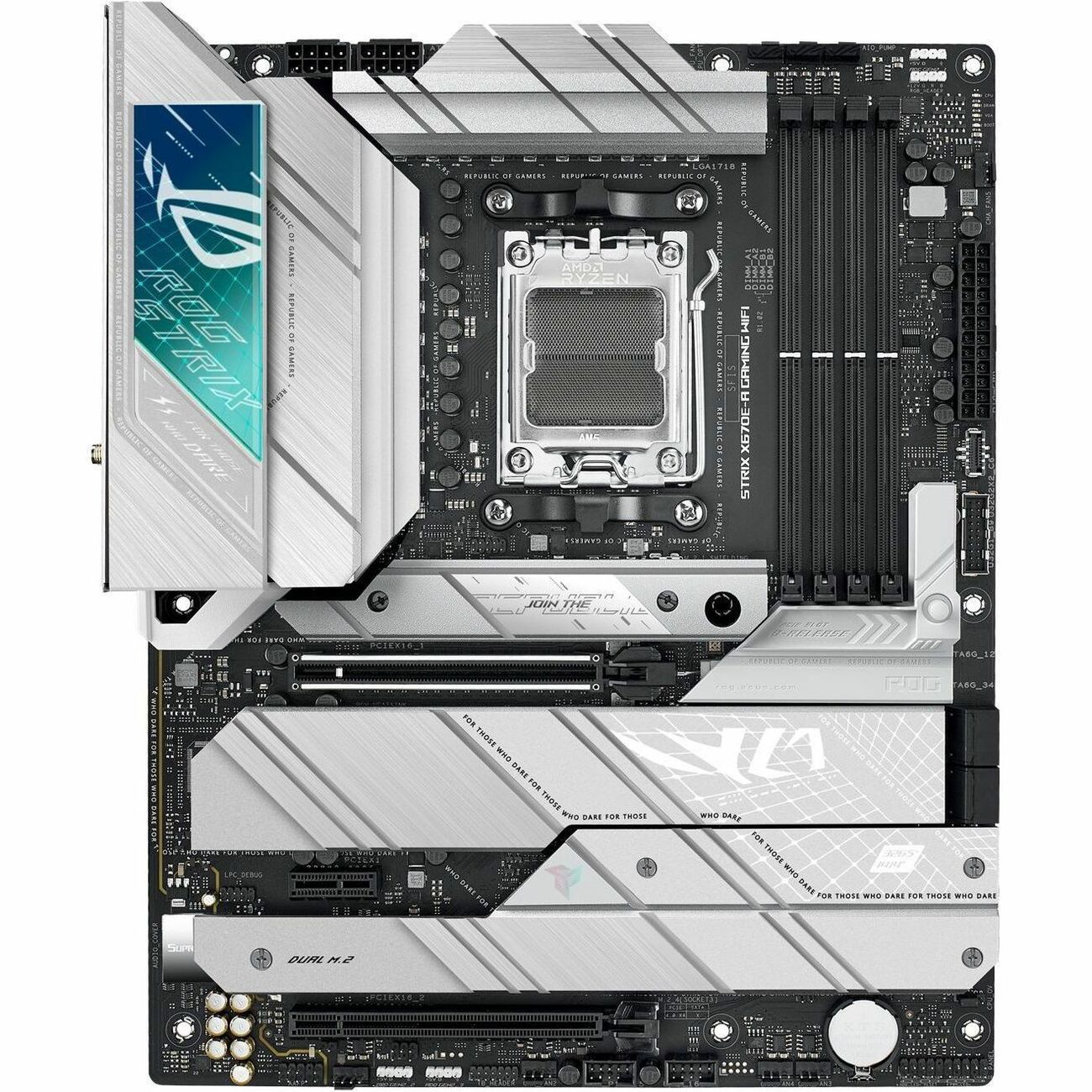

Asus ROG Strix X670E-A GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

Part No. ROGSTRIXX670EAGAMING

by ASUS Computer International

Asus ROG Strix X670E-A GAMING WIFI Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces

Part No. ROGSTRIXX670EAGAMING

by ASUS Computer International

$476.99
General Information
ManufacturerASUS Computer International
Manufacturer Part NumberROGSTRIXX670EAGAMING
Brand NameAsus ROG
Product LineStrix
Product ModelX670E-A GAMING WIFI
Product NameSTRIX X670E-A GAMING WIFI Gaming Desktop Motherboard
Marketing Information

PCIE 5.0

Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.

CLR CMOS BUTTON

The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK™

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

ALL-ROUND PERFORMANCE

Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-A, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.LEADING CONNECTIVITY

The ROG Strix X670E-A Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Product TypeGaming Desktop Motherboard
Processor & Chipset
Chipset ManufacturerAMD
Chipset ModelX670
Total Processor Supported1
Processor SocketSocket AM5
Processor SupportedRyzen 7
Memory
Number of Memory Slots4
Memory Form Factor
  • DIMM
  • UDIMM
Maximum Memory Supported128 GB
Memory TechnologyDDR5 SDRAM
Memory Speed Supported
  • 6400 MHz
  • 6200 MHz
  • 6000 MHz
  • 5800 MHz
  • 5600 MHz
  • 5400 MHz
  • 5200 MHz
  • 5000 MHz
  • 4800 MHz
I/O Controller
Controller TypeSerial ATA/600
RAID SupportedYes
RAID Levels
  • 0
  • 1
  • 10
Video
Onboard VideoCPU Dependent Video
Audio
Audio Channels7.1
Network & Communication
BluetoothYes
Bluetooth StandardBluetooth 5.2
Gigabit EthernetYes
2.5Gigabit EthernetYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots3
PCI Express Standard
  • PCI Express 3.0
  • PCI Express 4.0
  • PCI Express 5.0
Total Number of PCI Express Slots3
Number of PCI Express x1 Slots1
Number of PCI Express x16 Slots2
Interfaces/Ports
Total Number of USB Ports12
Number of USB 3.2 Gen 1 Type-A Ports1
Number of USB 3.2 Gen 2 Type-A Ports7
Number of USB 3.2 Gen 2 Type-C Ports1
S/PDIFYes
HDMIYes
HDMI Version
  • 2.1
  • DisplayPortYes
    Number of Network (RJ-45) Ports1
    ThunderboltYes
    Onboard Interfaces
    Number of SATA Interfaces4
    Number of M.2 Interfaces4
    Total Number of Onboard USB Ports7
    Number of Onboard USB 2.0 Ports4
    Physical Characteristics
    Form FactorATX
    Width12" (304.80 mm)
    Depth9.60" (243.84 mm)
    Miscellaneous
    Package Contents
    • STRIX X670E-A GAMING WIFI Gaming Desktop Motherboard
    • 2 x SATA 6Gb/s cables
    • 1 x Thermal pad for M.2
    • 1 x ASUS Wi-Fi moving antennas
    • 1 x Cable ties pack
    • 1 x M.2 Q-Latch packages for M.2 backplate
    • 1 x M.2 Q-Latch package
    • 1 x ROG key chain
    • 1 x ROG Strix sticker
    • 1 x ROG Strix thank you card
    • 2 x Rubber Packages for M.2
    • 1 x Rubber Package for M.2 backplate
    • 1 x User guide
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC195553897327
