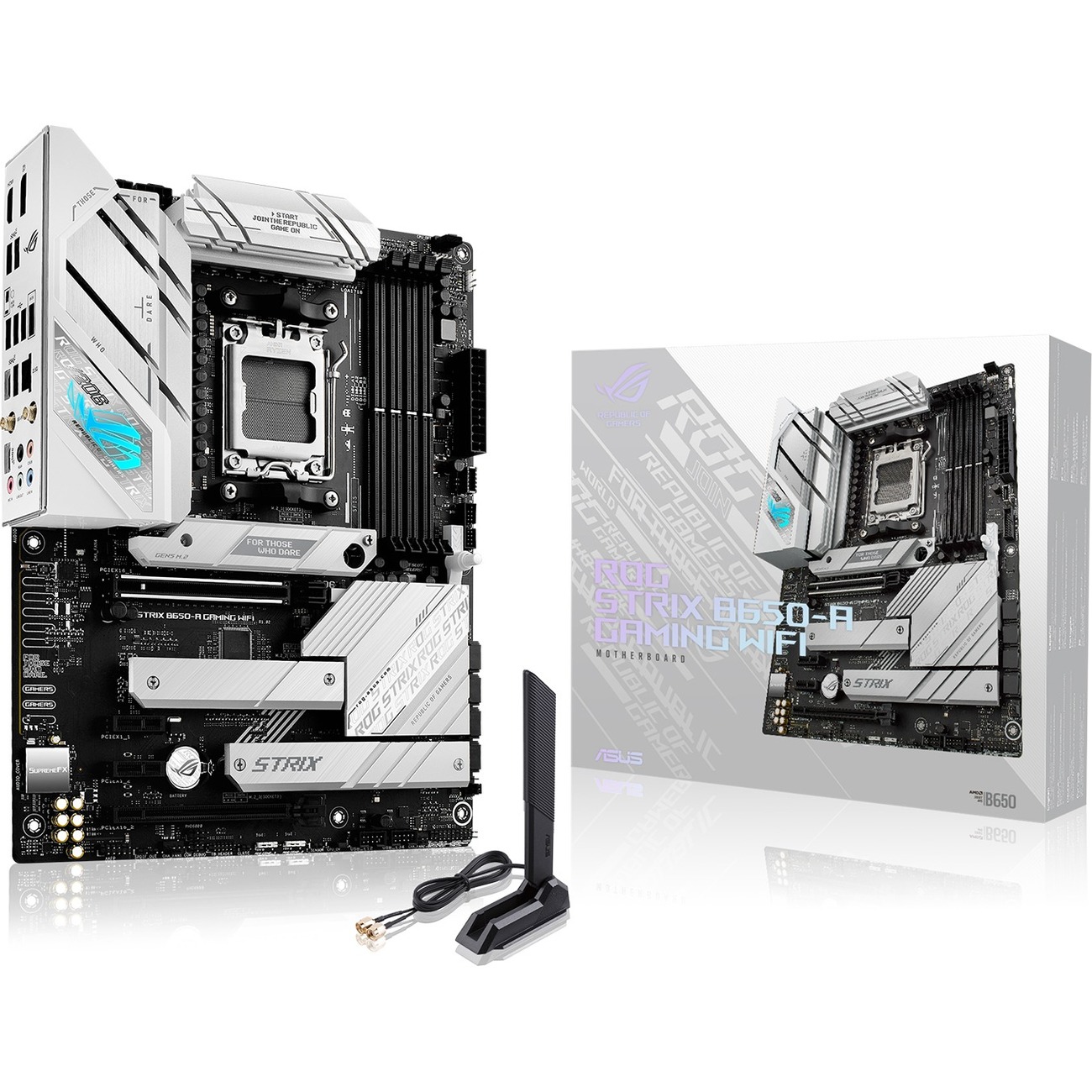

Asus ROG Strix B650-A GAMING WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX
In Stock Availability
- All Locations: (5+)
- Calgary, AB (5+)
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX B650-A GAMING WIFI |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | B650-A GAMING WIFI |
| Product Name | STRIX B650-A GAMING WIFI Gaming Desktop Motherboard |
| Marketing Information | The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set. PCIE® SLOT Q-RELEASE A physical button unlocks the first PCIe slot's security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it's time to upgrade to a new GPU or add-in card. ALL-ROUND PERFORMANCE Robust power delivery, speedy storage and RAM, and comprehensive cooling controls are core fundamentals of the ROG Strix B650-A, thoroughly preparing you for the future of gaming Blazing fast storage is at your command with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAIDXpert2. The top PCIe 4.0 x16 SafeSlot supports heavy graphics cards and features Q-Release for easy upgrades. LEADING CONNECTIVITY The ROG Strix B650-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents. WIFI 6E Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. Intel 2.5G Ethernet Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel@ 2.5 Gbps Ethernet. |
| Product Type | Gaming Desktop Motherboard |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported |
|
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| HDMI | Yes |
| HDMI Version | |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Package Contents |
|
| Condition | No |
| UPC | 195553917766 |
