Antec Mid-Tower E-ATX Gaming Case

Mid-tower - Metal Mesh, Steel, Plastic, Tempered Glass - EATX, ATX, Micro ATX, ITX Motherboard Supported - 9 x Fan(s) Supported - 2 x Internal 2.5" Bay - 2 x Internal 2.5"/3.5" Bay(s) - 7x Slot(s) - 3 x USB(s) - 2 x USB 3.0, 1 x USB 3.2 (Gen 2) Type C - 1 x Audio In - 1 x Audio Out - Fan Cooler

Part No. P20C

by Antec, Inc

$166.99

User Manual

Specifications

General Information

Manufacturer	Antec, Inc
Manufacturer Part Number	P20C
Brand Name	Antec
Product Name	Mid-Tower E-ATX Gaming Case

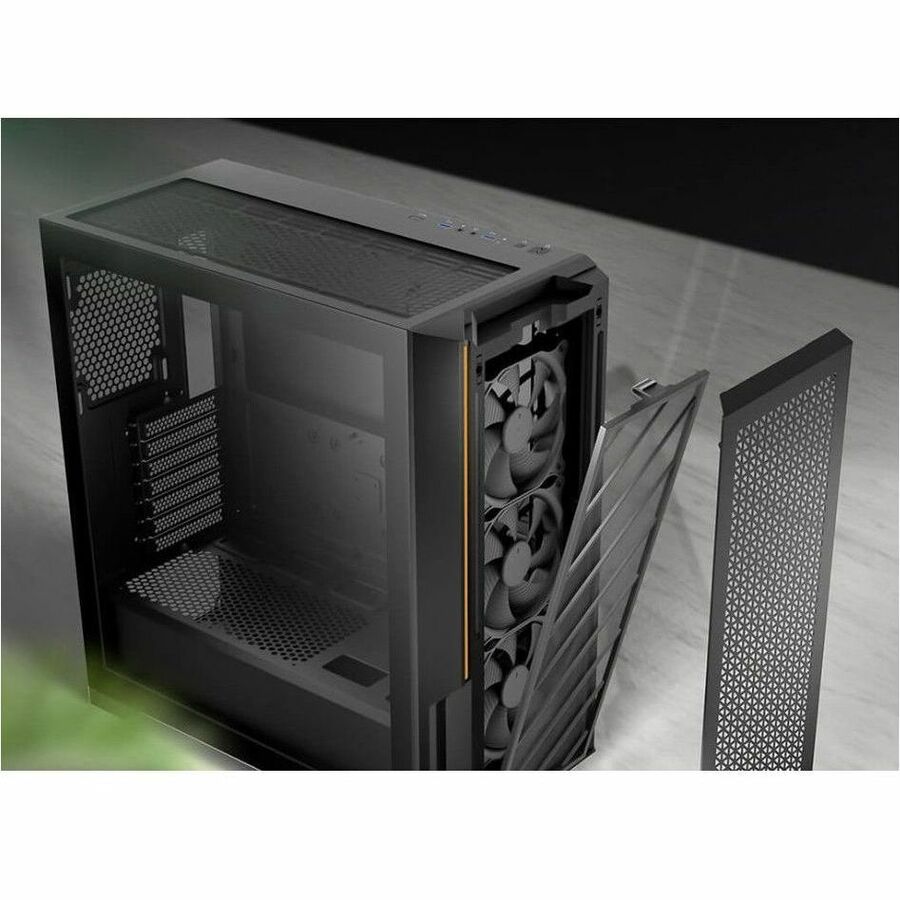

Marketing Information	MASSIVE METAL MESH FRONT PANEL Simple Assembly & Superior Cooling Antec Performance Series P20C adopts a unique metal design, providing a massive airflow path. With the full-size dust filter, the P20C can reach the balance between cooling and dust prevention. The pin-type metal front panel is effortlessly removable, and the clip-on dust filter makes cleaning easy. The well-designed styling will give you a remarkable PC showcase. Full-Size Clip-On Dust Filter at the Front Magnetic Dust Filter at the Top Pull-Out Dust Filter at the Bottom PRE-INSTALLED FANS 3 x 120mm PWM Fans Included Pre-installed fans at the front provide massive airflow, and the PWM function can easily reach the balance between cooling and silence. The included 1 to 4 fan splitter cable makes cable management easy. HIGH-SPEED TRANSFER Type-C 3.2 Gen 2 Ready Built-in Type-C 3.2 Gen 2 port provides transfer speeds up to 10 Gbps. Power Reset HD-AUDIO MIC USB 3.0 *2 Type-C 3.2 Gen 2 UNLIMITED CONFIGURATION OPTIONS High flexibility for Expansion Features an extensive interior and powerful compatibility. Supports 2 x 360mm radiators at the front and the top simultaneously. PC-DIY SHOWCASE Supports Vertical GPU Installation Ready to provide users with a more flexible layout through the 7 reusable PCI-E slots for vertical GPU installation. REMARKABLE COMPATIBILITY Dual CPU Motherboard Support Supports dual CPU motherboards with a width of up to 330mm, reflecting the upgrade and evolution of compatibility. CABLE MANAGEMENT Building a Clean PC Is Within Easy Reach Well-designed cable routing makes wiring easy and simple. The cable channels with a cutout on top for stable routing. DETAILED FEATURES Thoughtful Designs COOLING COMPATIBILITY 9 Fans Simultaneously 3 x 120mm fans and a 360mm radiator can be installed inside the interior at the front. Plus 3 x 120mm fans outside the interior for outstanding cooling. Supports up to 9 x 120mm fans & 360mm radiators at the front and top simultaneously. STORAGE COMPATIBILITY Easy Installation Fits up to 4 drive devices. 2 HDD & SSD compatible hard drive bays; 2 SSD hard drive bays. Snap-in 2.5" drive device for easy mounting. Removable hard drive cage. Tool-free 3.5" drive tray.
Product Type	Gaming Computer Case

Technical Information

Motherboard Supported	EATX ATX Micro ATX ITX
Number of Fans Supported	9
Number of Fans Installed	9
Fan Size Supported	4.72" (120 mm)
Installed Fan Size	4.72" (120 mm)
Features	Dust Filter Cable Management Reset Button

Bays

Number of Internal 2.5" Bays	2
Number of Internal 2.5"/3.5" Bays	2

I/O Expansions

Total Number of Expansion Slots	7

Interfaces/Ports

Total Number of USB Ports	3
USB Port Details	2 x USB 3.0 1 x USB 3.2 (Gen 2) Type C
Front USB	Yes
Total Number of Audio In Ports	1
Front Audio In	Yes
Total Number of Audio Out Ports	1
Front Audio Out	Yes
Microphone	Yes

Physical Characteristics

Product Material	Metal Mesh Steel Plastic Tempered Glass
Cooler Type	Fan Cooler
Form Factor	Mid-tower
Maximum CPU Cooler Height	6.69" (170 mm)
Maximum PSU Length	16.14" (410 mm)
Maximum GPU Length	14.76" (375 mm)
Height	19.29" (490 mm)
Width	8.66" (220 mm)
Depth	18.46" (469 mm)
Weight (Approximate)	8.10 kg

Miscellaneous

Package Contents	Mid-Tower E-ATX Gaming Case 8 x Cable Routing Gormmets
Condition	No
UPC	0761345801034

Warranty

Limited Warranty	2 Year
