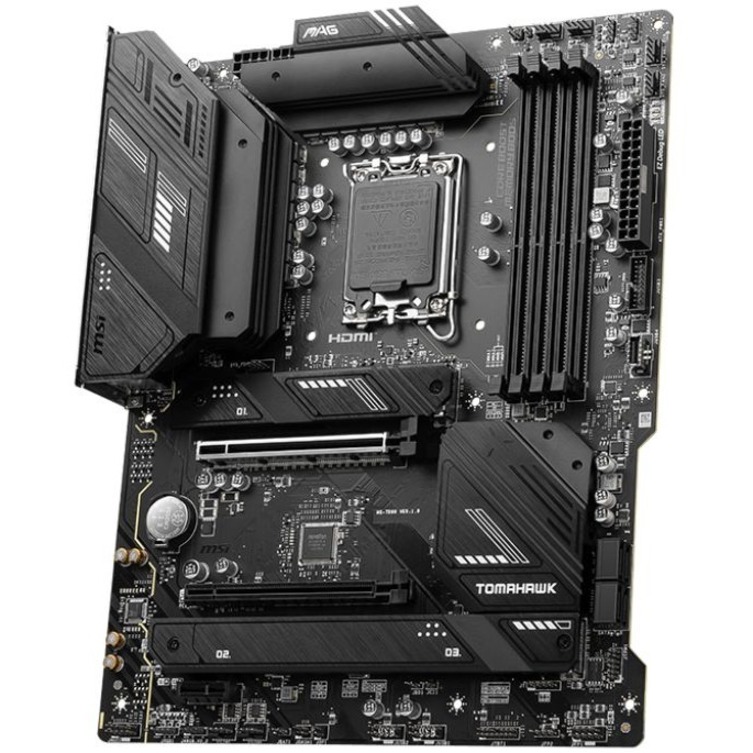

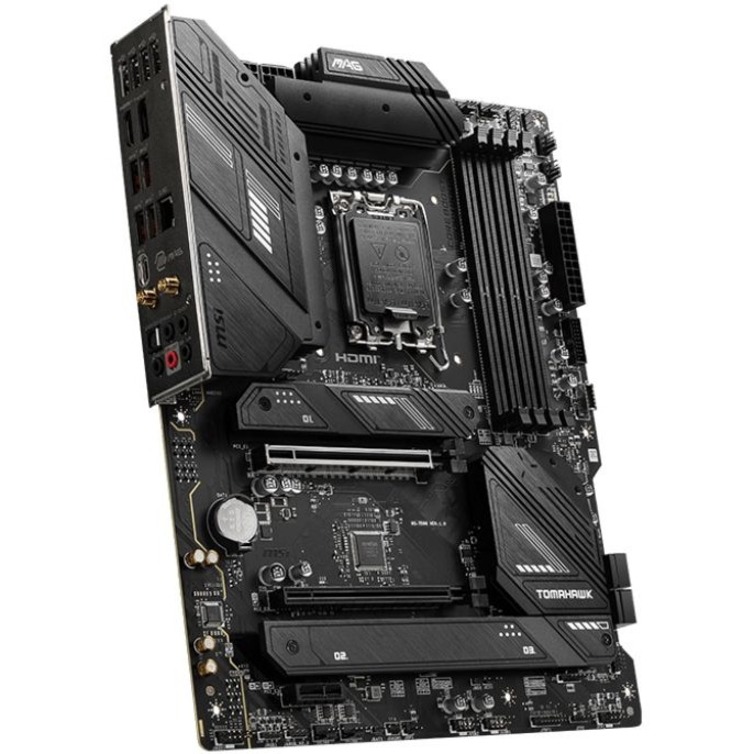

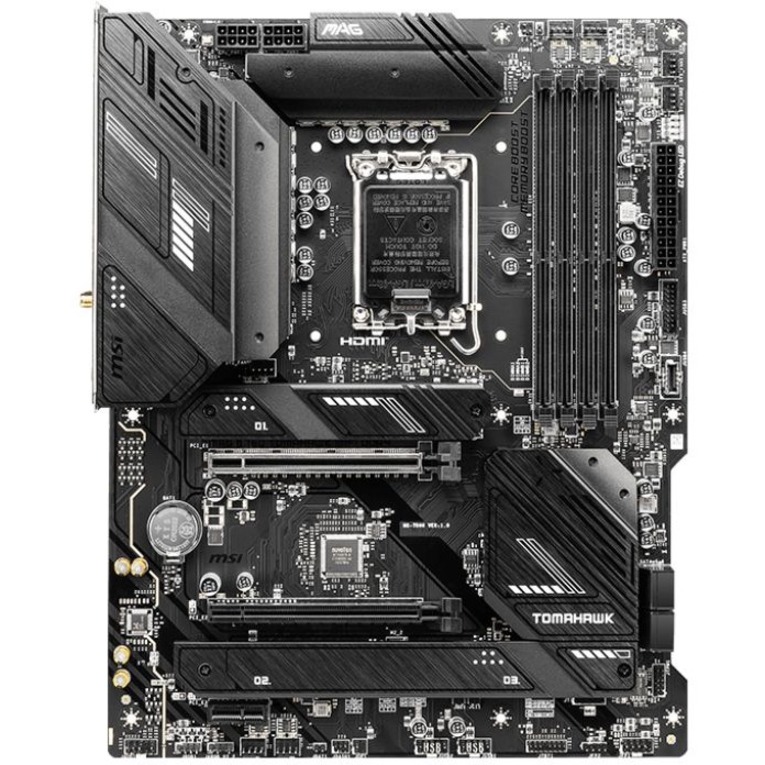

MSI MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
$312.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | MSI |
| Manufacturer Part Number | B760TAMAWIFID4 |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | B760 TOMAHAWK WIFI DDR4 |
| Product Name | MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard |
| Marketing Information | The MAG B760 Tomahawk Wifi series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. |
| Product Type | Gaming Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported |
|
| Processor Supported |
|
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported |
|
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
I/O Expansions
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |

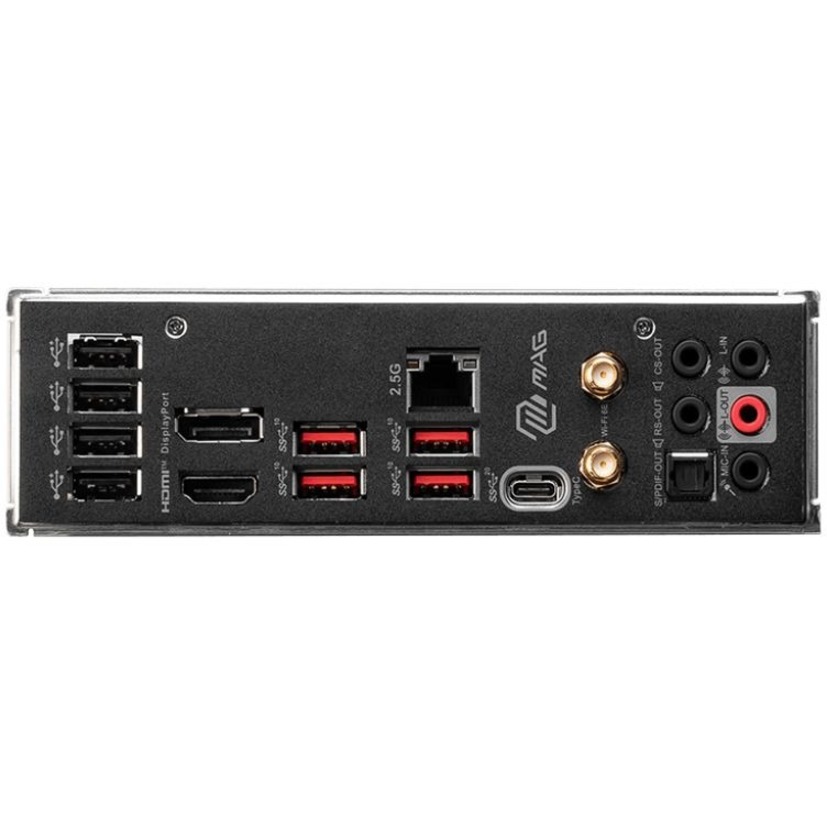

Interfaces/Ports
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Package Contents |
|
| Country of Origin | China |
| Condition | No |
| UPC | 824142305980 |
Warranty
| Limited Warranty | 3 Year |
