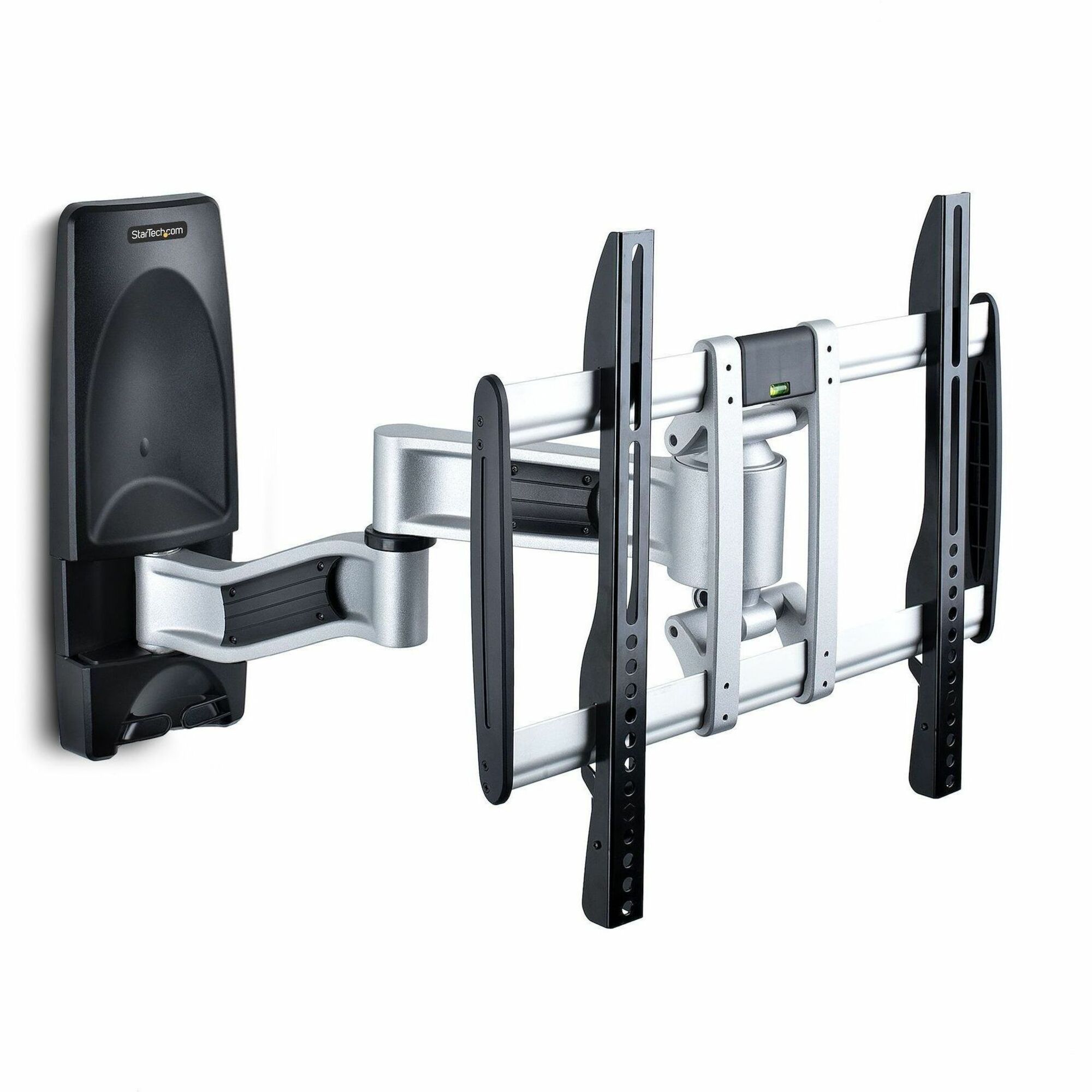

StarTech.com Articulating TV Wall Mount, VESA Wall Mount TV Bracket for 65 inch/99lb/Curved TVs, Corner Adjustable Low Profile Wall Mount

Part No. TV-WALL-MOUNT-65FS

by StarTech.com

StarTech.com Articulating TV Wall Mount, VESA Wall Mount TV Bracket for 65 inch/99lb/Curved TVs, Corner Adjustable Low Profile Wall Mount

Articulating TV wall mount for 65inch TVs; VESA compatible - Max cap. 99lb; For flat/curved screen TVs; Ships assembled - Steel/Aluminum adjustable corner TV wall mount; Supports swivel/tilt - Wall mount TV bracket includes mounting hardware

Part No. TV-WALL-MOUNT-65FS

by StarTech.com

$437.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberTVWALLMOUNT65FS
Brand NameStarTech.com
Product NameWall Mount
Marketing InformationThis VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.

Versatile TV Mounting

Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.

The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.

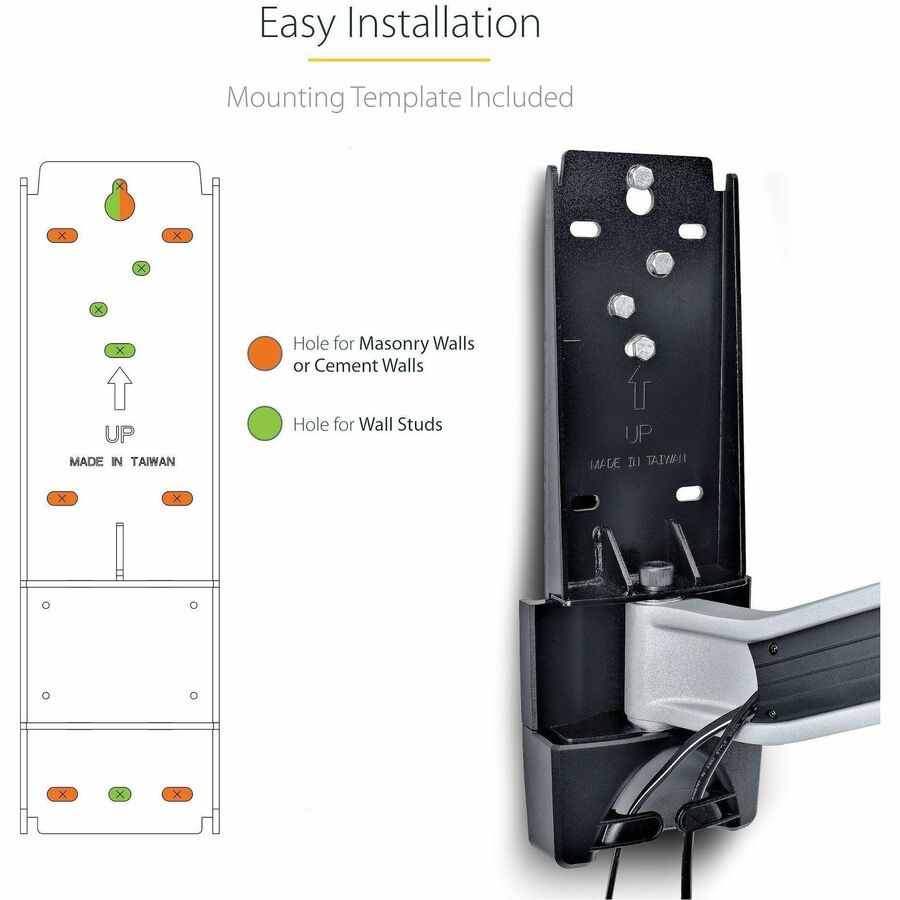

Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility. Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.

Smooth Motion and Tidy Installation

Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees. The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.

This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.

Packaged Quantity1
Product TypeWall Mount
Product Information
Device Supported
  • Flat Panel Display
  • Curved Screen Display
  • Digital Signage Display
  • TV
Number of Displays Supported1
Maximum Load Capacity99.21 lb (45000 g)
Minimum Screen Size Supported26"
Maximum Screen Size Supported65"
Features
  • Articulating
  • Durable
  • Sturdy
  • Tilt
  • Swivel
  • Smart Torque Adjustment
  • Bubble Level
  • Robust
  • Retractable
  • Foldable Arms
  • Cable Management
  • Rotate
  • Pivot
  • Adjustable
Mount ProfileLow Profile
Height AdjustableNo
Physical Characteristics
Product Color
  • Black
  • Silver
FinishingSilver
VESA Mount CompatibleYes
Mounting Pattern
  • 200 x 100
  • 400 x 400
  • 200 x 200
  • 200 x 300
  • 200 x 400
  • 300 x 200
  • 300 x 300
  • 400 x 200
  • 400 x 300
Product Material
  • Steel
  • Aluminum
Height4.10" (104.14 mm)
Width19.70" (500.38 mm)
Length17.70" (449.58 mm)
Weight (Approximate)17.10 lb (7756.43 g)
Miscellaneous
Package Contents
  • 1 x Wall Mount
  • 2 x Vertical Brackets
  • 1 x 6 mm Hex Key
  • 2 x Vertical Bracket Screws
  • 8 x Concrete Anchors
  • 8 x Wall Mounting Screws
  • 4 x M4 x 12 mm Screws
  • 4 x M4 x 18 mm Screws
  • 4 x M5 x 12 mm Screws
  • 4 x M6 x 12 mm Screws
  • 4 x M6 x 18 mm Screws
  • 4 x M8 x 12 mm Screws
  • 4 x M8 x 18 mm Screws
  • 4 x Flat Washers
  • 1 x Mounting Template
  • 1 x User Manual
Application/Usage
  • Wall
  • Residential
  • Commercial
  • Concrete
  • Wood Stud
  • Lobby
  • Board Room
Assembly RequiredNo
TAA CompliantYes
ConditionNo
UPC0065030897983
Warranty
Limited Warranty5 Year
