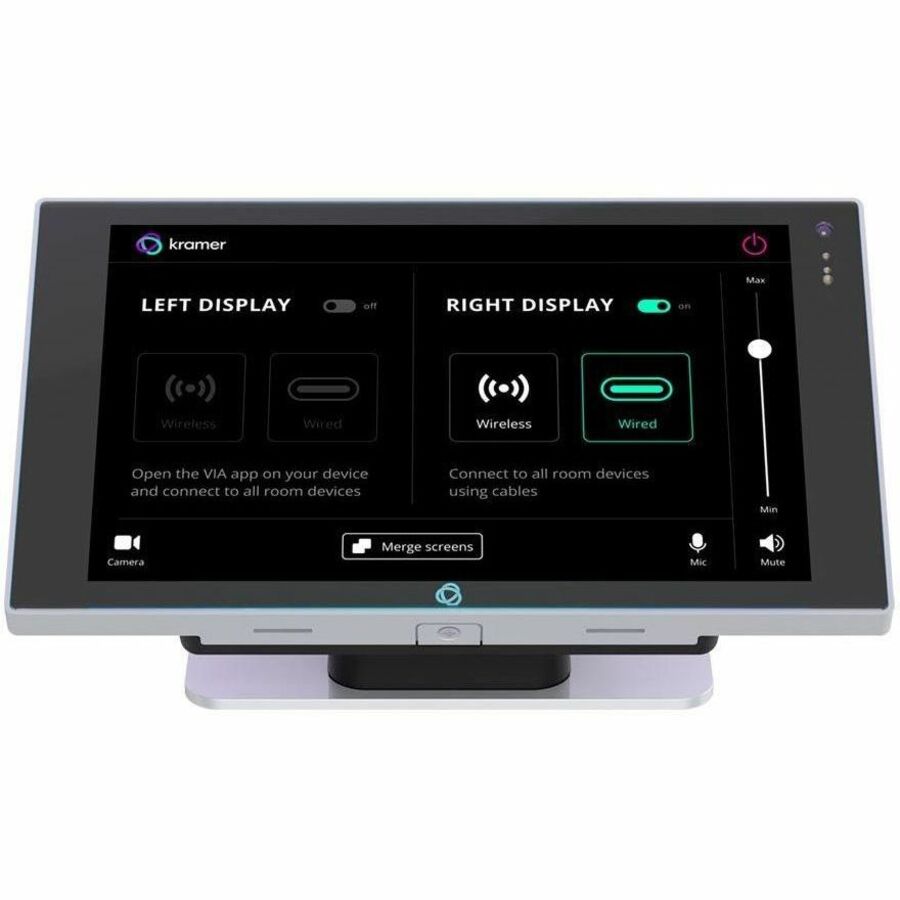

KT-208 is a new powerful, 8-inch, IPS, multi-touch, touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either on a tabletop or wall. KT-208, with the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi-Fi connectivity options. The touch panel has a built-in speaker and camera and comes either with a tabletop or a wall mount. The touch panel is easy to assemble, using elegant wiring, secured mounting, reliable operation and flexible deployment. KT-208 is a touch panel that is ideal for any 24/7 Kramer-supported commercial AV or control application and features a user-friendly, fully customizable graphical user interface configured by Kramer software.

• Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
• Superior User Experience - IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi-touch points and 2-finger gesture capabilities.
• Powerful Processing - i.MX8M Plus Quad Core A53, 4GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 5Mp FF front camera operation.
• Flexible Services - Latest Android 11 operating system.
• Easy Installation - Powering and connectivity via a single Ethernet cable.
• Flexible Mounting - Including table and wall mounts.
• Optional Connectivity - Simple wireless Bluetooth 5 as well as connection to USB peripheral devices for either table or wall-mount installations, using the included USB cable.
• Reliable Networking - Seamless switching between wired and wireless 802.11ac connectivity.
• Versatile Powering Options - PoE and power adapter (sold separately).
• Auto Sensing - Optimized performance and operation according to automatically detected LAN speed.
• Firmware Update - Define automatic updates on a predefined time of the day or update manually using USB port.
• Secured Operation - Highly secured operation of applications using password protection, hidden control buttons and more. Red LED alert when camera is active.
• Secured Deployment - Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.

• Table Mount
• Portable

• 8-Inch Wall Mount PoE Touch Panel
• 2 LED Side Bars

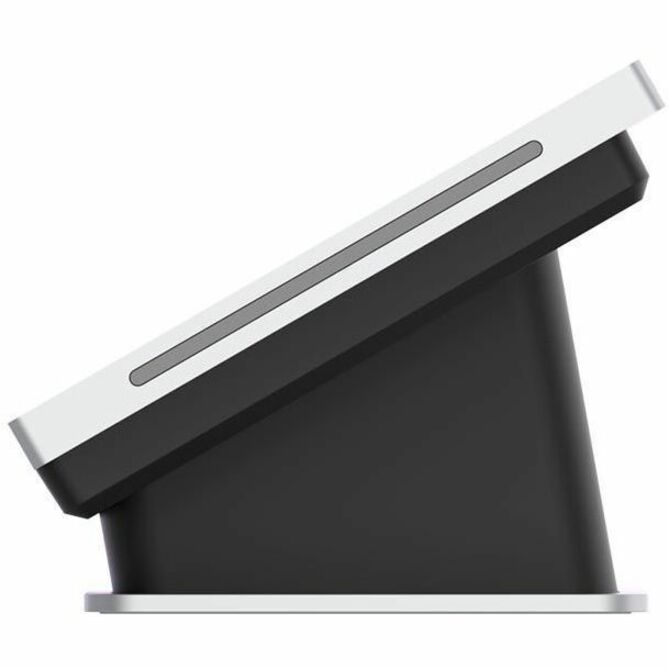

• Table Mount for KT-208
• Installation Screws

Ports

• 1 Ethernet: On an RJ-45 connector with PoE 802.3at
• 1 USB: On a USB type C (ADB) connector

General

• CPU Performance: ARM Quad-core Cortex-A53 up to 1.8GHz (64 bit)
• System Memory: 4GB LPDDR4
• Internal Storage Memory: 32GB eMMC
• Touch Panel Type: 10.1 point capacitive multi-touch type
• Wireless Communication: Wi-Fi 6, 802.11 a/b/g/n/ax/ax+BT 5.0
• Ethernet: 10/100/1000 Mbps LAN
• Display Screen: 5 points, multi-touch (PCAP)
• Display Size: 8" (16:10 diagonal), 1280 RGB (H) x 800(V) pixels
• Wall Mounting Ready: Dedicated bracket for easy mounting
• Contrast Ratio: 350cd/m2 brightness, 1000:1
• Back-light: LED Side-light type

Audio

• Speaker Unit: Built-in, 2x 1W
• Microphone: 2, Built-in
• Audio Codecs: MPEG/OGG/AAC

Video

• Camera: 5Mp FF
• Video Format: H.264 / H.265,VC-1, MPEG-4, VP9/VP8
• Image Codecs: JPEG/BMP/GIF/PNG

Power

• PoE: Power over Ethernet 802.3af
• Source: 12V/2A DC adapter (optional)

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
