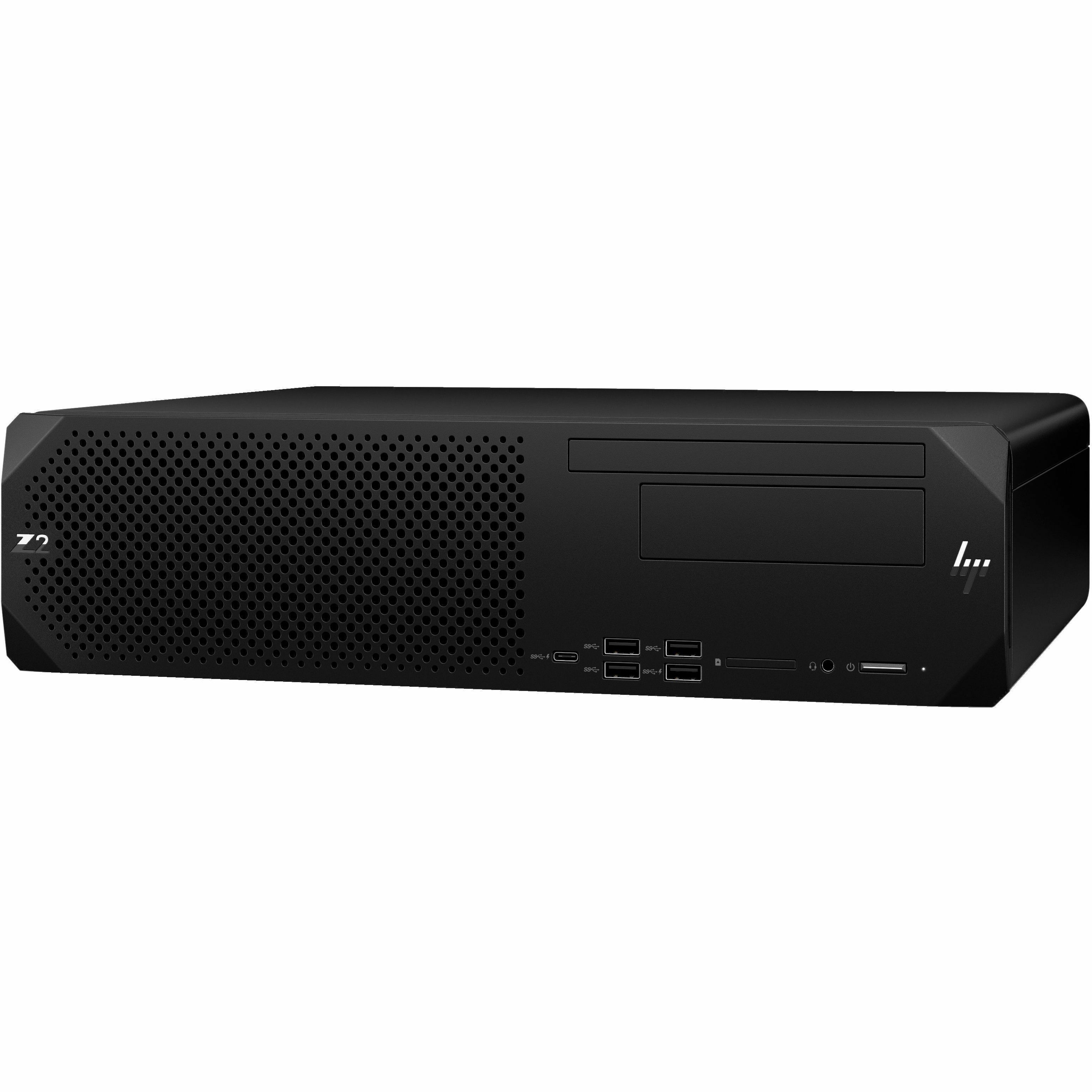

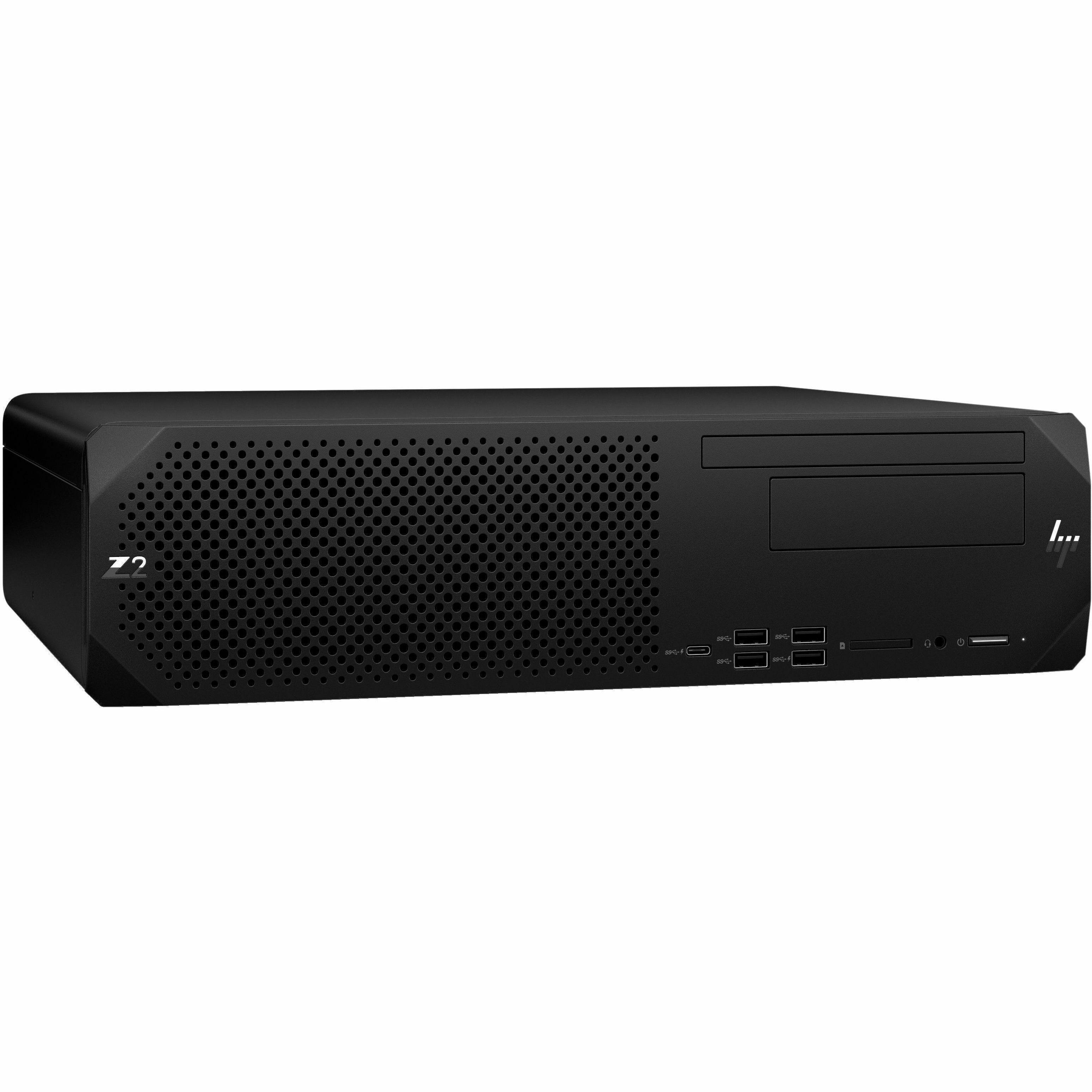

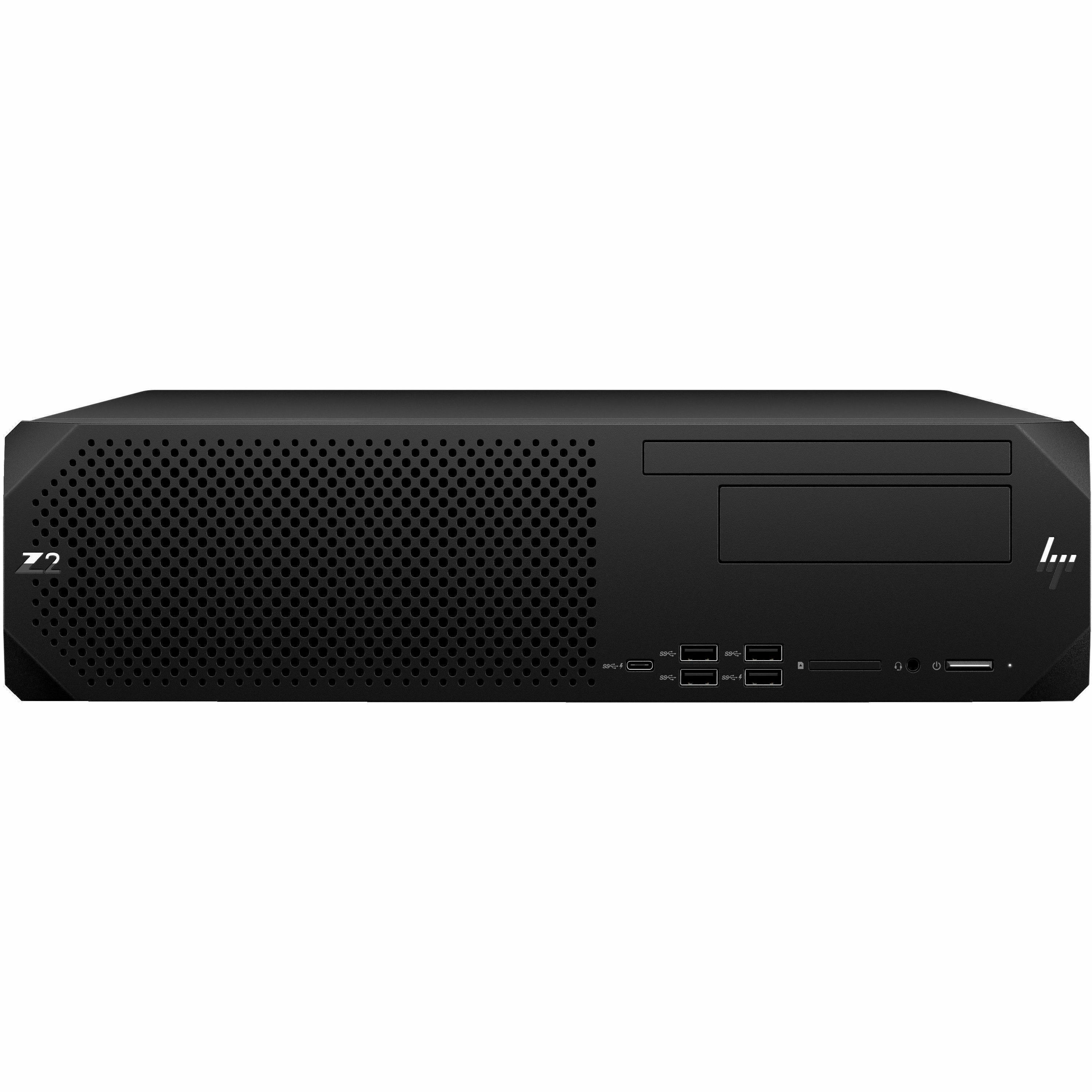

HP Z2 G9 Workstation - 1 Core i7 13th Gen i7-13700 - vPro Technology - 16 GB - 512 GB SSD - Small Form Factor - Black

Part No. 87C32UT#ABA

by HP Inc.

HP Z2 G9 Workstation - 1 Core i7 13th Gen i7-13700 - vPro Technology - 16 GB - 512 GB SSD - Small Form Factor - Black

Intel W680 Chip - Windows 11 Pro - T1000 8 GB Graphics - Serial ATA/600 Controller - 0, 1 RAID Levels - English Keyboard - Gigabit Ethernet

Part No. 87C32UT#ABA

by HP Inc.

$2589.99
General Information
ManufacturerHP Inc.
Manufacturer Part Number87C32UTABA
Brand NameHP
Product SeriesZ2 G9
Product NameZ2 Small Form Factor G9 Workstation
Marketing Information

Overview | Full size Z tower power at half the size

Get all the power of a full size tower at a fraction of the size. Reengineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.

Full height, full length performance

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.

Configurable for today. Expandable for tomorrow.

Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology

Intel® Core™ i7 processor

Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Smaller, Functional Design

The stunning new design features front and rear ledges, so you can easily move your system from location to location.

Product TypeWorkstation
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor TypeCore i7
Processor Generation13th Gen
Processor Modeli7-13700
Processor CoreHexadeca-core (16 Core)
Processor Speed2.10 GHz
vPro TechnologyYes
Processor SocketSocket LGA-1700
Chipset
Chipset ManufacturerIntel
Chipset ModelW680
Memory
Standard Memory16 GB
Maximum Memory Supported128 GB
Memory TechnologyDDR5 SDRAM
Total Number of Memory Slots4
Error CheckingNon-ECC
Memory Clock Speed4.80 GHz
Signal ProcessingUnbuffered
Storage
Total Solid State Drive Capacity512 GB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Optical Media SupportedDVD-ROM
Controllers
Controller TypeSerial ATA/600
RAID SupportedYes
RAID Levels0, 1
Display & Graphics
Graphics Controller ModelT1000
Graphics Memory Capacity8 GB
Graphics Memory TechnologyGDDR6
Graphics Memory AccessibilityDedicated
Maximum Memory Bandwidth160 GB/s
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Total Number of USB Ports11
USB Type-CYes
USB Type-C Detail1 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge)
DisplayPortYes
Mini DisplayPortYes
Number of Mini DisplayPort4
Number Of Ethernet Ports1
Number of DisplayPort Outputs2
Input Devices
Keyboard LocalizationEnglish
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Operating System LanguageEnglish
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorSmall Form Factor
Height3.94" (100 mm)
Width15.12" (384 mm)
Depth12.13" (308 mm)
Weight (Approximate)11.02 lb (5000 g)
Miscellaneous
Energy StarYes
TCO CertifiedYes
Environmentally FriendlyYes
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0197497707120
;
