CH560 DIGITAL WH

HIGH AIRFLOW CASES REIMAGINED

A BREATH OF FRESH AIR

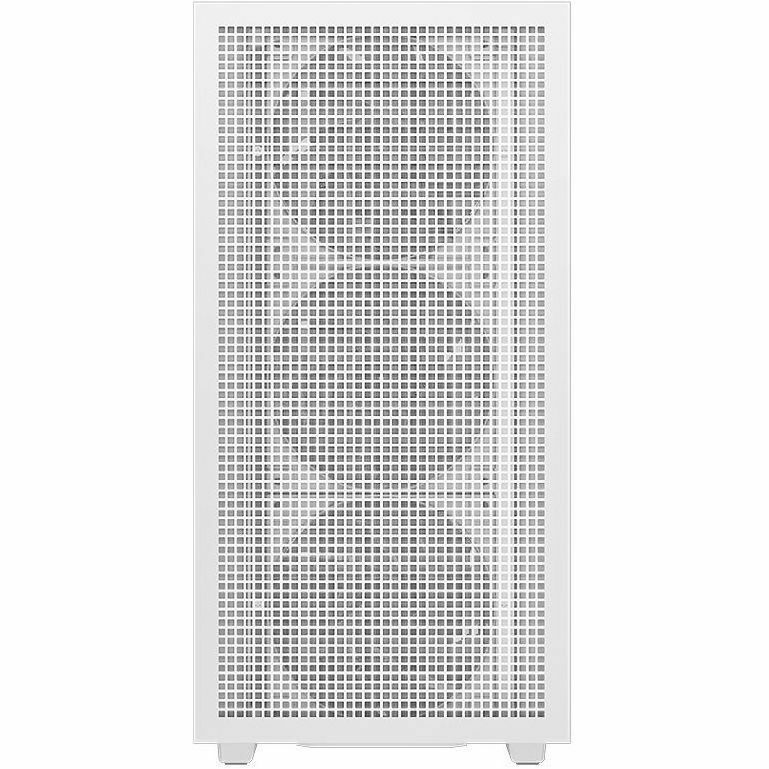

The CH560 DIGITAL WH provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.

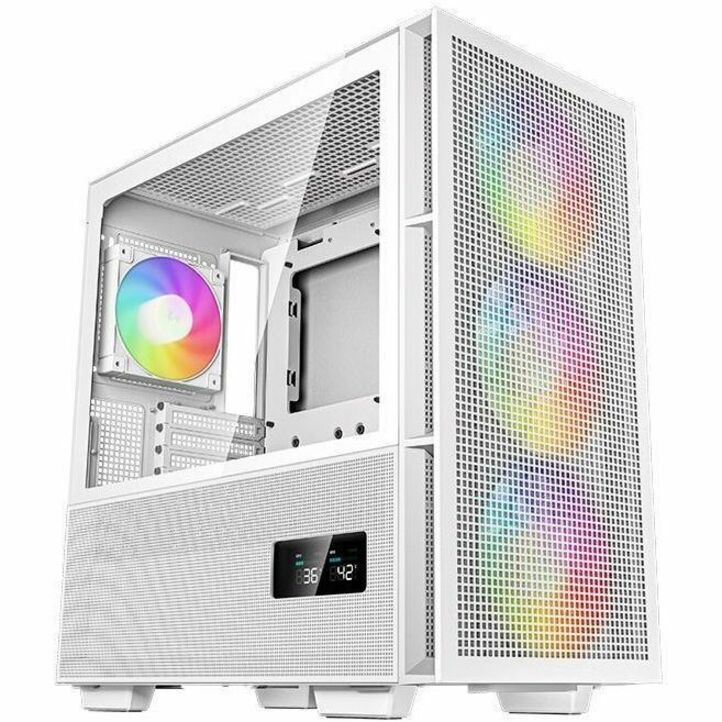

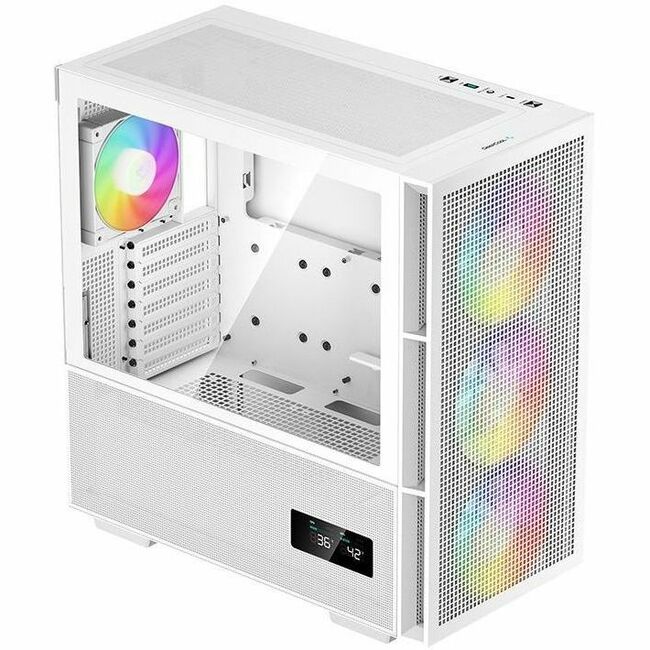

HYBRID AIRFLOW GLASS SIDE PANEL

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

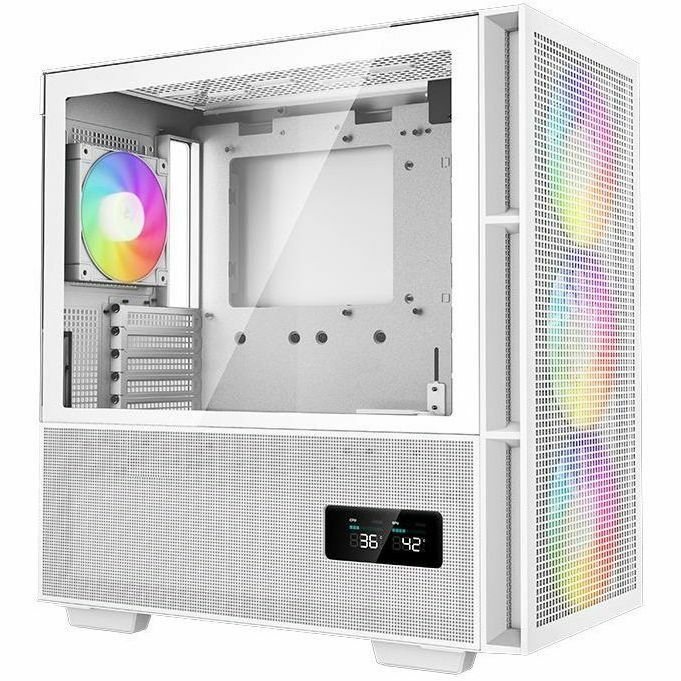

REAL-TIME DUAL-STATUS DIGITAL DISPLAY

Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.

MAXIMUM COOLING CAPACITY

The CH560 DIGITAL WH has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear-the cooling configurations are endless.

Radiators:

Front: 120/140/240/280/360mm

Top: 120/140/240/280/360mm

Rear: 120/140mm

Fans:

Front: 3×120 / 3×140mm

Top: 3×120 / 2×140mm

Rear: 1×120 / 1×140mm

PSU Shroud: 2×120mm

YES, IT FITS!

With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 DIGITAL WH can be configured with a wide range of modern components.

BIGGER, BRIGHTER, BETTER

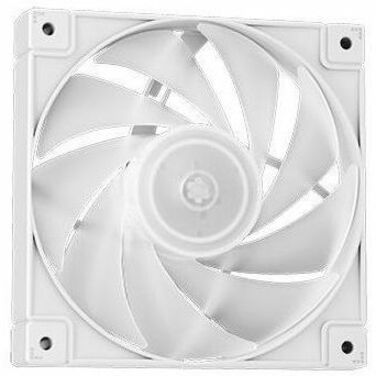

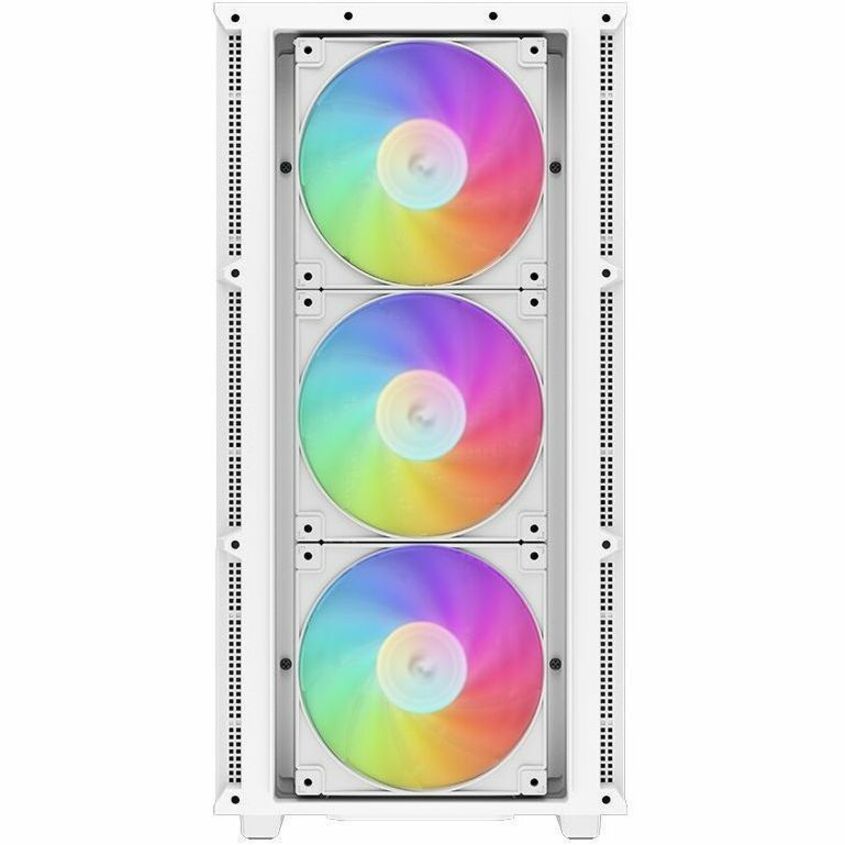

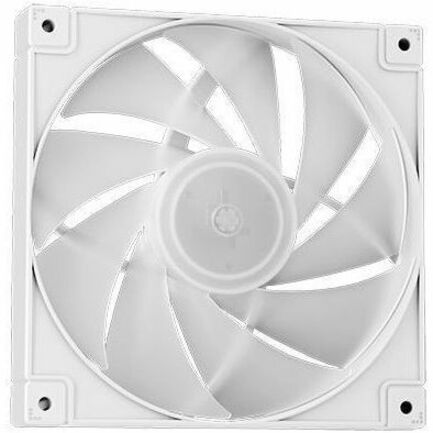

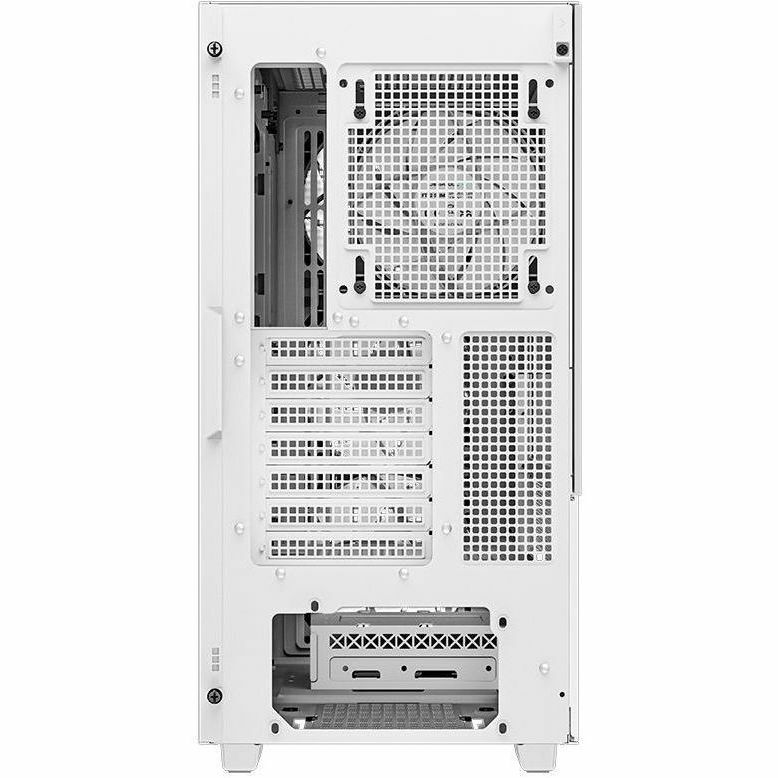

Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 DIGITAL WH and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.

STRESS-FREE BUILDING

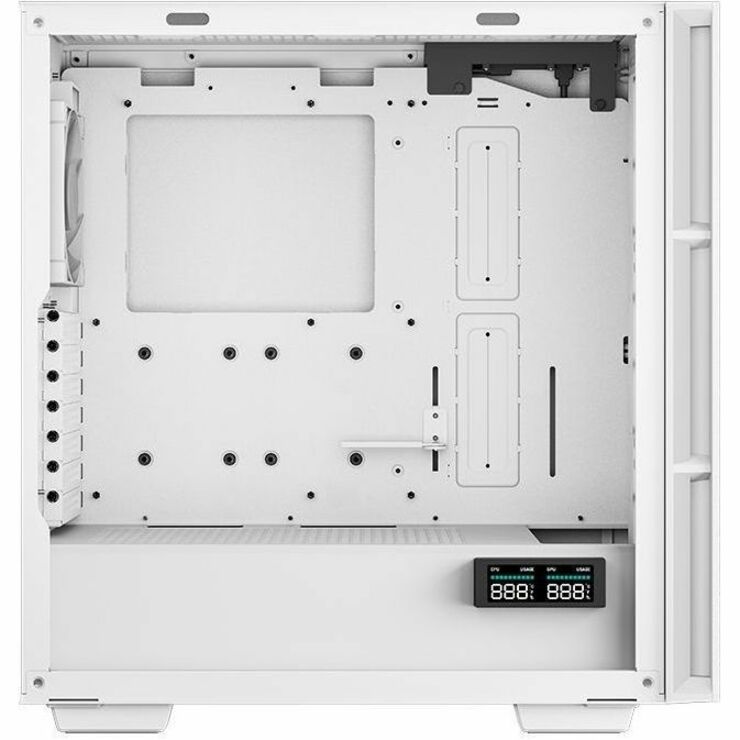

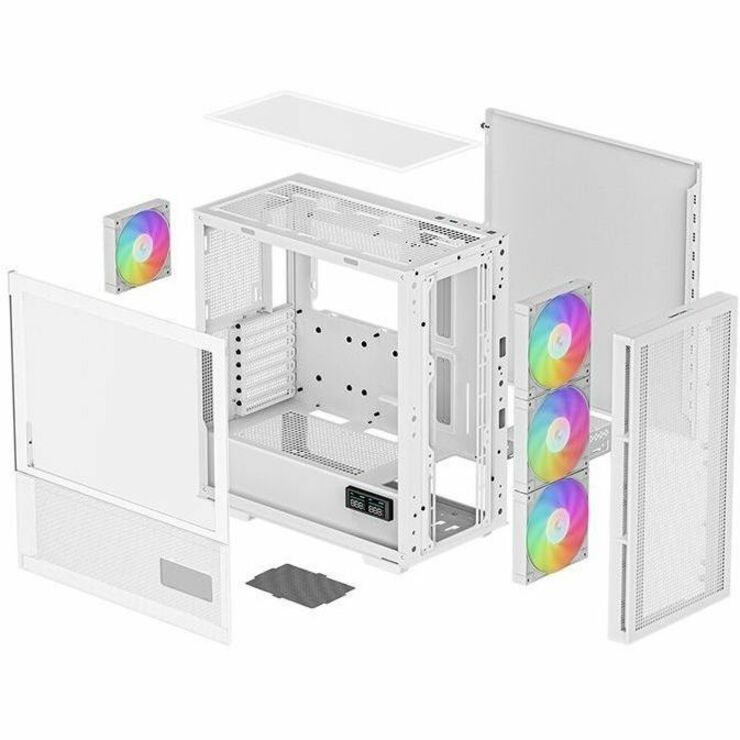

Building and maintaining the CH560 DIGITAL WH is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.

CONVENIENCE AT ARM'S REACH

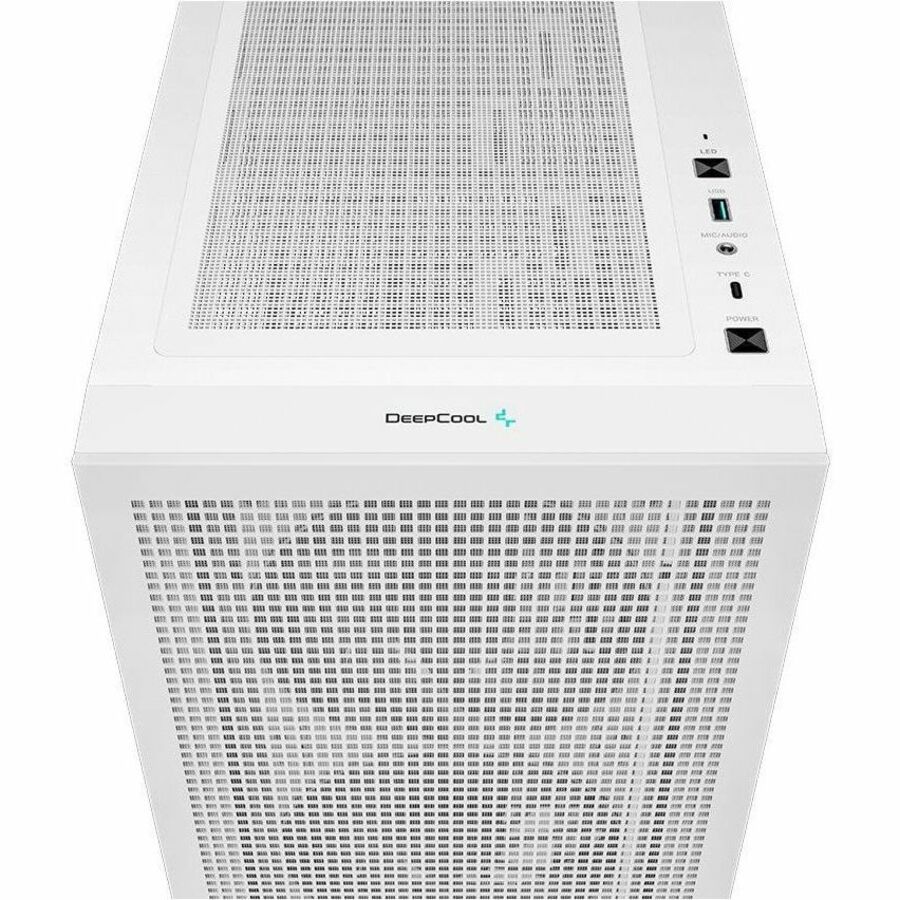

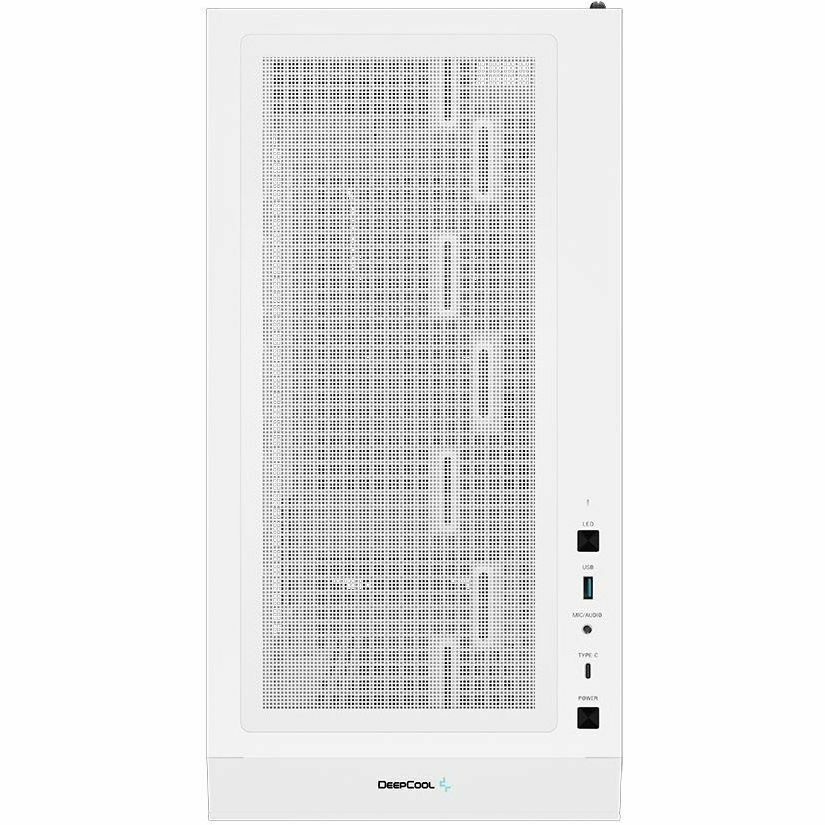

Everything necessary for daily routines is within reach with a Type-C, one USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.

• Mini ITX
• Micro ATX
• ATX
• EATX

• 4.72" (120 mm)
• 5.51" (140 mm)

• 4.72" (120 mm)
• 5.51" (140 mm)

• 1 x 120mm
• 3 × 140mm

• 1 x USB 3.0
• 1 x USB Type C

• Acrylonitrile Butadiene Styrene (ABS)
• SPCC
• Tempered Glass
