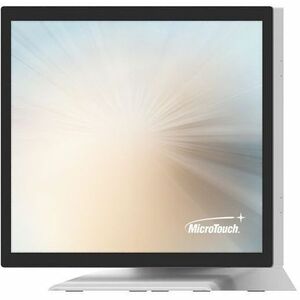

MicroTouch DT-170P-M1 17" Class LCD Touchscreen Monitor - 5:4
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | TES America, LLC |
| Manufacturer Part Number | DT170PM1 |
| Brand Name | MicroTouch |
| Product Model | DT-170P-M1 |
| Product Name | DT-170P-M1 17" PCAP Medical-Grade Touch Monitor |
| Marketing Information | The DT-170P-M1 is a 17" standard format medical-grade monitor perfect for a wide range of healthcare applications including, nurses' stations, equipment/ devices, laboratory instruments, medical carts, and advertising. This unique, 10-point touch monitor is specifically designed to enhance your medical space and end-user experience while maintaining a durable, compliant, and versatile product enabled by IP54 rated screens and IEC-60601-1-2 4th edition EMC compliance. Naturally intuitive, engineered performance, and designed for medical, this monitor combines a commonality of medical market requirements and consumer-grade touch experience into one solution. |
| Product Type | LCD Touchscreen Monitor |
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Mount Type | Desk Mountable |
| Features |
|
| Ingress Protection (IP) Rating | IP65 |
| Impact Protection (IK) Rating | IK07 |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 297 cd/m² |
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Connectivity Technology | Wired |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Total Number of HDMI Ports | 1 |
| Number of USB Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of VGA Ports | 1 |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Non-operating Temperature Range | 68°F (20°C) to 140°F (60°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Non-operating Humidity Range | 20% to 90% (Non-condensing) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | White |
| Height | 13.19" (334.90 mm) |
| Width | 14.53" (369 mm) |
| Depth | 7.95" (202 mm) |
| Weight (Approximate) | 11.68 lb (5300 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | CN |
| Condition | No |
| Limited Warranty | 3 Year |
