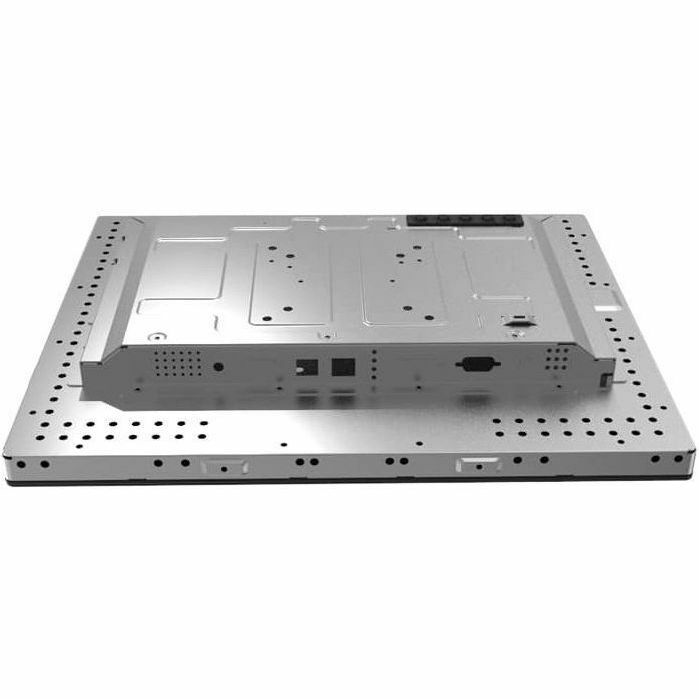

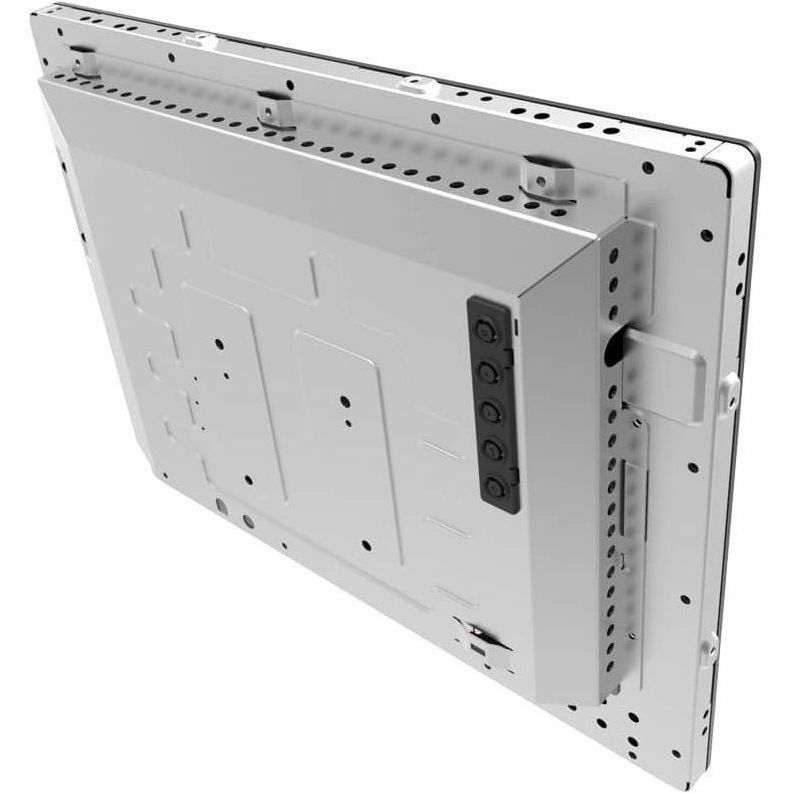

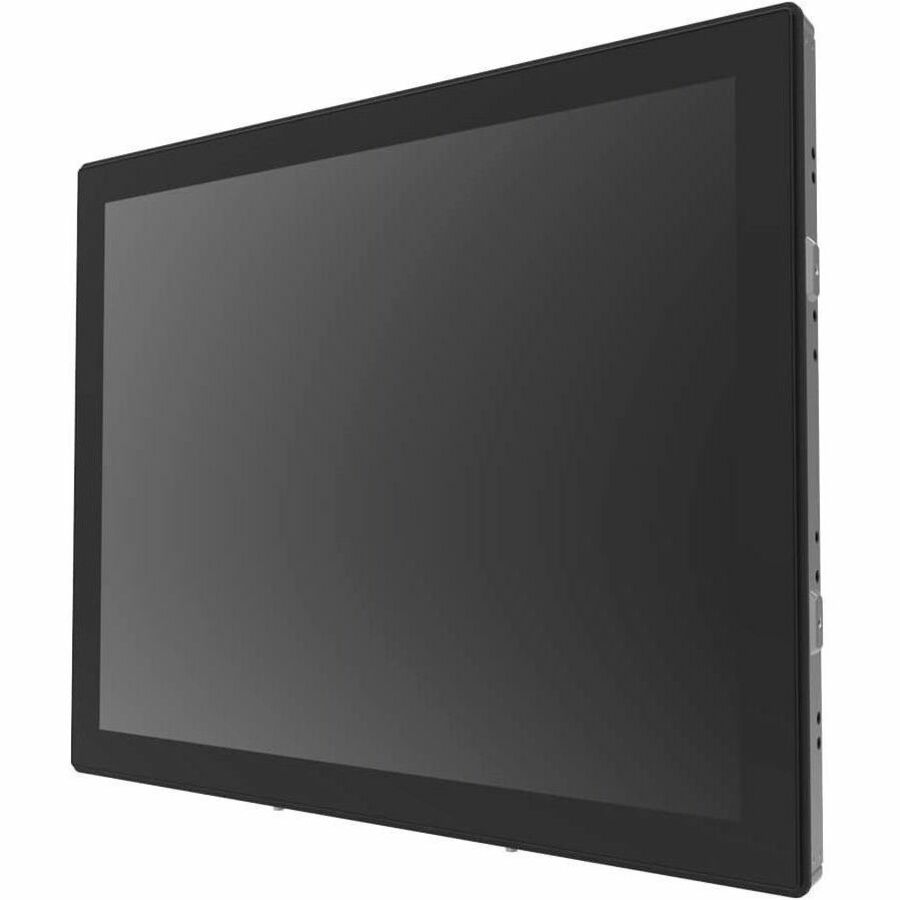

MicroTouch OF-190P-A1 19" Class Open-frame LCD Touchscreen Monitor - 5:4
19" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 215 cd/m² - HDMI - USB - VGA - DisplayPort - Dark Gray - 3 Year
$252.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | TES America, LLC |
| Manufacturer Part Number | OF190PA1 |
| Brand Name | MicroTouch |
| Product Model | OF-190P-A1 |
| Product Name | OF-190P-A1 Open-frame Touchscreen LCD Monitor |
| Marketing Information | This industrial-grade, OF-190P-A1, 19" open frame monitor is the perfect solution for a wide variety of embedded applications. Uniquely designed with the glass settling proud of the bezel allowing for a seamless fit into a broad range of kiosks and fixtures, exceeding your integration expectations - The IP65 rating, 10-point touch, 1280×1024 resolution and innovative bezel design encourages a memorable end-user experience that outperforms the competition with a dependable, reliable, performance driven product. |
| Product Type | Open-frame LCD Touchscreen Monitor |
Technical Information
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Ingress Protection (IP) Rating |
|
Video
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 215 cd/m² |
Touchscreen Information
| Touchscreen Type | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
Interfaces/Ports
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Total Number of HDMI Ports | 1 |
| Number of USB Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of VGA Ports | 1 |
Environmental Conditions
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Non-operating Temperature Range | -4°F (-20°C) to 140°F (60°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Non-operating Humidity Range | 10% to 90% (Non-condensing) |
Power Description
| Operating Power Consumption | 60 W |
Physical Characteristics
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | Dark Gray |
| Height | 14.19" (360.30 mm) |
| Width | 17.04" (432.90 mm) |
| Depth | 2.30" (58.40 mm) |
| Weight (Approximate) | 12.79 lb (5800 g) |
Miscellaneous
| Package Contents |
|
| COO | CN |
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
