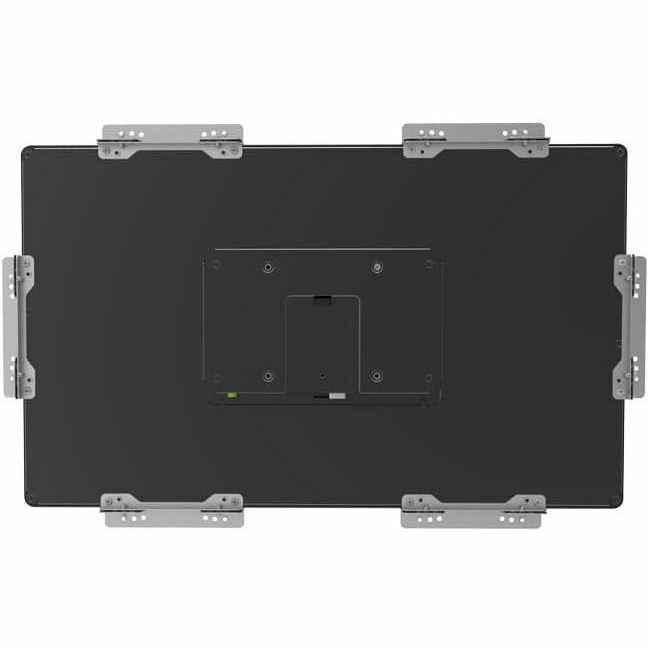

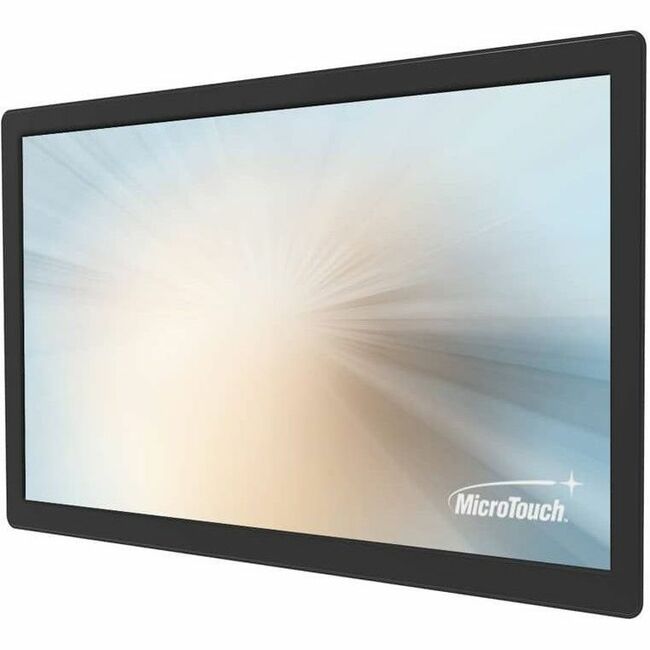

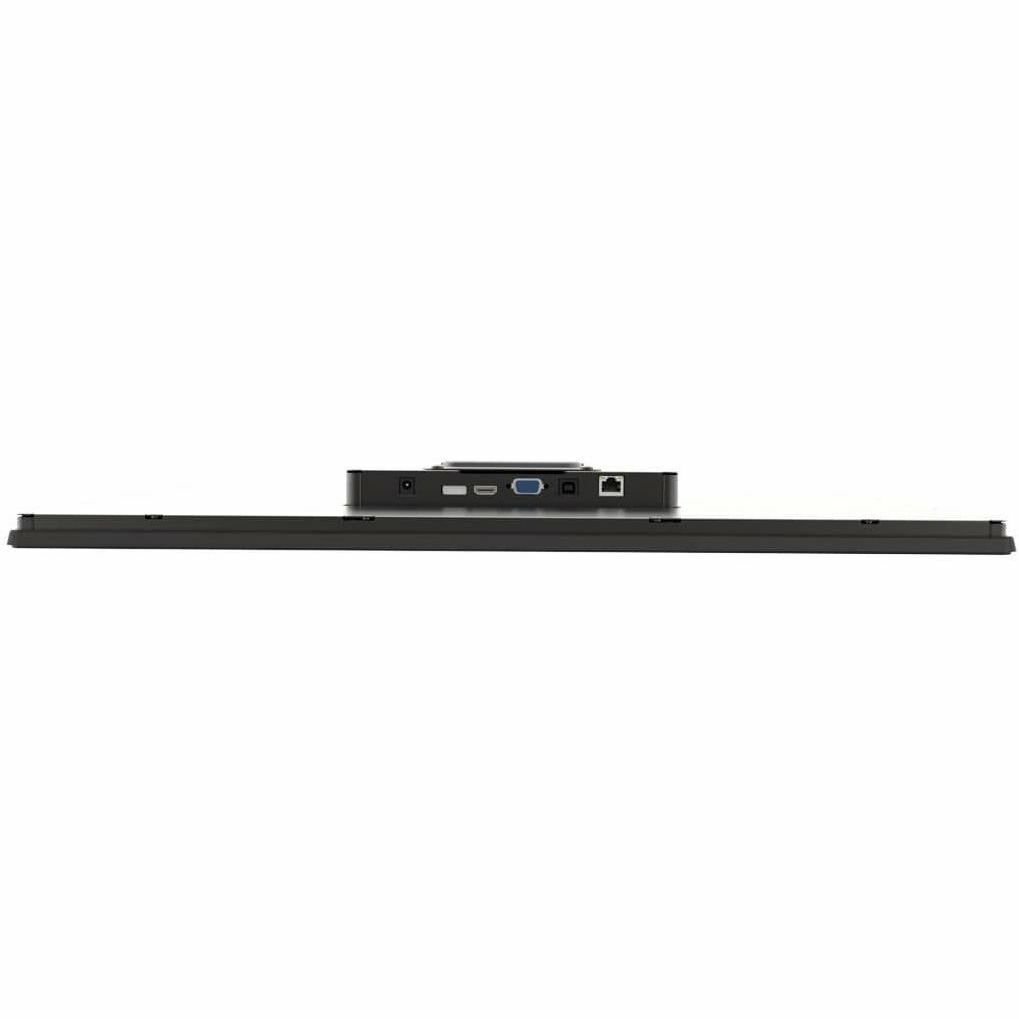

MicroTouch OF-240P-A1 24" Class Open-frame LCD Touchscreen Monitor - 16:9

Part No. OF-240P-A1

by TES America, LLC

MicroTouch OF-240P-A1 24" Class Open-frame LCD Touchscreen Monitor - 16:9

23.8" Viewable - Projected Capacitive - 10 Point(s) - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 215 cd/m² - HDMI - USB - VGA - DisplayPort - Black - 3 Year

Part No. OF-240P-A1

by TES America, LLC

$686.99
General Information
ManufacturerTES America, LLC
Manufacturer Part NumberOF240PA1
Brand NameMicroTouch
Product ModelOF-240P-A1
Product NameOF-240P-A1 Open-frame LCD Touchscreen Monitor
Marketing Information

The OF-240P-A1 is a 24" , newly designed, commercial-grade open frame solution. The refined aesthetics, standard gasketed bezel, and cable management feature ensures that the customer specific application remains clean, aesthetically remarkable with the ability to endure harshest of environments. A stylish thin cable management bracket and versatile design, the OF-240P-A1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage. The OF-240P-A1 retains all capabilities to mold a unique solution for any customer application.


Packaged Quantity1
Product TypeOpen-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class24"
Viewable Screen Size23.8"
Screen ModeFull HD
Panel TechnologyThin Film Transistor (TFT)
Aspect Ratio16:9
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Ingress Protection (IP) RatingIP65
Impact Protection (IK) RatingIK08
Video
Maximum Resolution1920 x 1080
Native Contrast Ratio3,000:1
Brightness215 cd/m²
Touchscreen Information
Touchscreen TypeProjected Capacitive
Number of Simultaneous Touchpoints10
Interfaces/Ports
HDMIYes
USBYes
VGAYes
DisplayPortYes
Total Number of HDMI Ports1
Number of USB Ports1
Number of DisplayPorts1
Number of USB 2.0 Ports1
Number of VGA Ports1
Audio Line InYes
Environmental Conditions
Operating Temperature Range32°F (0°C) to 104°F (40°C)
Operating Humidity Range20% to 80% (Non-condensing)
Power Description
Operating Power Consumption36 W
Physical Characteristics
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Color FamilyBlack
Product ColorBlack
Height13.66" (347 mm)
Width22.64" (575 mm)
Depth1.67" (42.40 mm)
Weight (Approximate)12.79 lb (5800 g)
Miscellaneous
Package Contents
  • Power Cord
  • DC Power Supply
  • OSD Key Pad
  • DP Cable
  • VGA Cable
Energy StarNo
TCO CertifiedNo
COOCN
ConditionNo
Warranty
Limited Warranty3 Year
connector cables (4)

Part No. USB-5313118047FV

MicroTouch (USB5313118047FV) Connector Cables

Part No. DP-5313118123FV

MicroTouch (DP5313118123FV) Connector Cables

Part No. VGA-5313118072FH

MicroTouch (VGA5313118072FH) Connector Cables

mounting kits (1)
power adapters (1)

Part No. PS-3316003605F0

MicroTouch Power Adapter - 36 W - 12 V DC Output

power cords (2)

Part No. EPC-5331021203FI

MicroTouch (EPC5331021203FI) Power Cords
