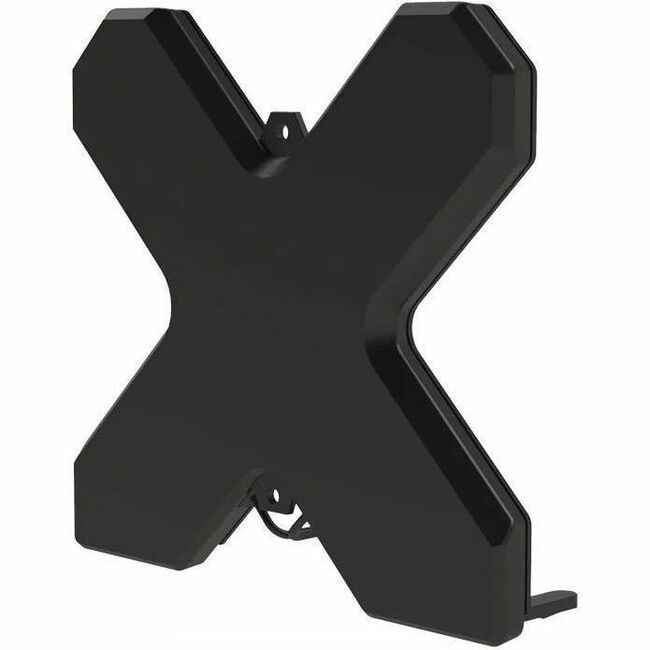

Panorama Antennas 4G/5G Desk Mount MiMo Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | DMM66005SP |
| Brand Name | Panorama Antennas |
| Product Series | DMM-6-60 |
| Product Name | 4G/5G Desk Mount MiMo Antenna |
| Marketing Information | The DMM antenna provides an innovative and future proof solution for 2G / 3G / 4G and 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the DMM is equipped to provide portable MiMo and diversity support for frequencies from 617-960/1710-6000MHz. The DMM is highly portable and features desk mount feet which fold out for use, and flat for transport. A handy suction window mount enables users to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent situations screw and adhesive pad mounting options are also provided The product is supplied with up to 2 metres (6') of cable and a variety of connectors are available. The DMM is an cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention. |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain (Isotropic) | 5 dBi |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Connector Type |
|
| Color Family | Black |
| Product Color | Jet Black |
| Height | 6.94" (176.30 mm) |
| Width | 7.27" (184.60 mm) |
| Depth | 0.55" (14 mm) |
| Form Factor |
|
| Weight (Approximate) | 8.82 oz (250 g) |
| Application/Usage | Cellular Network |
| Package Contents |
|
| Condition | No |
