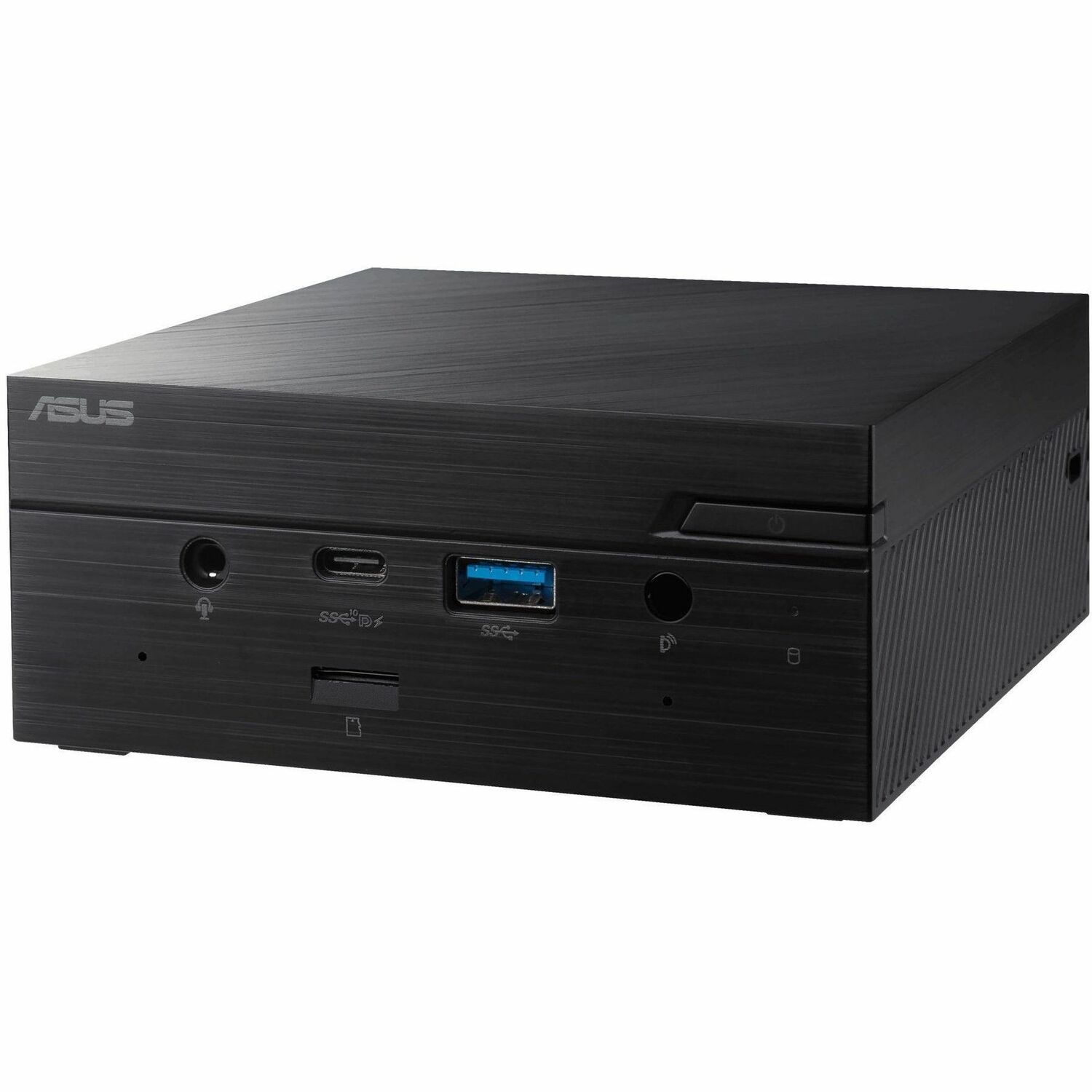

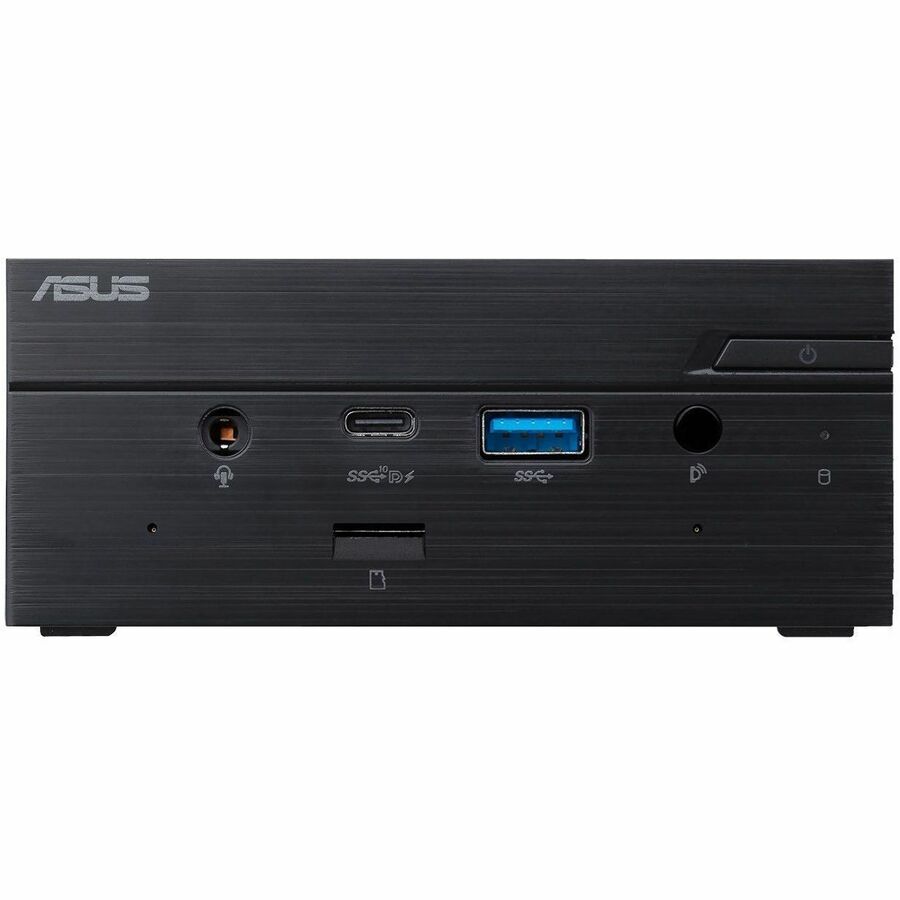

Asus Barebone System - Mini PC - Ryzen 7 4700U 2 GHz Octa-core (8 Core)

Part No. 90MR00E1-M01390

by ASUS Computer International

Asus Barebone System - Mini PC - Ryzen 7 4700U 2 GHz Octa-core (8 Core)

AMD Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 2 Total Memory Slots - Radeon Vega Graphics Graphic(s) - IEEE 802.11ax - Bluetooth 5.0 - Network (RJ-45) - Processor Support (Ryzen 3, Ryzen 5, Ryzen 7) - Gigabit Ethernet - Windows 10 Pro Supported Operating System - 65 W

Part No. 90MR00E1-M01390

by ASUS Computer International

$464.99
General Information
ManufacturerASUS Computer International
Manufacturer Part Number90MR00E1M01390
Brand NameAsus
Product SeriesPN50
Product NamePN50 Barebone System
Marketing Information

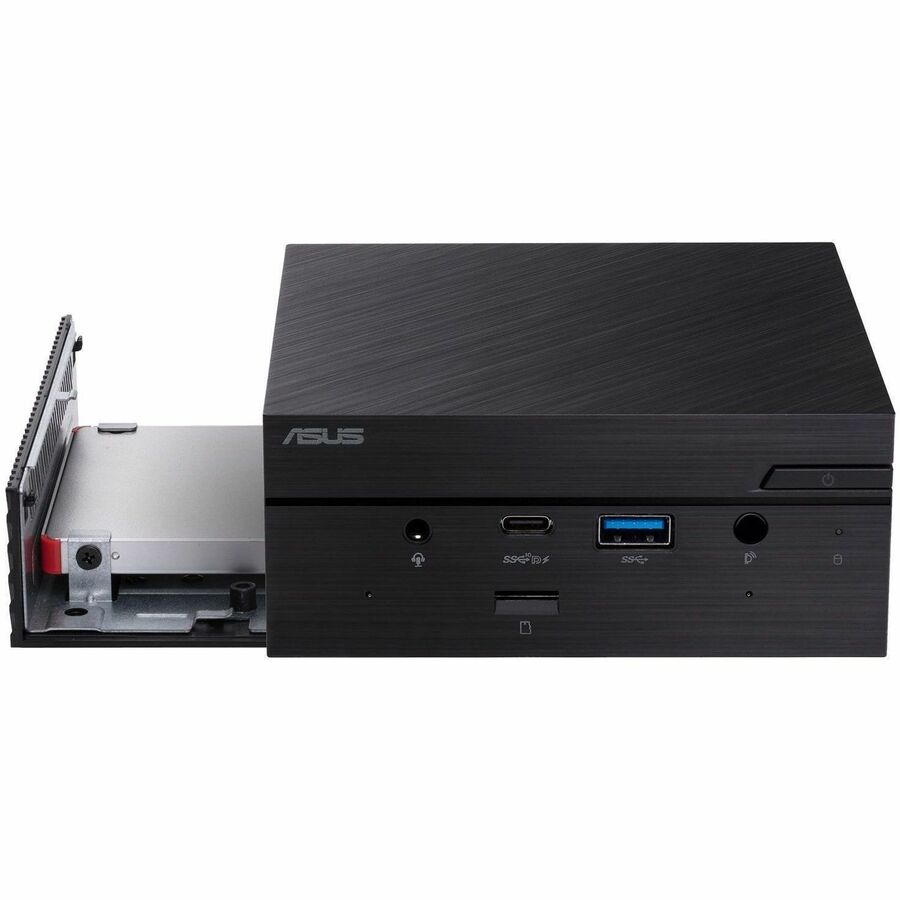

Easy modification, maximum possibilities

ASUS Mini PC PN50 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest AMD Ryzen™ 4000 mobile processor with Radeon™ Vega 7 graphics, and support for high-speed 3200 MHz DDR4 memory, Mini PC PN50 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit - from digital signage to home-theater setups.
PN50 supports up to 8K resolution at 60 Hz or up to four displays simultaneously, with up to 4K resolution at 60 Hz, providing ultrarealistic visuals. It is also suitable for flexible business scenarios, with configurable port options. WiFi 6 (802.11ax) networking ensures stable, high-speed data transfers, even in crowded networking environments, and dual USB-C ports support data transfer and DisplayPort functionality over a single cable. Mini PC PN50 is also ready for Microsoft Cortana, with integrated dual-array front microphones for convenient voice control, and features an infrared (IR) sensor, letting users control applications via remote control.

Performance

ASUS Mini PC PN50 is powered by the latest AMD Ryzen™ 4000 mobile processor, which delivers a system performance uplift of up to 14% and provides up to 35% better performance in daily multitask computing, comparing with mainstream mobile processors - providing powerful computing capacity and enabling easy multitasking and smooth operation.

4K resolution and quad-display support

ASUS Mini PC PN50 supports up to four displays with 4K resolution through HDMI, DisplayPort over USB-C and user-configurable ports, without any limitation on the combination.

Hyper - realistic 8K support

PN50 also supports stunning 8K UHD through DisplayPort 1.4 or Type-C DisplayPort, for detail that's 4X times greater than 4K or a remarkable 16X higher than traditional Full HD output. Specifically, PN50 will pump 8K visuals at up to 30Hz via a single DisplayPort and at up to 60Hz through DisplayPort Dual-Mode (DP++) - bringing every image to life in breathtaking style.

Graphics Performance

PN50 is powered by the integrated Radeon Vega 7 graphics, delivering performance improvements of over 150% when compared with traditional Mini PC graphics - so it's ready to thrill with high-resolution, ultrarealistic visual content.

Ready for Any Scenario

ASUS Mini PC PN50 supports up to four video outputs, so it offers flexibility to handle all manner of multi-display setups. Moreover, you have the freedom to choose your own combination of ports, making PN50 is suitable for almost any conceivable display scenario.

Product TypeBarebone System
Processor
Processor Supported
  • Ryzen 3
  • Ryzen 5
  • Ryzen 7
Processor TypeRyzen 7
Processor Model4700U
Processor CoreOcta-core (8 Core)
Processor Speed2 GHz
Maximum Turbo Speed4.10 GHz
Chipset
Chipset ManufacturerAMD
Memory
Maximum Memory Supported64 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-3200/PC4-25600
Total Number of Memory Slots2
Storage
Supported Storage Drive InterfacesPCI Express 3.0
Supported Storage Drive TypesSSD
Display & Graphics
Graphics Controller ModelRadeon Vega Graphics
Graphics Memory TechnologyDDR4 SDRAM
Graphics Memory AccessibilityShared
Network & Communication
Ethernet TechnologyGigabit Ethernet
Wireless LANYes
Wireless LAN StandardIEEE 802.11ax
BluetoothYes
Bluetooth StandardBluetooth 5.0
Interfaces/Ports
HDMI (Rear)Yes
Total Number of USB Ports5
Number of USB 3.1 Gen 1 Ports3
USB Type-C (Front)Yes
USB Type-C (Rear)Yes
USB Type-C Detail1 x USB 3.1 Gen2 Type-C (Support Display Port 1.4, BC 1.2) , 1 x USB 3.1 Gen2 Type-C (Support Display Port 1.4)
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
Operating System
Operating System SupportedWindows 10 Pro
Power Description
Maximum Power Supply Wattage65 W
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorMini PC
Height1.93" (49 mm)
Width4.53" (115 mm)
Depth4.53" (115 mm)
Miscellaneous
Package Contents
  • PN50 Barebone System
  • Power Adapter
Energy StarYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0195553446891
