Asus PN41-BBF5000ATD Barebone System - Mini PC - 11th Gen

Part No. 90MR00I3-M002E0

by ASUS Computer International

Asus PN41-BBF5000ATD Barebone System - Mini PC - 11th Gen

Intel Chip - 16 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - NVMe, Serial ATA Controller - IEEE 802.11ax - Bluetooth 5.2 - Network (RJ-45) - 1 M.2 Interface(s) - 1 SATA Interface(s) - 2.5 Gigabit Ethernet - 3 USB 3.2 Gen 1 Port(s) - 65 W

Part No. 90MR00I3-M002E0

by ASUS Computer International

$338.99
General Information
ManufacturerASUS Computer International
Manufacturer Part Number90MR00I3-M002E0
Brand NameAsus
Product SeriesPN41
Product ModelPN41-BBF5000ATD
Product NamePN41-BBF5000ATD Barebone System
Marketing Information

Easy modification, maximum possibilities

ASUS Mini PC PN41 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Gen Intel® Pentium® Silver or Celeron® mobile processor with Intel UHD Graphics, plus support for high-speed 2933 MHz DDR4 memory, Mini PC PN41 is ready for everyday multitask computing, yet its diminutive size makes it well-suited for applications where traditional PCs won't fit - from digital signage to small home-office setups.

Performance

ASUS Mini PC PN41 is powered by the latest 11 Gen Intel® Pentium® Silver or Celeron® mobile processor. Compared with traditional same-tier mobile processors, these Intel mobile processors deliver performance improvements of up to 36.45% for single-thread computing, up to 31.8% for multi-thread computing, and up to a 32% lift for the entire system - ensuring smooth operations for everything you do.

Powerful graphics

ASUS Mini PC PN41 delivers class-leading graphics performance with Integrated Intel UHD Graphics. In fact, compared to previous-generation mobile processors, PN41's graphics performance in 3DMark11 v1.0.132 has increased by over 90% - and by an impressive 120% in 3D Mark Fire Strike.

Hyper-fast 2.5 Gbps networking

ASUS Mini PC PN41 is engineered with onboard networking that runs at up to 2.5 Gbps - or 2.5X faster than even gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient.

Power Delivery input

With support for USB Power Delivery input, PN41 can receive power from a supported display or other device via a cable, eliminating the need for separate power adapters to keep your workspace uncluttered.

Triple-display support

ASUS Mini PC PN41 supports up to three displays with 4K UHD resolution through HDMI, DisplayPort* over USB-C and a user-configurable port, extending your workspace across multiple monitors for more efficient and comfortable productivity experiences.

Diverse applications

With support for up to three displays and a fanless design, ASUS Mini PC PN41 is versatile enough for all sorts of commercial applications - from digital signage in shops, exhibition halls and retail stores, to interactive kiosks, home working and online learning. PN41 is also compact and powerful, making it the perfect choice for conference rooms and offices, including home working, or even for remote learning. With built-in Power Delivery input and onboard 2.5 Gbps Ethernet, PN41 makes setup and communication swift, smooth and efficient.

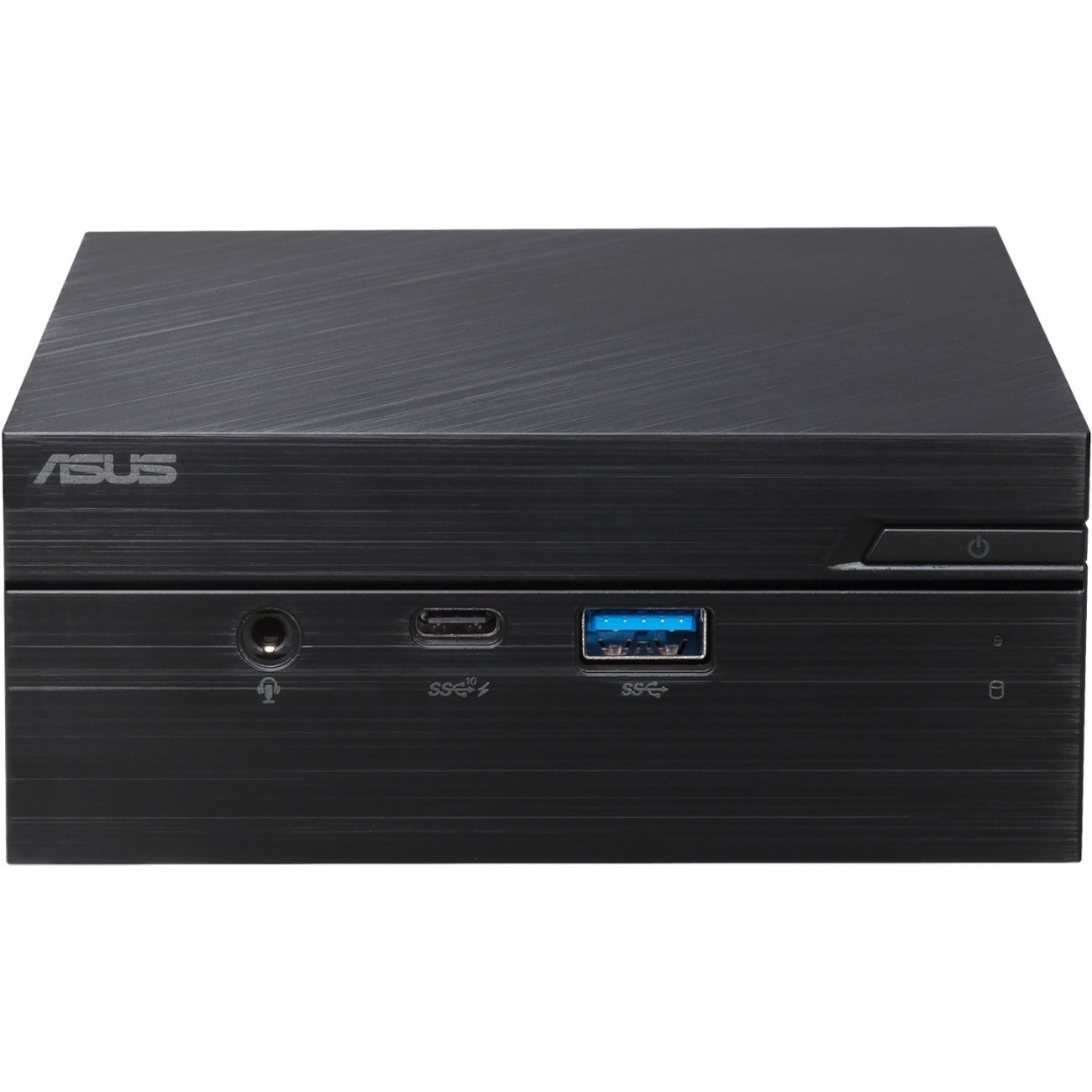

Design | Modern, space-saving chassis

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN41 easily blends into home, office and retail environments. Compact and lightweight at 115 x 115 x 49 mm, and with a mere 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.

Fanless chassis and a dedicated SSD heatsink

ASUS Mini PC PN41 has a fanless design to support a 6-watt CPU, so it's ideal for industrial applications where reliability, durability and low noise levels are paramount. It also has a dedicated heatsink to cool the SSD, keeping the average temperature of the drive at a mere 50° C.

Product TypeBarebone System
Processor
Processor Generation11th Gen
Chipset
Chipset ManufacturerIntel
Memory
Maximum Memory Supported16 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2933/PC4-23466

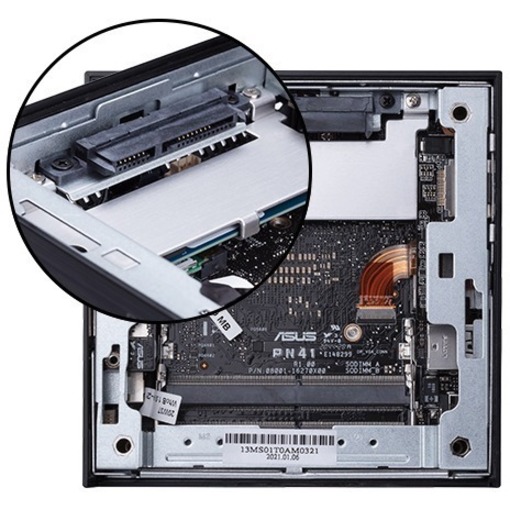

Storage

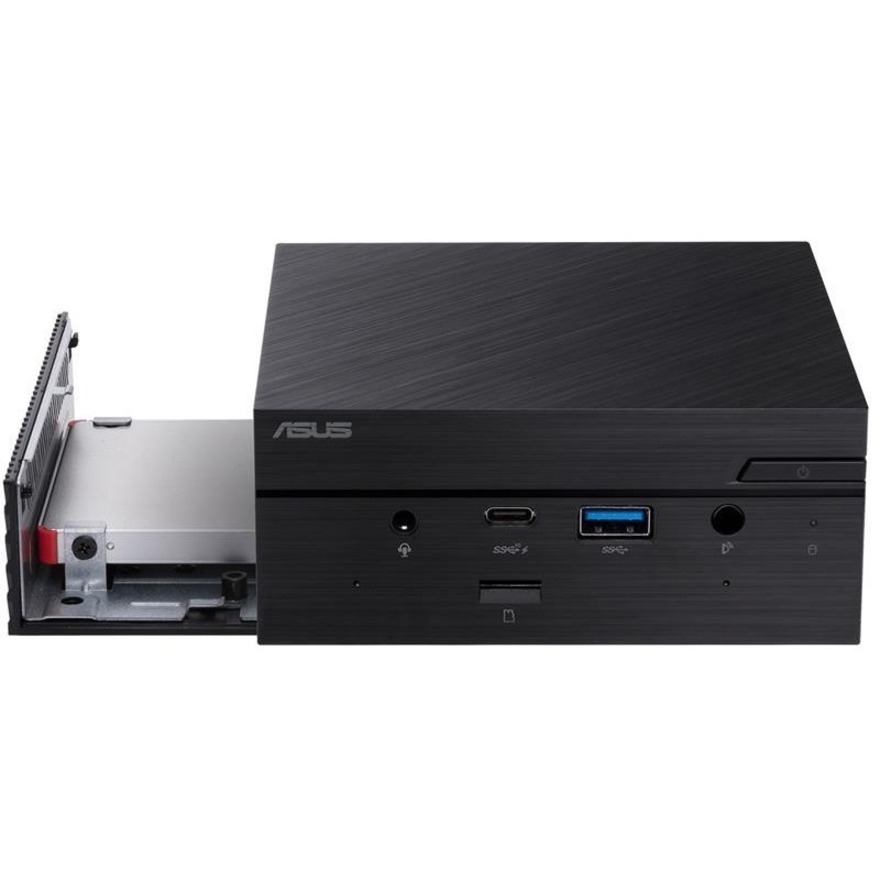

Supported Storage Drive Interfaces
  • Serial ATA
  • PCI Express 3.0 x2
Supported Storage Drive Types
  • SSD
  • HDD
Controllers
Controller Type
  • NVMe
  • Serial ATA
Display & Graphics
Graphics Memory TechnologyDDR4 SDRAM
Graphics Memory AccessibilityShared
Network & Communication
Ethernet Technology2.5 Gigabit Ethernet
Wireless LANYes
Wireless LAN StandardIEEE 802.11ax
BluetoothYes
Bluetooth StandardBluetooth 5.2
I/O Expansions
Number of Total Expansion Bays1
Number of M.2 Interfaces1
Interfaces/Ports

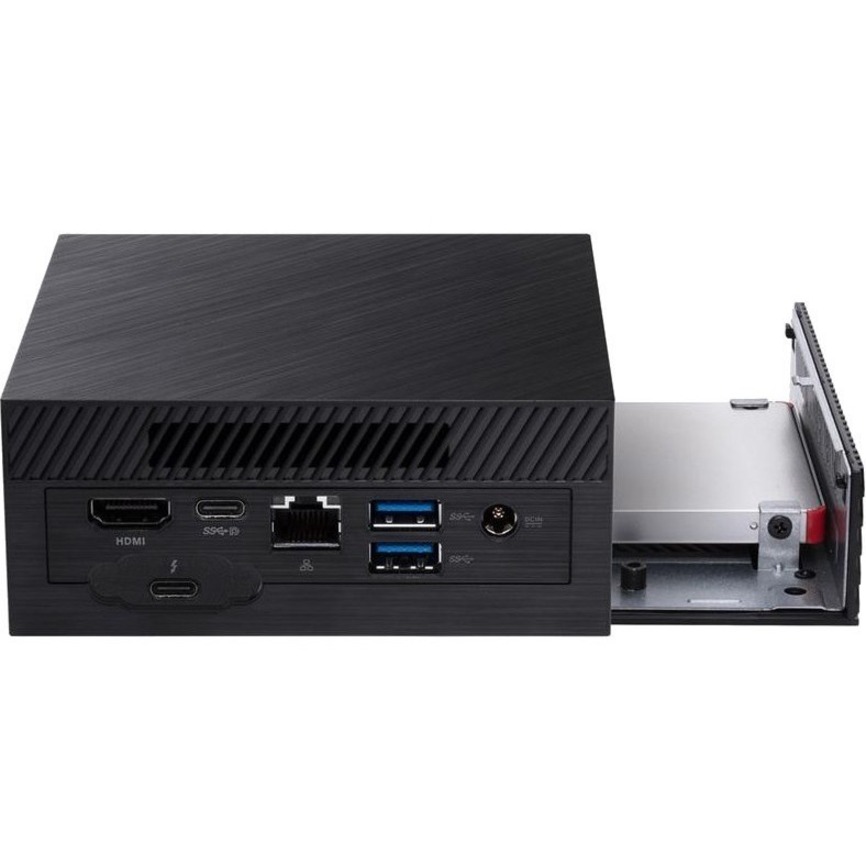

HDMI (Rear)Yes
Total Number of USB Ports5
Number of USB 3.2 Gen 1 Ports3
USB Type-C (Front)Yes
USB Type-C (Rear)Yes
USB Type-C Detail1 x USB 3.2 Gen2 Type-C (w/ quick charge); 1 x USB 3.2 Gen1 Type-C (with DP1.4 output and PD input)
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
Number of SATA Interfaces1
Power Description
Maximum Power Supply Wattage65 W
Physical Characteristics
Form FactorMini PC
Height1.93" (49 mm)
Width4.53" (115 mm)
Depth4.53" (115 mm)
Weight (Approximate)1.21 lb (550 g)
Miscellaneous

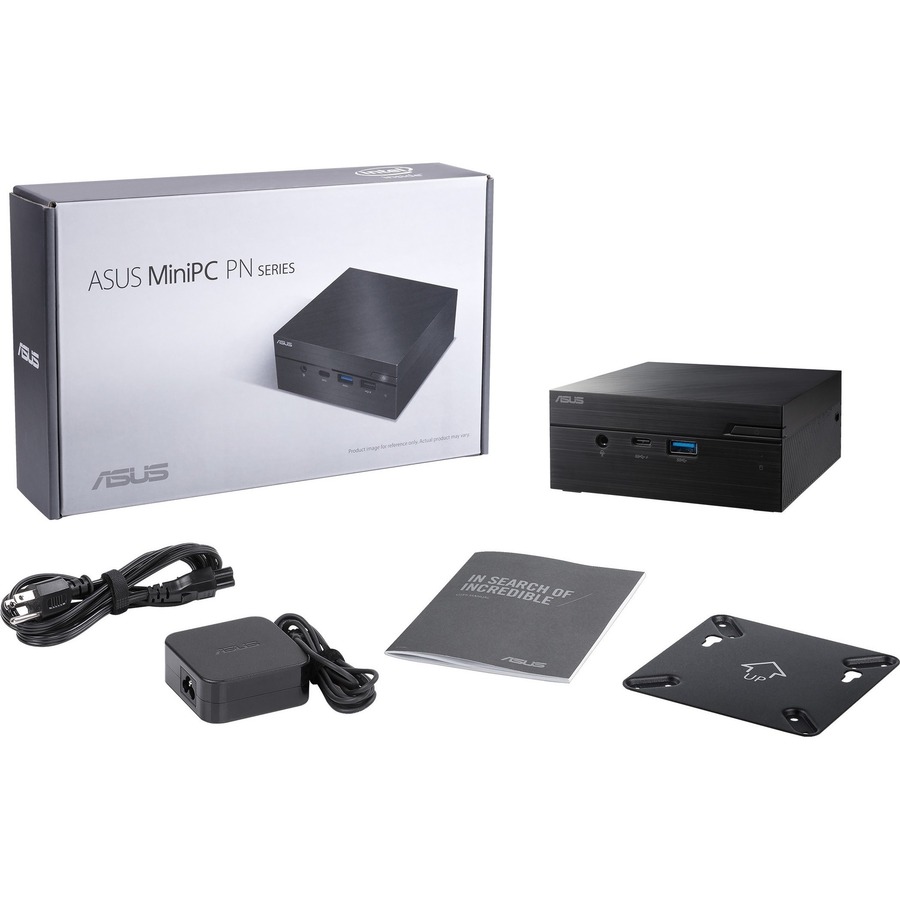

Package Contents
  • PN41-BBF5000ATD Barebone System
  • Power Adapter
Energy StarYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0195553578059
