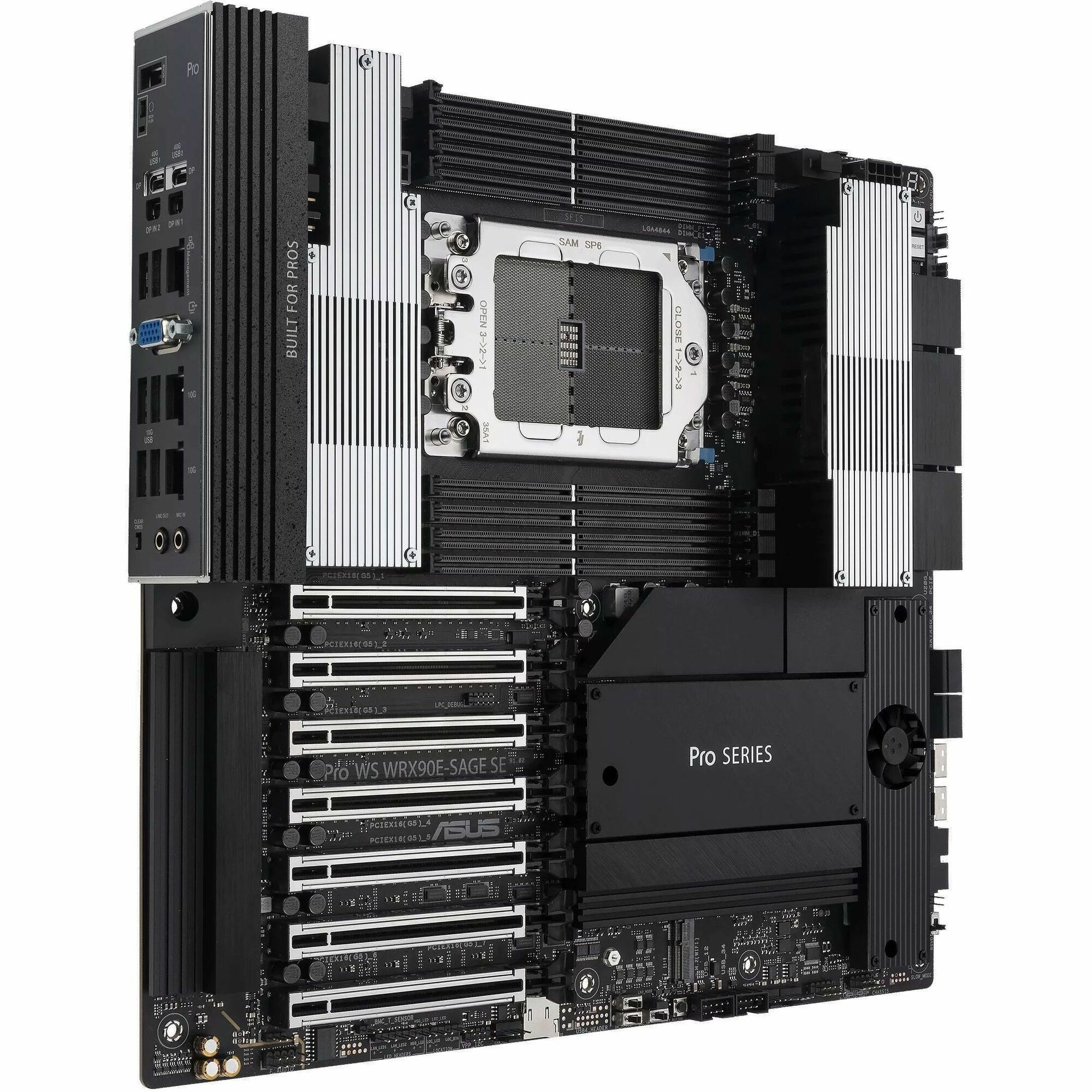

Asus WS WRX90E-SAGE SE Workstation Motherboard - AMD WRX90 Chipset - Socket sTR5 - SSI EEB

Part No. Pro-WS-WRX90E-SAGE-SE

by ASUS Computer International

Asus WS WRX90E-SAGE SE Workstation Motherboard - AMD WRX90 Chipset - Socket sTR5 - SSI EEB

Ryzen Threadripper PRO Processor Supported DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - DisplayPort - 4 x SATA Interfaces

Part No. Pro-WS-WRX90E-SAGE-SE

by ASUS Computer International

$2082.99
General Information
ManufacturerASUS Computer International
Manufacturer Part NumberPROWSWRX90ESAGESE
Brand NameAsus
Product SeriesPRO
Product ModelWS WRX90E-SAGE SE
Product NamePRO WS WRX90E-SAGE SE Workstation Motherboard
Marketing Information

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

  • AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
  • Ultrafast connectivity:Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
  • CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC:Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.


Packaged Quantity1
Product TypeWorkstation Motherboard
Processor & Chipset
Chipset ManufacturerAMD
Chipset ModelWRX90
Total Processor Supported1
Processor SocketSocket sTR5
Processor SupportedRyzen Threadripper PRO
Memory
Number of Memory Slots8
Memory Form Factor
  • DIMM
  • UDIMM
Memory TechnologyDDR5 SDRAM
I/O Controller
Controller TypeSerial ATA/600
RAID SupportedYes
RAID Levels
  • 0
  • 1
  • 5
  • 10
Video
Onboard VideoCPU Dependent Video
Audio
Audio Channels5.1
Network & Communication
Gigabit EthernetYes
10Gigabit EthernetYes
I/O Expansions
Total Number of Expansion Slots7
PCI Express StandardPCI Express 5.0
Total Number of PCI Express Slots7
Number of PCI Express x16 Slots7
Interfaces/Ports
Total Number of USB Ports9
Number of USB4 Ports2
VGAYes
DisplayPortYes
Number of Network (RJ-45) Ports2
Onboard Interfaces
Number of SATA Interfaces4
Number of M.2 Interfaces4
Total Number of Onboard USB Ports7
Number of Onboard USB 2.0 Ports4
Physical Characteristics
Form FactorSSI EEB
Width12.99" (330 mm)
Depth12.01" (305 mm)
