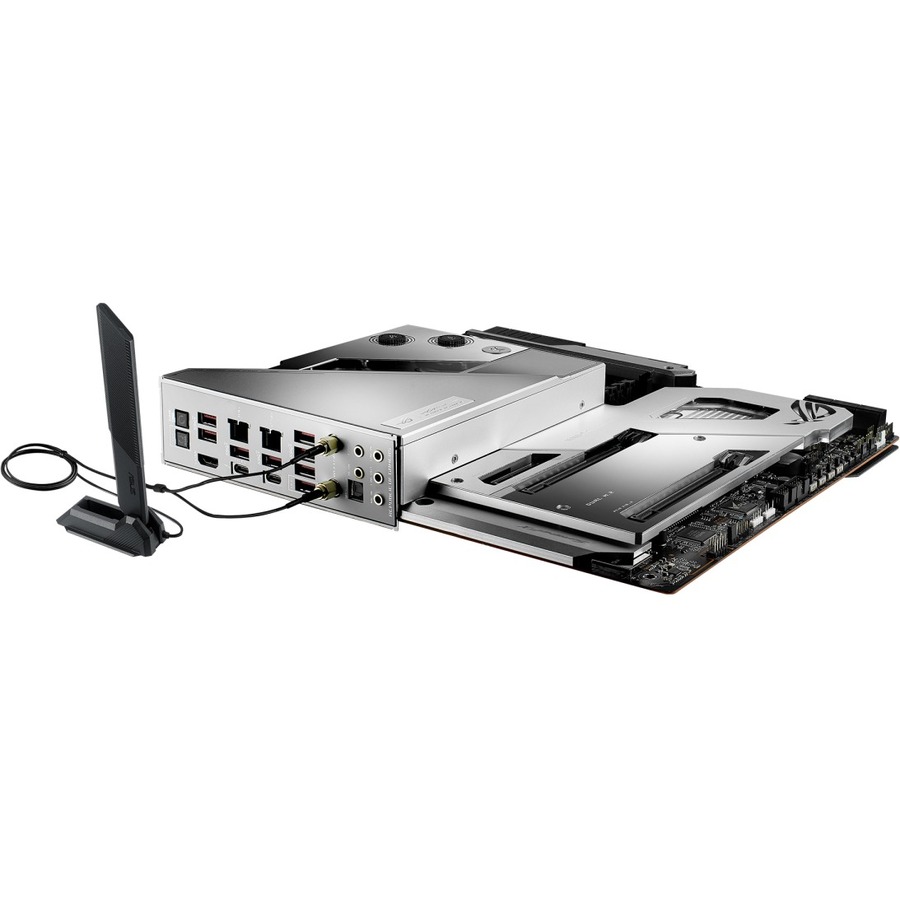

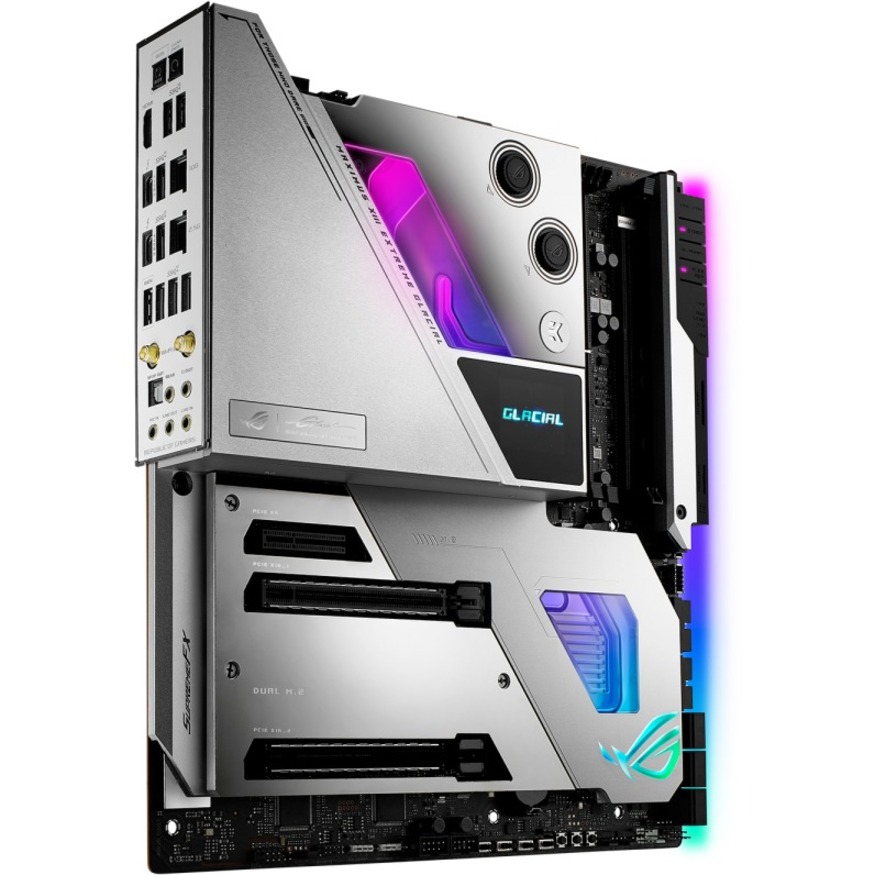

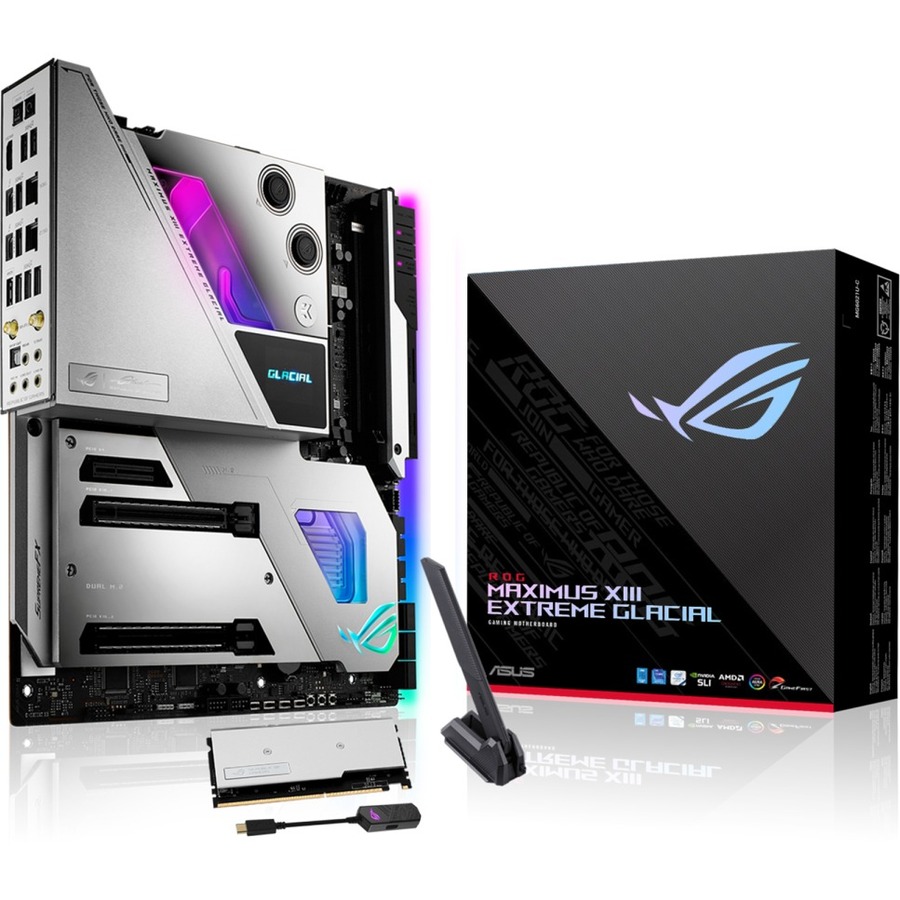

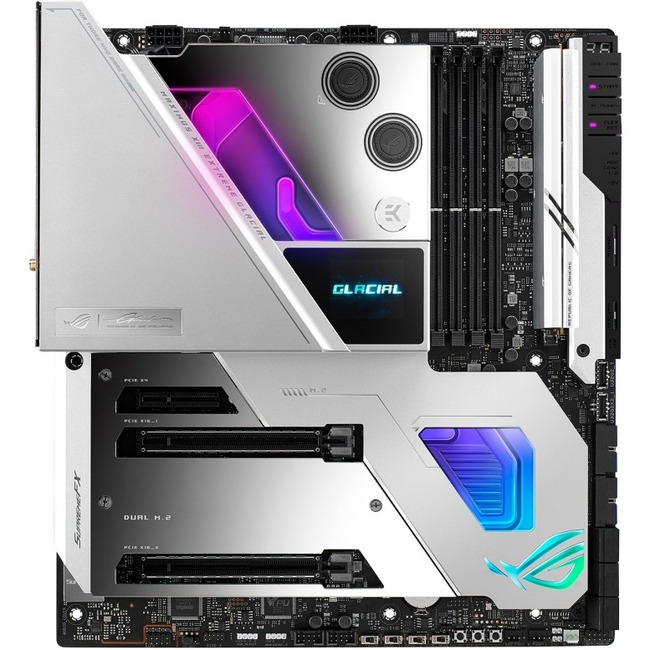

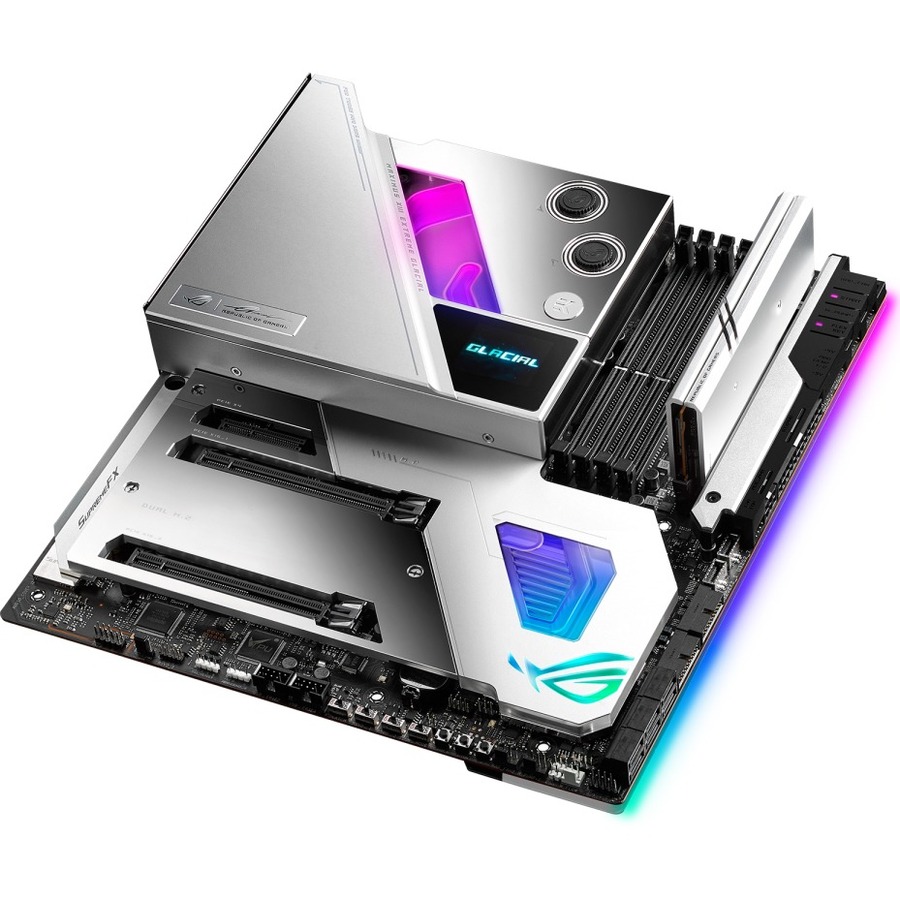

Asus ROG Maximus XIII Extreme Glacial Desktop Motherboard - Intel Z590 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Extended ATX

Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - 2.5Gigabit Ethernet - IEEE 802.11ax - HDMI - 6 x SATA Interfaces

Part No. ROG MAXIMUS XIII EXTREME GLACIAL

by ASUS Computer International

$2423.99

Specifications

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	ROG MAXIMUS XIII EXTREME GLACIAL
Brand Name	Asus ROG
Product Line	Maximus XIII Extreme Glacial
Product Name	Maximus XIII Extreme Glacial Desktop Motherboard

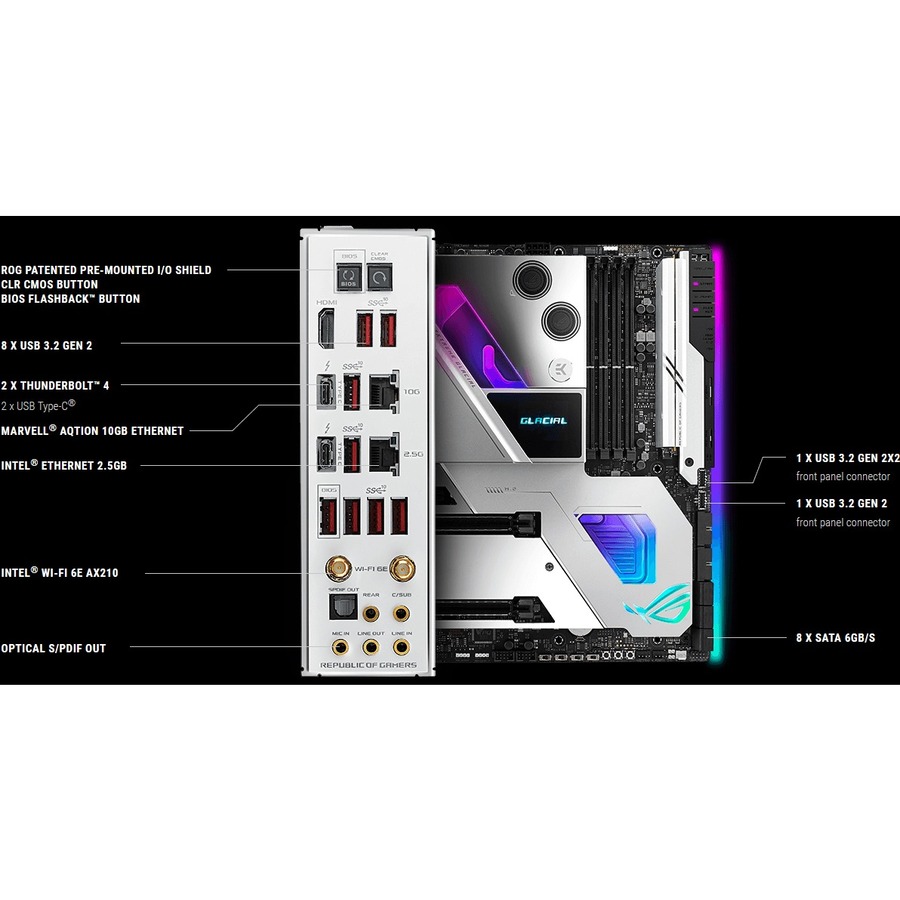

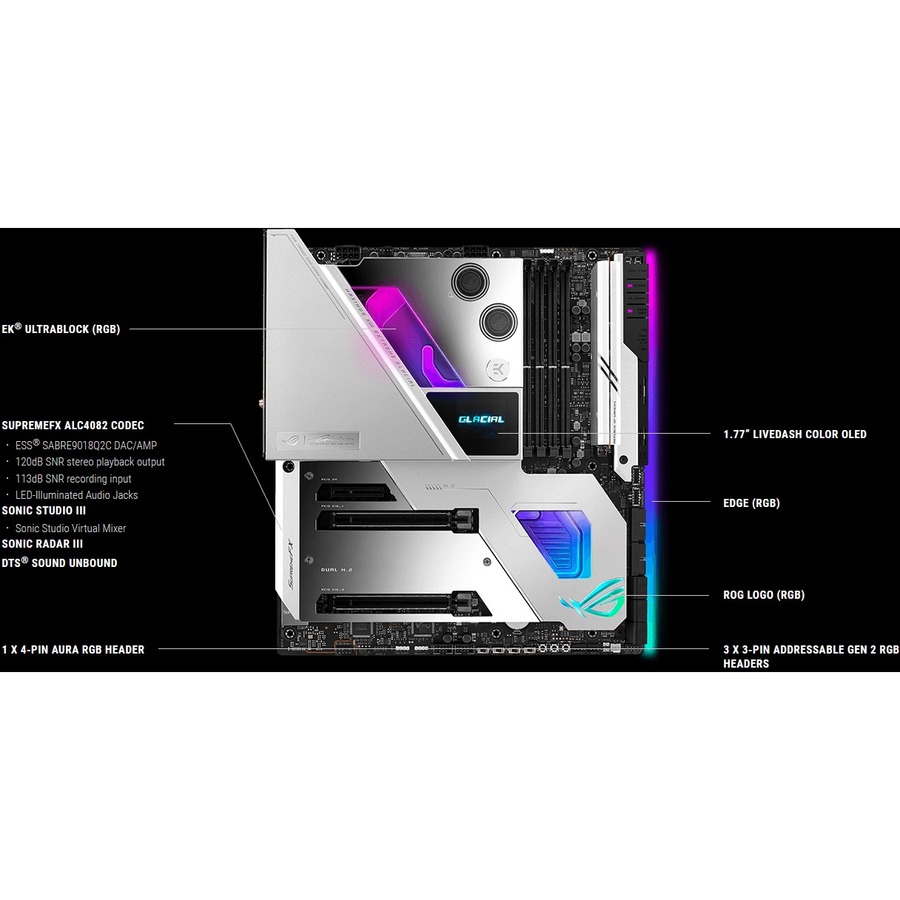

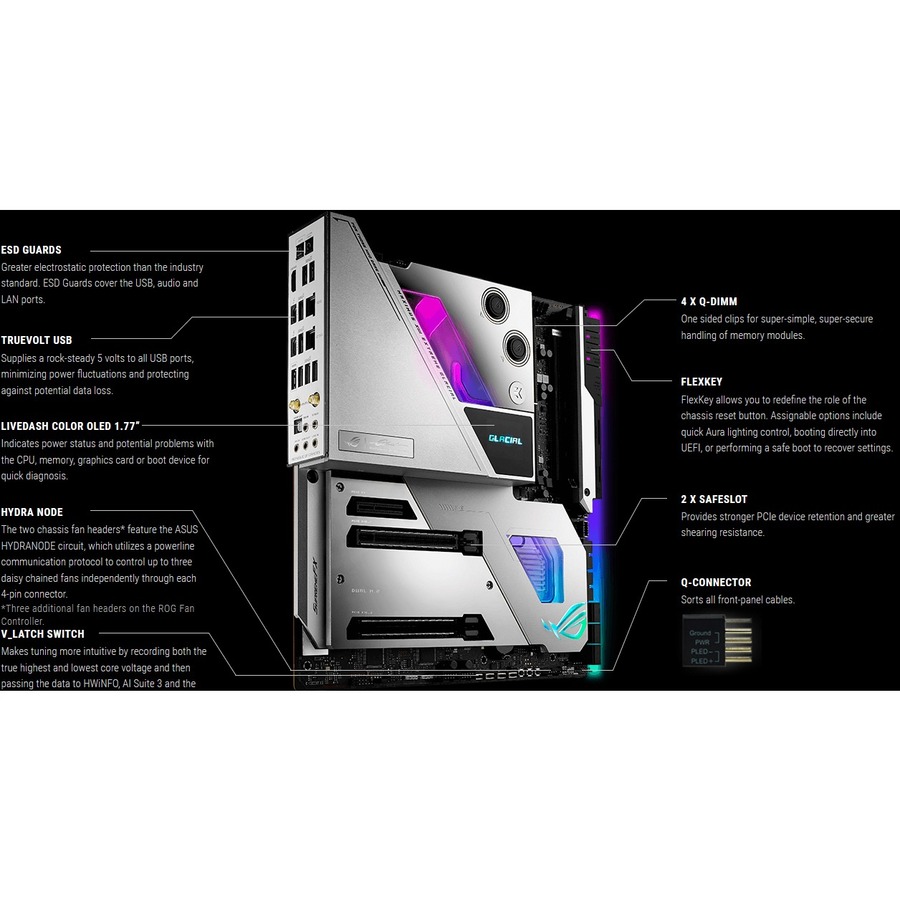

Marketing Information	ROG Maximus XIII Extreme Glacial Intel^® Z590 EATX motherboard with 18+2 power stages, integrated full-coverage EK water block, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell^® AQtion 10 Gb Ethernet, Intel^® 2.5 Gb Ethernet, PCIe^® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting Intel^® Socket LGA 1200 for 11th Gen Intel^® Core™ processors and 10th Gen Intel Core, Pentium^® Gold and Celeron^® processors Optimized Thermal Design: Integrated EK Ultrablock that cools VRM, CPU and PCH; high-conductivity thermal pads, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation Robust Power Solution: 18+2 teamed power stages - each rated at 100 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors High-Performance Networking: Onboard WiFi 6E (802.11ax), Marvell^® AQtion 10 Gb Ethernet, Intel^® 2.5 Gb Ethernet, and ASUS LANGuard Fastest Gaming Connectivity: PCIe^® 4.0, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, dual Thunderbolt™ 4 USB-C^® Industry-Leading Gaming Audio: ROG SupremeFX ALC4082 with ESS^® ES9018Q2C DAC for high-fidelity sound Unmatched Personalization: 1.77" LiveDash color OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers DIY-Friendly Design: Pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Product Type	Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	Z590
Total Processor Supported	1
Processor Socket	Socket LGA-1200
Processor Supported	Pentium Gold Celeron Core i5 Core i7 Core i9 Core i3
Multi GPU Supported	SLI

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	5333 MHz 5133 MHz 5000 MHz 4800 MHz 4700 MHz 4600 MHz 4500 MHz 4400 MHz 4266 MHz 4133 MHz 4000 MHz 3866 MHz 3733 MHz 3600 MHz 3466 MHz 3400 MHz 3333 MHz 3200 MHz 3000 MHz 2933 MHz 2800 MHz 2666 MHz 2400 MHz 2133 MHz
Intel Optane Memory Ready	Yes

I/O Controller

Controller Type	Serial ATA/600

Video

Onboard Video	CPU Dependent Video

Audio

Audio Channels	7.1

Network & Communication

2.5Gigabit Ethernet	Yes
10Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ax

I/O Expansions

Total Number of Expansion Slots	3
Total Number of PCI Express Slots	3
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 3.2 Gen 2 Type-A Ports	8
S/PDIF	Yes
HDMI	Yes
Number of Network (RJ-45) Ports	2

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	3
Total Number of Onboard USB Ports	6
Number of Onboard USB 2.0 Ports	2
Number of Onboard USB 3.2 Ports	4

Physical Characteristics

Form Factor	Extended ATX
Width	12.01" (305 mm)
Depth	10.91" (277 mm)
