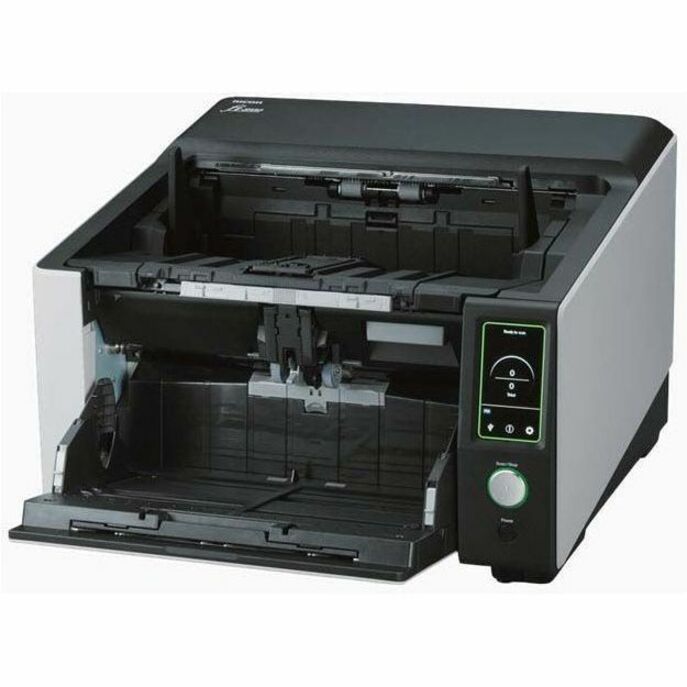

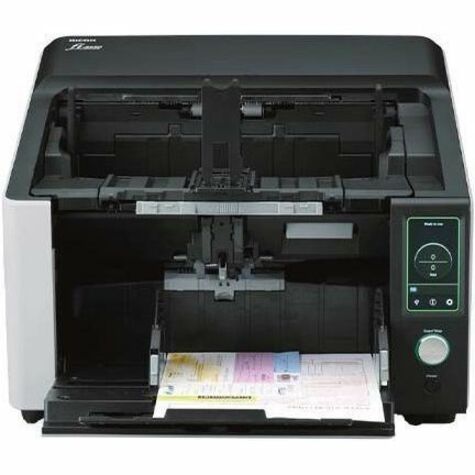

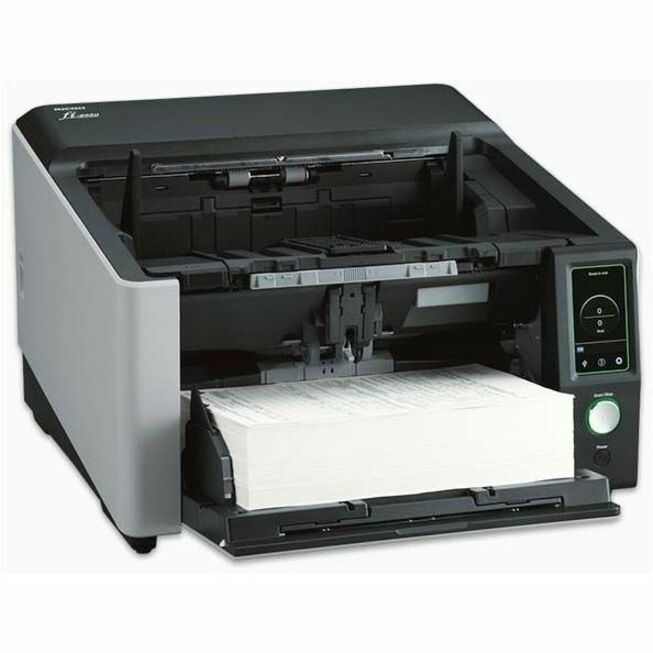

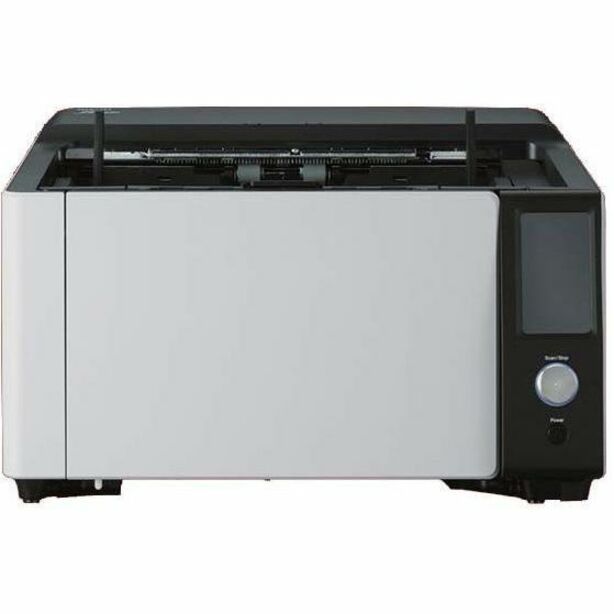

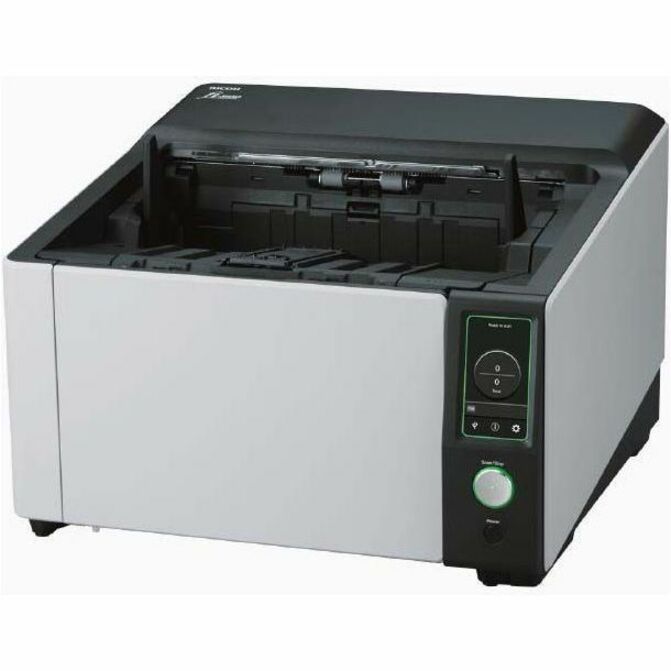

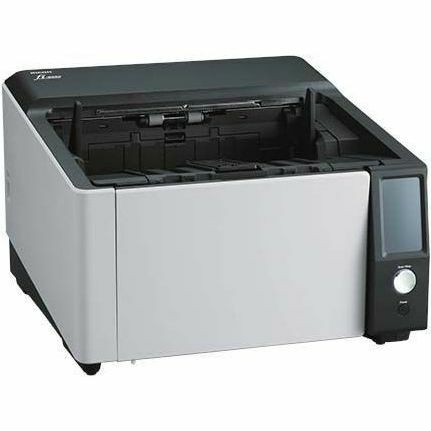

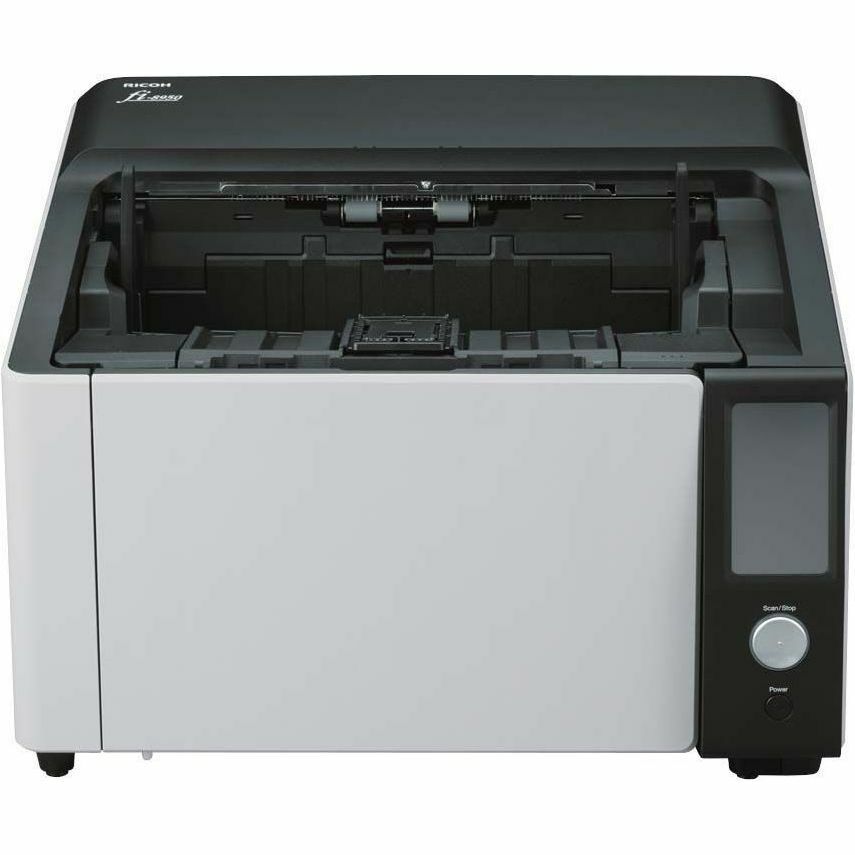

Ricoh ImageScanner fi-8950 ADF/Manual Feed Scanner - 600 dpi Optical

Part No. PA03830-B005-POSTBK

by Fujitsu

$20123.99

Ricoh ImageScanner fi-8950 ADF/Manual Feed Scanner - 600 dpi Optical

24-bit Color - 8-bit Grayscale - 150 ppm (Mono) - 150 ppm (Color) - Color, Monochrome, Grayscale Scan - Duplex Scanning - Paper Document, Envelope - Wireless LAN - USB

Part No. PA03830-B005-POSTBK

by Fujitsu

$20123.99
General Information
ManufacturerFujitsu
Manufacturer Part NumberPA03830B005POSTBK
Brand NameRicoh
Product LineImageScanner
Product Seriesfi
Product Modelfi-8950
Product NameImageScanner fi-8950 ADF/Manual Feed Scanner
Marketing Information

Unlock work efficiency with ultra-fast scans to endure daily duties

  • High speed and volume scanning to endure daily duties
  • Unlocking work efficiency of job operators
  • Usability-first design for smooth operation


Enhanced productivity, ideal for large daily duties

The fi-8950 achieves a scanning speed of 150 ppm/300 ipm (A4 landscape, color, 200/300 dpi), and is highly optimized for centralized scanning.

Increase work efficiency with exceptionally accurate feeding

Offering two novel functions, the scanner realizes stable paper feeding performance, even for high-volume scanning with a mixed batch. Automatic Skew Correction corrects the skew of documents one by one before feeding. To prevent stapled documents, which are easy to overlook from being damaged when batch scanning, Stapled Documents Detection detects stapled documents regardless of where the staple position is and stops document feeding immediately

Designed to prioritize operator usability

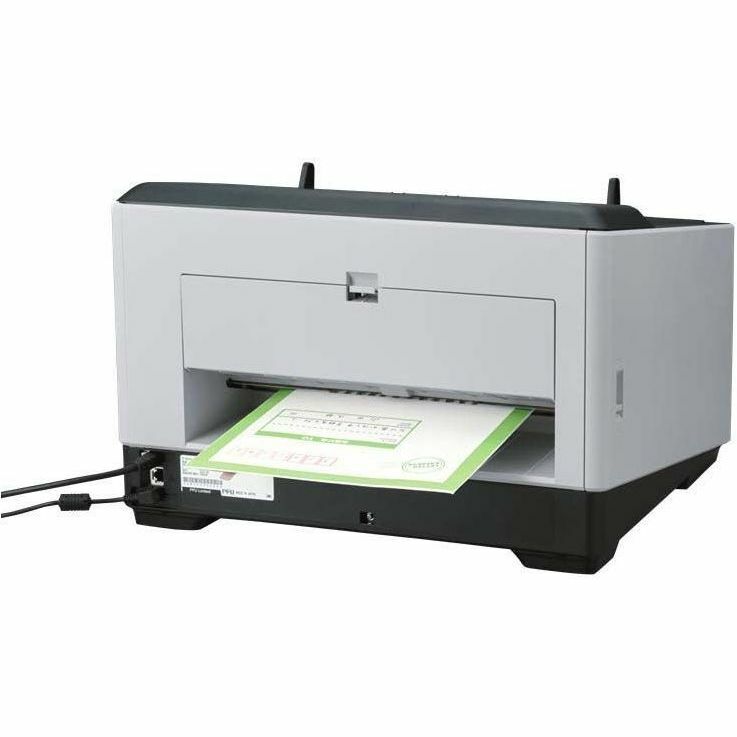

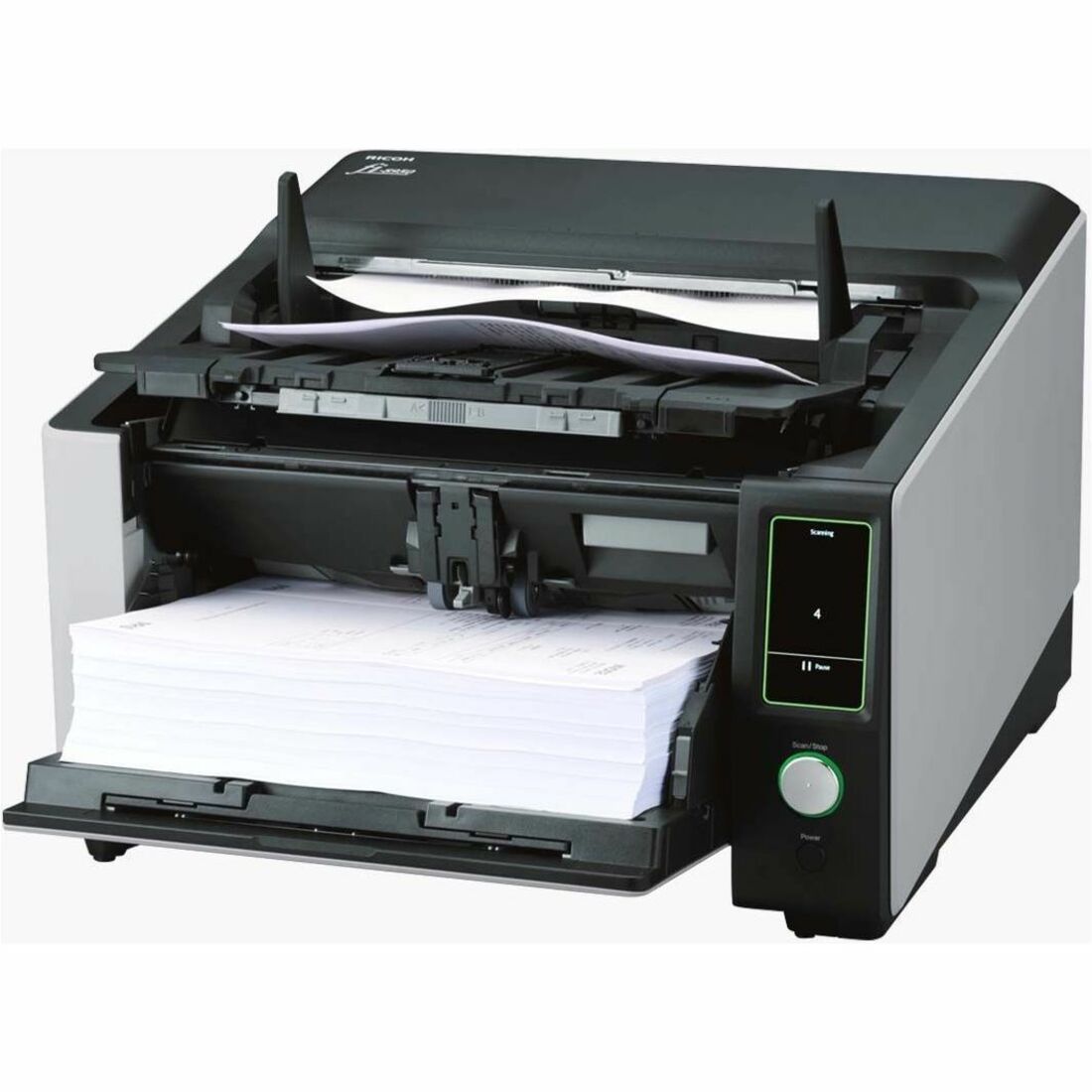

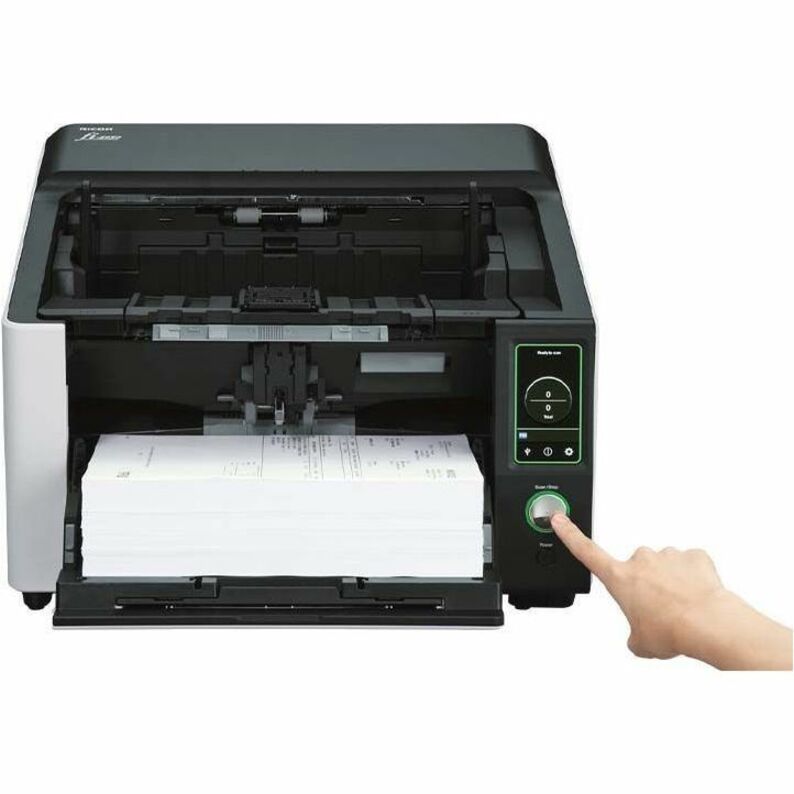

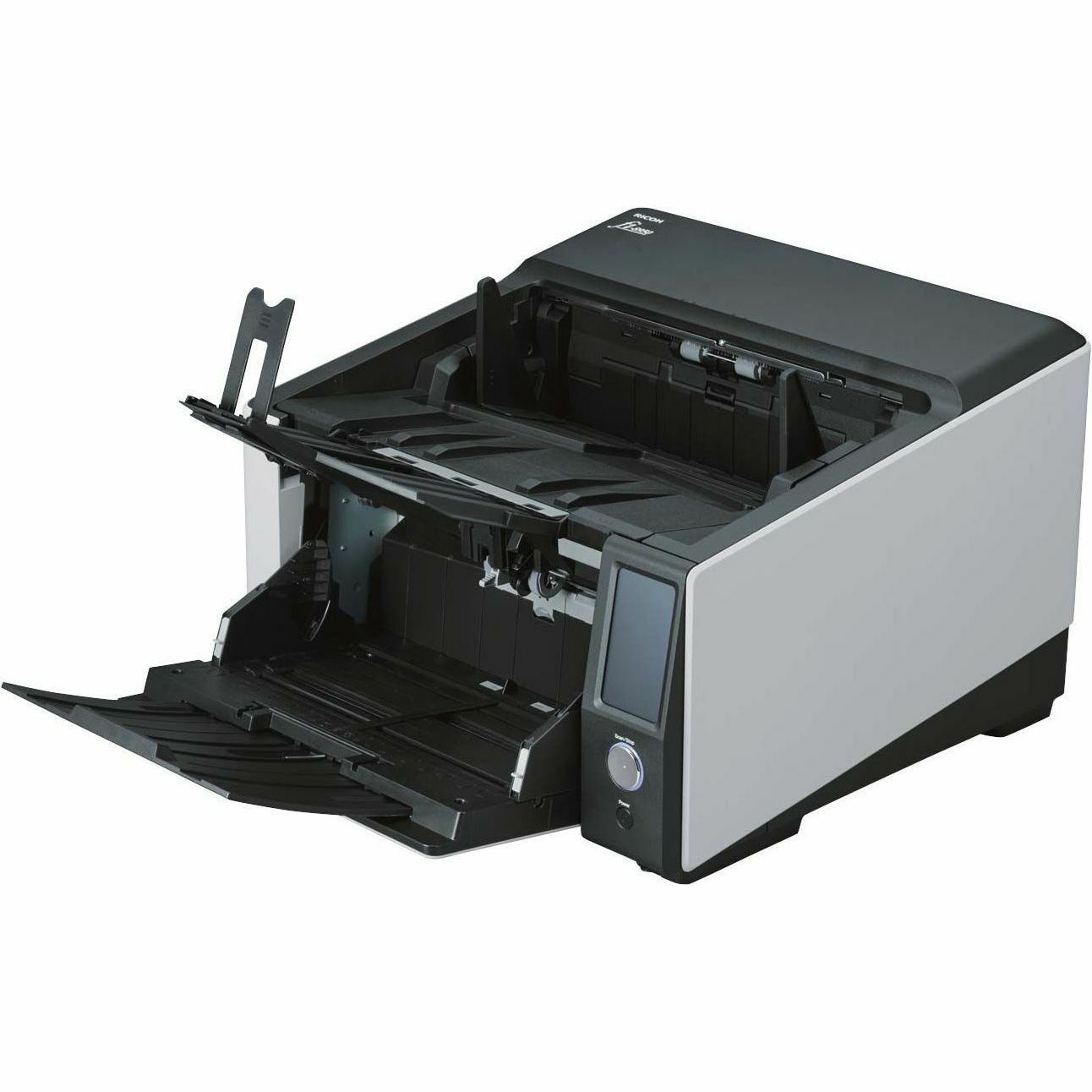

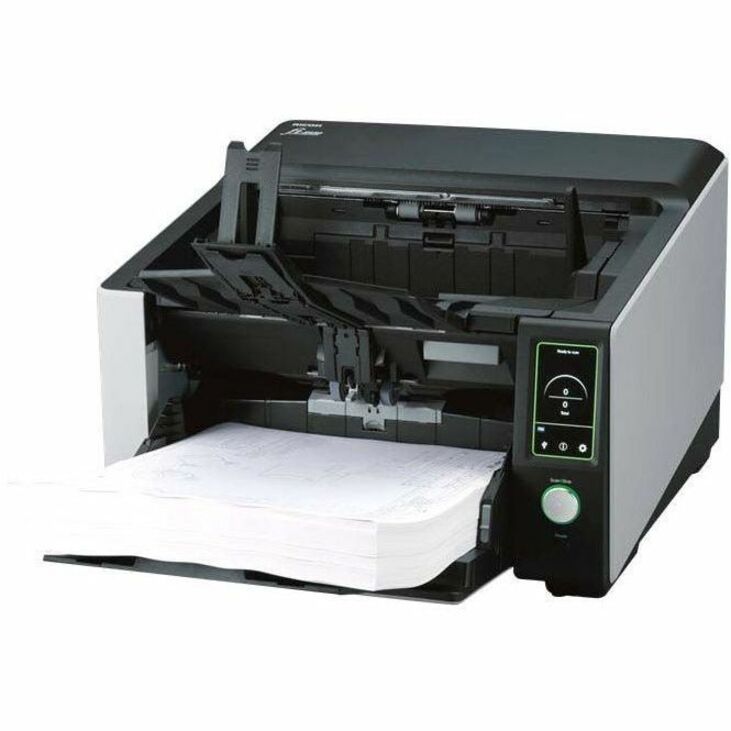

The scanner can handle a wide variety of documents. The Dual Path Mechanism enables switching of the ejecting paths. Documents up to 1.25 mm, such as cardboard envelopes can be scanned with Straight Scan, while the U-turn Scan enables continuous scanning for standard documents. Manual Feed Mode scans bi-folded and multi-layered documents as is. The paper ejection control after scanning has been well-improved. Even when scanning at higher speed, documents are neatly stacked in order, since the scanner quickly controls the paper output speed by identifying each document's size and position. With the improved ejecting abilities, even folded or curled documents, which tend to cause paper jams at the paper outlet, are handled smoothly. Operators can collect scanned documents without fuss or hassle. The scanner also comes with a 4.3-inch touch screen for easier operation, and it supports LAN and USB 3.2 connectivity

Effective data utilization combined with the PaperStream Series

The scanner driver, PaperStream IP, automatically produces clear image data and supports OCR accuracy. The powerful capture software PaperStream Capture efficiently feeds information into organization workflow by automatically utilizing data extracted from barcodes and zonal OCR, further streamlining mundane tasks.

Product TypeADF/Manual Feed Scanner
Technical Information
Image Sensor TypeCIS
Optical Resolution (dpi)600
Scan Color
  • Color
  • Monochrome
  • Grayscale
Color Depth24-bit
Grayscale Depth8-bit
Maximum Mono Scan Speed (ppm)150
Maximum Color Scan Speed (ppm)150
Maximum Mono Scan Speed (ipm)300
Maximum Color Scan Speed (ipm)300
Media Type
  • Paper Document
  • Envelope
Media Size
  • 12" (304.80 mm) x 17" (431.80 mm)
  • 1.90" (48.26 mm) x 2.80" (71.12 mm)
  • A4 - 8.27" (210 mm) x 11.69" (297 mm)
Scanning ModesDuplex
ADF Capacity750 Sheets
Duplex ScanningYes
Light SourceRGB LED
Network & Communication
Wireless LANYes
Interfaces/Ports
USBYes
USB Standard
  • USB 3.2
  • USB 3.0
  • USB 2.0
  • USB 1.1
Software
Operating System Supported
  • Windows 11
  • Windows 10
  • Windows Server 2022
  • Windows Server 2019
  • Windows Server 2016
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Consumption70 W
Physical Characteristics
Height12.40" (315 mm)
Width18.11" (460 mm)
Depth16.93" (430 mm)
Weight (Approximate)50.71 lb (23000 g)
Environmental Conditions
Minimum Operating Temperature41°F (5°C)
Maximum Operating Temperature95°F (35°C)
Minimum Operating Humidity15%
Maximum Operating Humidity80%
Miscellaneous
Energy StarYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
