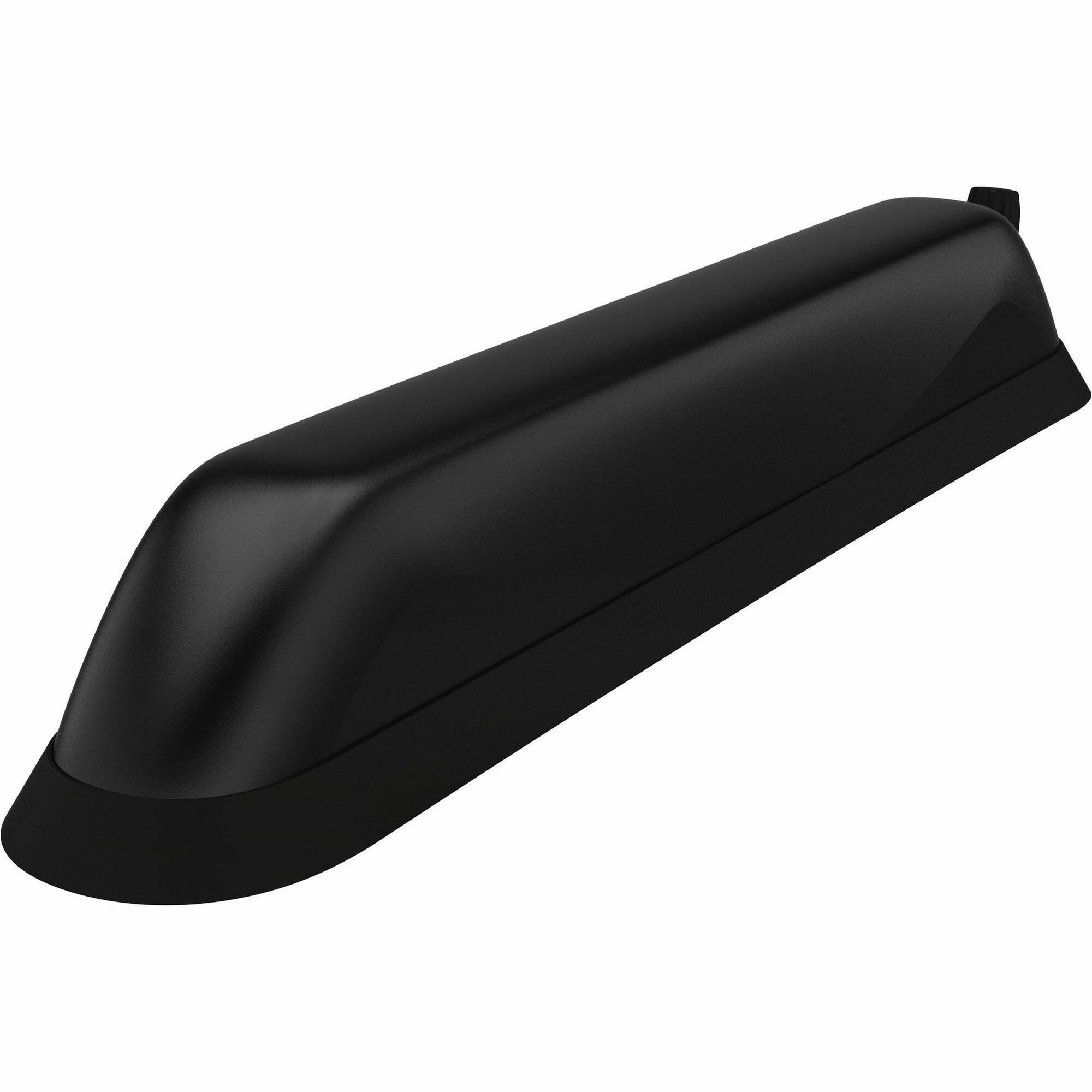

Panorama Antennas GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna
Range - VHF, UHF - 698 MHz to 960 MHz, 1427 MHz to 4900 MHz - 30 dB - Cellular Network, GPS - Black - Whip, Panel - Omni-directional - SMA, RP-SMA, FME Connector
$660.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | GP-IN2850 |
| Brand Name | Panorama Antennas |
| Product Line | Reef Sharkee |
| Product Series | GPSD[X]4-7-49[X] |
| Product Name | GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna |
| Marketing Information | The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles. The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications. The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane. |
| Product Type | Antenna |
Technical Information
| Directivity | Omni-directional |
| Frequency Band Type |
|
| Operating Frequency Range |
|
| Antenna Gain | 30 dB |
Interfaces/Ports
| Connector Type |
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 2.05" (52 mm) |
| Width | 2.36" (60 mm) |
| Form Factor |
|
Miscellaneous
| Application/Usage |
|
| Condition | No |
