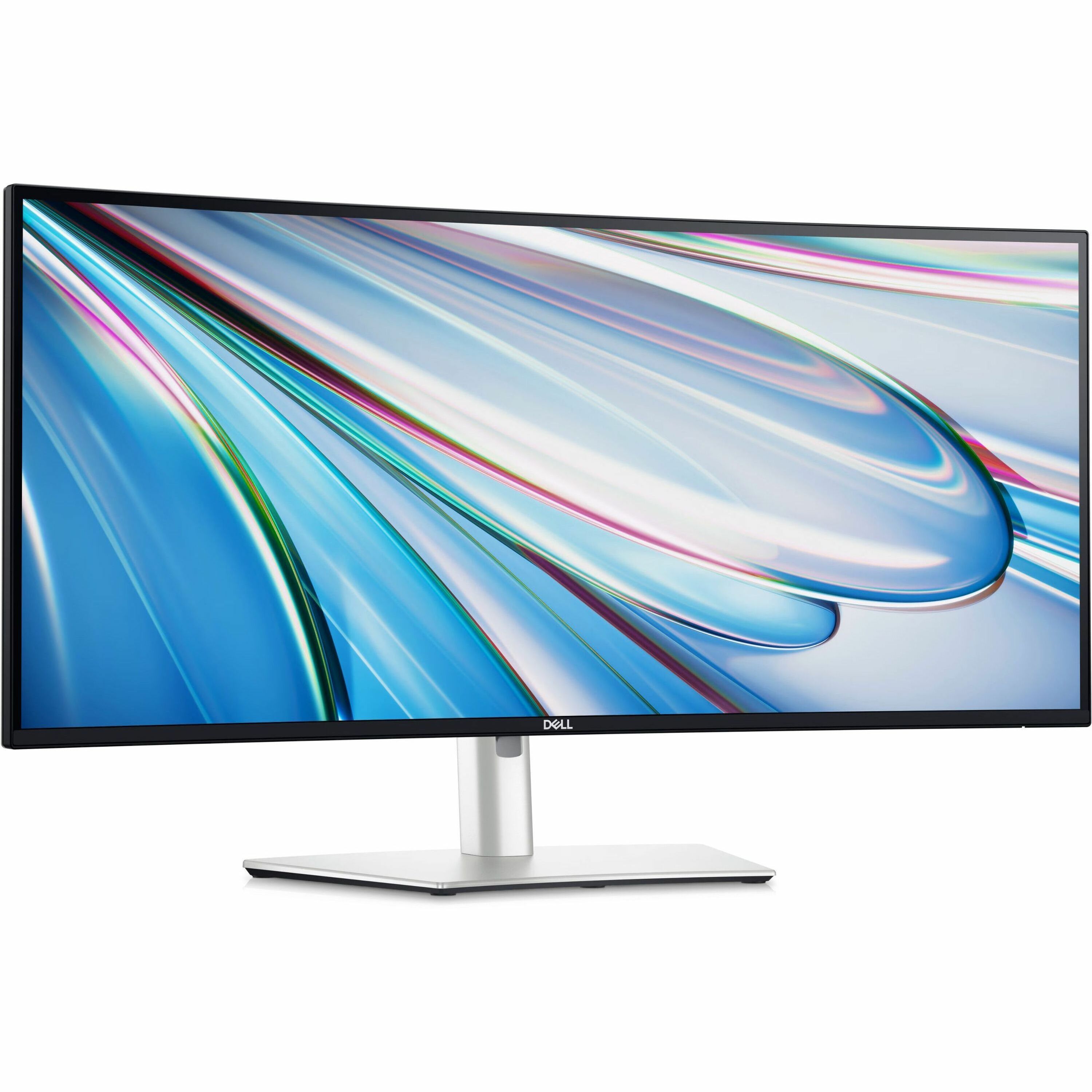

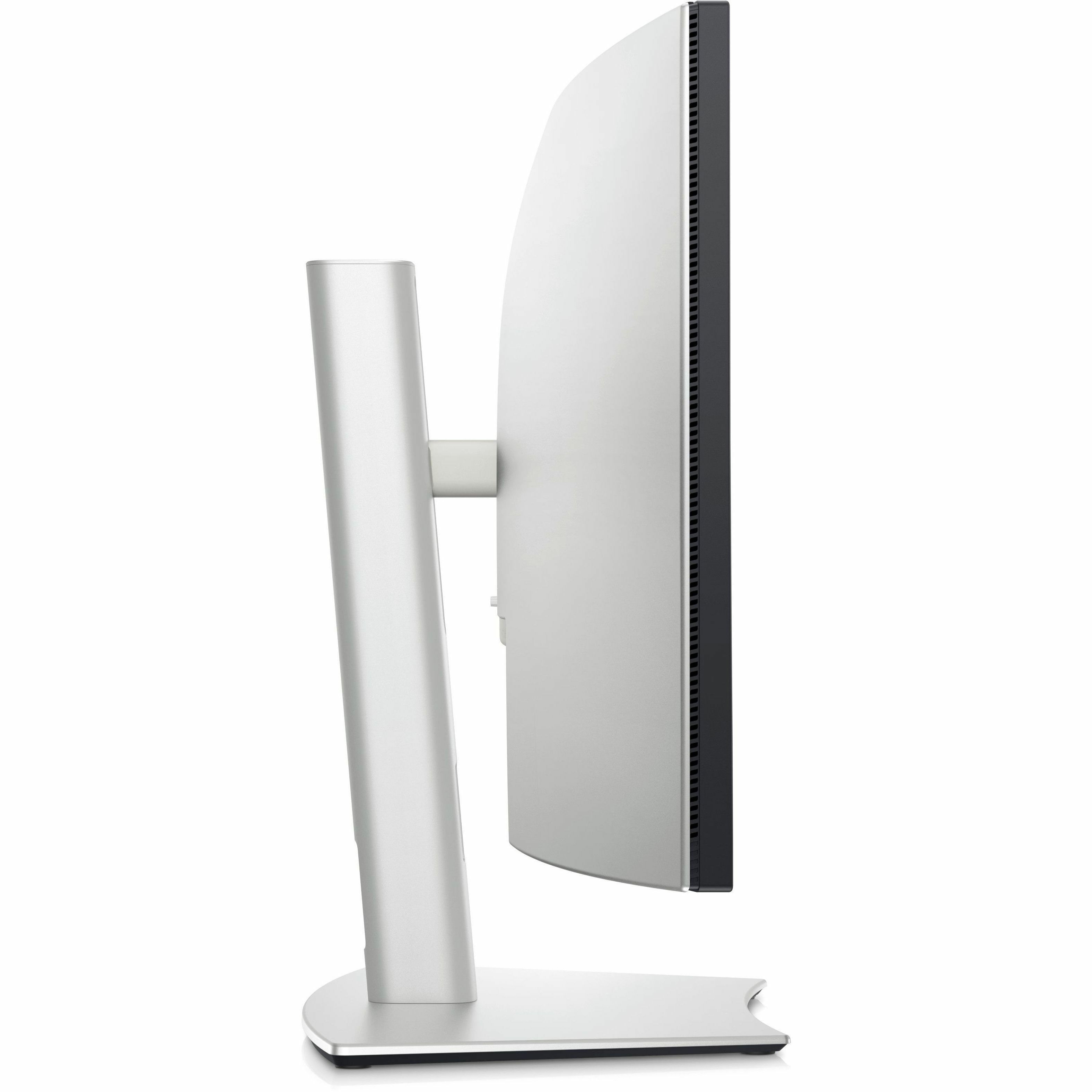

Dell UltraSharp U3425WE 34" Class UW-QHD Curved Screen LED Monitor - 21:9 - Black, Silver

34.1" Viewable - In-plane Switching (IPS) Black Technology - Edge LED Backlight - 3440 x 1440 - 1.07 Billion Colors - 300 cd/m² - 5 ms - 120 Hz Refresh Rate - Speakers - HDMI - DisplayPort - KVM Switch, USB Hub

Part No. DELL-U3425WE

by Dell Technologies

$1240.99

User Manual

General Information

Manufacturer	Dell Technologies
Manufacturer Part Number	DELLU3425WE
Brand Name	Dell
Product Line	UltraSharp
Product Model	U3425WE
Product Name	UltraSharp 34 Curved Thunderbolt Hub Monitor
Package Type	Retail
Product Type	LED Monitor

Technical Information

Number of Screens	1
Screen Size Class	34"
Viewable Screen Size	34.1"
Screen Mode	UW-QHD
Panel Technology	In-plane Switching (IPS) Black Technology
Response Time	5 ms
Response Time Details	5ms Fast
Aspect Ratio	21:9
Pixel Pitch	0.23250 mm x 0.23250 mm
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Panel Mount
Backlight Technology	Edge LED
HDCP Supported	Yes
Features	Anti-glare Ambient Light Sensor Picture by Picture Picture in Picture Digital Daisy Chain Easy Arrange sRGB Cable Lock Slot Security Lock Stand Lock
Stand Adjustments	Swivel Height Tilt
Stand Included	Yes
Curved Screen	Yes
Curvature	1900R
Glass Hardness	3H
Active Display Area (H x V)	31.49" (799.80 mm) x 13.18" (334.80 mm)

Video

Maximum Resolution	3440 x 1440
Standard Refresh Rate	120 Hz
Color Supported	1.07 Billion Colors
Native Contrast Ratio	2,000:1
Brightness	300 cd/m²
Color Gamut	98% DCI-P3 98% Display P3 100% sRGB 100% Adobe RGB
Pixel Per Inch (PPI)	110

Audio

Number of Speakers	2
Speakers	Yes

Interfaces/Ports

Network (RJ-45)	Yes
HDMI	Yes
HDMI Version	2.1
USB	Yes
DisplayPort	Yes
Thunderbolt	Yes
USB Type-C	Yes
Number of HDMI Inputs	1
Total Number of HDMI Ports	1
Number of USB Ports	8
Number of DisplayPorts	1
Number of DisplayPort 1.4 (HDCP 1.4)	1
Number of HDMI 2.1 (HDCP 1.4)	1
Thunderbolt 4	Yes
Number of USB Type-C 3.2 Gen 2 Upstream Ports	1
Number of USB Type-A 3.2 Gen 2 Downstream Ports	5
Number of USB Type-C 3.2 Gen 2 Downstream Ports	2
Audio Line Out	Yes
Number of Audio Line Out Ports	1
Number of DisplayPort 1.4 Ports	1
Number of DisplayPort 1.4 (HDCP 2.2)	1

Built-in Devices

Built-in Devices	KVM Switch USB Hub

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Non-operating Temperature Range	-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range	10% to 80% (Non-condensing)
Non-operating Humidity Range	5% to 90% (Non-condensing)
Maximum Operating Altitude	16404 ft (4999.94 m)
Maximum Non-operating Altitude	40000 ft (12192 m)

Power Description

Input Voltage Range	100V AC to 240V AC
Frequency	50 Hz 60 Hz
Voltage Current	3.20 A

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Color Family	Dual Color
Color	Black Silver
Height	14.14" (359.15 mm)
Width	32.03" (813.46 mm)
Depth	4.14" (105.08 mm)
Height with Stand	21.37" (542.83 mm)
Width with Stand	32.03" (813.46 mm)
Depth with Stand	9.47" (240.43 mm)
Compressed Height with Stand	15.47" (392.83 mm)
Extended Height with Stand	21.37" (542.83 mm)
Weight (Approximate)	17.15 lb (7780 g)
Weight with Stand (Approximate)	23.83 lb (10810 g)

Miscellaneous

Energy Star	Yes
TCO Certified	Yes
Dell Display and Peripheral Manager Compatibility	Yes
Condition	No
UPC	0884116452034

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Your monitor comes with a 3-year Advanced Exchange Service so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warranty.
