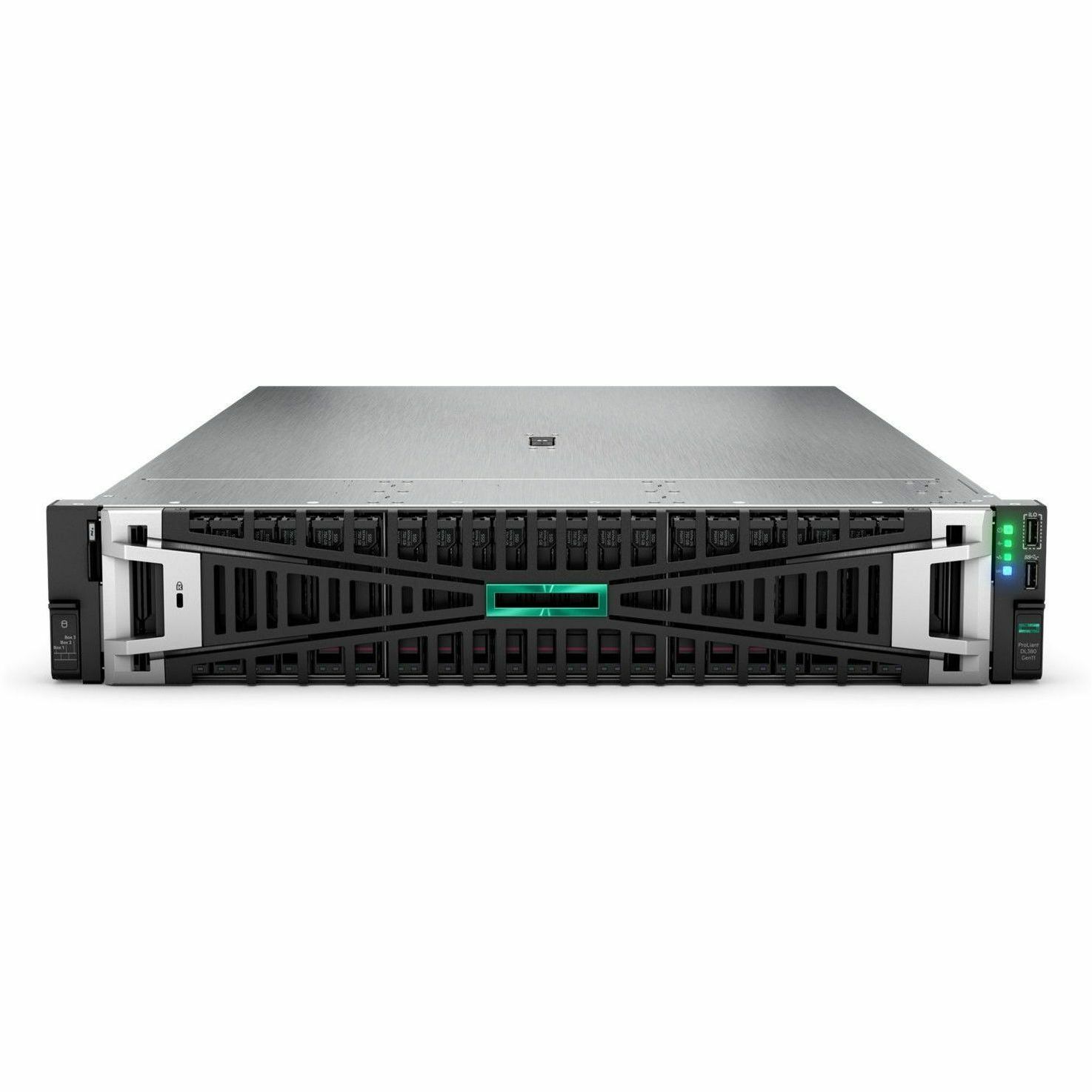

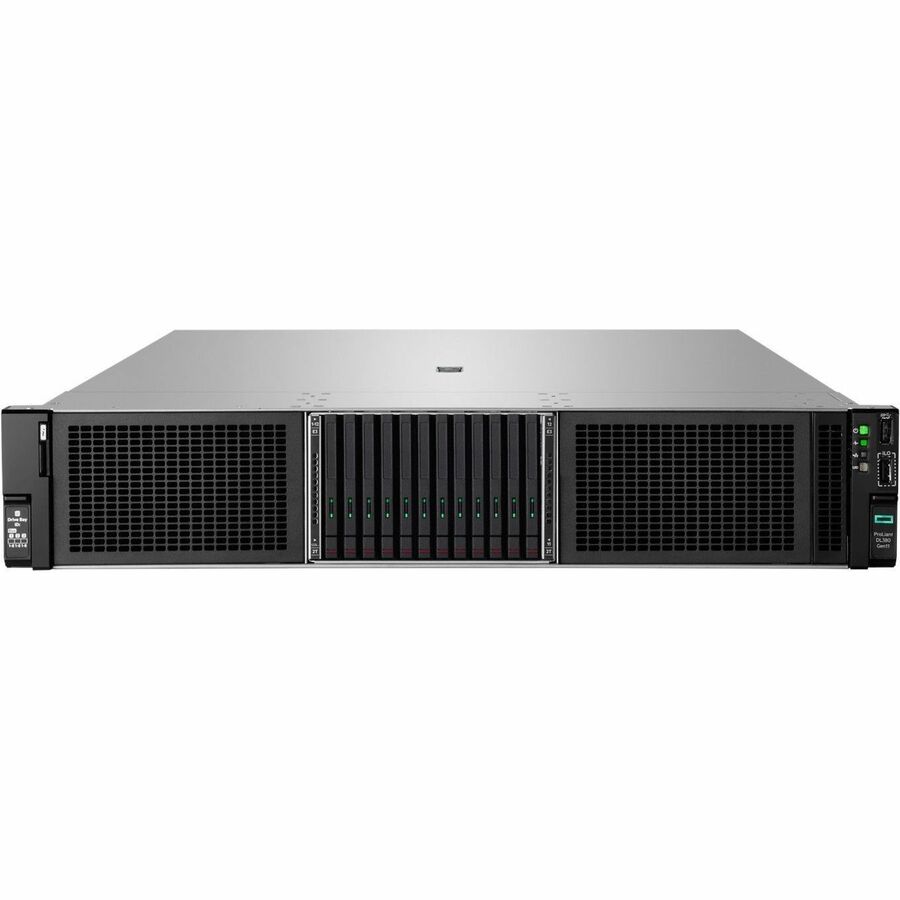

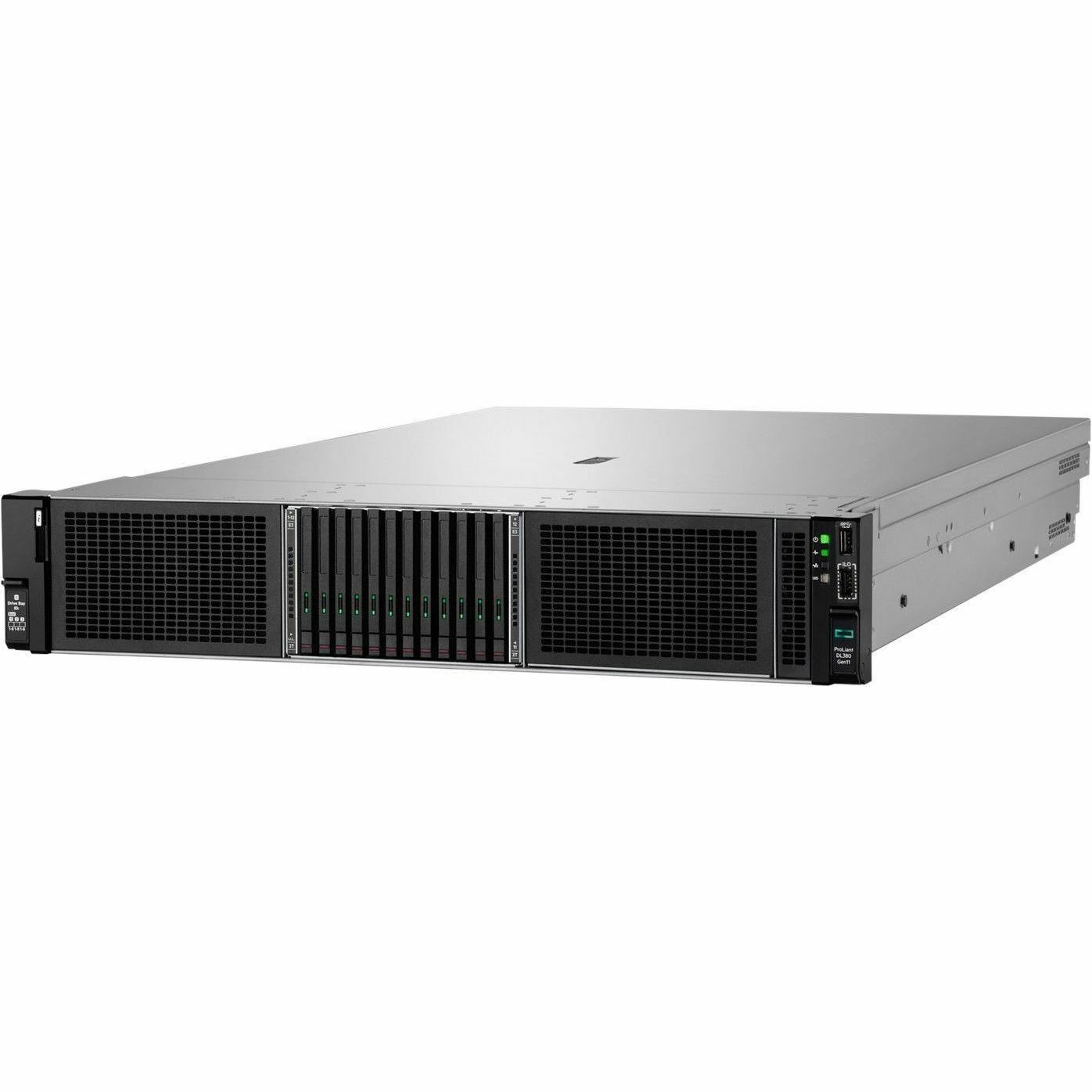

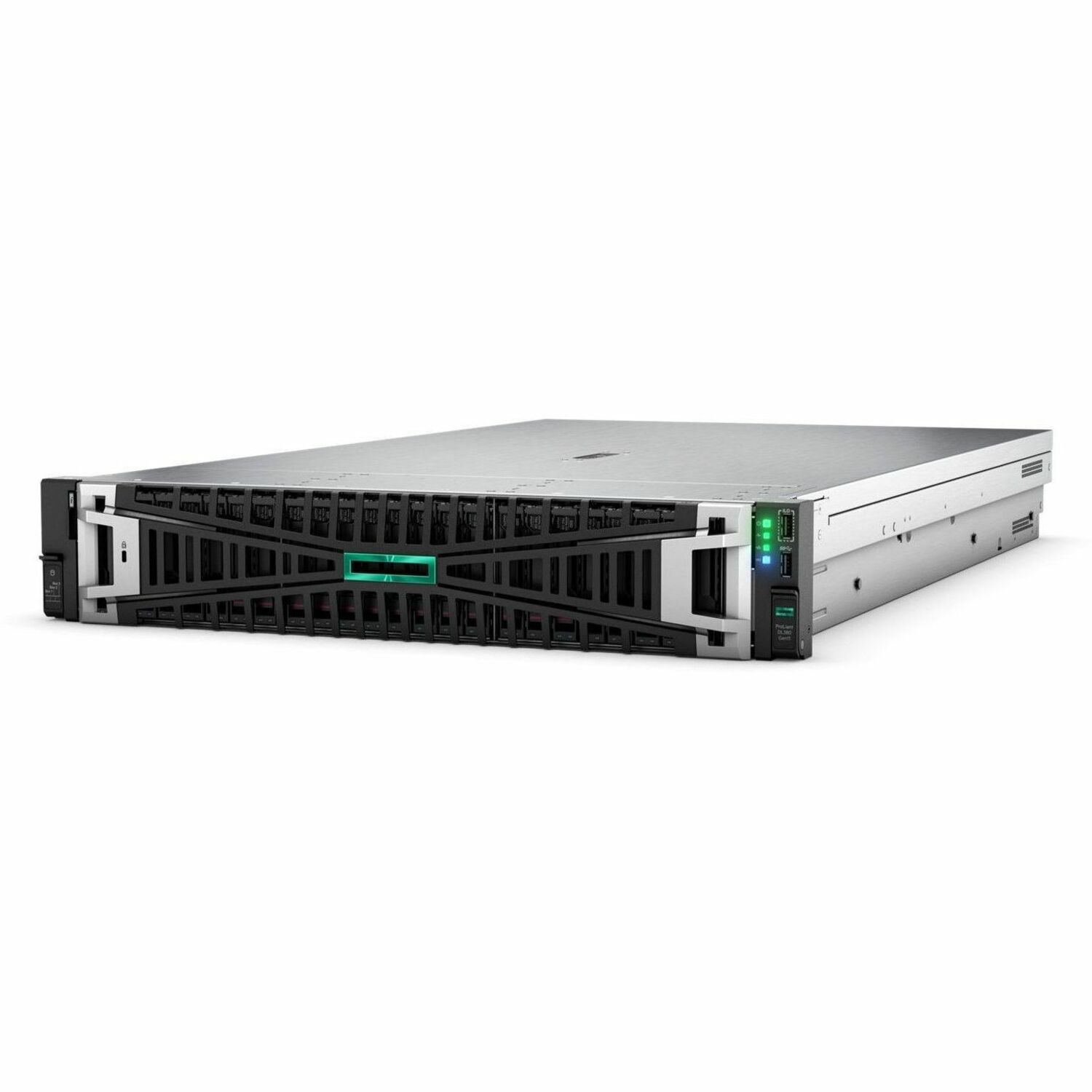

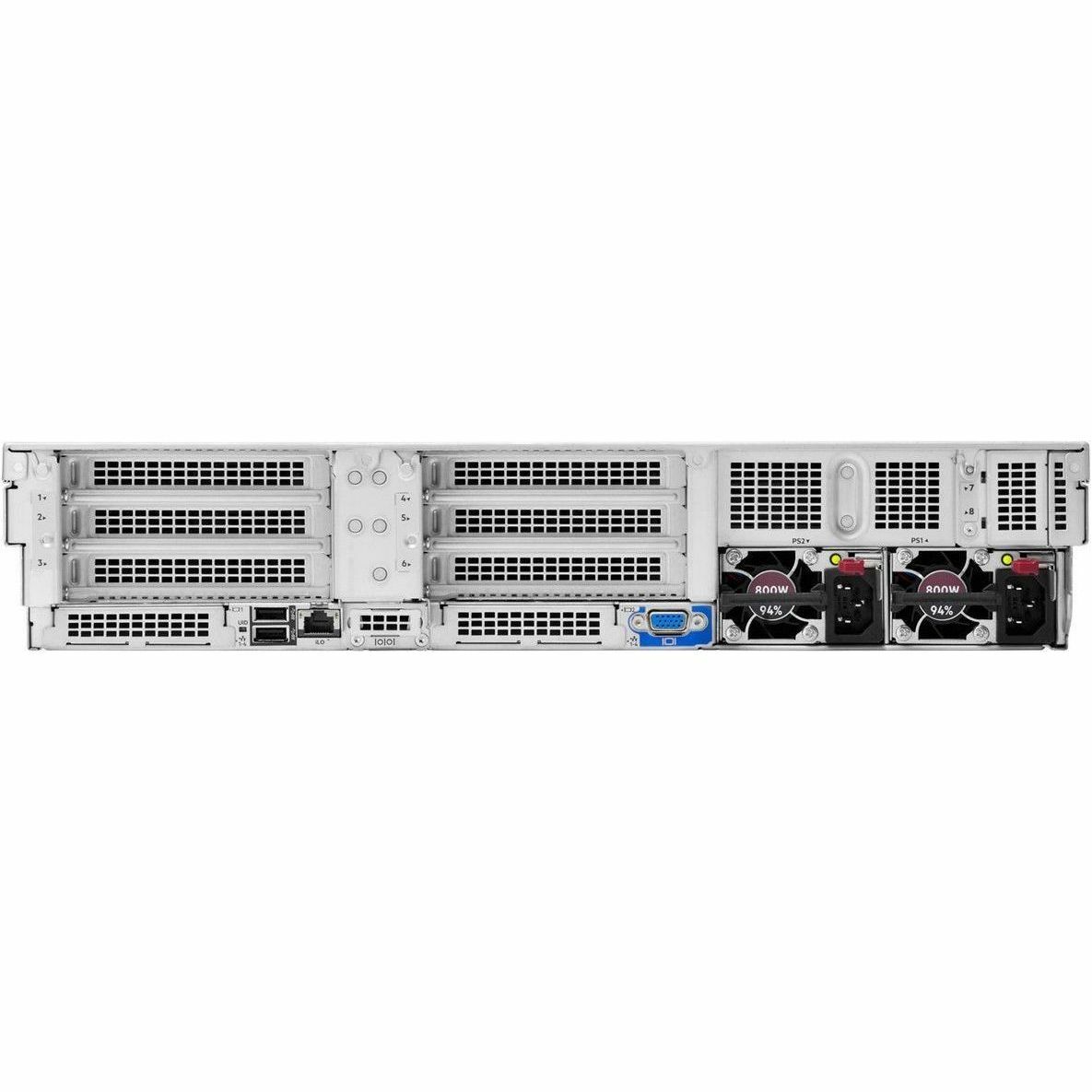

HPE ProLiant DL380 G11 2U Rack Server - 1 Xeon Silver 4514Y 2 GHz - 32 GB RAM - NVMe, 12Gb/s SAS Controller

Part No. P70458-421

by Hewlett Packard Enterprise

$25054.99

HPE ProLiant DL380 G11 2U Rack Server - 1 Xeon Silver 4514Y 2 GHz - 32 GB RAM - NVMe, 12Gb/s SAS Controller

Intel C741 Chip - 2 Processor Support - 8 TB RAM Support - DDR5 SDRAM - Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 12 x Total Bay(s) - 12 x LFF Bay(s) - 1 x 1 kW

Part No. P70458-421

by Hewlett Packard Enterprise

$25054.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberP70458-421
Brand NameHPE
Product LineProLiant
Product SeriesDL380 G11
Product NameProLiant DL380 G11 Server
Marketing Information

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen11 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

Product TypeServer
Processor
Number of Processors Supported2
Number of Processors Installed1
Processor TypeXeon Silver
Processor Generation5th Gen
Processor Model4514Y
Processor CoreHexadeca-core (16 Core)
Processor Speed2 GHz
Cache30 MB
Chipset
Chipset ManufacturerIntel
Chipset ModelC741
Memory
Standard Memory32 GB
Maximum Memory Supported8 TB
Memory TechnologyDDR5 SDRAM
Error CheckingECC
Total Number of Memory Slots32
Number of Occupied Memory Slots1
Signal ProcessingRegistered (Buffered)
Controllers
Controller Type
  • NVMe
  • 12Gb/s SAS
Controller ModelMR416i-p
RAID SupportedYes
I/O Expansions
Number of Total Expansion Bays12
Number of 3.5" Bays12
Number of LFF Bays12
Total Number of Expansion Slots3
PCI Express Details3-slots (x8, x16, x8) as standard
Display & Graphics
Graphics Memory Capacity16 MB
Network & Communication
Ethernet Technology10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports5
Number of USB 3.0 Ports3
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
VGAYes
Number of VGA Ports1
Remote ManagementYes
Remote Management ControllerHPE iLO 6
Operating System
Operating System Supported
  • Windows Server
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Oracle Linux
Power Description
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Plug/Connector TypeC13/C14
Maximum Power Supply Wattage1 kW
Hot Swappable Power SupplyYes
Power SourcePower Supply
Physical Characteristics
Form FactorRack
Rack Height2U
Height3.44" (87.50 mm)
Width17.64" (448 mm)
Depth28.84" (732.50 mm)
Weight (Approximate)81.57 lb (37000 g)
Miscellaneous
Security Features
  • Secure Boot and Secure Start enable for enhanced security
  • Embedded UEFI Shell
  • Operating system specific functionality
  • Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant
  • Support for > 2.2 TB (using GPT) boot drives
  • PXE boot support for IPv6 networks
  • USB 3.0 Stack
  • Workload Profiles for simple performance optimization
Energy StarYes
ConditionNo
UPC0190017712178
