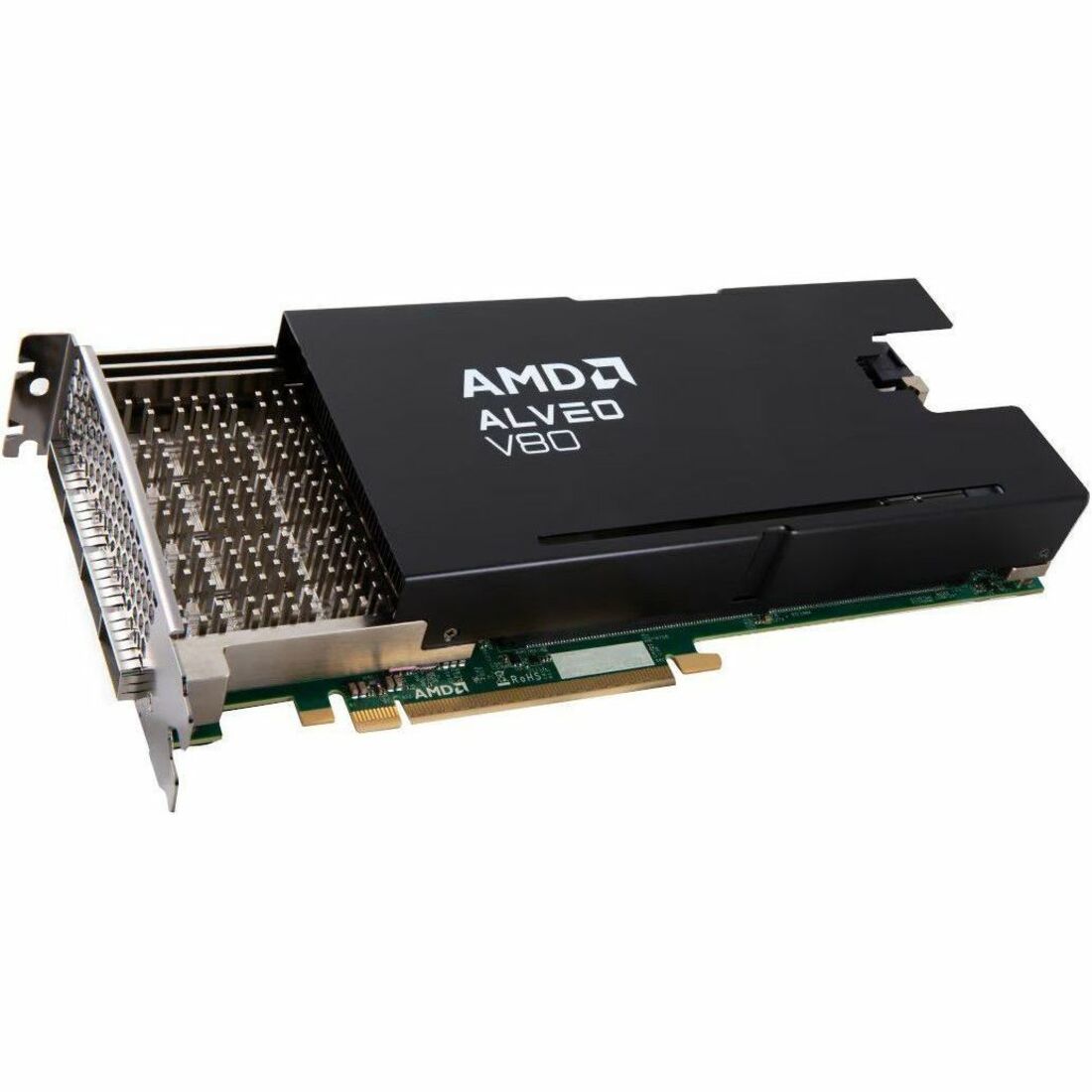

The AMD Alveo™ V80 accelerator card is an HBM-enabled compute accelerator card based on the 7nm Versal™ adaptive SoC architecture, designed for memory intensive workloads ranging from HPC, data analytics, network security, sensor processing, computational storage, and FinTech.

Device

• AMD Versal™ HBM XCV80 adaptive SoC device

Device Resources

• 2.6M Look-up tables (LUTs)
• 10,848 DSP slices
• 132 Mb Block RAM
• 541 Mb UltraRAM

HBM Capacity

• 32 GB HBM2e DRAM (2x 16 GB stacks) 820 GB/s peak bandwidth

Integrated Connectivity Cores¹

• 3x 400G High-Speed Crypto Engines supporting bulk crypto, IPsec, and MACsec
• 6x 100G Multirate Ethernet MAC
• 3x 600G Ethernet MAC
• 1x 600G Interlaken

Processing Subsystem

• Dual-core Arm® Cortex®-A72 application processor
• Dual-core Arm Cortex-R5F real-time processor
• Platform management controller

Onboard Memory

• 4 GB of onboard SDRAM for Arm processor management

PCIe Interface

• PCIe^®Gen4 x16 or 2x Gen5 x8

Transceivers

• 68 GTYP transceivers (32.75 Gb/s)
• 60x (56 Gb/s) or 30x (112 Gb/s) GTM PAM4 transceivers

Memory Expansion

• 32 GB DDR4 expansion DIMM slot

Network Interfaces

• 4x QSFP56 optical ports
• (2x 100G or 4x 10/25/40/50G per port)

PCIe® Interface and Expansion

• Mini Cool-Edge I/O (MCIO) expansion connectors over PCIe Gen5

Form Factor

• Full-Height, ¾ Length (FH¾L)
• Dual-slot

Power and Thermal²

• Up to 190W TDP, passive cooling

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
