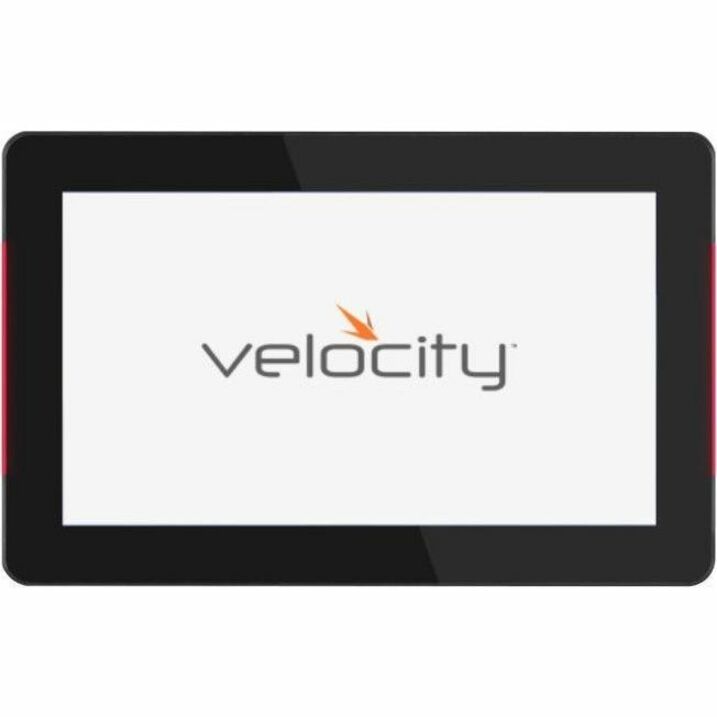

The Atlona AT-VTP-700VL is a Velocity™ 7" touch panel with side mounted LED lighting. It features contemporary, refined styling with 1024×600 native resolution and a capacitive glass surface. The VTP-700VL is an ideal user interface for AV control or room scheduling in corporate and education environments. Bright, side-mounted LED's provide a visual representation of room status or add emphasis to control functions. The panel ships with a dual purpose one-gang wall and glass mount kit, and its standard VESA 75 pattern provides compatibly with a wide variety of other options. The optional AT-VTP-VTM tabletop mounting kit is available for placement on a meeting table or lectern. The VTP-700VL features Power over Ethernet (PoE), enabling a single network connection for data and power. Setting up the touch panel is easy, with room scheduling and AV control GUIs automatically uploaded from the Velocity hardware or software server gateway during system configuration.

Applications

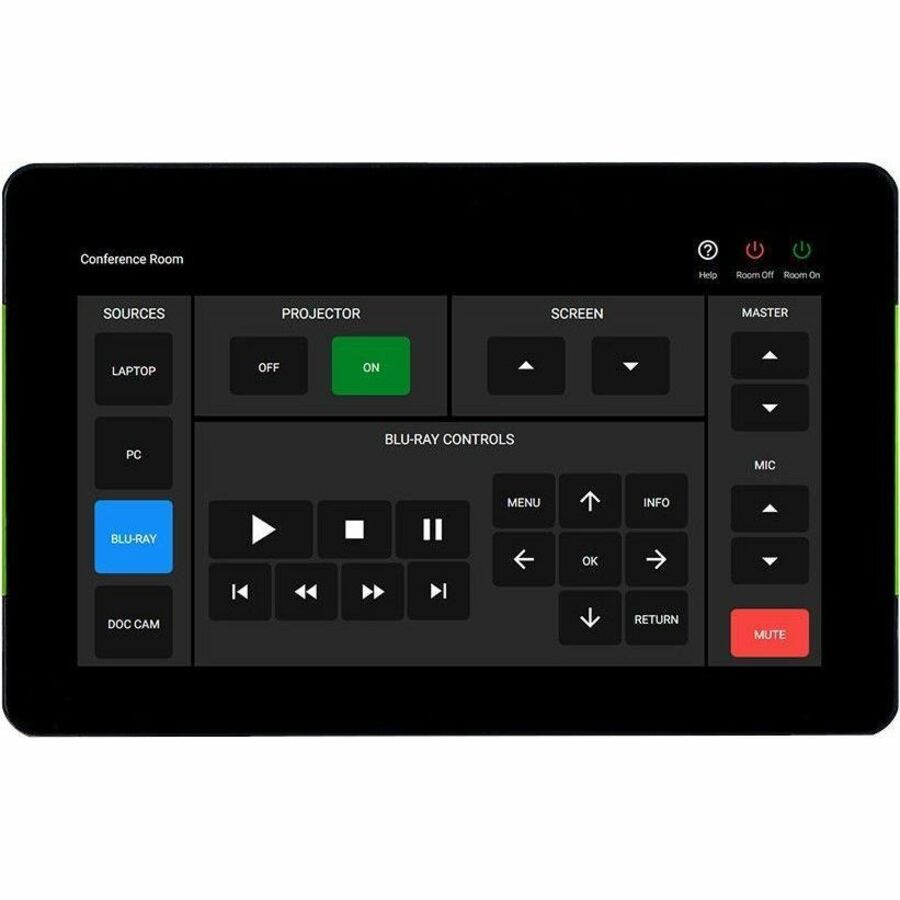

• AV control: Ideal for conference rooms and classrooms as the primary user interface for AV system control.

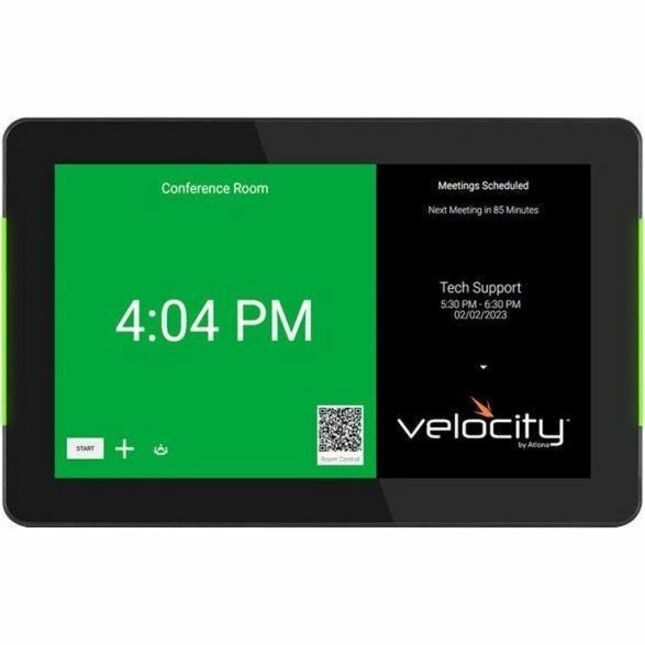

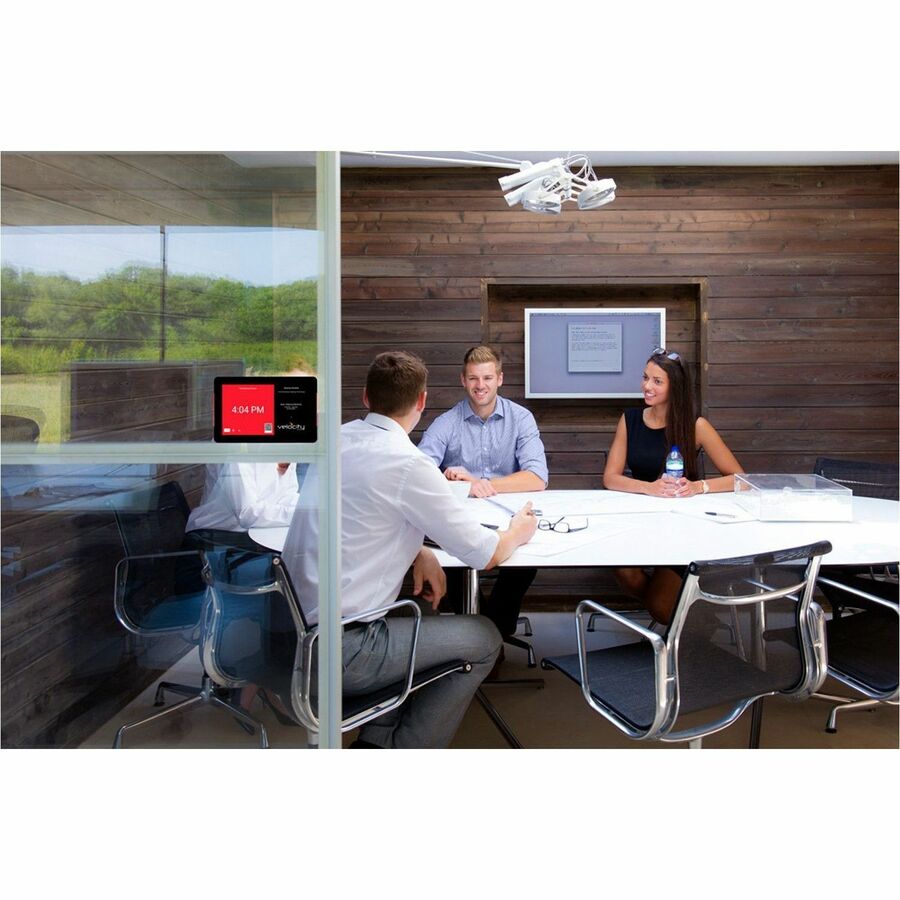

• Room Scheduling: Great for lobbies, hallways, or outside of any meeting space that requires a quick and easy visual means of displaying room availability.

• Wall Mountable
• Table Mount
• Glass Mount

• Port: 1 x RJ45
• Standards and Protocols: DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x
• Ethernet Speed: 10/100/1000 Mbps
• Addressing: DHCP, static
• PoE+: IEEE 802.3at (PoE+)
• Panel: TFT LCD, 10 point touch projected capacitive
• Viewing Angle: H 140o / V 130o
• Brightness: 240 cd/m2
