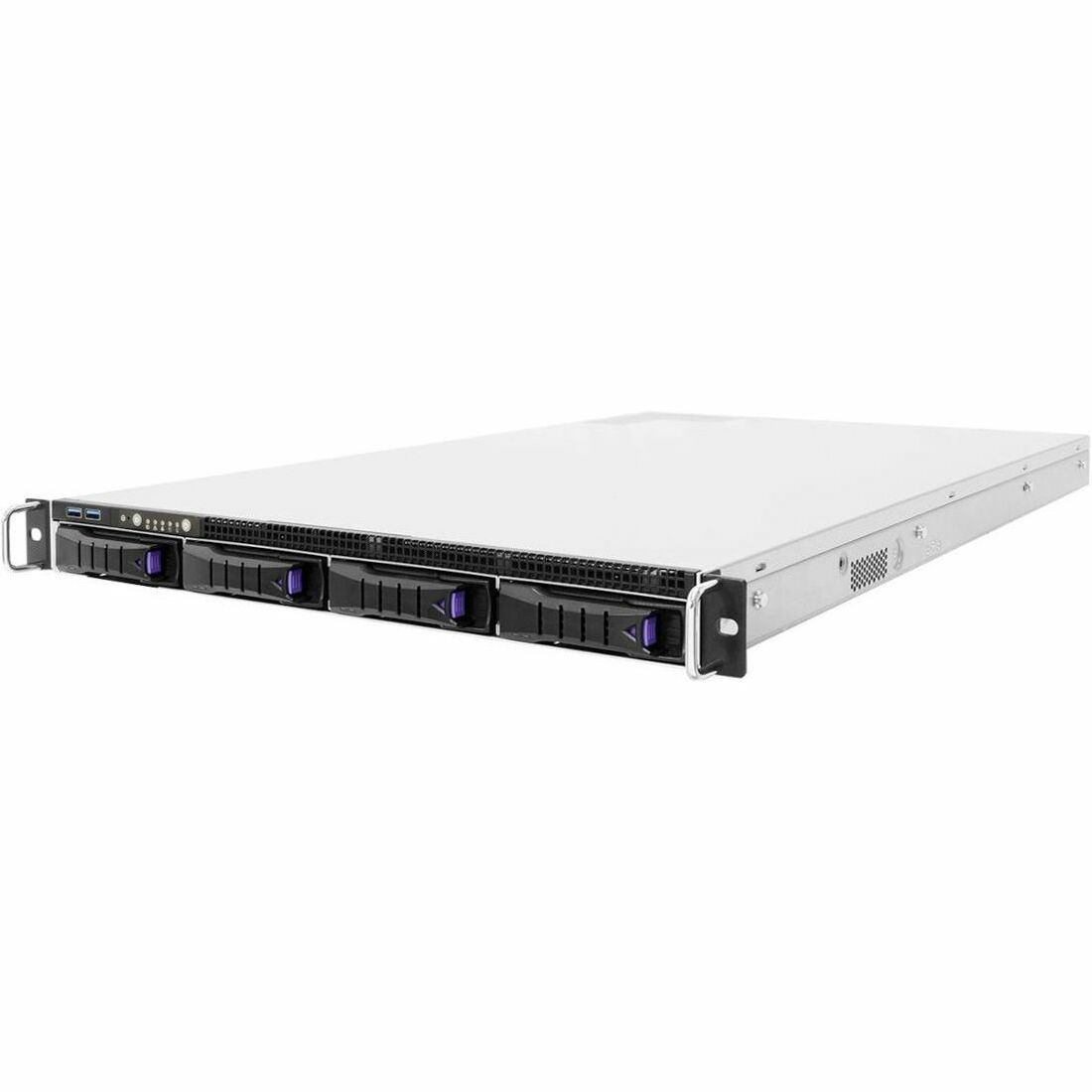

AIC SB101-TU Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support
Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - Serial ATA/600 Controller - 4 3.5" Bay(s) - Network (RJ-45) - 2 M.2 Interface(s) - 10 SATA Interface(s) - Processor Support (Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum) - Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s) - 2 x 750 W
$2810.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XP1-S101TU02 |
| Brand Name | AIC |
| Product Model | SB101-TU |
| Product Name | SB101-TU Barebone System |
| Marketing Information | SB101-TU, a 1U 4-bay storage server solution. It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Rackmount Technology Extension (RTX) form factor utilizes and Onboard Baseboard Management Controller for system management and IPMI control. |
| Product Type | Barebone System |
Processor
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported |
|
| 64-bit Processing | Yes |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Memory
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
Storage
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
Controllers
| Controller Type | Serial ATA/600 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
I/O Expansions
| Number of Total Expansion Bays | 6 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Number of M.2 Interfaces | 2 |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 10 |
| Number of VGA Ports | 1 |
Power Description
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 750 W |
| Thermal Design Power | 270 W |
Physical Characteristics
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 26.70" (678.18 mm) |
Miscellaneous
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 836647001199 |
