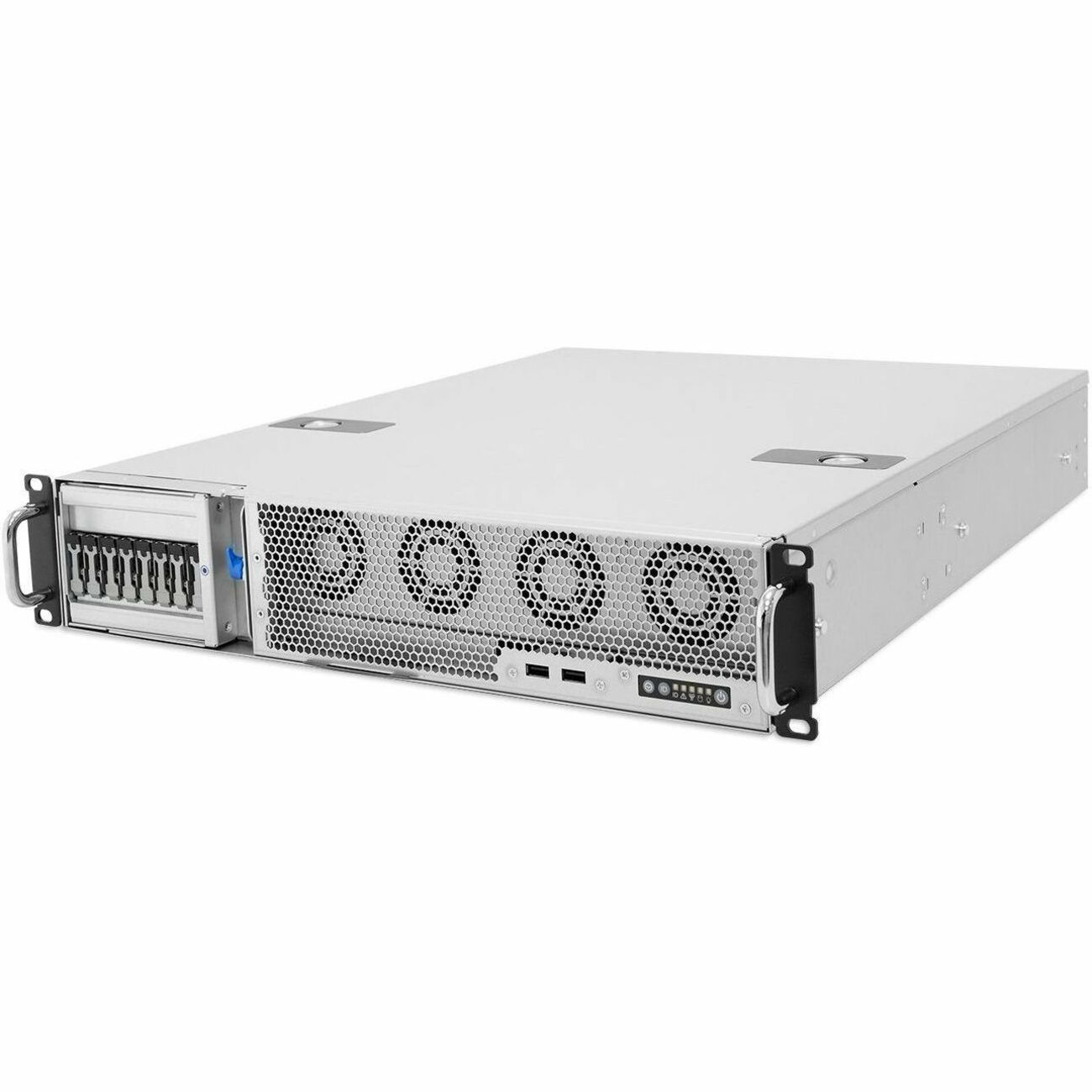

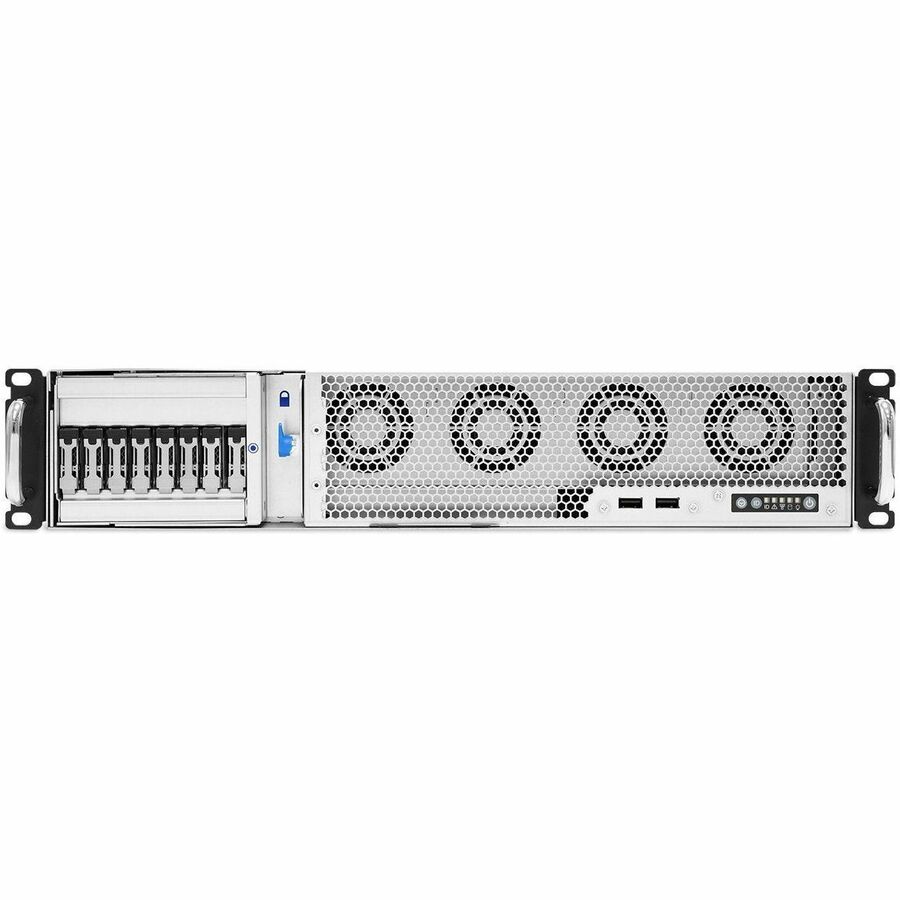

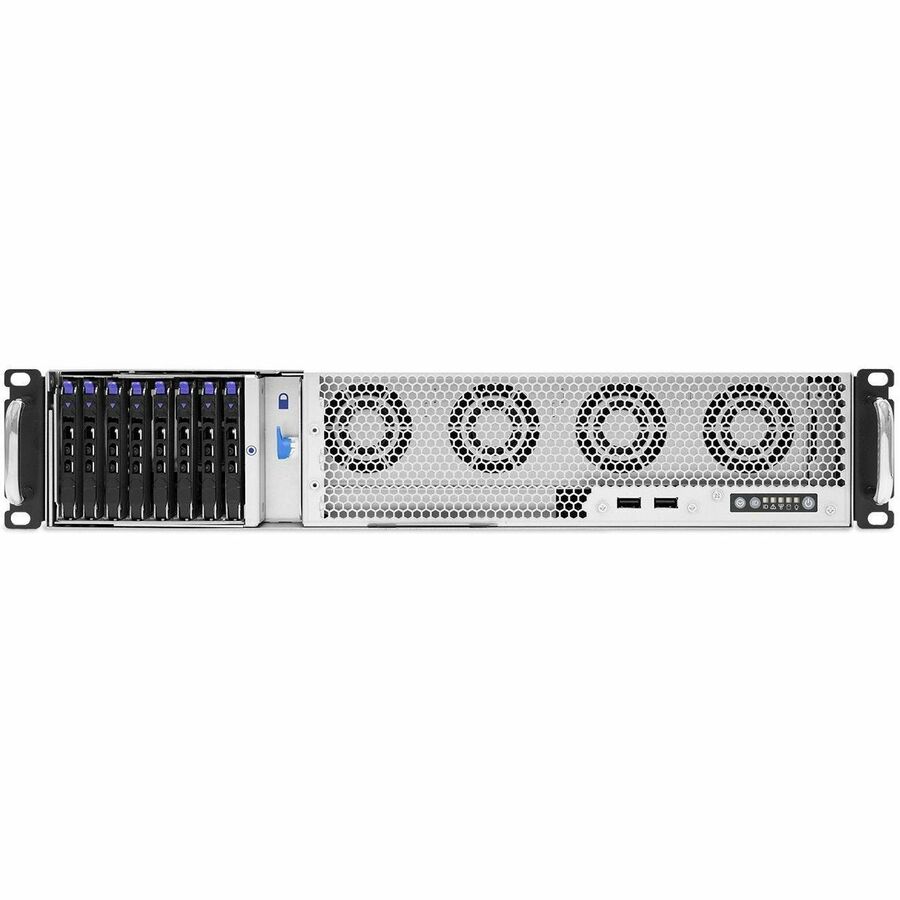

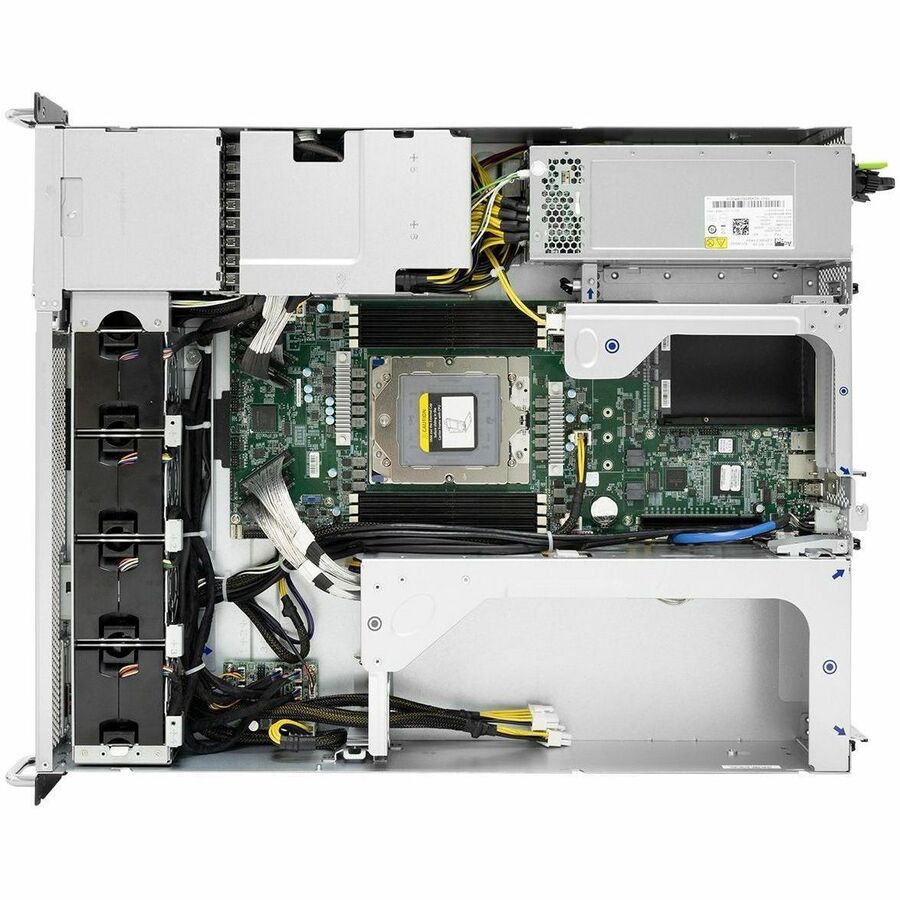

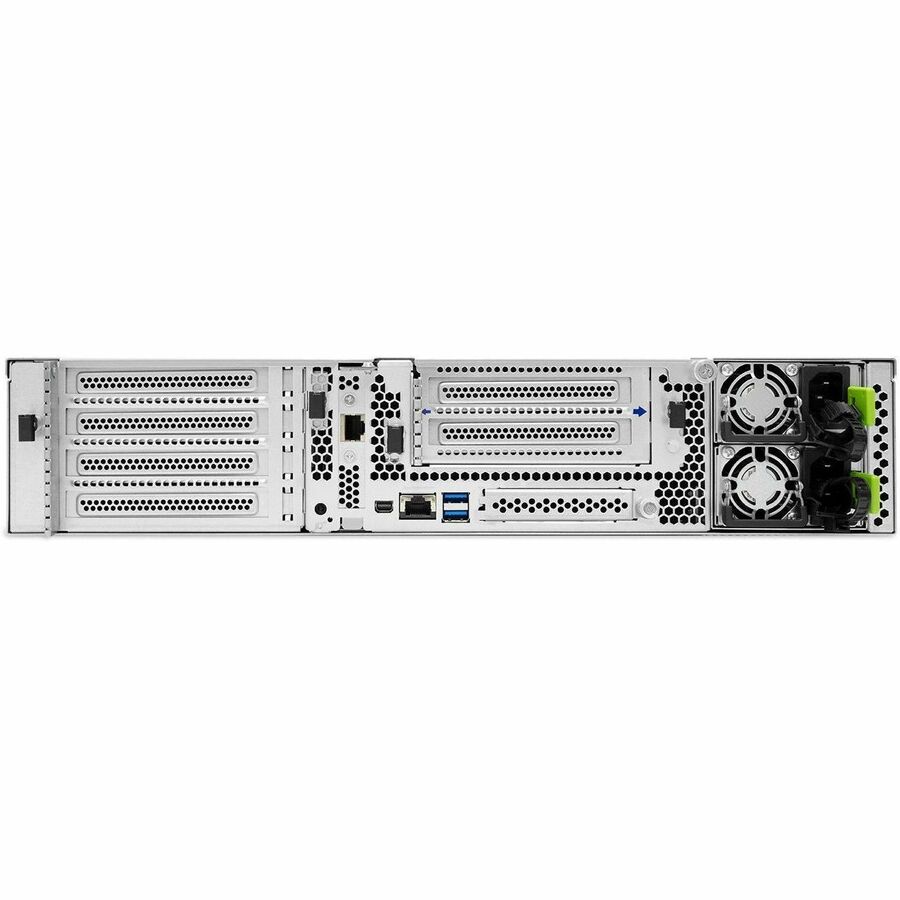

AIC EB202-CP Barebone System - 2U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support
AMD Chip - 4 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - NVMe Controller - Mini DisplayPort - Network (RJ-45) - 2 M.2 Interface(s) - Processor Support (EPYC) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 1.60 kW
$5684.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advanced Industrial Computer, Inc |
| Manufacturer Part Number | XP1-E202CP02 |
| Brand Name | AIC |
| Product Model | EB202-CP |
| Product Name | EB202-CP Barebone System |
| Marketing Information | EB202-CP performance in a short-depth form factor, it is ideal for 5G, low-latency, and computing edge applications. Supports Zen4 AMD EPYC™ 9004 series processors with PCIe Gen5 extension design. It supports Gen5 hot swappable EDSFF, can equip eight Gen5 E1.S/E3.S or four Gen4 U.2 NVMe, quickly remove all storage(8bay), achieve an extra layer of security. |
| Product Type | Barebone System |
Processor
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP5 LGA-6096 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
Chipset
| Chipset Manufacturer | AMD |
Memory
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
Storage
| Supported Storage Drive Interfaces | PCI Express NVMe |
| Supported Storage Drive Types |
|
Controllers
| Controller Type | NVMe |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
I/O Expansions
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 2 |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Mini DisplayPort | Yes |
Power Description
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Thermal Design Power | 360 W |
Physical Characteristics
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.20 mm) |
| Width | 17.24" (438 mm) |
| Depth | 22" (558.80 mm) |
Miscellaneous
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 836647001304 |
