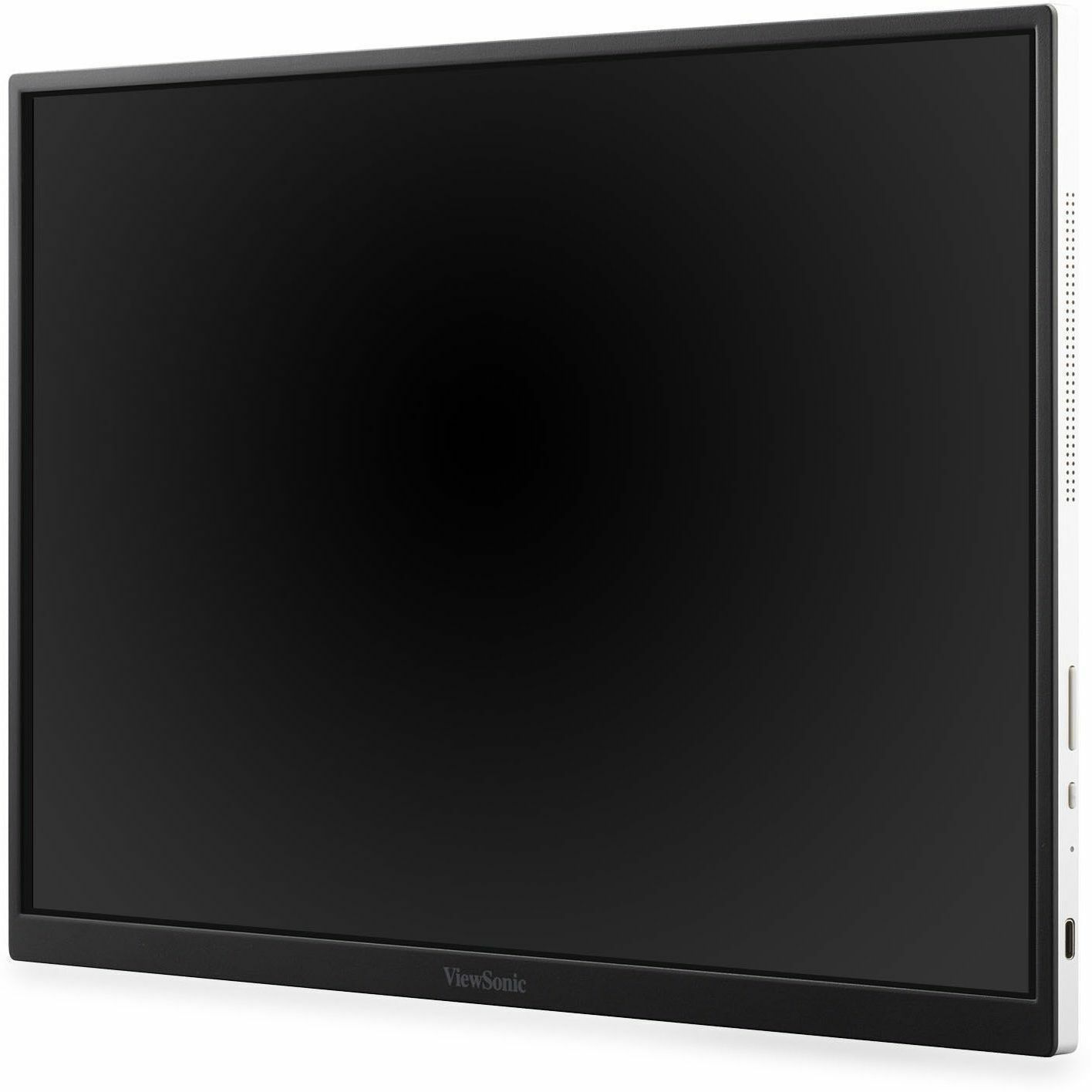

ViewSonic TD1656-2K 16" Class LED Touchscreen Monitor - 16:10 - 11.60 ms

16" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 2560 x 1600 - WQXGA - In-plane Switching (IPS) Technology - 16.7 Million Colors - 330 cd/m² - LED Backlight - Speakers - USB - Black - Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) - 3 Year

Part No. TD1656-2K

by ViewSonic Corporation

$524.99

General Information

Manufacturer	ViewSonic Corporation
Manufacturer Part Number	TD1656-2K
Brand Name	ViewSonic
Product Model	TD1656-2K
Product Name	16" Portable WQXGA IPS Touch Monitor with 65W USB C and Smart Cover Design
Marketing Information	TD1656-2K is a portable 16" 16:10 monitor designed for optimal productivity on the go. Weighing less than 2lbs and under 0.5" thick, with an intuitive smart cover to both provide versatile viewing options and protect the screen in transit, this portable is optimized to take on the road. 10-point capacitive touch allows for intuitive screen control while 2K resolution offers vivid details for crispy and clear imagery. The two way power USB-C connectors provide a one-cable solution for multimedia transfer and 65W power charging, either receiving power from a laptop or power bank, or being able to pass through power to the connected device, when the portable is connected to a power source.
Product Type	LED Touchscreen Monitor

Technical Information

Screen Size Class	16"
Viewable Screen Size	16"
Screen Mode	WQXGA
Screen Surface	Anti-glare
Panel Technology	In-plane Switching (IPS) Technology
Response Time	11.60 ms
Response Time Details	11.6ms GTG
Aspect Ratio	16:10
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Backlight Technology	LED
Features	Anti-glare On-screen Display (OSD) Landscape/Portrait Viewable vDisplay Manager
Horizontal Frequency	15 kHz to 100 kHz - USB Type C
Vertical Frequency	50 Hz to 75 Hz - USB Type C
Stand Adjustments	Height Pivot Tilt
Glass Hardness	6H

Video

Maximum Resolution	2560 x 1600
Standard Refresh Rate	60 Hz
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,500:1
Dynamic Contrast Ratio	50,000,000:1
Brightness	330 cd/m²

Audio

Speakers	Yes

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

Interfaces/Ports

DVI	No
HDMI	No
USB	Yes
VGA	No
DisplayPort	No
Mini DisplayPort	No
USB Type-C	Yes
Thunderbolt	No
Number of USB Ports	2
Total Number of USB Type-C Ports	2
Thunderbolt 3	No
Thunderbolt 4	No

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Operating Humidity Range	20% to 90% (Non-condensing)

Power Description

Operating Power Consumption	8.80 W
Maximum Power Consumption	11.80 W

Physical Characteristics

Color Family	Black
Product Color	Black
Height	9.25" (235 mm)
Width	14.06" (357 mm)
Depth	0.39" (9.90 mm)
Height with Stand	9.25" (235 mm)
Width with Stand	14.06" (357 mm)
Depth with Stand	0.39" (9.90 mm)
Weight (Approximate)	1.76 lb (800 g)
Weight with Stand (Approximate)	2.87 lb (1300 g)

Miscellaneous

Package Contents	16" Portable WQXGA IPS Touch Monitor with 65W USB C and Smart Cover Design USB-C Cable Smart Cover Passive Touch Stylus Quick Start Guide
Energy Star	Yes
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification	ENERGY STAR 8.0
Condition	No
UPC	0766907026221
