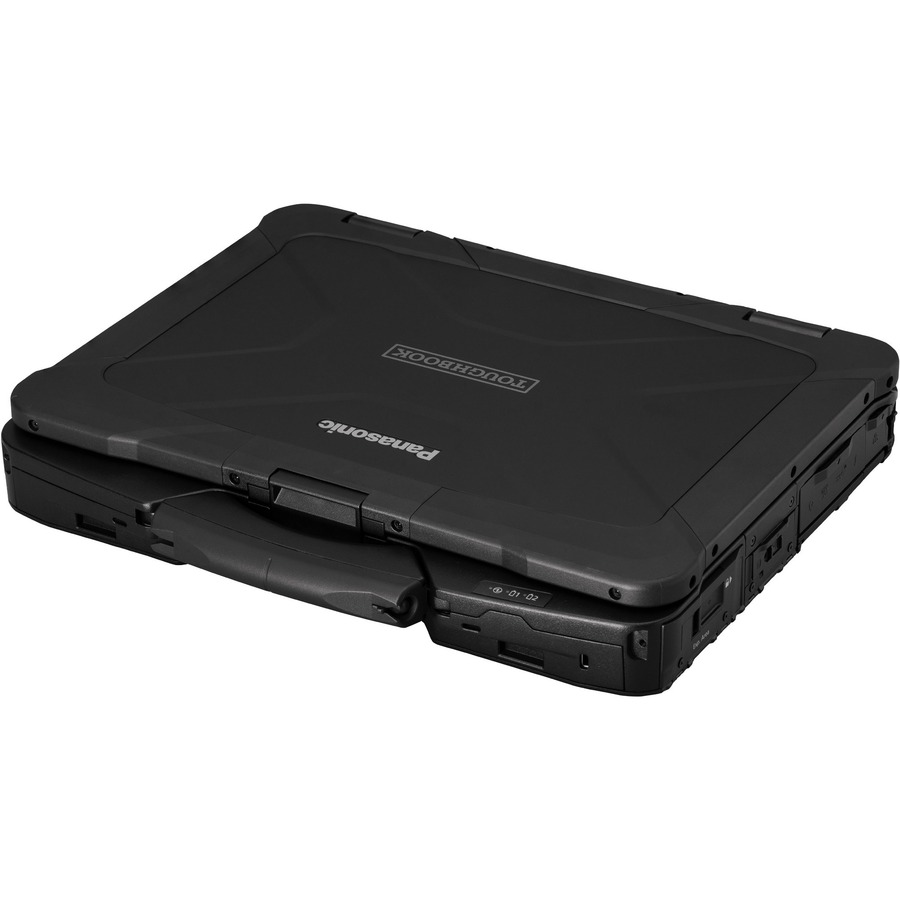

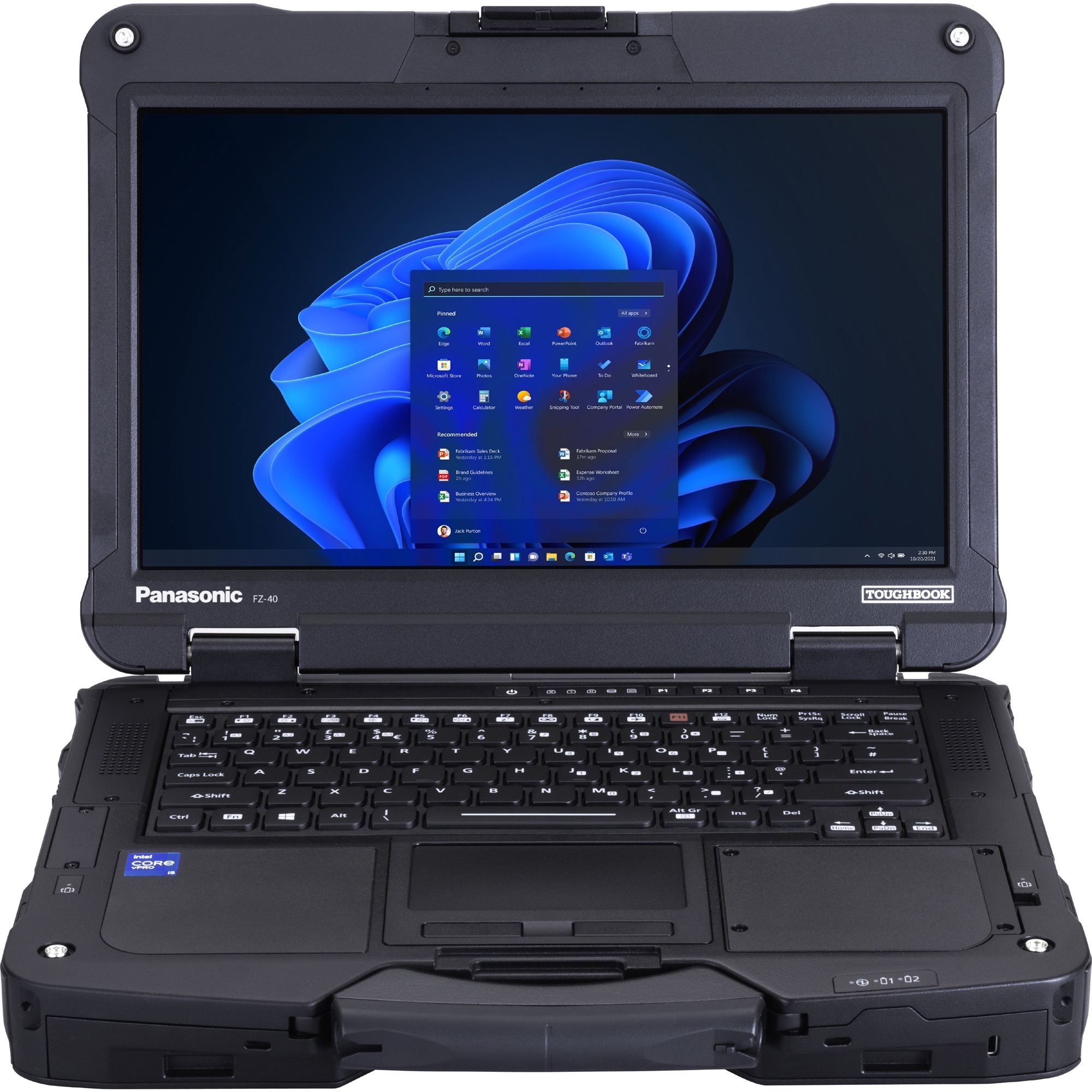

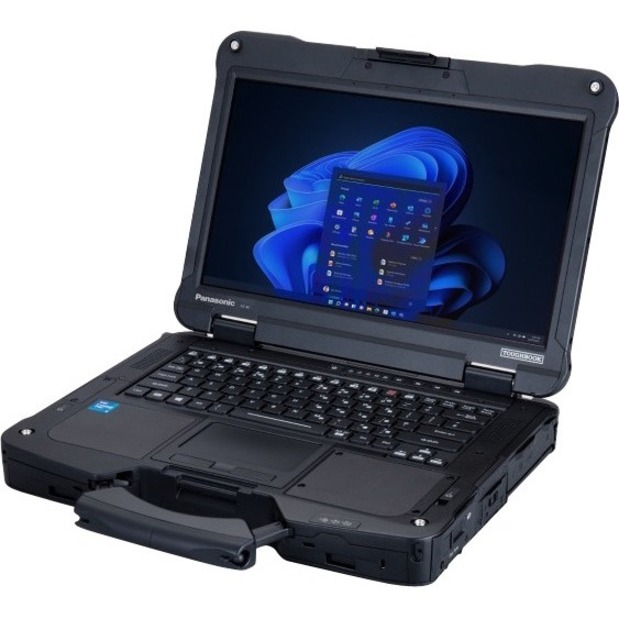

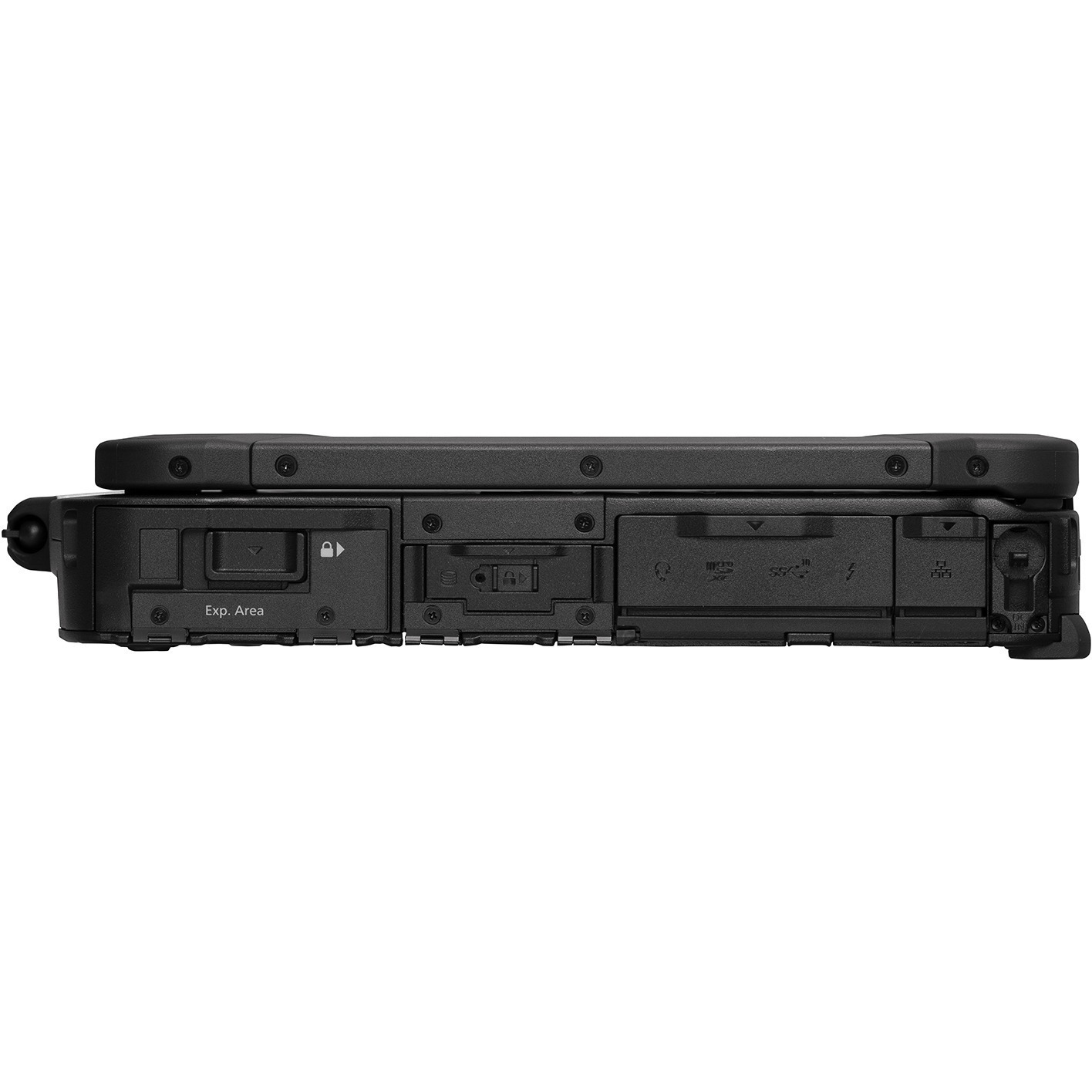

Panasonic TOUGHBOOK FZ-40 FZ40EAAAKBM 14" Touchscreen Rugged Notebook - 4G - Full HD - Intel Core Ultra 5 135H - 16 GB - 512 GB SSD

Part No. FZ40EAAAKBM

by Panasonic

Panasonic TOUGHBOOK FZ-40 FZ40EAAAKBM 14" Touchscreen Rugged Notebook - 4G - Full HD - Intel Core Ultra 5 135H - 16 GB - 512 GB SSD

Intel Chip - LTE - 1920 x 1080 - Windows 11 Pro - Intel Arc Graphics - In-plane Switching (IPS) Technology - 12 Hours Battery Run Time - IEEE 802.11be Wireless LAN Standard

Part No. FZ40EAAAKBM

by Panasonic

$6988.99
General Information
ManufacturerPanasonic
Manufacturer Part NumberFZ40EAAAKBM
Brand NamePanasonic
Product LineTOUGHBOOK
Product SeriesFZ-40
Product ModelFZ40EAAAKBM
Product NameTOUGHBOOK FZ40EAAAKBM Notebook
Marketing Information

Purpose-built, rugged laptops for your extraordinary work.

Your work is extraordinary, and your laptop needs to match you step for step. That's why we build rugged TOUGHBOOK® laptops that are trusted and used by hardworking people in the toughest environments anywhere.

Product TypeNotebook
Technical Information
AI-poweredYes
Processor
Processor ManufacturerIntel
Processor TypeCore Ultra 5
Processor Model135H
Processor CoreTetradeca-core (14 Core)
Processor Speed1.40 GHz
Maximum Turbo Speed4.60 GHz
NPU ManufacturerIntel
NPU NameAI Boost
Chipset
Chipset ManufacturerIntel
Memory
Standard Memory16 GB
Maximum Supported System Memory64 GB
System Memory TechnologyDDR5 SDRAM
System Memory Speed5600 MHz
System Memory Form FactorSODIMM
Installed Slot Memory16 GB
Total Number of Memory Slots2
Storage
Drive TypeSSD
Total Solid State Drive Capacity512 GB
SSD Form FactorM.2
Display & Graphics
Screen Size14"
Display Screen TypeLCD
Display Screen TechnologyIn-plane Switching (IPS) Technology
Screen ModeFull HD
Screen Resolution1920 x 1080
Brightness1200 cd/m²
TouchscreenYes
Graphics Controller ManufacturerIntel
Graphics Controller ModelArc Graphics
Graphics Memory TechnologyDDR5 SDRAM
Graphics Memory AccessibilityShared
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11be
Cellular Generation4G
Cellular Data Connectivity TechnologyLTE
Ethernet TechnologyGigabit Ethernet
BluetoothYes
GPSYes
WWAN SupportedYes

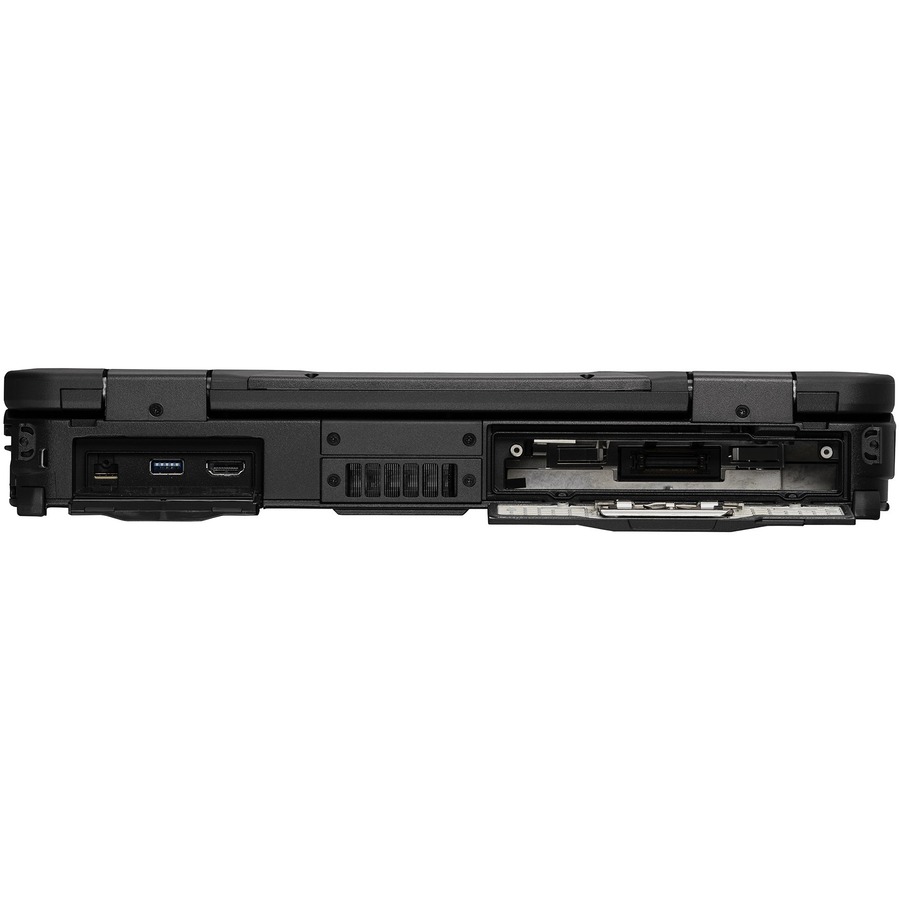

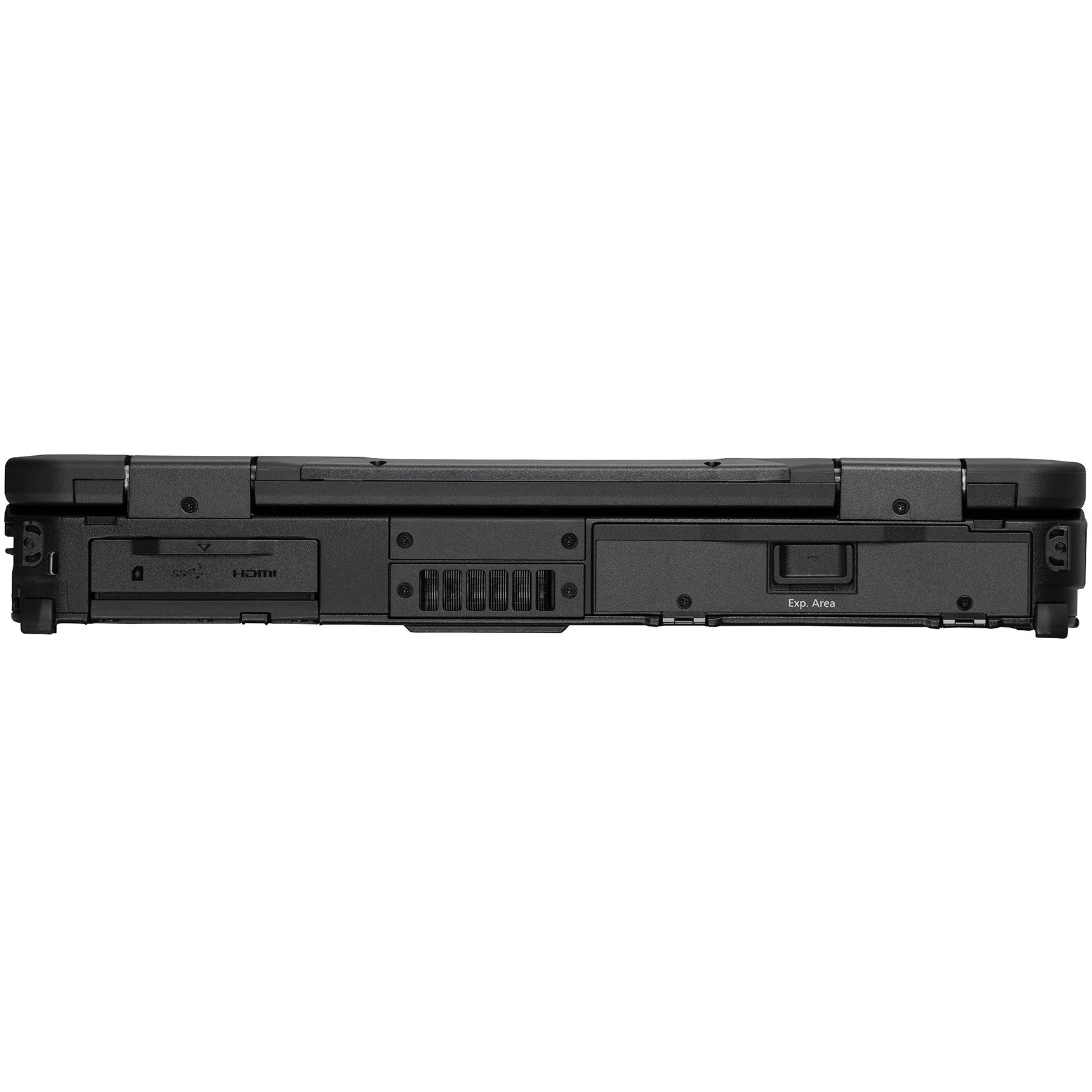

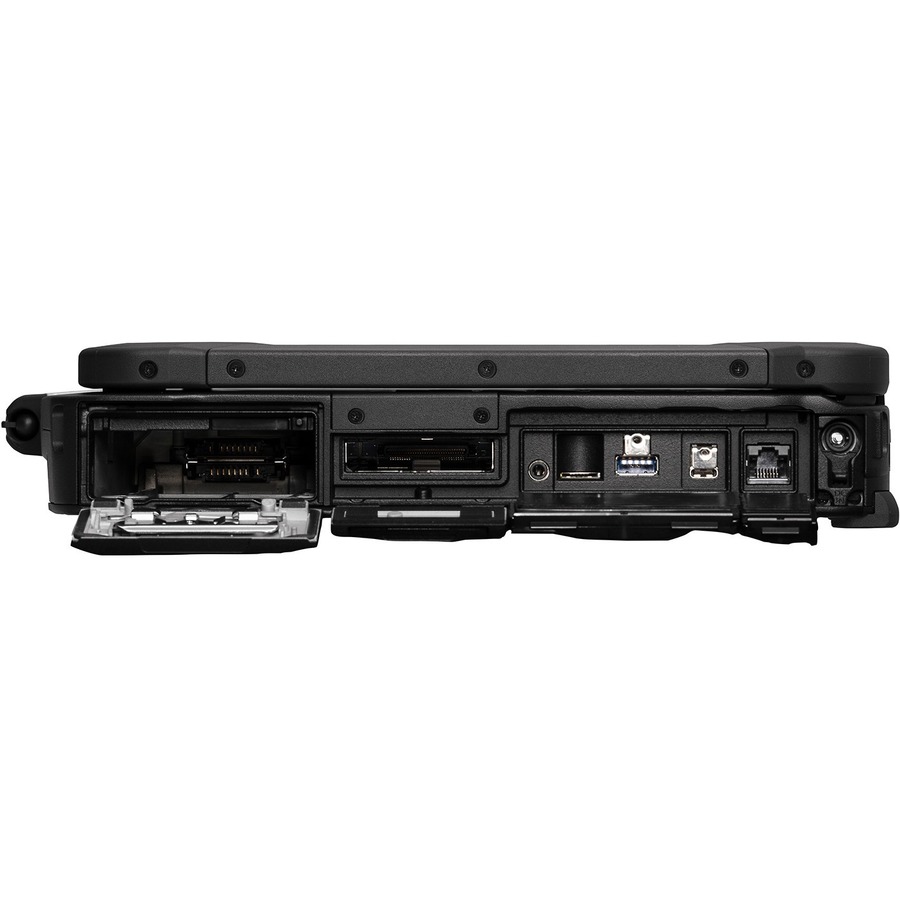

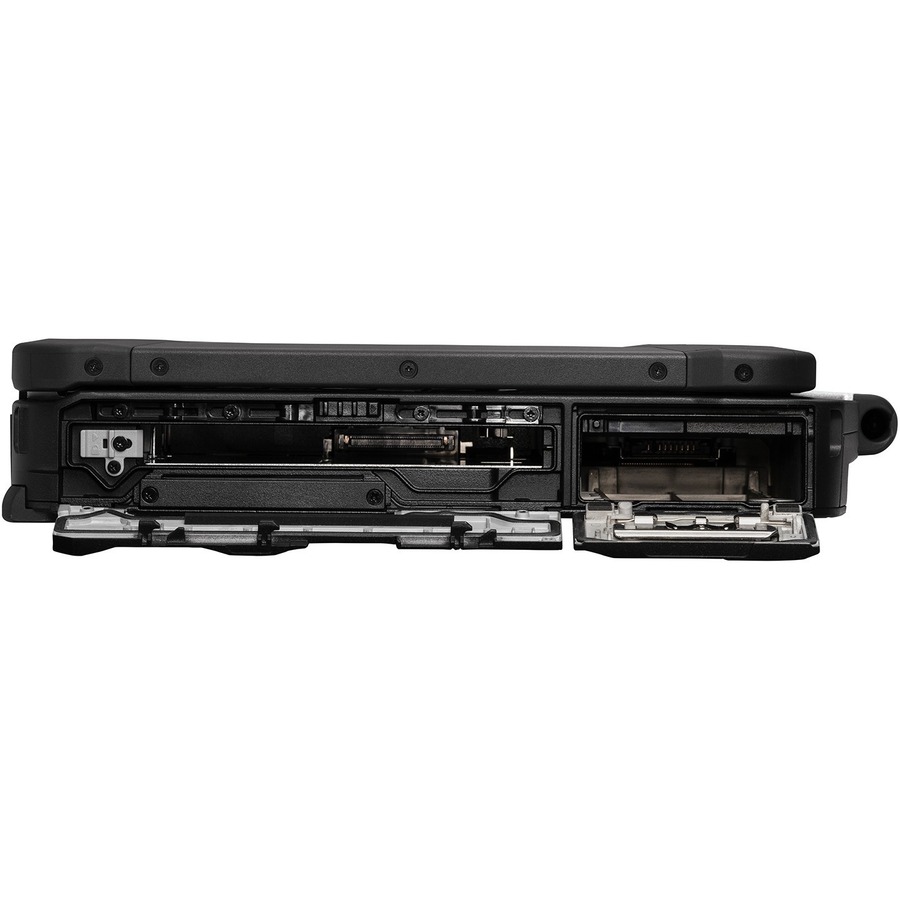

Interfaces/Ports
HDMIYes
Total Number of USB Ports2
Number Of Ethernet Ports1
Network (RJ-45)Yes
Number of Thunderbolt 4 Ports1
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

  • Optional USB-C 5Gbps 0.9A
  • Optional USB-A x2 5Gbps 0.9A
  • Optional VGA
  • Optional 2nd Ethernet 1Gbps RJ-45
  • Optional Fischer LAN with metal cap
  • Optional Serial (True) D-sub 9-pin
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Operating System Architecture64-bit
Input Devices

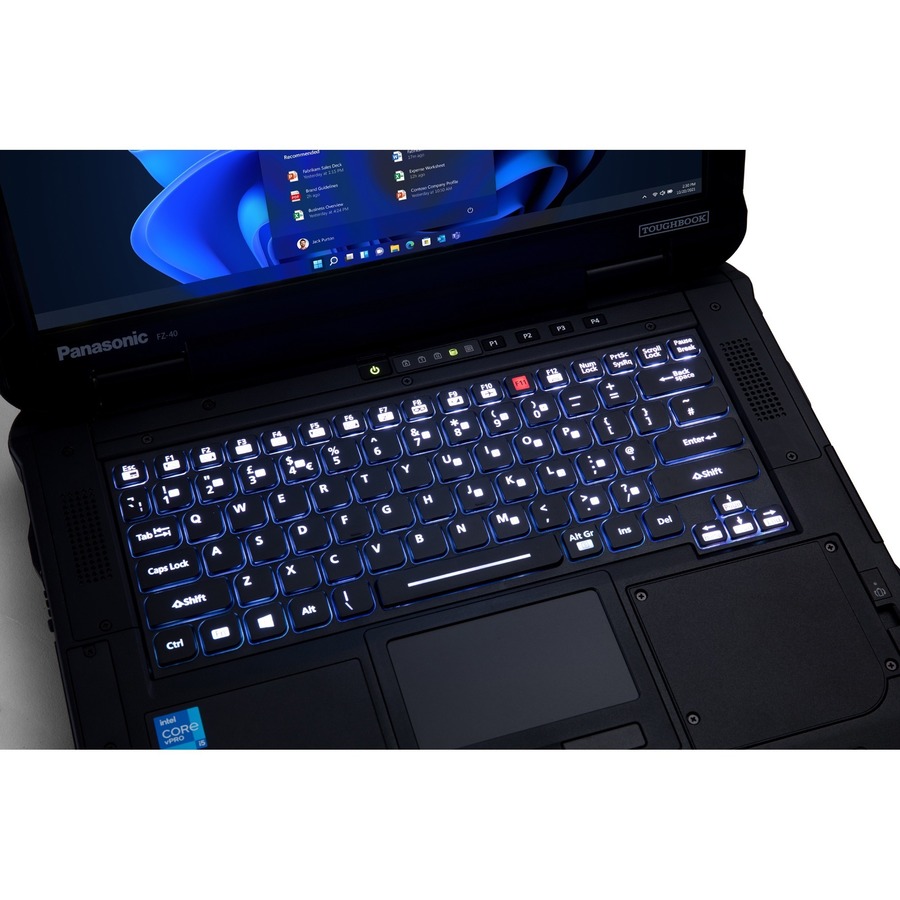

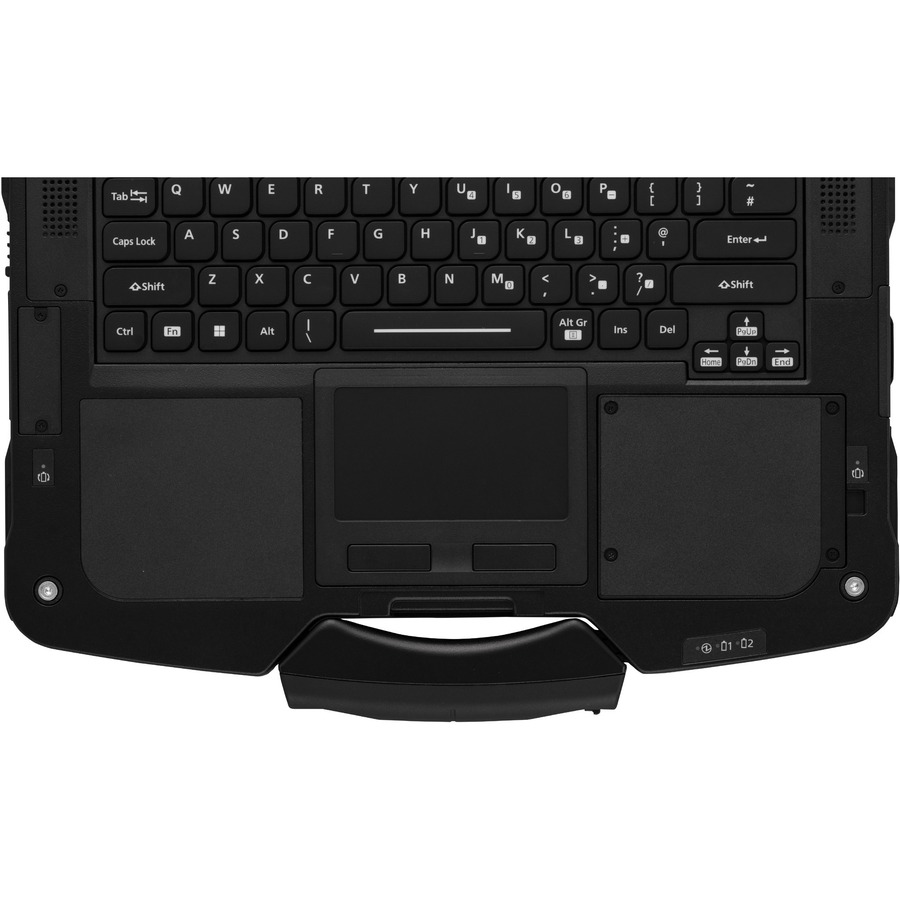

Keyboard BacklightYes
Battery Information
Maximum Battery Run Time12 Hours
Power Description
USB Power Delivery SupportYes
Physical Characteristics

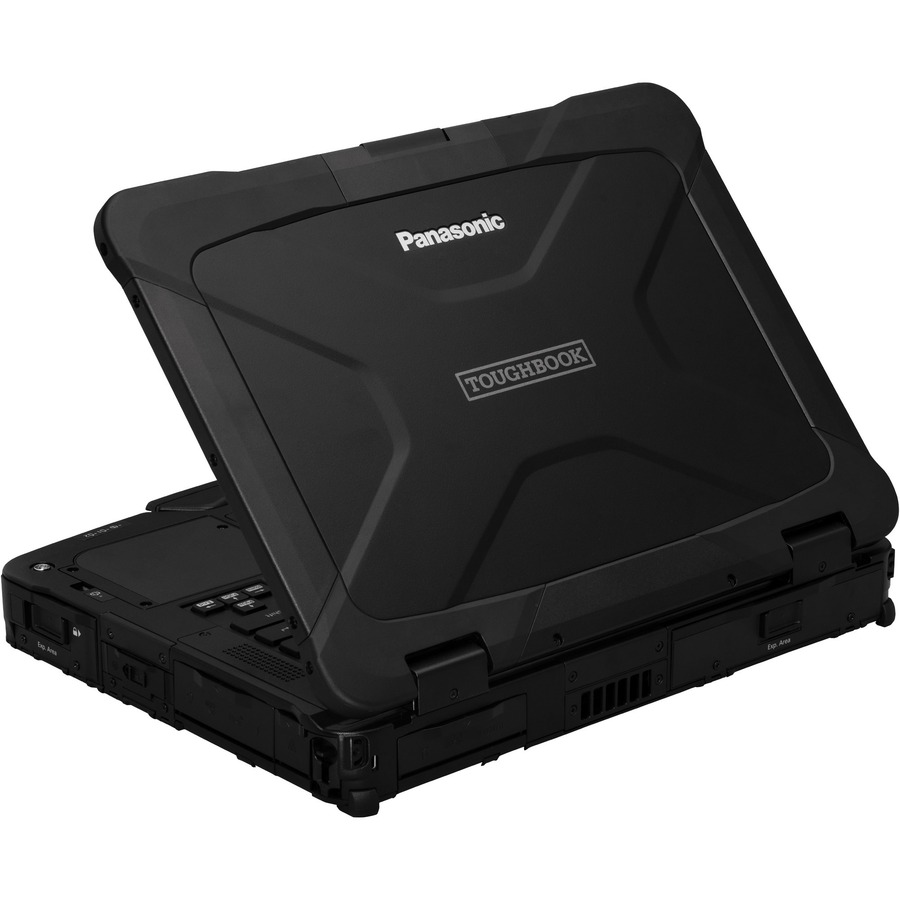

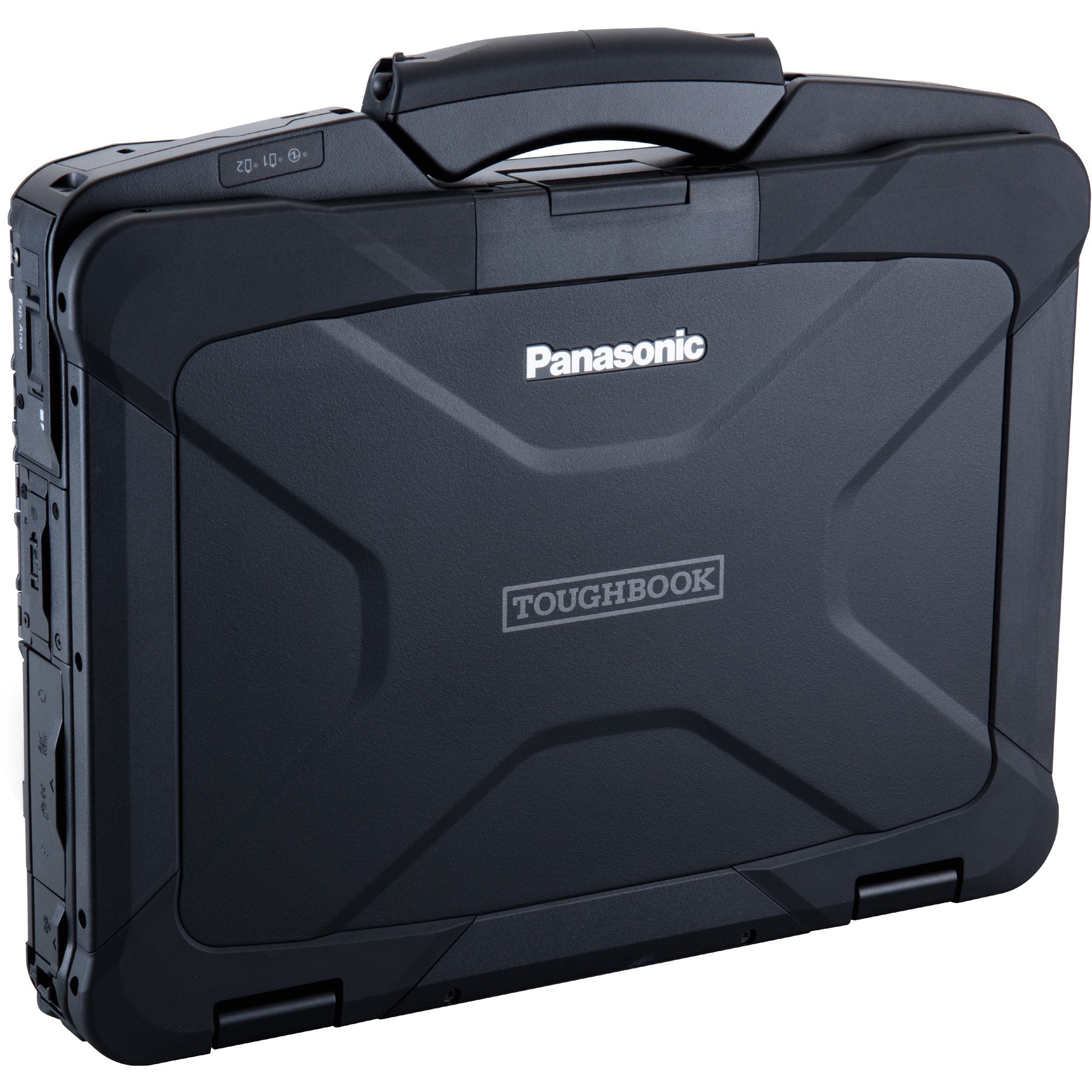

Cover MaterialMagnesium Alloy
RuggedYes
Height2.10" (53.34 mm)
Width13.90" (353.06 mm)
Depth11.90" (302.26 mm)
Weight (Approximate)7.40 lb (3356.58 g)
Miscellaneous
Package Contents
  • TOUGHBOOK FZ40EAAAKBM Notebook
  • Lithium Ion Battery
  • AC Adapter
  • Stylus Pen
  • Stylus Holder
  • Cleaning Cloth
Charger IncludedYes
Features
  • Water Resistant
  • Anti-reflection
  • Barcode Scanner
Energy StarYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0885170437326
Warranty
Limited Warranty3 Year
Additional Warranty Information

3-year limited warranty, parts and labor
