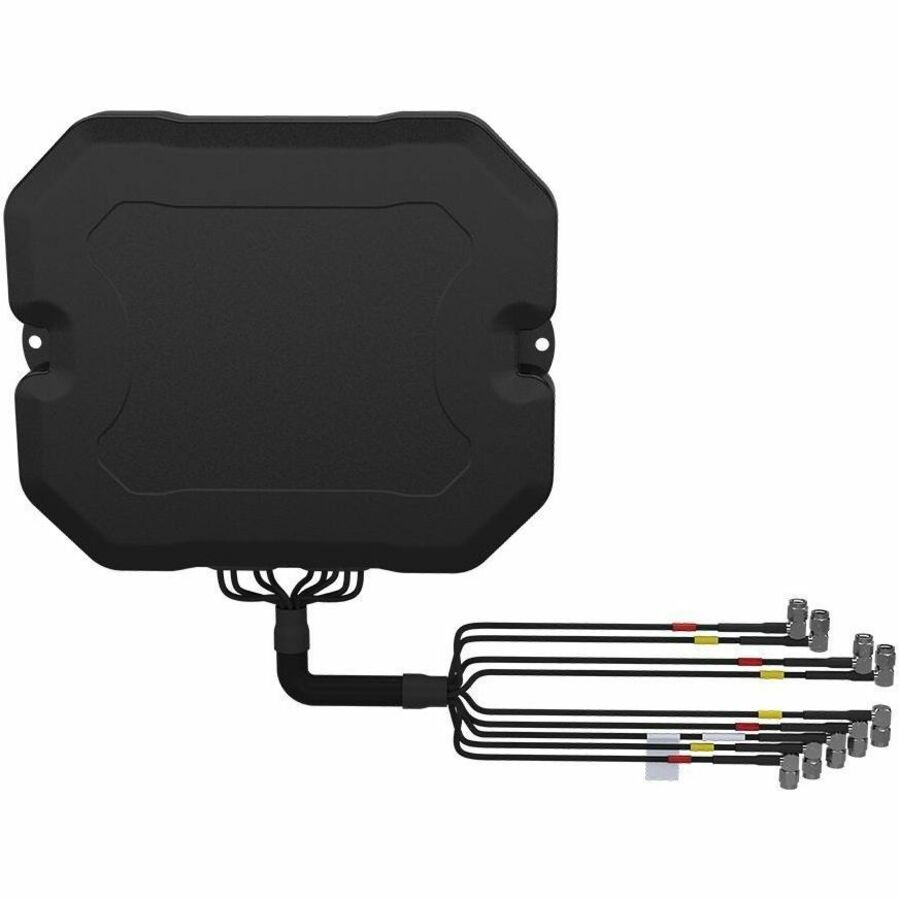

Panorama Antennas CASEANT[X]4-6-60[-X] Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | CASEANT4-6-60 |
| Brand Name | Panorama Antennas |
| Product Series | CASEANT[X]4-6-60[-X] |
| Product Name | CASEANT[X]4-6-60[-X] Antenna |
| Marketing Information | The Panorama CASEANT[[X]4-6-60-[X] range is a 4x4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases. The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed. CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e. The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation. Panorama can provide RF measurement services for case products and design of foam inserts, ducting and other installation collateral upon request. These services are sold separately. |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain (Isotropic) | 6.6 dBi |
| Connector Type | SMA |
| Height | 0.98" (25 mm) |
| Width | 9.13" (232 mm) |
| Depth | 7.72" (196 mm) |
| Form Factor |
|
| Application/Usage | Cellular Network |
| Condition | No |
