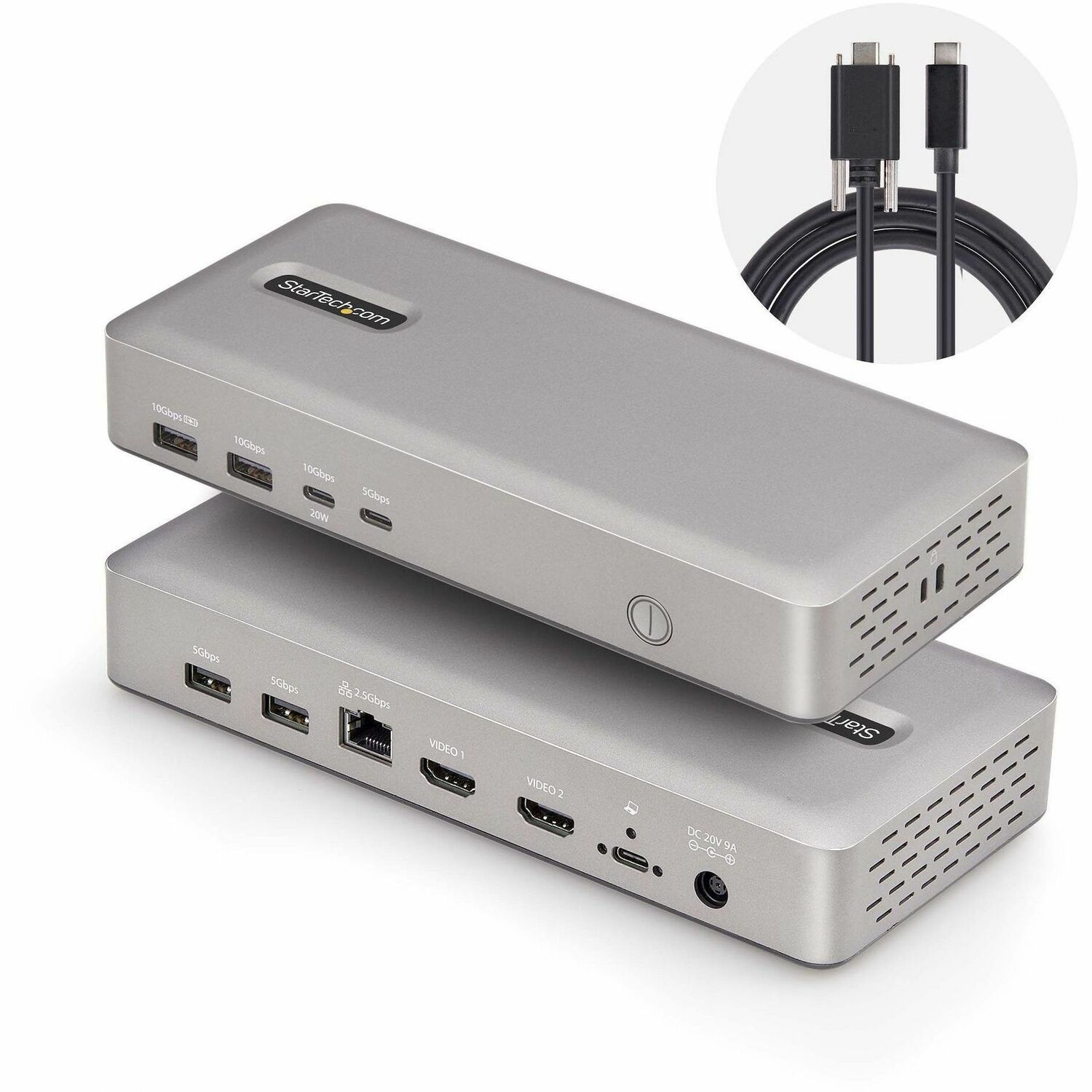

StarTech.com USB4 Docking Station, USB-C 40Gbps, up to Dual 4K 60Hz HDMI, Multi-Monitor Dock, 6-Port USB Hub, 2.5GbE, 100W Power Delivery
In Stock Availability
- All Locations: (3789+)
- Calgary, AB (3+)
- Mississauga, ON (20+)
- Other_SY (3727+)
- Richmond, BC (25+)
- Toronto, ON (15+)
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 155NA-USB4-DOCK |
| Brand Name | StarTech.com |
| Product Name | 155NA-USB4-DOCK |
| Marketing Information | This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop. Flexible High-Performance Video The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2. Port Connectivity The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications. The dock features:
100W USB Power Delivery Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools |
| Packaged Quantity | 1 / Each |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported |
|
| Features | Power Delivery Pass-through |
| Management Features |
|
| Number of Displays Supported | 2 |
| Screen Mode Supported |
|
| Supported Resolutions |
|
| Maximum Data Transfer Rate | 5 GB/s |
| Security Slot Type | Kensington Security Slot |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Host Interface | USB4 |
| Total Number of USB Ports | 6 |
| USB Type-A | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB Type-A Ports | 4 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C 10Gbps, 1x USB-C 5Gbps |
| Number of USB Type-C Ports | 2 |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Outputs | 2 |
| Thunderbolt | Yes |
| USB Power Delivery | 100W |
| Operating System Supported |
|
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Color Family | Gray |
| Product Color | Space Gray |
| Form Factor | Desktop |
| Height | 1.30" (33.02 mm) |
| Width | 8.30" (210.82 mm) |
| Length | 3.80" (96.52 mm) |
| Weight (Approximate) | 4.90 oz (138.91 g) |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Compatibility | Compatible Devices:
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 0065030899673 |
| Limited Warranty | 3 Year |
