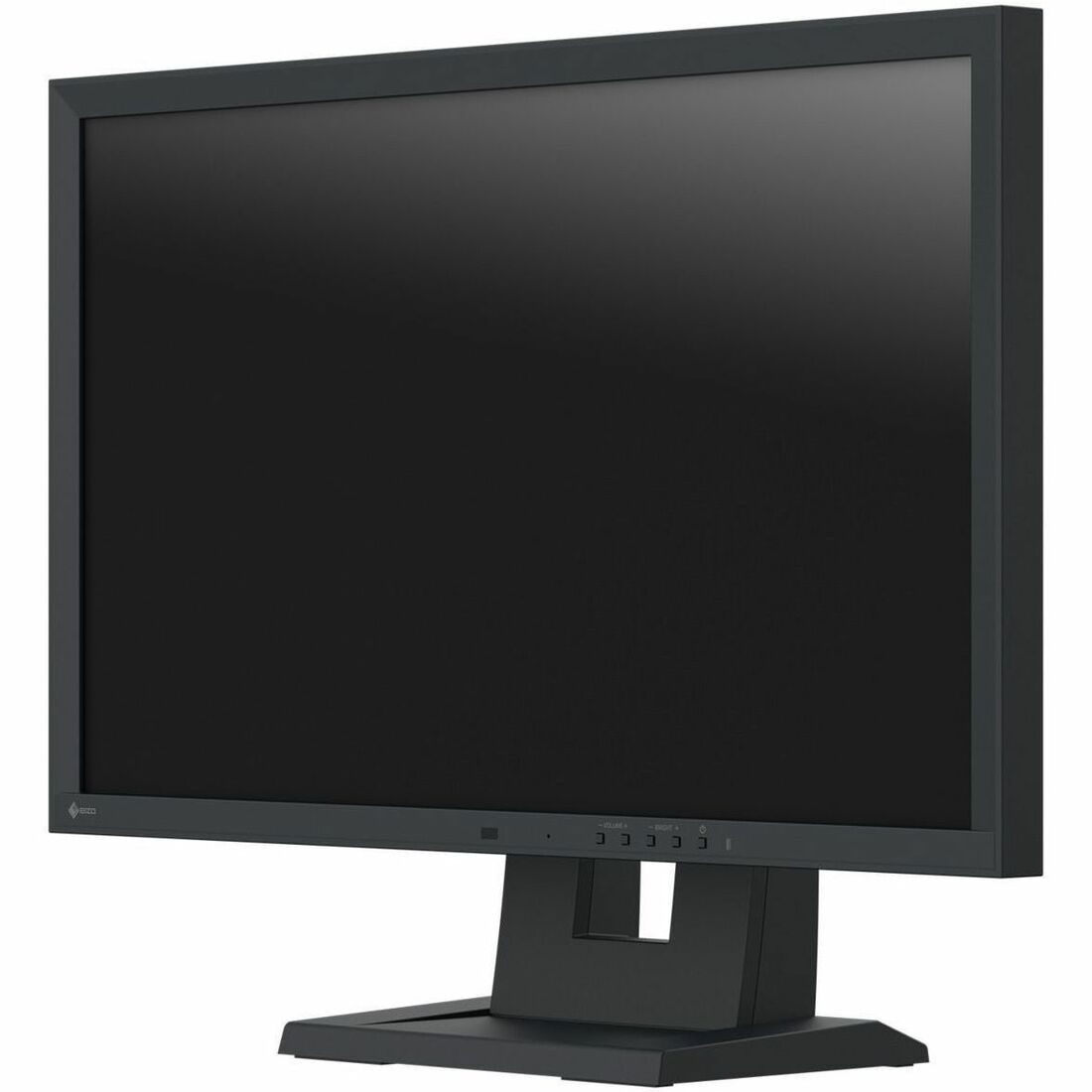

EIZO DuraVision FDF2312W-IP 23" Class Webcam Full HD LED Monitor - 16:9 - Black

Part No. FDF2312W-IP-BK

by EIZO

EIZO DuraVision FDF2312W-IP 23" Class Webcam Full HD LED Monitor - 16:9 - Black

23" Viewable - In-plane Switching (IPS) Technology - LED Backlight - 1920 x 1080 - 16.77 Million Colors - 300 cd/m² - 8 ms - HDMI - VESA Mount Compatible

Part No. FDF2312W-IP-BK

by EIZO

$2702.99
General Information
ManufacturerEIZO
Manufacturer Part NumberFDF2312W-IP-BK
Brand NameEIZO
Product LineDuraVision
Product ModelFDF2312W-IP
Product NameDuraVision FDF2312W-IP Widescreen LED Monitor
Marketing Information

PC-Less Live Streaming Directly from IP Cameras

DuraVision IP decoding monitors connect directly to an IP camera or switch to immediately begin live streaming video. They do not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

The monitors are able to stream video without a decentralized recording system, such as edge recording or cloud archiving, providing a solution for environments that do not record and store images.

Custom Event Response with Alert-to-Action

The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control, hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, power options, and more. Operators can also schedule actions to occur at a specific time, for example, to automatically change the camera layout at 4:00 pm every Sunday. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly.

Event Response for Every Environment

An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and maintain a safe environment for hospitals, public transportation hubs, and more.

IP Camera Support | Interoperable with Over 300 Cameras

DuraVision IP decoding solutions support cameras with ONVIF Profile S, Axis VAPIX, Panasonic, and i-PRO protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).

Register up to 48 Cameras

Register up to 16 IP cameras, including 4K cameras, through the intuitive web UI. With the Enterprise License, you can register an additional 32 cameras, for a total of 48. Cameras can be discovered automatically or registered manually, and individual settings are easily managed centrally through the web UI.

VMS Integration

EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS). By fully integrating co-developed plugins into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.

Intuitive Operation and Functionality | Powerful Video Decoding Performance

DuraVision IP decoding solutions can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video.

Multi-Monitor Viewing with Video Output

The monitor is equipped with an HDMI® output that supports connection to a second monitor up to Full HD resolution (1920 x 1080). This provides simple configuration of a multi-monitor environment to flexible manage video from the same network source across two screens.

Product TypeLED Monitor
Technical Information
Number of Screens1
Screen Size Class23"
Viewable Screen Size23"
Screen ModeFull HD
Panel TechnologyIn-plane Switching (IPS) Technology
Response Time8 ms
Response Time Details8 ms GTG
Aspect Ratio16:9
Pixel Pitch0.26500 mm x 0.26500 mm
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Backlight TechnologyLED
Features
  • MultiScreen
  • Ultra Flexible
  • Dual Monitor Support
  • Safety Lock
Stand AdjustmentsTilt
Stand IncludedYes
Active Display Area (H x V)20.04" (509.10 mm) x 11.28" (286.40 mm)
Video
Maximum Resolution1920 x 1080
Color Supported16.77 Million Colors
Native Contrast Ratio1,000:1
Brightness300 cd/m²
Network & Communication
Wireless LANYes
Interfaces/Ports
Network (RJ-45)Yes
HDMIYes
USBYes
Number of USB Ports2
Built-in Devices
WebcamYes
Environmental Conditions
Operating Temperature Range32°F (0°C) to 104°F (40°C)
Operating Humidity Range20% to 80% (Non-condensing)
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Color FamilyBlack
Product ColorBlack
Height12.77" (324.40 mm)
Width21.54" (547.20 mm)
Depth2.34" (59.50 mm)
Height with Stand16.19" (411.30 mm)
Width with Stand21.54" (547.20 mm)
Depth with Stand6.18" (157 mm)
Weight (Approximate)9.26 lb (4200 g)
Weight with Stand (Approximate)14.55 lb (6600 g)
connector adapters (1)
connector cables (6)
