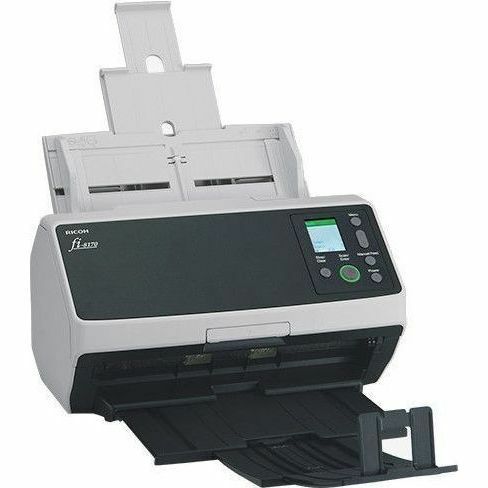

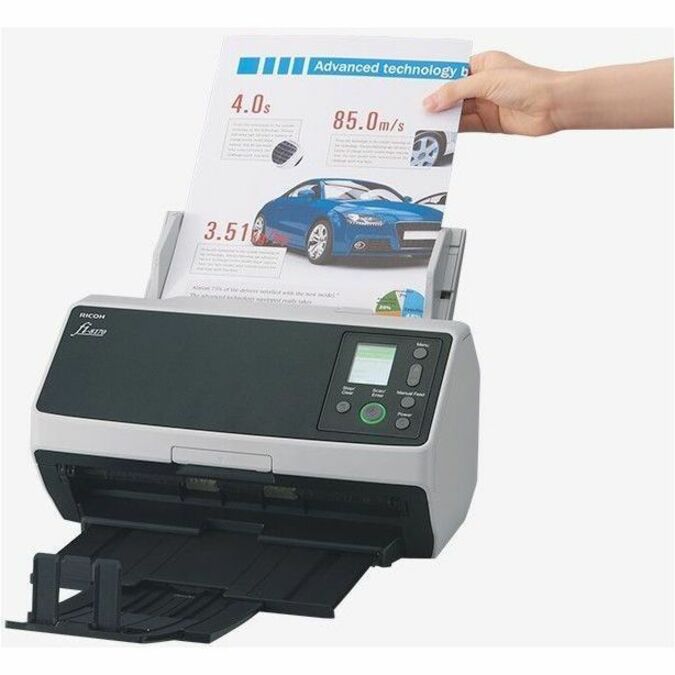

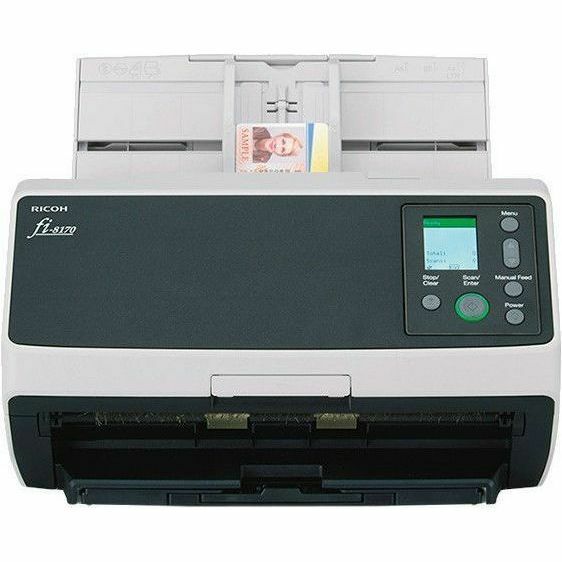

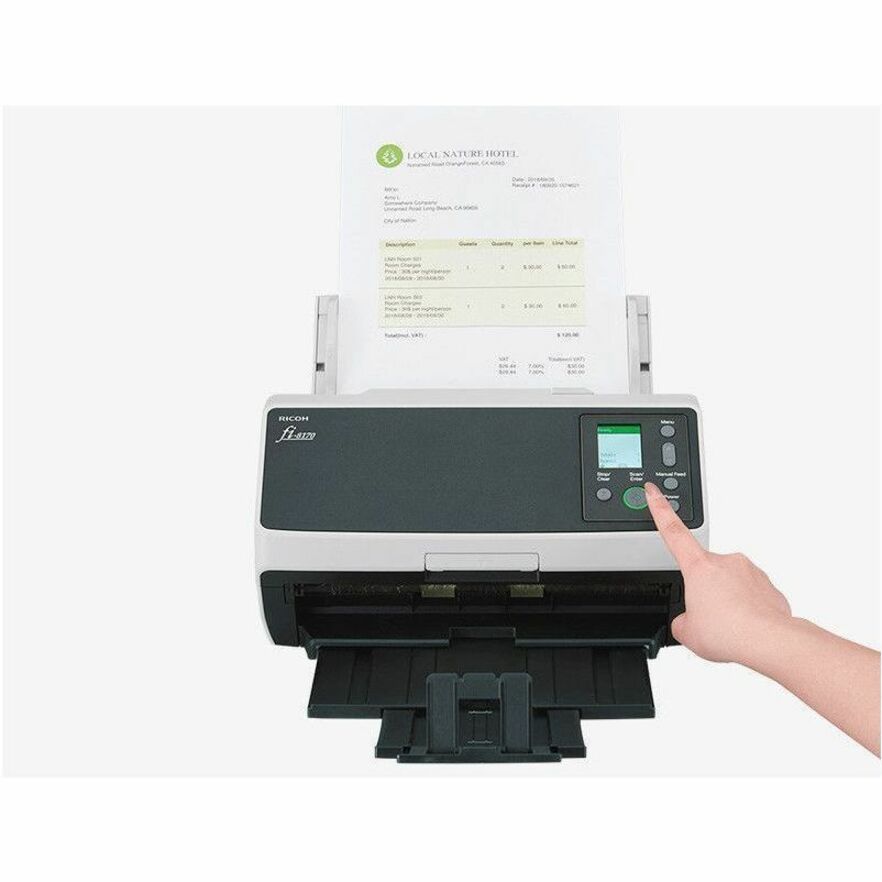

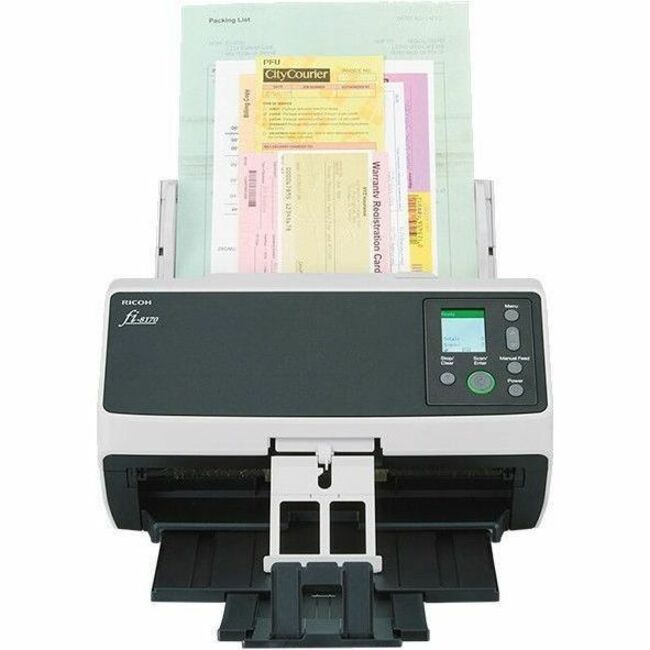

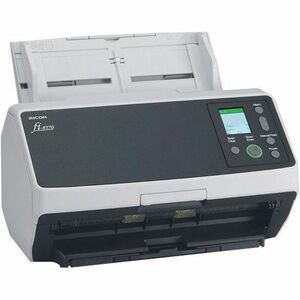

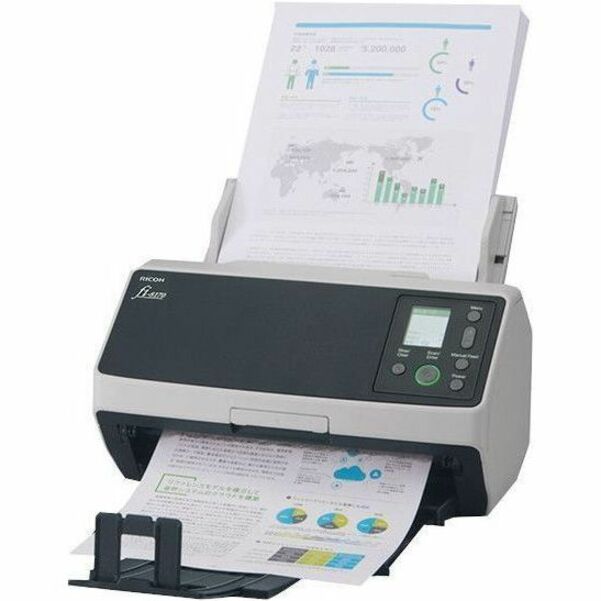

Fujitsu fi-8170 Large Format ADF/Manual Feed Scanner - 600 dpi Optical

Part No. PA03810-B055-2YR

by Fujitsu

Fujitsu fi-8170 Large Format ADF/Manual Feed Scanner - 600 dpi Optical

24-bit Color - 8-bit Grayscale - 70 ppm (Mono) - 70 ppm (Color) - Color, Grayscale, Monochrome Scan - Duplex Scanning - Paper Document, Booklet, Plastic Card - USB

Part No. PA03810-B055-2YR

by Fujitsu

$1401.99
General Information
ManufacturerFujitsu
Manufacturer Part NumberPA03810-B055-2YR
Brand NameFujitsu
Product Seriesfi
Product Modelfi-8170
Product Namefi-8170 Document Scanner
Marketing Information

Made for demanding workflows, the compact Fujitsu fi-8170 scanner gives small and large organizations unparalleled productivity. Patented feeding technologies, industry leading reliability, and proprietary Clear Image Capture (CIC) technology deliver the highest quality digital images to meet the needs of organizations on their digital transformation journey.

Image Quality

Clear Image Capture (CIC) technology resets the benchmark for high quality image capture, by combining the reliability and flexibility of Contact Imaging Sensor (CIS) hardware, with an industry-leading, proprietary image processor. CIC technology delivers precise, crisp images, and industry- leading OCR accuracy rates while also removing unwanted watermarks and artifacts.

Paper Feeding

Evolved paper handling with a large 100-page hopper, improved feeding mechanisms, and error-free 140 images captured per minute, make the fi-8170 one of the easiest and most efficient scanners to operate. The patented Automatic Separation Control uses state of the art technology to sense paper weights and adjusts to consistently separate documents and provide the perfect feed, ensuring documents are safely captured.

Reliability

The fi-8170 is built to last and powers up every time you need it regardless of job size. Strong urethane rollers, heavy duty motors, a sturdy frame, and durable consumables combine for a long-lasting scanner that will let your organization capture the volumes of paper from seasonal peaks and heavy backlogs, worry free.

Product TypeADF/Manual Feed Scanner
Technical Information

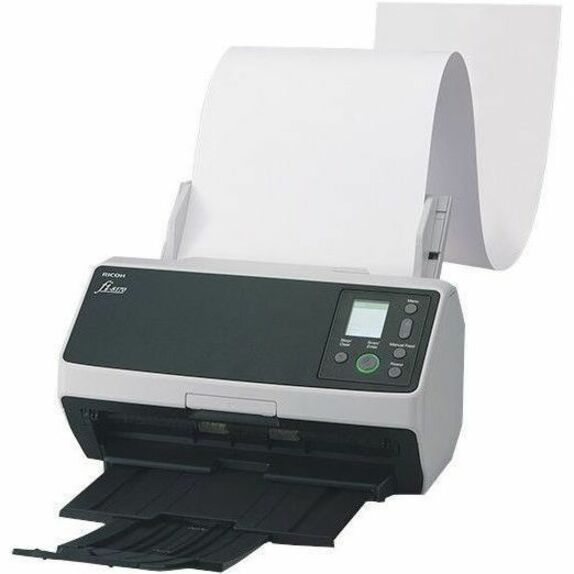

Large FormatYes
Image Sensor TypeDual CIS
Optical Resolution (dpi)600
Scan Color
  • Color
  • Grayscale
  • Monochrome
Color Depth24-bit
Grayscale Depth8-bit
Maximum Mono Scan Speed (ppm)70
Maximum Color Scan Speed (ppm)70
Maximum Mono Scan Speed (ipm)140
Maximum Color Scan Speed (ipm)140
Media Type
  • Paper Document

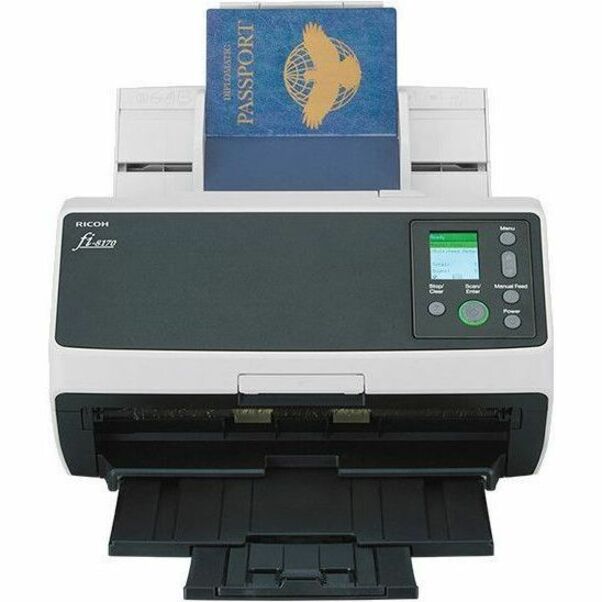

  • Booklet
  • Plastic Card
Media Size
  • Letter
  • Legal - 8.50" (215.90 mm) x 14" (355.60 mm)
Scanning ModesDuplex
ADF Capacity100 Sheets
Duplex ScanningYes
Light SourceRGB LED

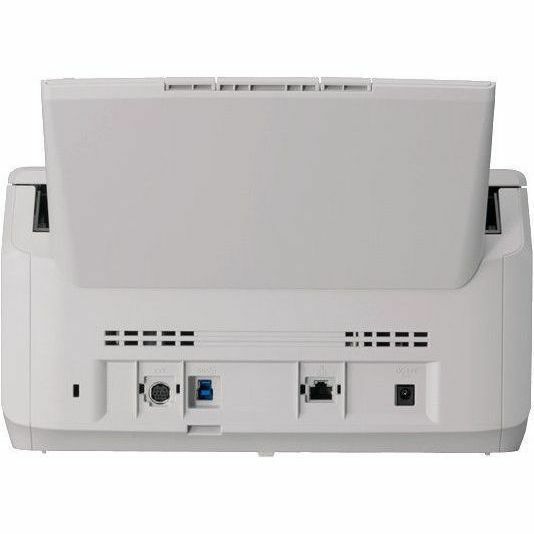

Interfaces/Ports
USBYes
USB StandardUSB 3.2
Software
Operating System Supported
  • Windows 11
  • Windows 10
  • Windows 8.1
  • Windows 7
  • Windows Server 2019
  • Windows Server 2016
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 R2
  • Mac OS
  • Windows Server 2022
  • Ubuntu
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Input Frequency
  • 50 Hz
  • 60 Hz
Maximum Power Consumption28 W

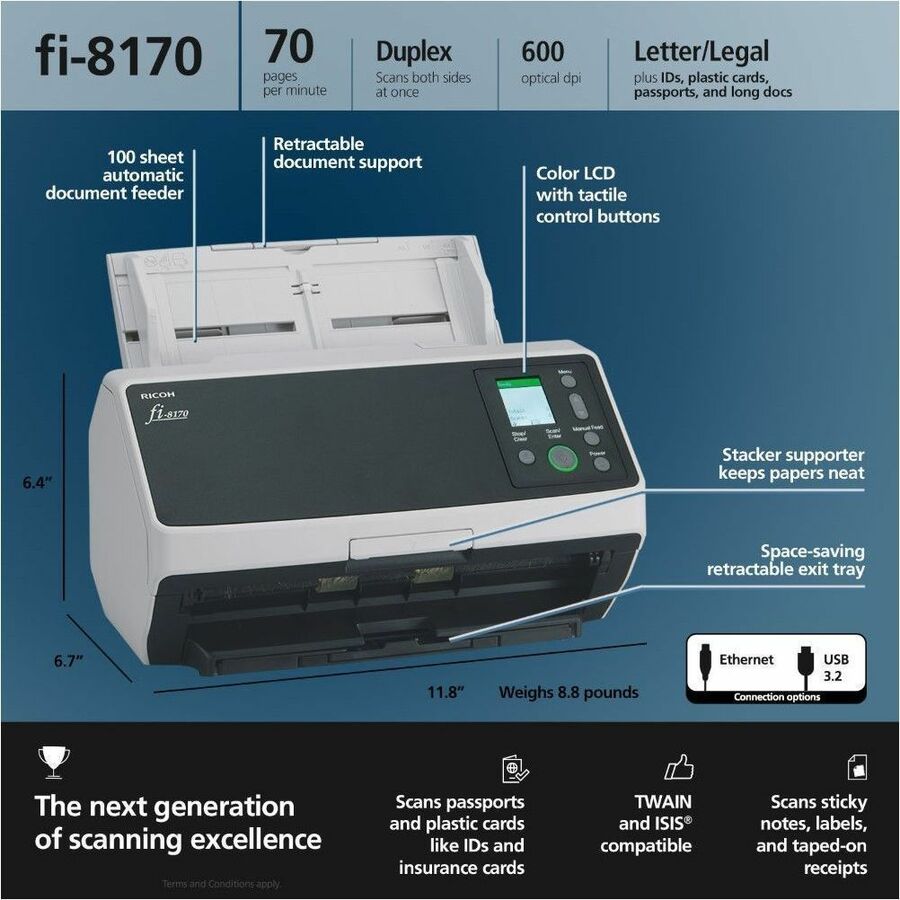

Physical Characteristics
Height6.40" (162.56 mm)
Width11.80" (299.72 mm)
Depth6.70" (170.18 mm)
Weight (Approximate)8.80 lb (3991.61 g)
Miscellaneous
Package Contents
  • fi-8170 Document Scanner
  • ADF Paper Chute
  • AC Cable
  • AC Adapter
  • USB Cable
  • Setup DVD-ROM
Energy StarYes
Environmentally FriendlyYes
Environmental CertificationElectronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0097564314438
