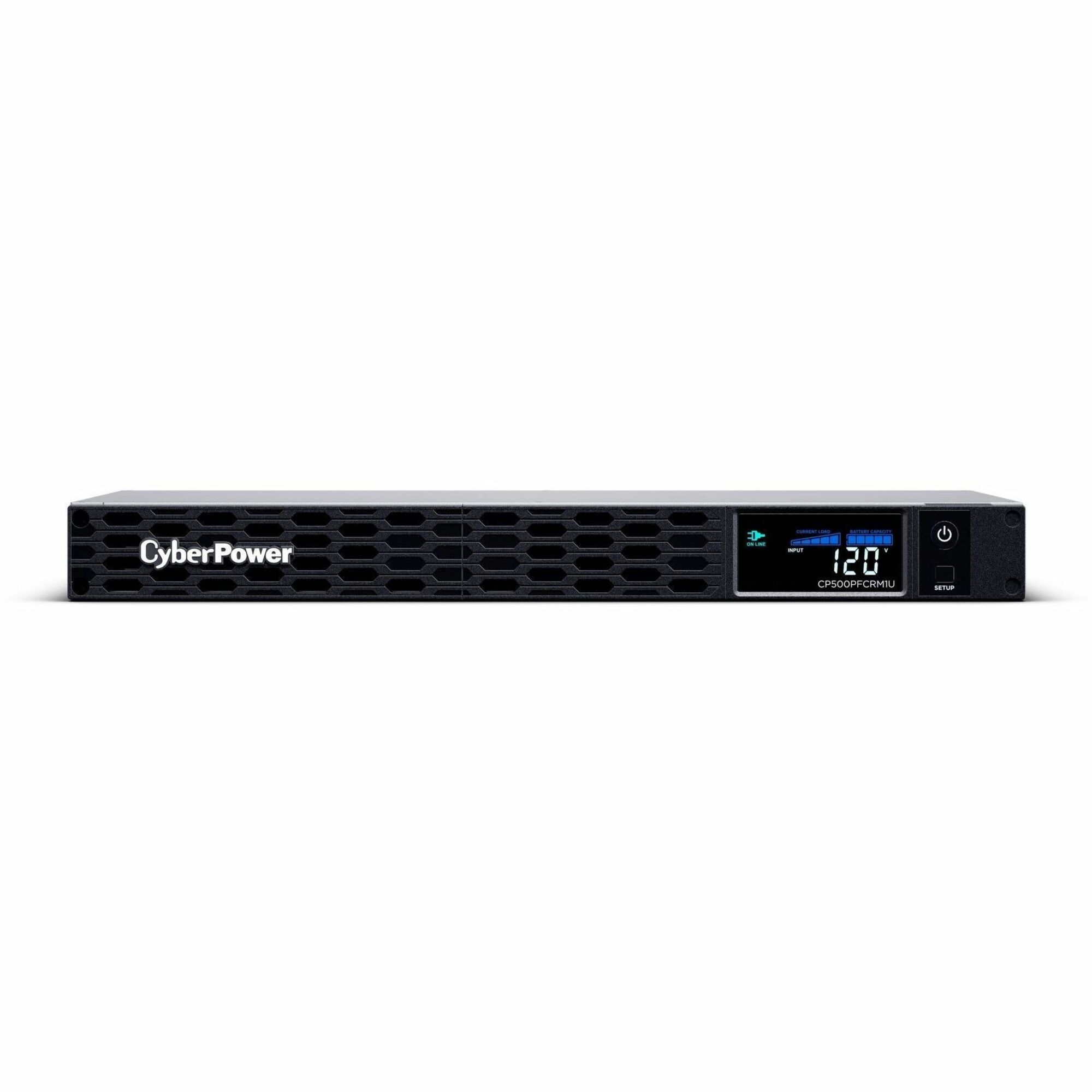

CyberPower CP500PFCRM1U PFC Sinewave UPS Systems

Part No. CP500PFCRM1U

by CyberPower Systems, Inc

$356.99

On back-order, will ship once in-stock

  • All Locations: (0+)
  • Toronto, ON (8+)
  • Vancouver, BC (6+)

CyberPower CP500PFCRM1U PFC Sinewave UPS Systems

500VA/300W, 120 VAC, NEMA 5-15P, 1U, Rackmount, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

Part No. CP500PFCRM1U

by CyberPower Systems, Inc

$356.99

On back-order, will ship once in-stock

  • All Locations: (0+)
  • Toronto, ON (8+)
  • Vancouver, BC (6+)

General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberCP500PFCRM1U
Brand NameCyberPower
Product LinePFC Sinewave
Product ModelCP500PFCRM1U
Product NameCP500PFCRM1U PFC Sinewave UPS Systems
Marketing Information

The CP500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP500PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.

The CP500PFCRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.

Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail6 x NEMA 5-15R
Number of Battery & Surge Outlets4
Number of Surge-only Outlets2
Dataline ProtectionRJ-45
Overload ProtectionYes
Cord Length10 ft (3.05 m)
Transfer Time8 ms
EMI/RFI Noise FilterYes
Energy SavingGreenPower UPS™ Bypass Technology
Application/Usage
  • Security System
  • Audio/Video Equipment
  • Workstation
  • Corporate
  • Server
  • Network Device
  • Telecommunication
Surge SuppressionYes
FeaturesAudible Alarm
Power Description
Load Capacity (VA)500 VA
Load Capacity (Watt)300 W
Input Voltage120 V AC
Input Voltage Range88 V AC - 144 V AC
Output Voltage120 V AC
Input Frequency
  • 50 Hz
  • 60 Hz
Output Frequency60 Hz
Waveform TypeSine Wave
Surge Energy Rating1150 J
Circuit BreakerYes
Output Power Factor0.6
Display & Graphics
DisplayLCD
Management
Network Management
  • Dry Contact
  • SNMP/HTTP Remote Monitoring
AlarmBattery Mode
Controls/Indicators
Status IndicatorsPower On
Interfaces/Ports
Serial PortYes
Network (RJ-45)Yes
USBYes
USB (HID Compliant) PortYes
Battery Information
Number of Batteries2
Battery CharacteristicsSealed
Battery ChemistryLead Acid
Battery Size6V
Battery Capacity7000 mAh
Backup/Run Time (Full Load)2 Minute
Backup/Run Time (Half Load)10.50 Minute
Typical Battery Recharge Time8 Hour
Hot SwappableYes
Replaceable BatteryYes
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft (3048000 mm)
Maximum Storage Elevation50000 ft (15240000 mm)
Operating Humidity0% - 95%
Storage Relative Humidity0% - 95%
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height1.73" (43.94 mm)
Width17" (431.80 mm)
Depth9.04" (229.62 mm)
Rack Height1U
Form FactorRack-mountable
Weight (Approximate)17.97 lb (8151.05 g)
Miscellaneous
Additional Information
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Energy Star Certified : Yes
  • UPS Topology : Line Interactive
  • Battery Quantity : 2
  • Battery Size : 6 V / 7 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB0670X2
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 2 min
  • Runtime at Half Load : 10.5 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.18 x 4.39 x 22.96 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.0 x 1.73 x 9.04 (in)
  • Physical Dimensions - (WxHxD) (mm) : 432 x 44 x 230 (mm)
  • Weight (kg) : 8.15
  • Weight (lb) : 17.97
  • Shipping Dimensions - (WxHxD) (cm) : 53.01 x 15.49 x 27.99 (cm)
  • Shipping - Dimensions (WxHxD, in) : 20.87 x 6.1 x 11.02 (in)
  • Shipping - Dimensions (WxHxD, mm) : 530.1 x 154.94 x 279.91 (mm)
  • Shipping - Weight (kg) : 8.87
  • Shipping - Weight (lb) : 19.55
  • Adjustable Voltage Range : 97 - 144 VAC
  • Circuit Breaker : 15 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 57 Hz - 63 Hz
  • Input Plug Type : NEMA 5-15P
  • Input Voltage Range : 88 VAC - 144 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Right Angle - 45° Offset
  • Automatic Voltage Regulation : Single Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 10%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 4
  • Outlets - Surge-Only Protected : 2
  • Outlets - Total : 6
  • Outlet Type COMPUTED : 6 - NEMA 5-15R
  • Output Power Factor : 0.6
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 8 ms
  • USB Charge Port : No
  • VA : 500 VA
  • Watts : 300 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 1150 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 1150 J
  • Audible Alarms : Battery Mode
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Dry Contact
  • SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rackmount
  • Material of Construction : Metal
  • Rack Height : 1U
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Relative Humidity : 0 - 95% (non-condensing)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $300000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U2A
  • Product Warranty : 3 Year Limited Warranty
    • Certifications & StandardsUL1778
    Energy StarYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532936878
    Warranty
    Limited Warranty3 Year
    Additional Warranty Information

    Three-year warranty (including coverage of batteries)

    Directly Connected Equipment Guarantee$300000 Lifetime
