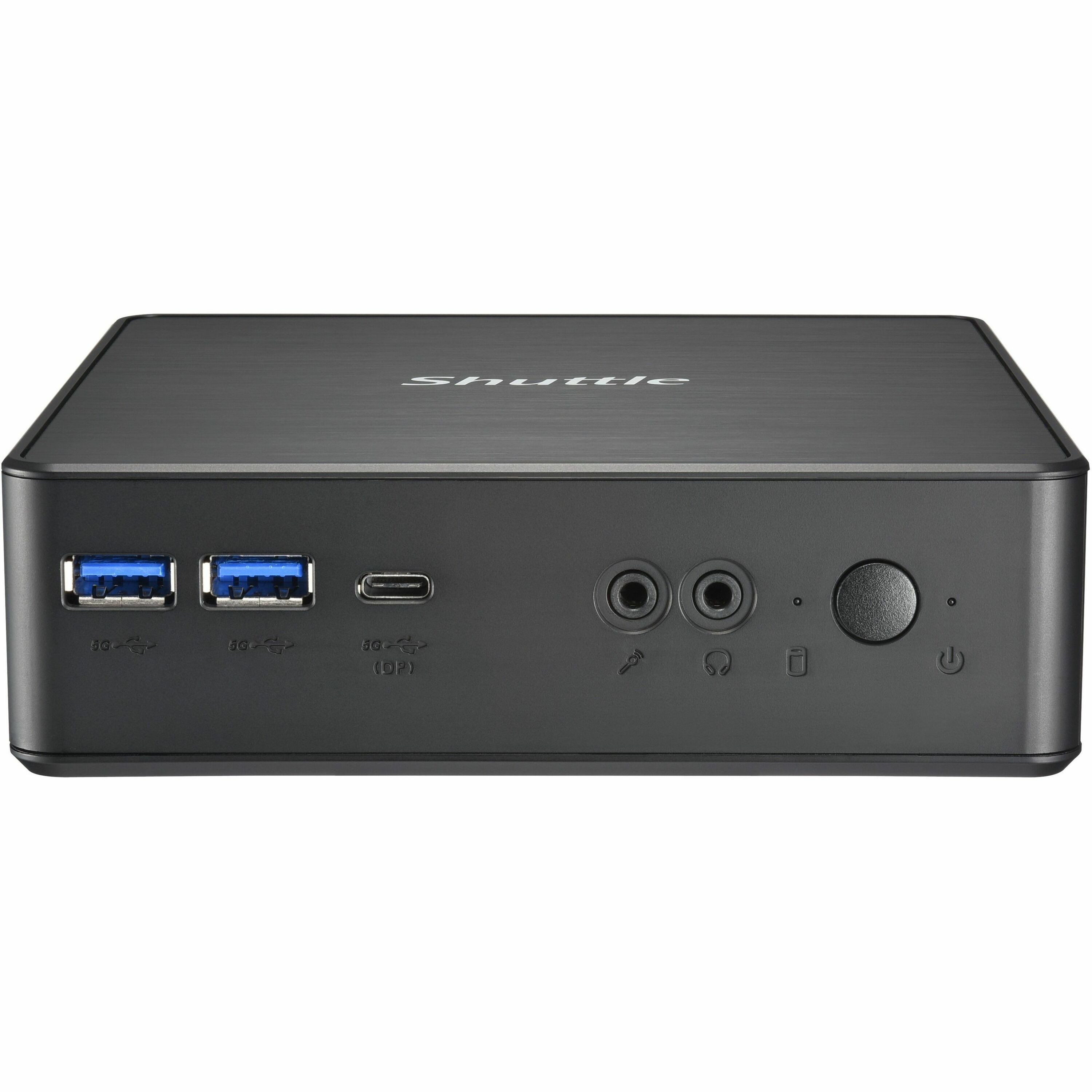

Shuttle XPC nano NC40U Barebone System - Intel Celeron 7305 1.10 GHz Penta-core (5 Core)
Intel Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 RAID Supported, NVMe Controller - Intel - Network (RJ-45) - Gigabit Ethernet - Windows 10 x64, Windows 11 x64, Linux Supported Operating System - 4 USB 3.2 Gen 1 Port(s) - 65 W
$537.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U |
| Product Name | XPC nano Barebone NC40U |
| Marketing Information | MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia. |
| Product Type | Barebone System |
Processor
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305 |
| Processor Core | Penta-core (5 Core) |
| Processor Speed | 1.10 GHz |
Chipset
| Chipset Manufacturer | Intel |
Memory
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
Storage
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
Controllers
| Controller Type |
|
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | No |
Interfaces/Ports
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C |
| Network (RJ-45) | Yes |
Operating System
| Operating System Supported |
|
Power Description
| Maximum Power Supply Wattage | 65 W |
| Frequency |
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
Miscellaneous
| Energy Star | Yes |
| Condition | No |
| UPC | 887993005904 |
