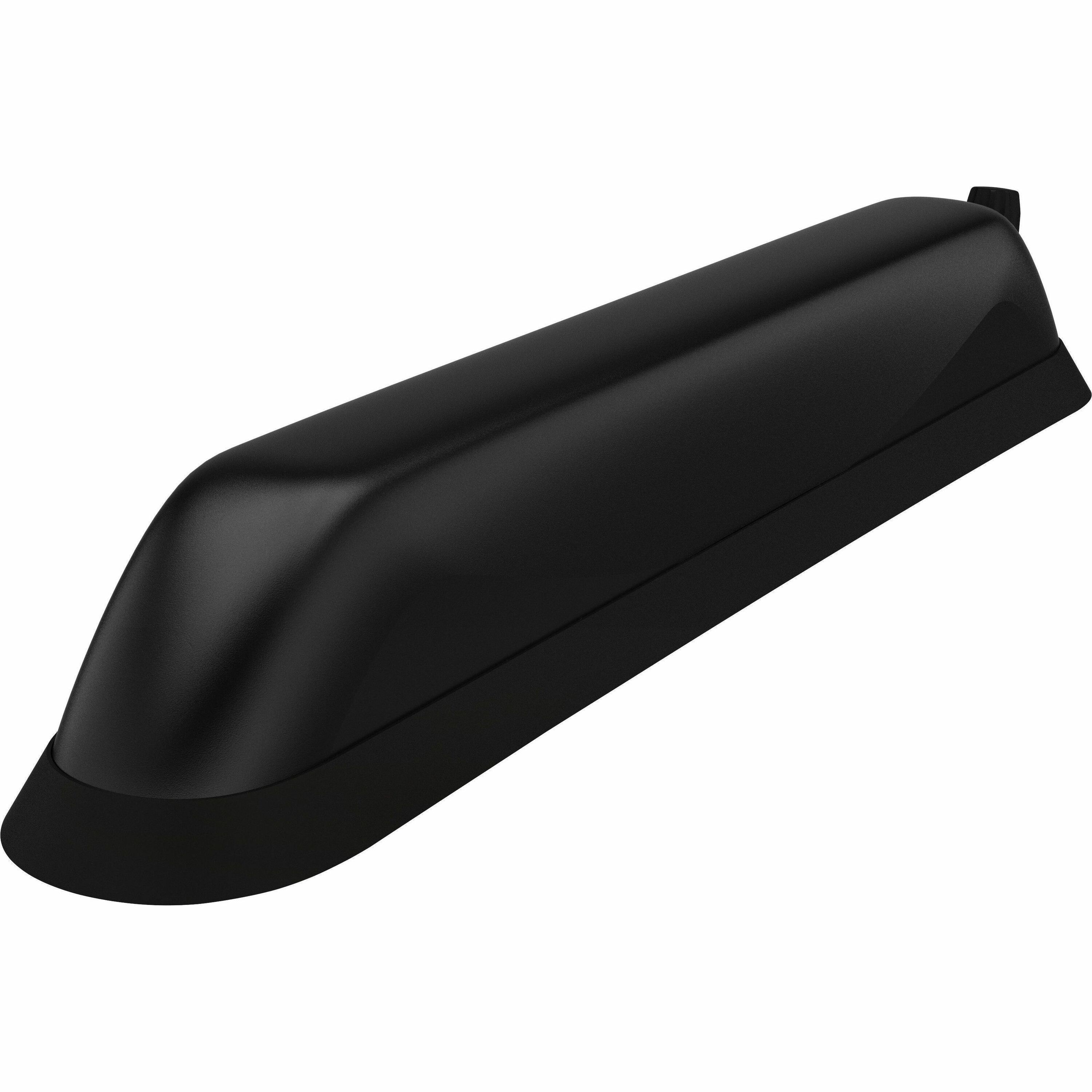

Panorama Antennas Reef Sharkee GPSD[X]4-7-49[X] Antenna
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Panorama Antennas Ltd |
| Manufacturer Part Number | GP-IN2883 |
| Brand Name | Panorama Antennas |
| Product Line | Reef Sharkee |
| Product Series | GPSD[X]4-7-49[X] |
| Product Name | Reef Sharkee GPSD[X]4-7-49[X] Antenna |
| Marketing Information | The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles. The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications. The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane. |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range |
|
| Antenna Gain | 30 dB |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Connector Type | SMA |
| Color Family | Black |
| Product Color | Black |
| Height | 2.05" (52 mm) |
| Width | 2.36" (60 mm) |
| Depth | 14.37" (365 mm) |
| Form Factor |
|
| Application/Usage |
|
| Package Contents |
|
| Condition | No |
| UPC | 5055416088666 |
