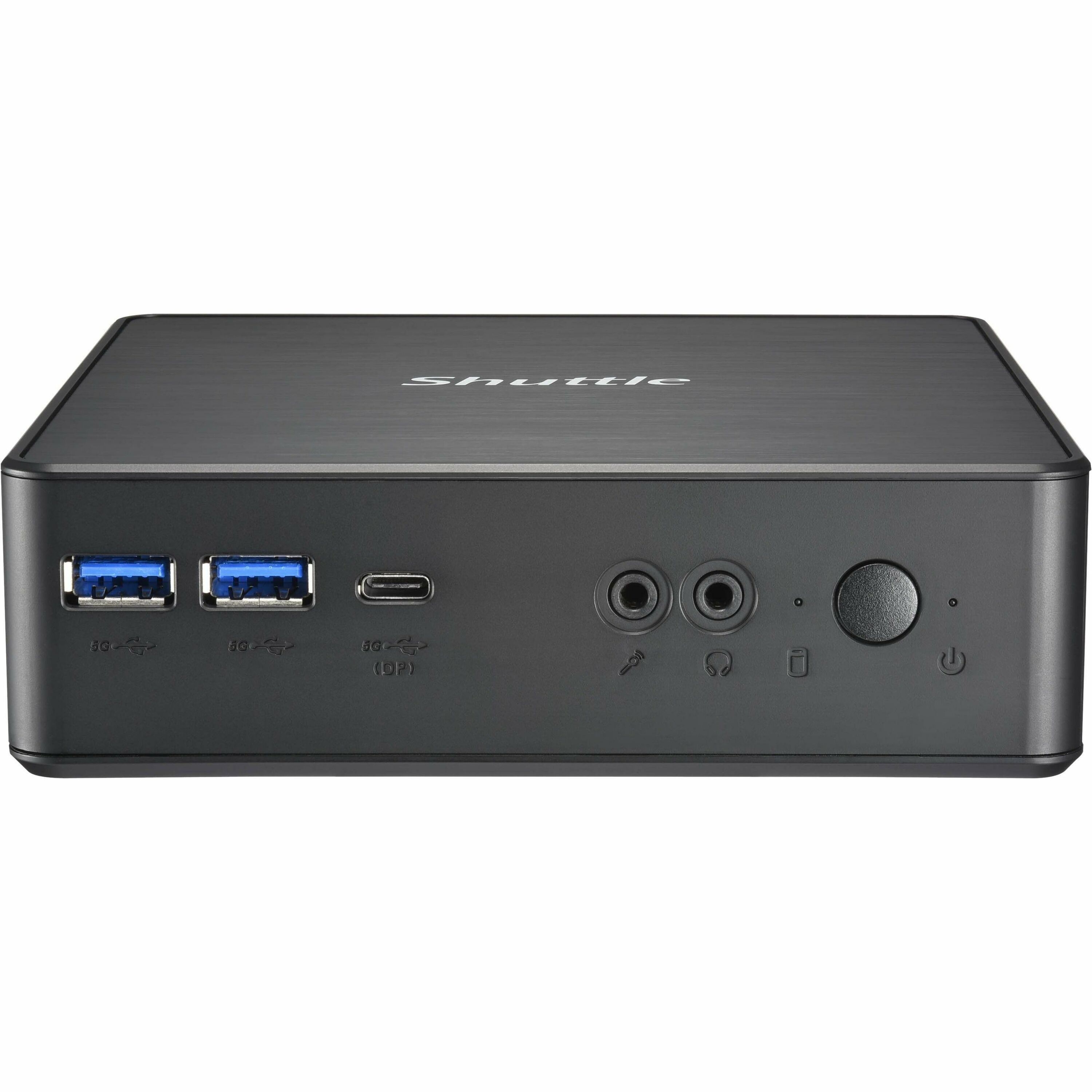

Shuttle XPC nano NC40U7 Barebone System - Intel Core i7 12th Gen i7-1255U 1.70 GHz Deca-core (10 Core)
Intel Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - Serial ATA/600 RAID Supported, NVMe Controller - Intel - DisplayPort - Network (RJ-45) - 2 M.2 Interface(s) - 1 SATA Interface(s) - Gigabit Ethernet - Windows 10, Windows 11, Linux Supported Operating System - 4 USB 3.2 Gen 1 Port(s) - 1 x 65 W
$1163.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U7 |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U7 |
| Product Name | XPC nano Barebone NC40U7 |
| Marketing Information | MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia. |
| Product Type | Barebone System |
Processor
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 12th Gen |
| Processor Model | i7-1255U |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 4.70 GHz |
Chipset
| Chipset Manufacturer | Intel |
Memory
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
Storage
| Supported Storage Drive Interfaces |
|
| Supported Storage Drive Types |
|
Controllers
| Controller Type |
|
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
I/O Expansions
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
Interfaces/Ports
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C supports DisplayPort 1.4a |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
Operating System
| Operating System Supported |
|
Power Description
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 65 W |
| Frequency |
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
Miscellaneous
| Energy Star | Yes |
| Condition | No |
| UPC | 887993005874 |
