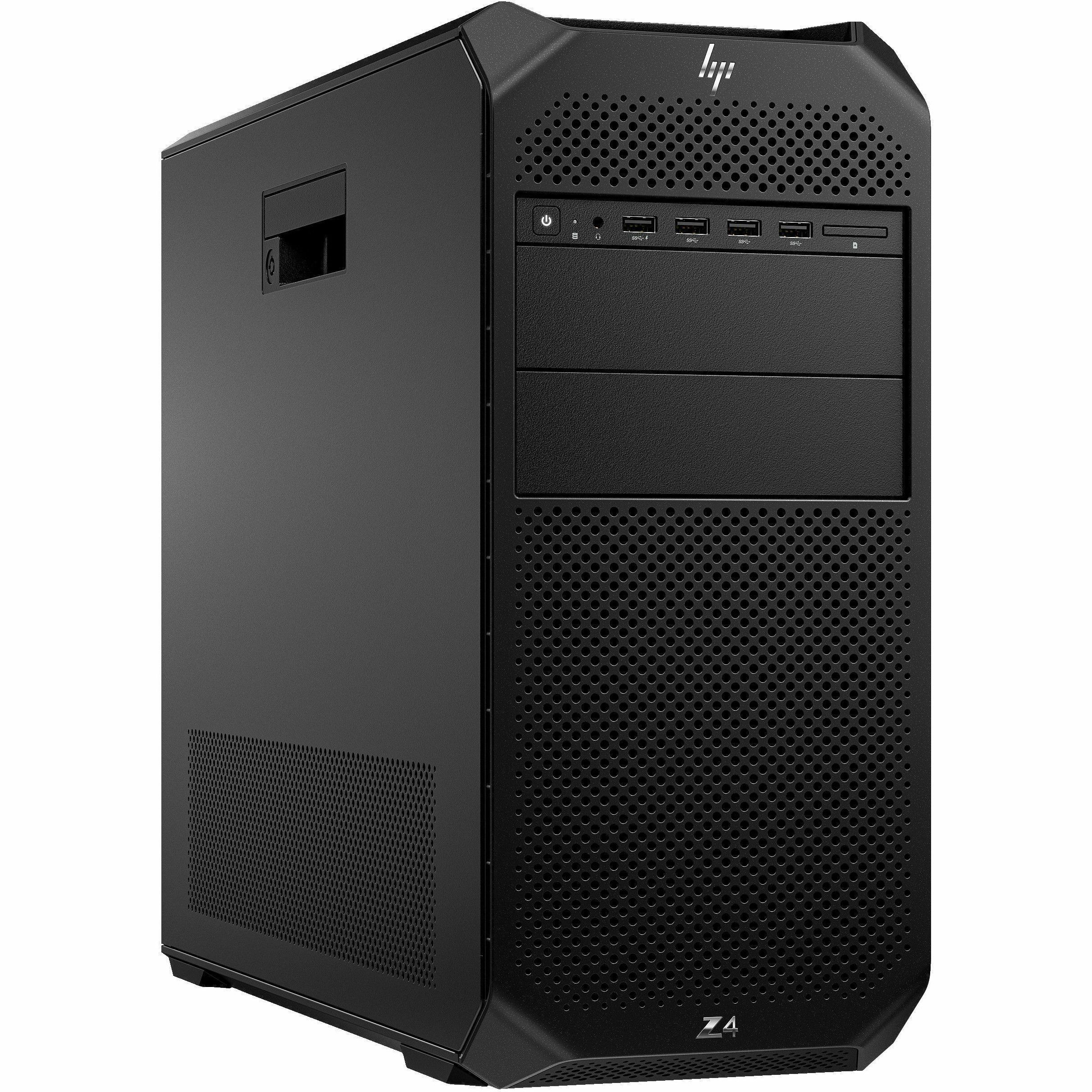

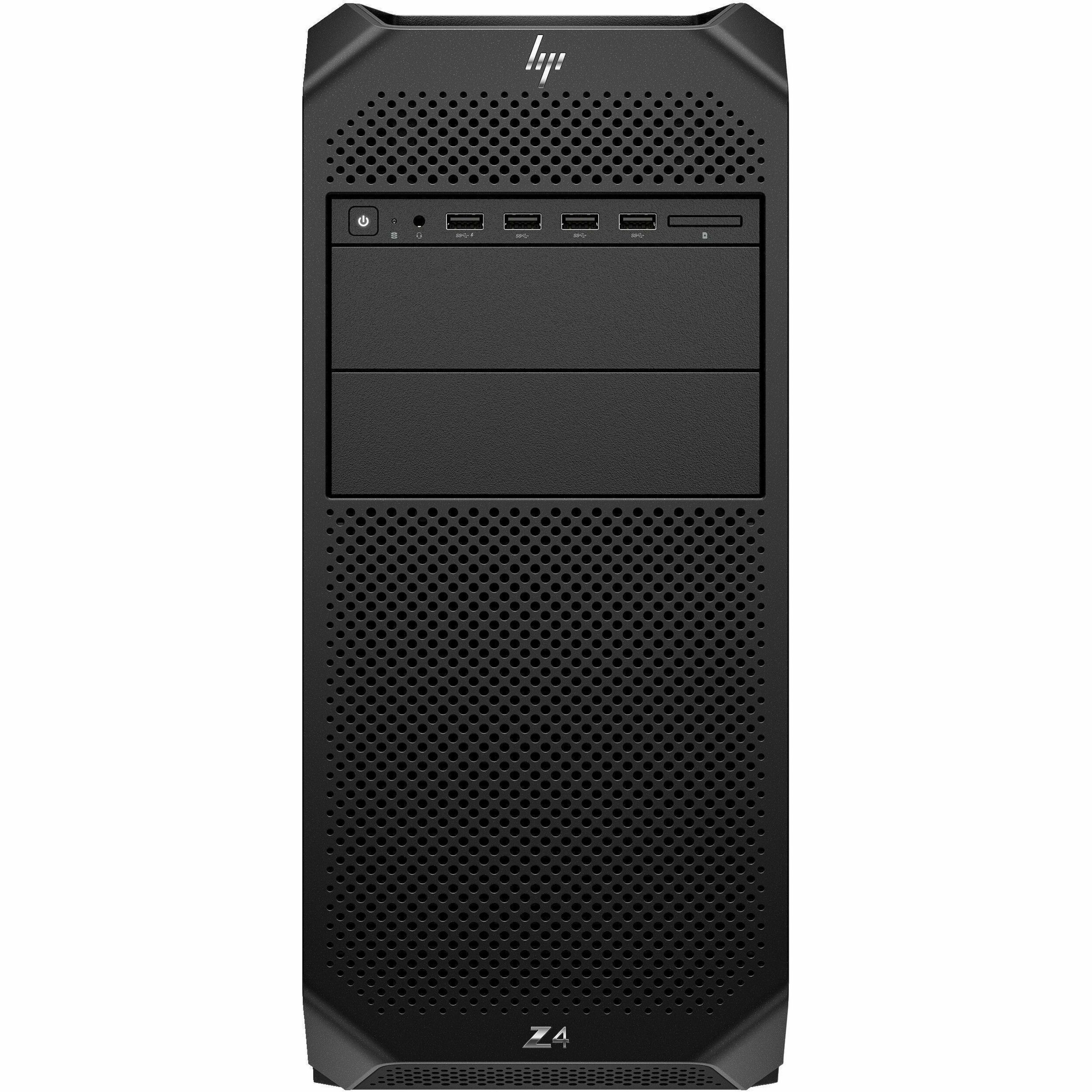

HP Z4 G5 Workstation - 1 Xeon w7-2495X - 128 GB - 8 TB HDD - 2 TB SSD - Tower - Black

Part No. B4BL7UA#ABA

by HP Inc.

$15682.99

HP Z4 G5 Workstation - 1 Xeon w7-2495X - 128 GB - 8 TB HDD - 2 TB SSD - Tower - Black

Intel W790 Chip - Windows 11 Pro - GeForce RTX 4080 SUPER 16 GB Graphics - Serial ATA/600, NVMe Controller - 0, 1, 5, 10 RAID Levels - Gigabit Ethernet - Wireless LAN

Part No. B4BL7UA#ABA

by HP Inc.

$15682.99
General Information
ManufacturerHP Inc.
Manufacturer Part NumberB4BL7UA#ABA
Brand NameHP
Product SeriesZ4 G5
Product NameZ4 G5 Workstation PC
Marketing Information

Overview | Power-up to next level pro performance

This high performance desktop workstation does it all. Tackle advanced workflows-from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 AI workstation accelerates workflows across a wide range of professional apps and provides room to expand as work evolves.

Professional performance. Extraordinary expandability.

Master intense workflows with up to 2 high end professional GPUs, 26 cores in a next gen Intel® Xeon® W processor, and 512 GB of memory. Easily expand as work evolves with tool-less access, 5 PCIe slots, and 2 front accessible NVMe bays.

Ignite AI innovation

Accelerate AI development and inferencing with the Z4 AI workstation, with up to 2 NVIDIA RTX™ 6000 Ada Generation GPUs delivering up to 2,914 AI TOPS for advanced AI. Process proprietary data securely on a local workstation to gain insights faster.

Engineered to stay cool and quiet.

Push your desktop workstation without disruptive noise. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors. Precisely placed vents and ducts streamline airflow and heat removal.

Designed with the planet in mind.

At HP, we care about the impact our products have on our people, communities, and planet. That's why the Z4 contains 40% recycled plastics, 10% recycled metal, 100% sustainably sourced outer box packaging, and is EPEAT® Gold Climate+ registered.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Xeon® W processor

Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.

Professional Grade Graphics

Tackle advanced video editing, machine learning and simulation projects.

Ultra Fast Memory Configurations

Accelerate your workflow. Power through memory intensive workloads with fast rendering, simulation, machine learning and video editing performance.

Product TypeWorkstation
Technical Information
AI-poweredYes
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor TypeXeon
Processor Modelw7-2495X
Processor CoreTetracosa-core (24 Core)
Processor Speed2.50 GHz
L3 Cache45 MB
Processor SocketSocket LGA-4677
Processor Threads48
Chipset
Chipset ManufacturerIntel
Chipset ModelW790
Memory
Standard Memory128 GB
Maximum Memory Supported512 GB
Memory TechnologyDDR5 SDRAM
Total Number of Memory Slots8
Error CheckingNon-ECC
Memory Configuration4 x 32GB
Signal ProcessingRegistered
Storage
Drive TypeHDD/SSD
Total Hard Drive Capacity8 TB
Hard Drive InterfaceSerial ATA/600
Total Solid State Drive Capacity2 TB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Controllers
Controller Type
  • Serial ATA/600
  • NVMe
RAID SupportedYes
RAID Levels0, 1, 5, 10
Display & Graphics
Graphics Controller ModelGeForce RTX 4080 SUPER
Graphics Memory Capacity16 GB
Graphics Memory AccessibilityDedicated
Network & Communication
Ethernet TechnologyGigabit Ethernet
Wireless LANYes
BluetoothYes
Interfaces/Ports
Total Number of USB Ports14
Number of Onboard USB 2.0 Ports3
Number of USB 3.1 Gen 1 Ports8
Number of USB 3.2 Gen 1 Ports2
DisplayPortYes
Number Of Ethernet Ports1
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

Flex I/O Module

  • Serial Port v3
  • Dual USB-A 3.2 Gen1
  • USB-C 3.2 Gen2
  • 10GbE single port
  • 2.5GbE LAN single port
  • 1 GbE single port
  • 1GbE Fiber single port LC
  • WiFi6 + BT5.2 WLAN w/ INTAnt
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage1.13 kW
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Cooler TypeAir Cooler
Form FactorTower
Height15.20" (386.10 mm)
Width6.65" (168.90 mm)
Depth17.50" (444.50 mm)
Weight (Approximate)23.15 lb (10500 g)
Miscellaneous
Package Contents
  • Z4 G5 Workstation PC
  • Mouse
  • Keyboard
Energy StarYes
TCO CertifiedYes
Environmentally FriendlyYes
Environmental Certification
  • Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
  • Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0198828880499
Warranty
Limited Warranty1 Year
;
