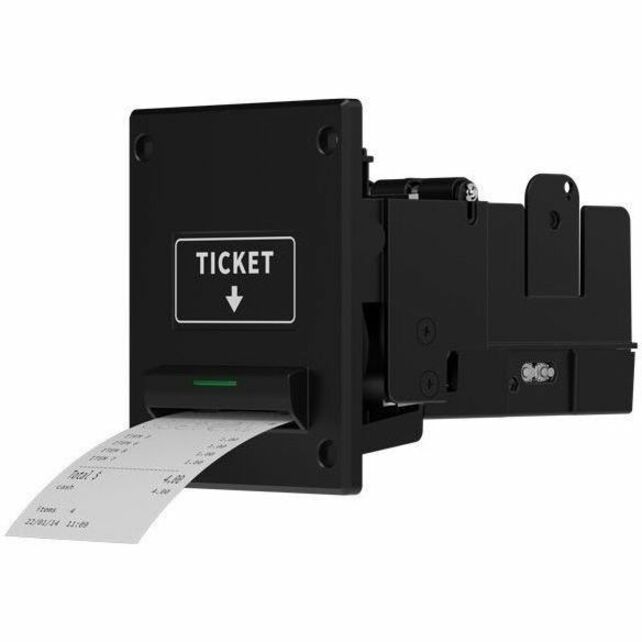

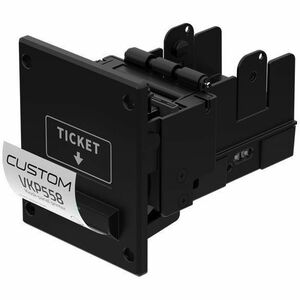

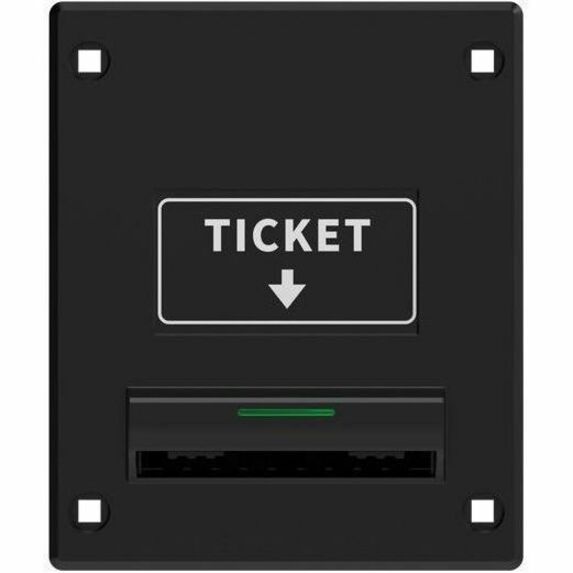

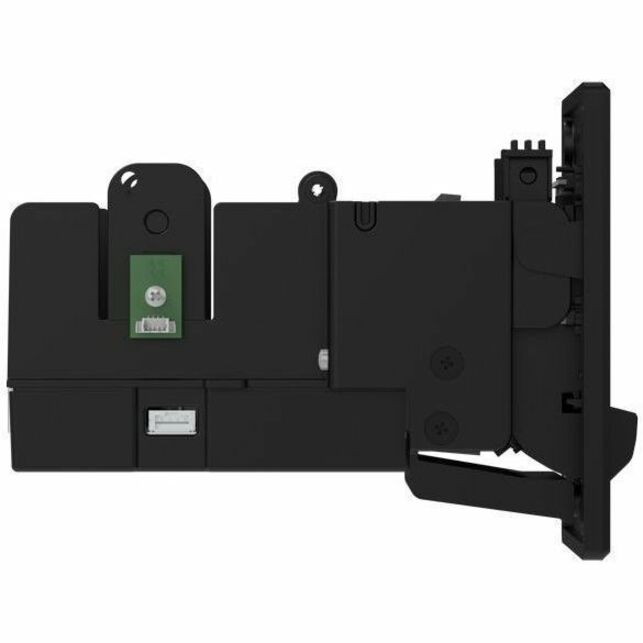

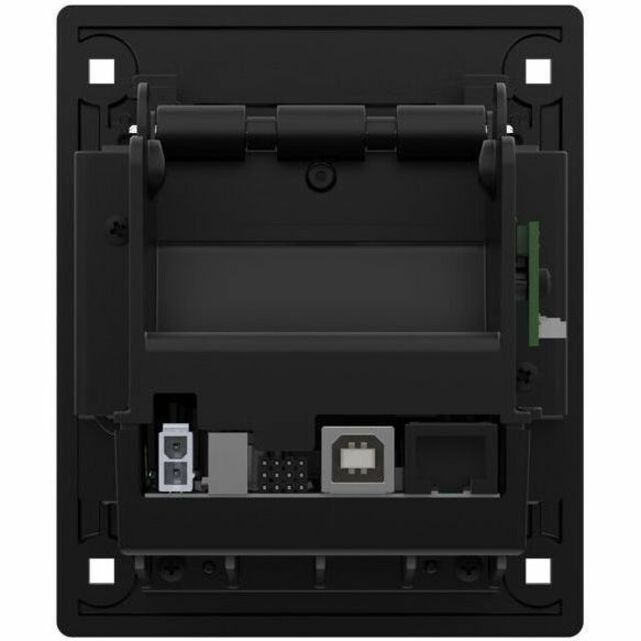

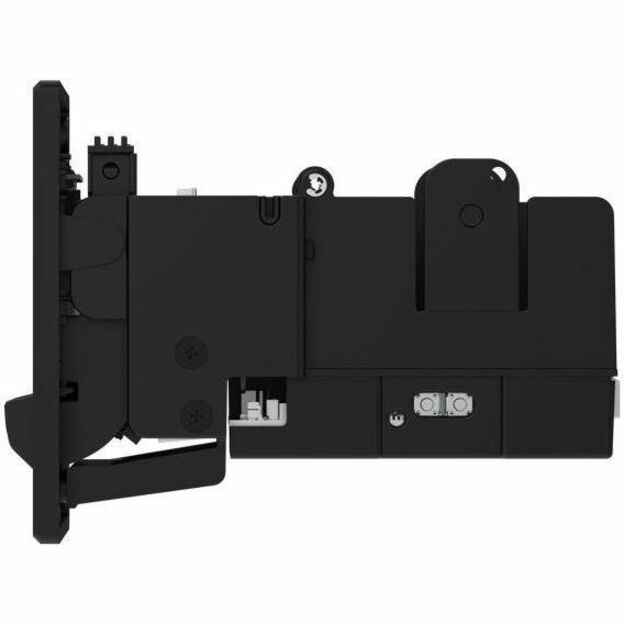

Custom VKP558 Gaming, Queue Management System, Kiosk, Vending Machine Direct Thermal Printer - Monochrome - Ticket Print - USB - USB Host - Serial - With Cutter
1.89" (48 mm) Print Width - 2.76 in/s (70 mm/s) Mono - 203 dpi - 2.24" (57 mm) Label Width - Custom/POS, TG558 Emulation
$310.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Custom S.p.A |
| Manufacturer Part Number | 915PH010200300 |
| Brand Name | Custom |
| Product Model | VKP558 |
| Product Name | VKP558 Extremely compact and versatile ticket printer |
| Marketing Information | VKP558 is an extremely compact and versatile ticket printer, for easy installation and panel mounting. The device is equipped with black plastic bezel, a highly reliable total/partial cutter and easily inspectable paper path. VKP558 has the same panel mounting points as the TG02H and the same interfaces and emulations. The product comes with a paractical drop-in cradle for paper roll and features the new Centurion Security Suite, a software dedicated to the gaming market to authenticate winning tickets and discard the fake tickets. |
| Product Type | Direct Thermal Printer |
Technical Information
| Recommended Use | Ticket Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 2.76 in/s (70 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 1.89" (48 mm) |
| Barcode Symbology Supported |
|
| Application/Usage |
|
| Features |
|
| Character Sets |
|
| Print Head Life | 100M |
| Connectivity Technology | Wired |
| Power Consumption | 800 mA |
| Print Technology | Direct Thermal |
Memory
| Flash Memory | 8 MB |
Interfaces/Ports
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
Cutter
| Cutter | Yes |
| Cut Type | Full/Partial Cut |
| Cutter Life | 500000 Cuts |
Media Types & Handling
| Media Type |
|
| Media Sensor |
|
| Media Thickness | 2.6 mil (0.065000 mm) |
| Maximum Roll Diameter | 0.5" (12 mm) |
| Maximum Label Width | 2.24" (57 mm) |
Fonts & Emulation
| Language Emulation |
|
Power Description
| Power Source | DC |
Environmental Conditions
| Operating Temperature | 14°F (-10°C) - 140°F (60°C) |
Physical Characteristics
| Height | 4.72" (120 mm) |
| Width | 3.94" (100 mm) |
| Depth | 6.36" (161.50 mm) |
| Weight (Approximate) | 1.06 lb (480 g) |
Miscellaneous
| Package Contents |
|
| COO | CN |
| Condition | No |
