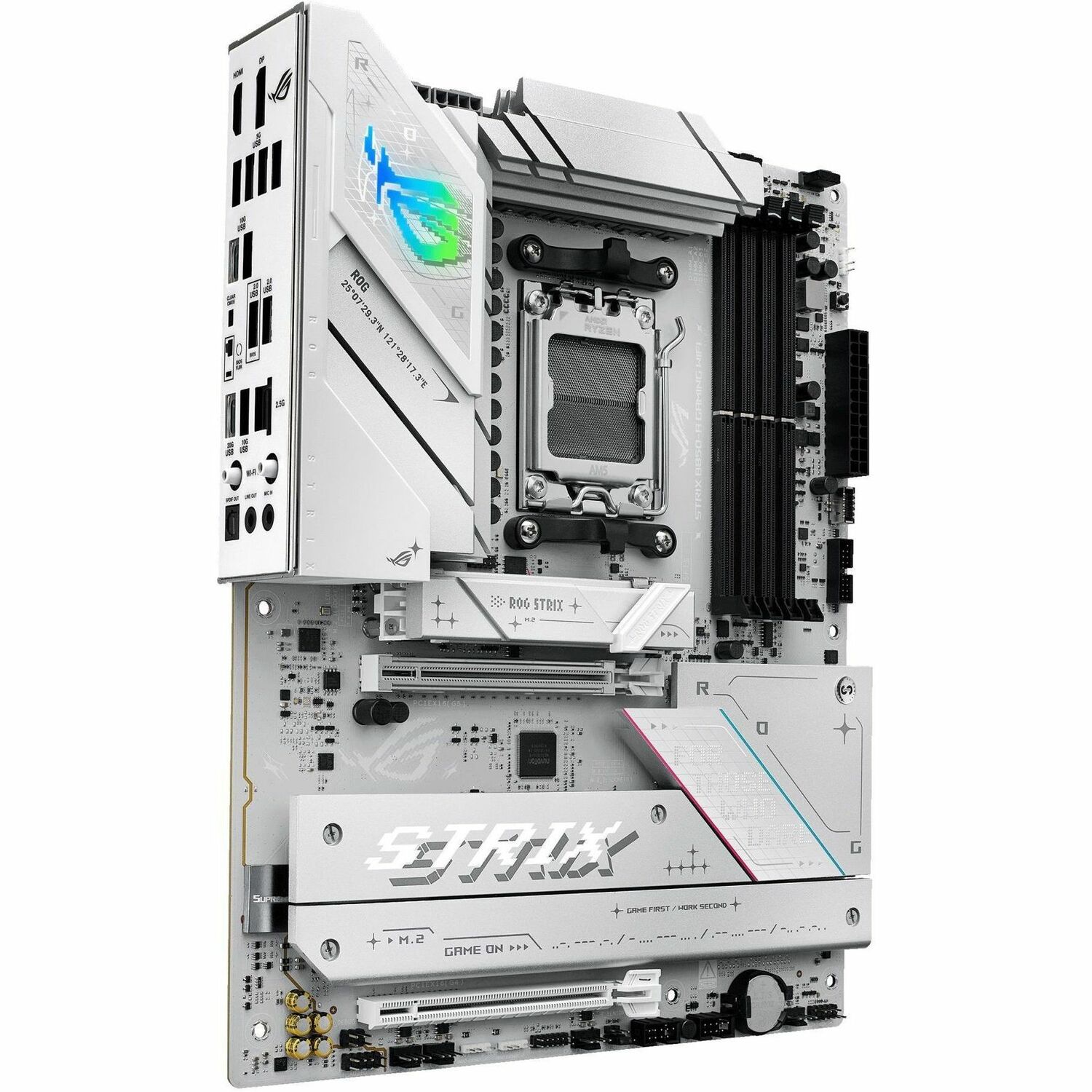

ROG STRIX B850-A GAMING WIFI

AMD B850 ATX motherboard with 14+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe^®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C^®, USB

10Gbps Type-C^®, ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting.

• Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
• Intelligent Control:ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
• Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
• Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
• Latest M.2 Support:One onboard PCIe^®5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: USB 20Gbps Type-C^®, USB 10Gbps Type-C^®, USB 10Gbps Type-C^®front-panel connector, six additional USB 5Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port and DisplayPort port
• High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
• DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos^®
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
• Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

ASUS AI INTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

• Ryzen 7
• Ryzen 9

• DIMM
• UDIMM

• 0
• 1
• 5
• 10

• PCI Express 4.0
• PCI Express 5.0

• Strix B850-A GAMING WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers
• 1 x Quick start guide

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
