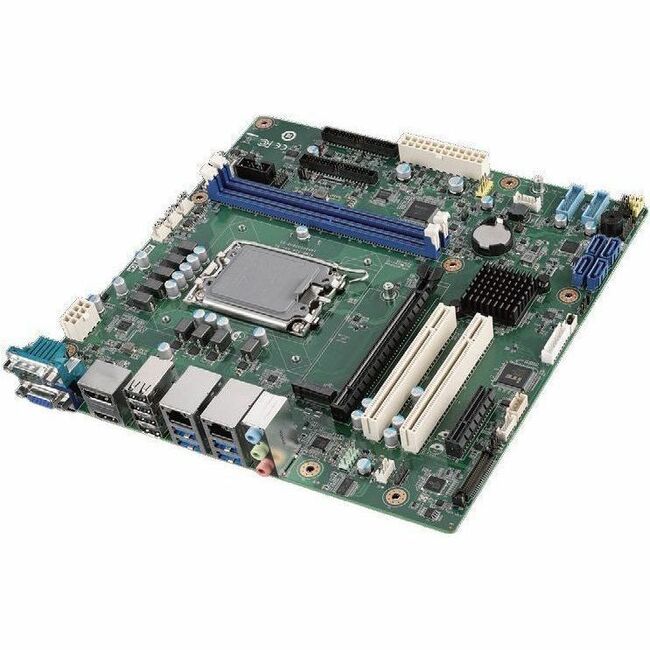

Advantech AIMB-508 Industrial Motherboard - Intel H610E Chipset - Socket LGA-1700 - Micro ATX
Core Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
$374.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | AIMB-508HF-EAA1 |
| Brand Name | Advantech |
| Product Model | AIMB-508 |
| Product Name | AIMB-508 Industrial Motherboard |
| Product Type | Industrial Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | H610E |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported |
|
| Processor Supported | Core |
Memory
| Number of Memory Slots | 2 |
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Pins | 288-pin |
| Memory Speed Supported | 3200 MHz |
| Error Checking | ECC |
I/O Controller
| Controller Type | Serial ATA/600 |
Video
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
Network & Communication
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 4 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 4 |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
Miscellaneous
| Package Contents |
|
| Brand Compatibility | Intel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
