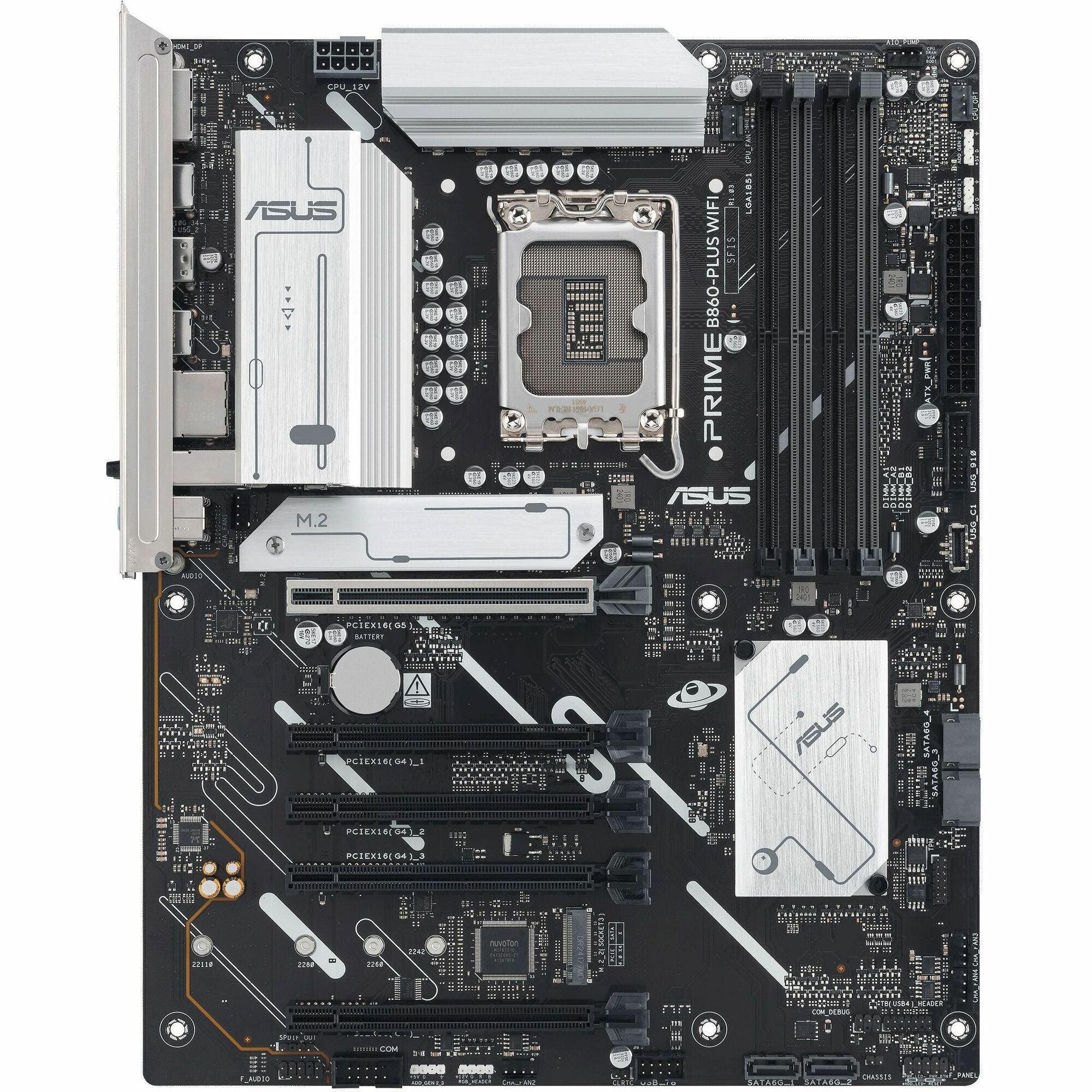

Asus Prime B860-PLUS WIFI Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX
In Stock Availability
- All Locations: (49+)
- Calgary, AB (14+)
- Guelph, ON (35+)
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B860-PLUS WIFI |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | B860-PLUS WIFI |
| Product Name | PRIME B860-PLUS WIFI Desktop Motherboard |

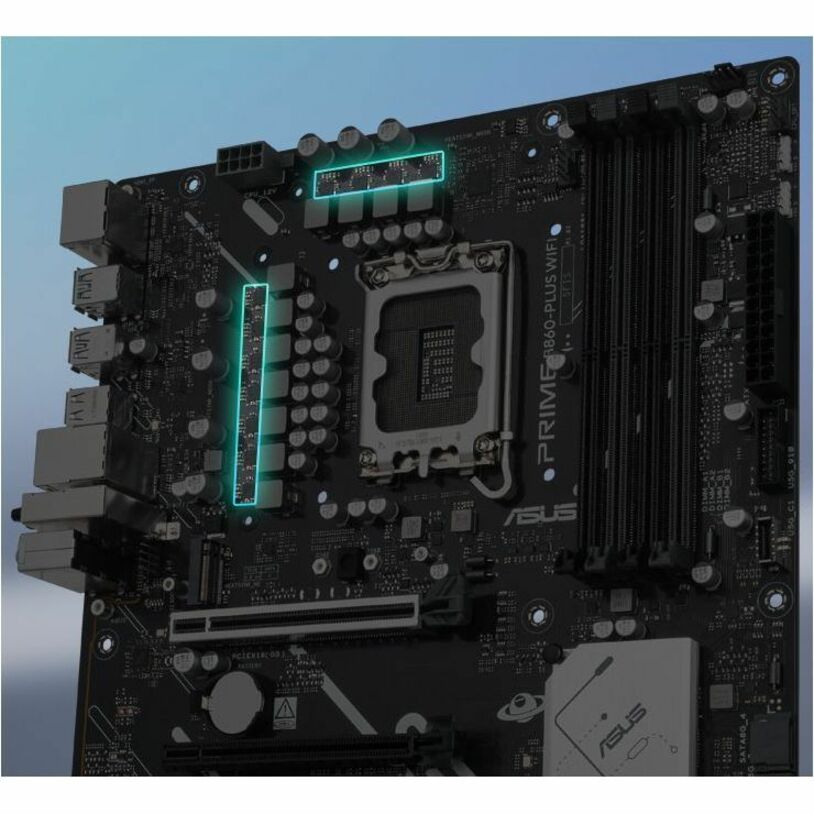

| Marketing Information | PRIME B860-PLUS WIFI ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Performance | AI Solutions ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance. AI Advisor ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. Performance | Robust power design Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors. |
| Product Type | Desktop Motherboard |
| AI-powered | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 8666 MHz |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| Total Number of USB Ports | 8 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 197105814691 |
| Limited Warranty | 3 Year |
