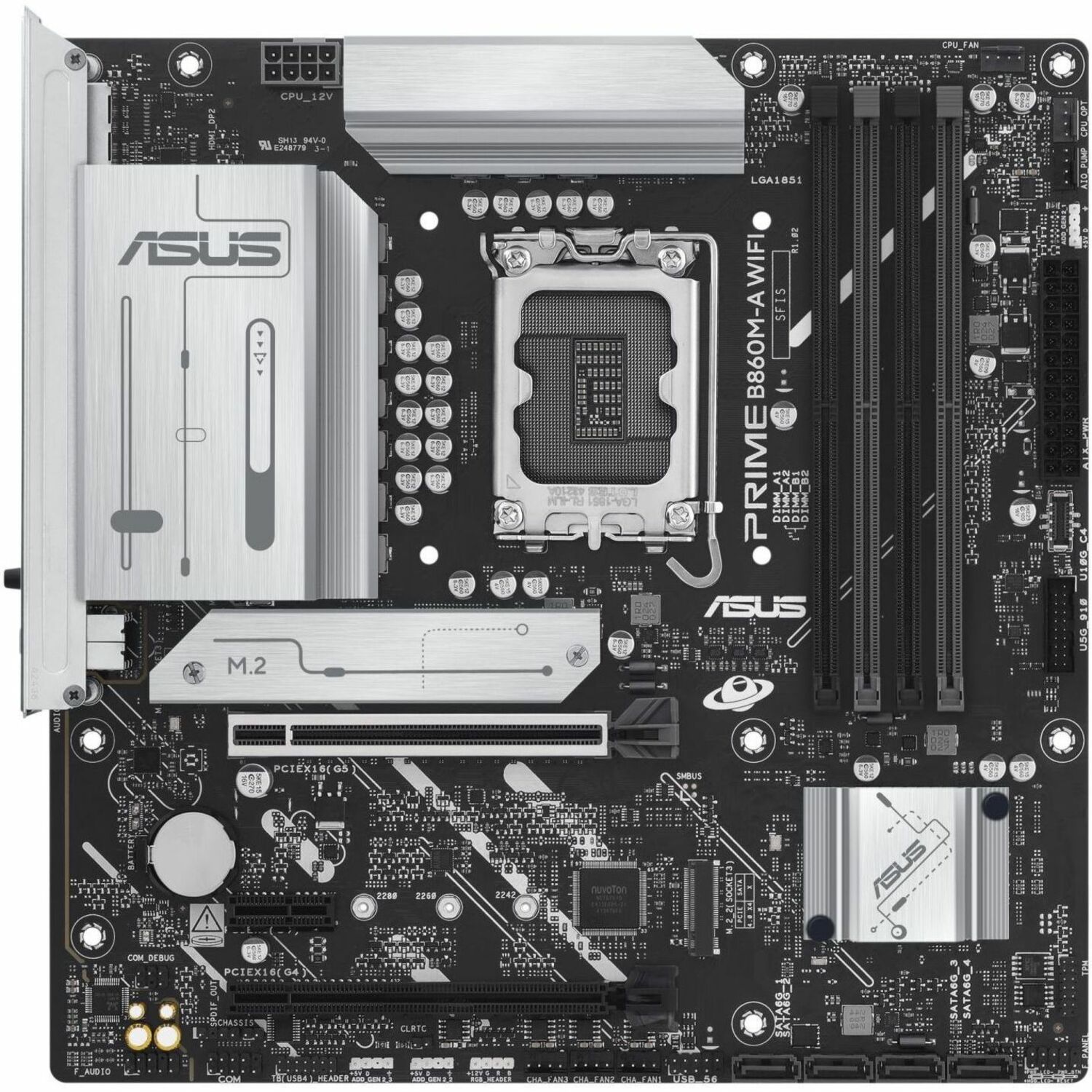

Asus Prime B860M-A WIFI-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - Micro ATX
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B860M-A WIFI-CSM |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | B860M-A WIFI-CSM |
| Product Name | PRIME B860M-A WIFI-CSM Desktop Motherboard |
| Marketing Information | PRIME B860M-A WIFI-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. ASUS Control Center Express ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs. Optimize IT endpoint management Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely. Automate IT maintenance Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. Securely manage all of endpoints Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices. |
| Product Type | Desktop Motherboard |
| AI-powered | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 8666 MHz |
| Error Checking | ECC |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard |
|
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of USB Ports | 8 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Onboard S/PDIF Header | Yes |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 197105806290 |
| Limited Warranty | 3 Year |
