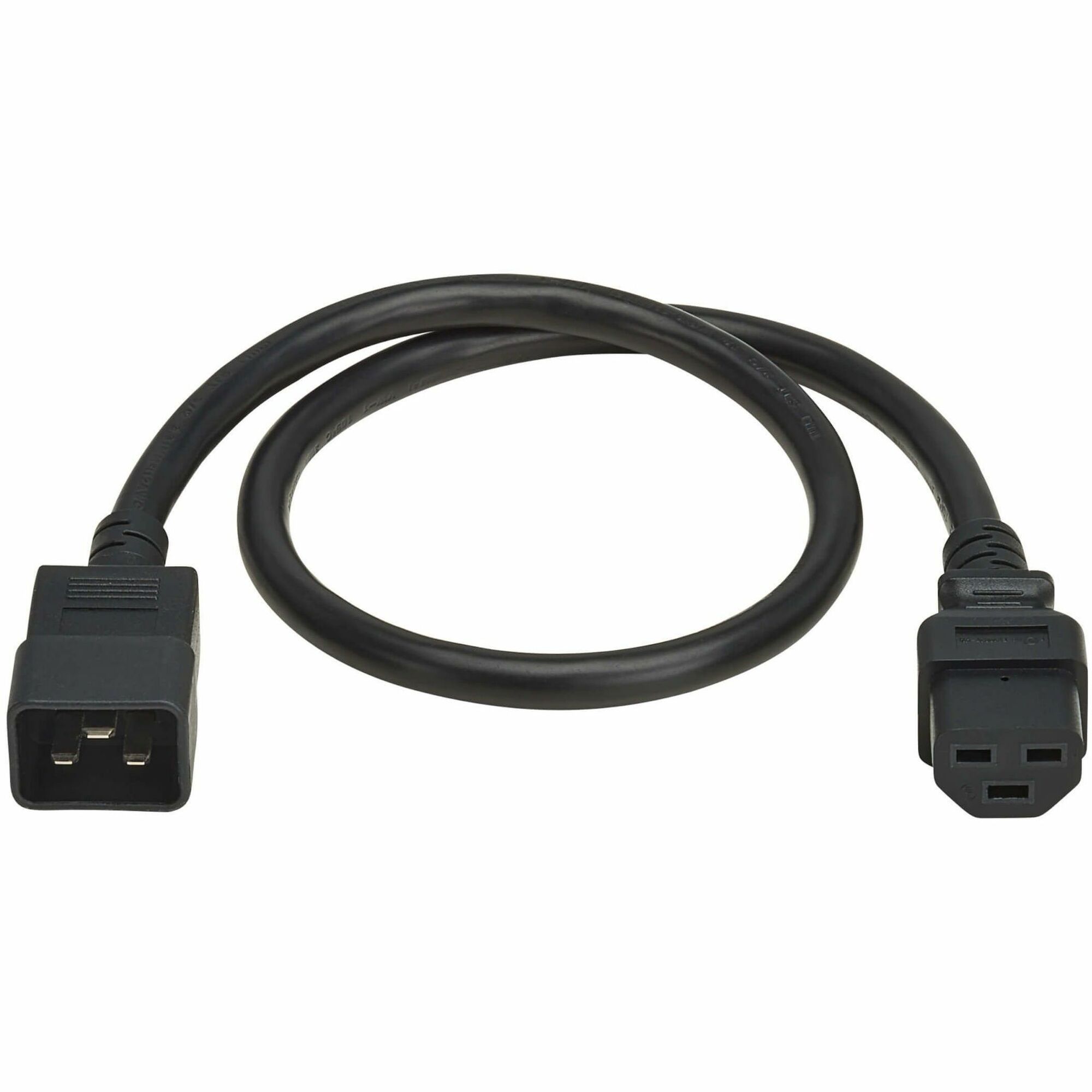

Tripp Lite series P035-002 Standard Power Cord

For Network Switch, PDU, UPS, Switch, Server, Network Device, Rack, Blade Server, Router - 12 Gauge - 250 V AC / 20 A - Black - 2 ft (0.61 m) Cord Length - IEC 60320 C20 / IEC 60320 C21 - North America

Part No. P035-002

by Eaton Corporation

$25.99

Specifications

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	P035-002
Brand Name	Tripp Lite series
Product Model	P035-002
Product Name	P035-002 Standard Power Cord
Marketing Information	Features \| 20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The two-foot (0.6-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure. Recommended for High-Temperature Environments The P035-002 can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It's an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
Product Type	Standard Power Cord

Technical Information

First End Connector Type	IEC 60320 C20
First End Connector Detail	1 x 3-pin IEC 60320 C20 Male
Second End Connector Type	IEC 60320 C21
Second End Connector Detail	1 x 3-pin IEC 60320 C21 Female
Device Supported	Network Switch PDU UPS Switch Server Network Device Rack Blade Server Router
Localization	North America
Gauge	12
Number of Conductors	3
Features	Heavy Duty High Temperature Rating

Power Description

Voltage Rating	250 V AC
Current Rating	20 A

Physical Characteristics

Color Family	Black
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Height	12.80" (325.12 mm)
Width	8.86" (225.04 mm)
Depth	0.50" (12.70 mm)
Cord Length	2 ft (0.61 m)
Weight (Approximate)	9.92 oz (281.23 g)

Environmental Conditions

Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	221°F (105°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	221°F (105°C)

Miscellaneous

Country of Origin	Vietnam
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	0037332292971

Warranty

Limited Warranty	Lifetime
