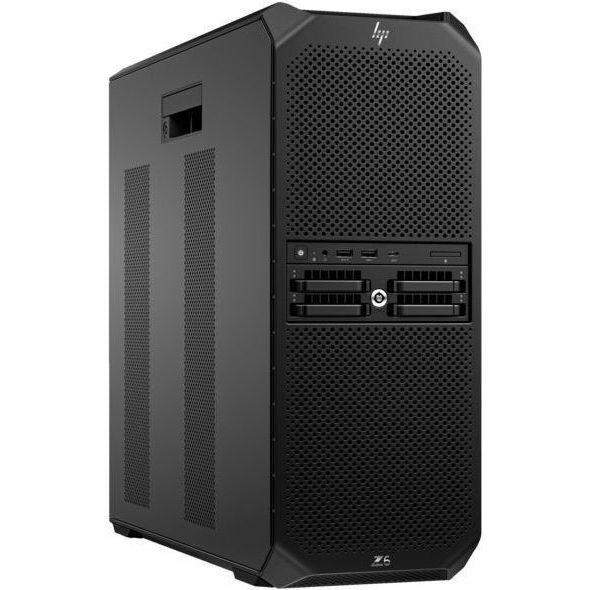

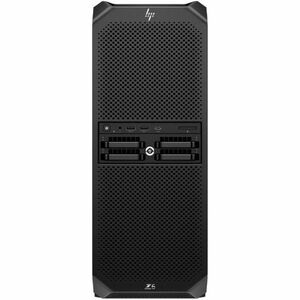

HP Z6 G5 A Workstation - 1 x AMD Ryzen Threadripper PRO 7955WX - 32 GB - 1 TB SSD - Tower - Black

Part No. BG9B9UT#ABC

by HP Inc.

HP Z6 G5 A Workstation - 1 x AMD Ryzen Threadripper PRO 7955WX - 32 GB - 1 TB SSD - Tower - Black

AMD PRO 695 Chip - Windows 11 Pro - NVIDIA RTX 4000 Ada Generation 20 GB Graphics - Serial ATA/600, NVMe Controller - 0, 1, 5, 10 RAID Levels - French Keyboard - Gigabit Ethernet

Part No. BG9B9UT#ABC

by HP Inc.

$9502.99
General Information
ManufacturerHP Inc.
Manufacturer Part NumberBG9B9UT#ABC
Brand NameHP
Product SeriesZ6 G5 A
Product NameZ6 G5 A Workstation Wolf Pro Security Edition
Marketing Information

Maximized Cores. Astounding Graphics. Unbound Potential

The Z6 G5 A is a powerhouse for virtual production, 3D rendering, AI and machine learning. Its innovative system design, with a next-gen AMD Ryzen™ Threadripper™ PRO CPU, combines an astounding number of cores in a single CPU with multiple GPUs. Create and render at once on intensive projects.

Create, render, process-all at once

Tear through virtual production, 3D modeling, AI and machine learning. The system design packs a staggering number of cores into a single workstation CPU so there's room for multiple high-end GPUs. And do it all with efficient performance per watt.

Comprehensive security. Trusted reliability

Get peace of mind with a workstation that's built to endure. The Z6 G5 A undergoes 360K hours of rigorous testing, MIL-STD testing, and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in, and above the OS.

Expandable. Flexible. Whisper Quiet

Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory configurations. Conquer intense projects with a device designed to run quiet and cool.

Part of the world's most sustainable PC portfolio

At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.

Features | HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.

AMD® Ryzen™ processor

Bring your ideas to life quickly and effectively with the latest AMD® Ryzen™ processors.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Ultra Fast Memory Configurations

Accelerate your workflow. Power through memory intensive workloads with fast visual effects, compositing, and rendering performance

Product TypeWorkstation
Technical Information
AI-poweredYes
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor ManufacturerAMD
Processor TypeRyzen Threadripper PRO
Processor Model7955WX
Processor CoreHexadeca-core (16 Core)
Processor Speed4.50 GHz
Processor SocketSocket SP6 LGA-4844
Processor Threads32
Chipset
Chipset ManufacturerAMD
Chipset ModelPRO 695
Memory
Standard Memory32 GB
Maximum Memory Supported1 TB
Memory TechnologyDDR5 SDRAM
Total Number of Memory Slots8
Error CheckingECC
Memory Configuration2 x 16 GB
Signal ProcessingRegistered
Storage
Drive TypeSSD
Total Solid State Drive Capacity1 TB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Controllers
Controller Type
  • Serial ATA/600
  • NVMe
RAID SupportedYes
RAID Levels0, 1, 5, 10
Display & Graphics
Graphics Controller ManufacturerNVIDIA
Graphics Controller ModelRTX 4000 Ada Generation
Graphics Memory Capacity20 GB
Graphics Memory AccessibilityDedicated
Maximum Memory Bandwidth360 GB/s
Network & Communication
Ethernet TechnologyGigabit Ethernet
Interfaces/Ports
Total Number of USB Ports12
Number of Onboard USB 2.0 Ports1
Number of USB 3.1 Gen 1 Ports8
Number of USB 3.2 Gen 1 Ports2
DisplayPortYes
Number Of Ethernet Ports1
Number of DisplayPort Outputs4
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

  • 2x10GbE LAN ports

Flex I/O Module:

  • 2x USB 3.0 Type-A
  • 1x USB 3.1 Gen2 Type-C charging port
Input Devices
Keyboard LocalizationFrench
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Operating System LanguageFrench
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage775 W
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Cooler TypeAir Cooler
Form FactorTower
Height17.52" (445 mm)
Width6.65" (169 mm)
Depth18.31" (465 mm)
Weight (Approximate)29.10 lb (13200 g)
Miscellaneous
Package Contents
  • Z6 G5 A Workstation Wolf Pro Security Edition
  • Keyboard
  • Mouse
Energy StarYes
TCO CertifiedYes
Environmentally FriendlyYes
Environmental CertificationElectronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC0199251097201
Warranty
Additional Warranty InformationHP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150ENW & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123ENUS.pdf
;
